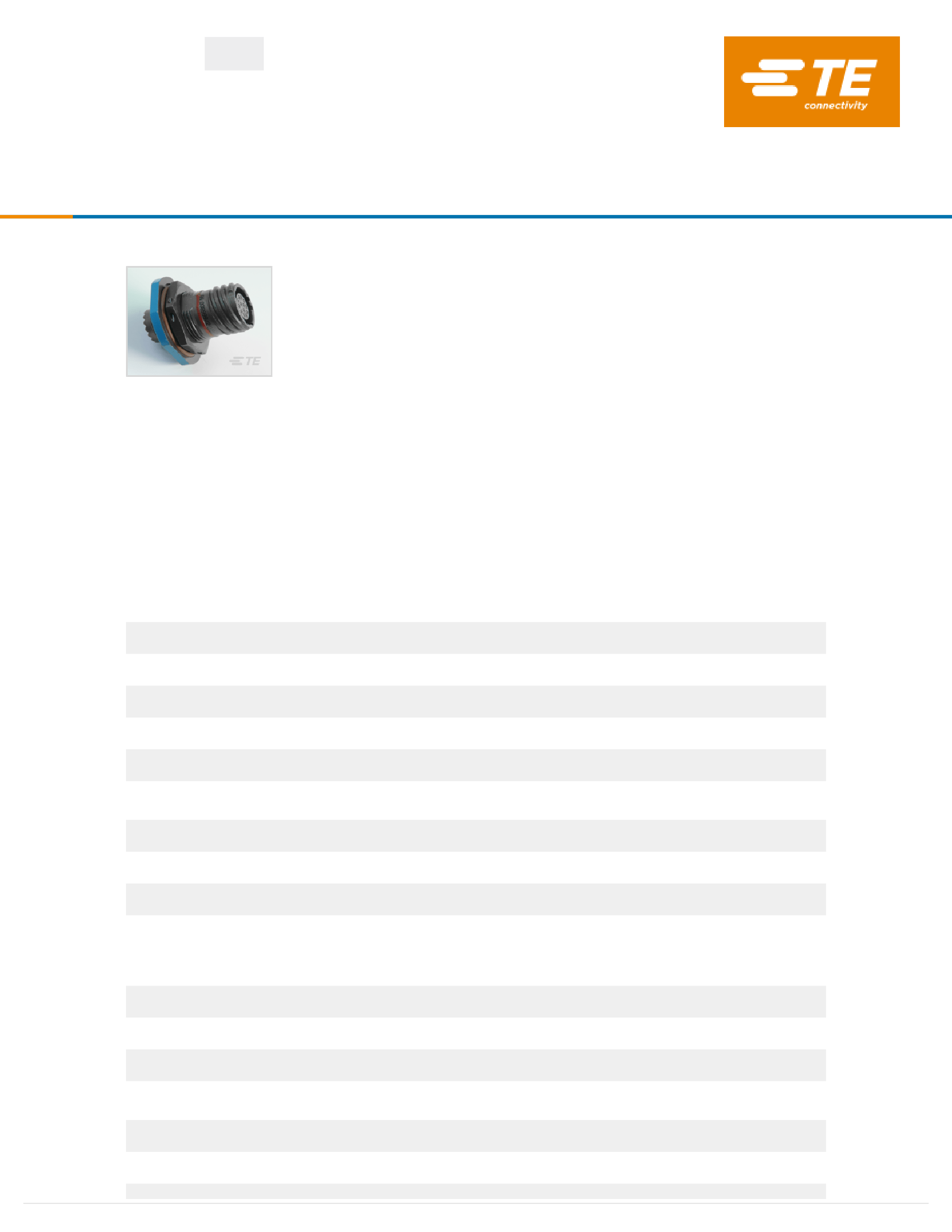

DTS24H15-35SE
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-Panel, 37 Position,
Sealable, Wire & Cable, 5A Contact Current Rating (Max), Signal
DTS24H15-35SE
ACTIVE
DEUTSCH
|
DEUTSCH 38999 Series III
TE Internal #: YDTS24H15-35SE0000
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-
Panel, 37 Position, Sealable, Wire & Cable, 5A Contact Current
Rating (Max), Signal
View on TE.com >
Connectors
>
Circular Connectors
>
Standard Circular Connectors
Connector System:
Cable-to-Panel
Number of Positions:
37
Sealable:
Yes
Connector & Contact Terminates To:
Wire & Cable
Contact Current Rating (Max):
5 A
Features
Product Type Features
Product Type
Connector System
Sealable
Connector & Contact Terminates To
Shell Type
Configuration Features
Number of Positions
Number of Power Positions
Number of Signal Positions
Contacts Preloaded
Body Features
Shell Base Material
Circular Connector Insulation Material Type
Hermetically Sealed
Contact Features
Contact Current Rating (Max)
Reverse Gender
Contact Layout Arrangement
5A
No
15 – 5
04/16/2021 06:51PM | Page 1
Connector
Cable-to-Panel
Yes
Wire & Cable
Jam Nut Receptacle
37
0
37
No
Stainless Steel
Glass
Yes
For support call+1 800 522 6752
DTS24H15-35SE
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-Panel, 37 Position,
Sealable, Wire & Cable, 5A Contact Current Rating (Max), Signal
Contact Layout Arrangement
Circular Connector Contact Type
Mechanical Attachment
Mating Retention Type
Polarization Code
Mating Alignment Type
Housing Features
Circular Connector Shell Size
Alignment Keyed
Dimensions
Wire Size
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
15 – 5
Socket
Threaded
E
Keyed
15
0°
22 – 28 AWG
-65 – 200 °C[-85 – 392 °F]
Signal
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant with Exemptions
Compliant with Exemptions
Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2021
(211)
Candidate List Declared Against: JUN 2020
(209)
SVHC > Threshold:
Not Yet Reviewed
Not Yet Reviewed for halogen content
Not reviewed for solder process capability
Halogen Content
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
For support call+1 800 522 6752
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
04/16/2021 06:51PM | Page 2
DTS24H15-35SE
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-Panel, 37 Position,
Sealable, Wire & Cable, 5A Contact Current Rating (Max), Signal
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

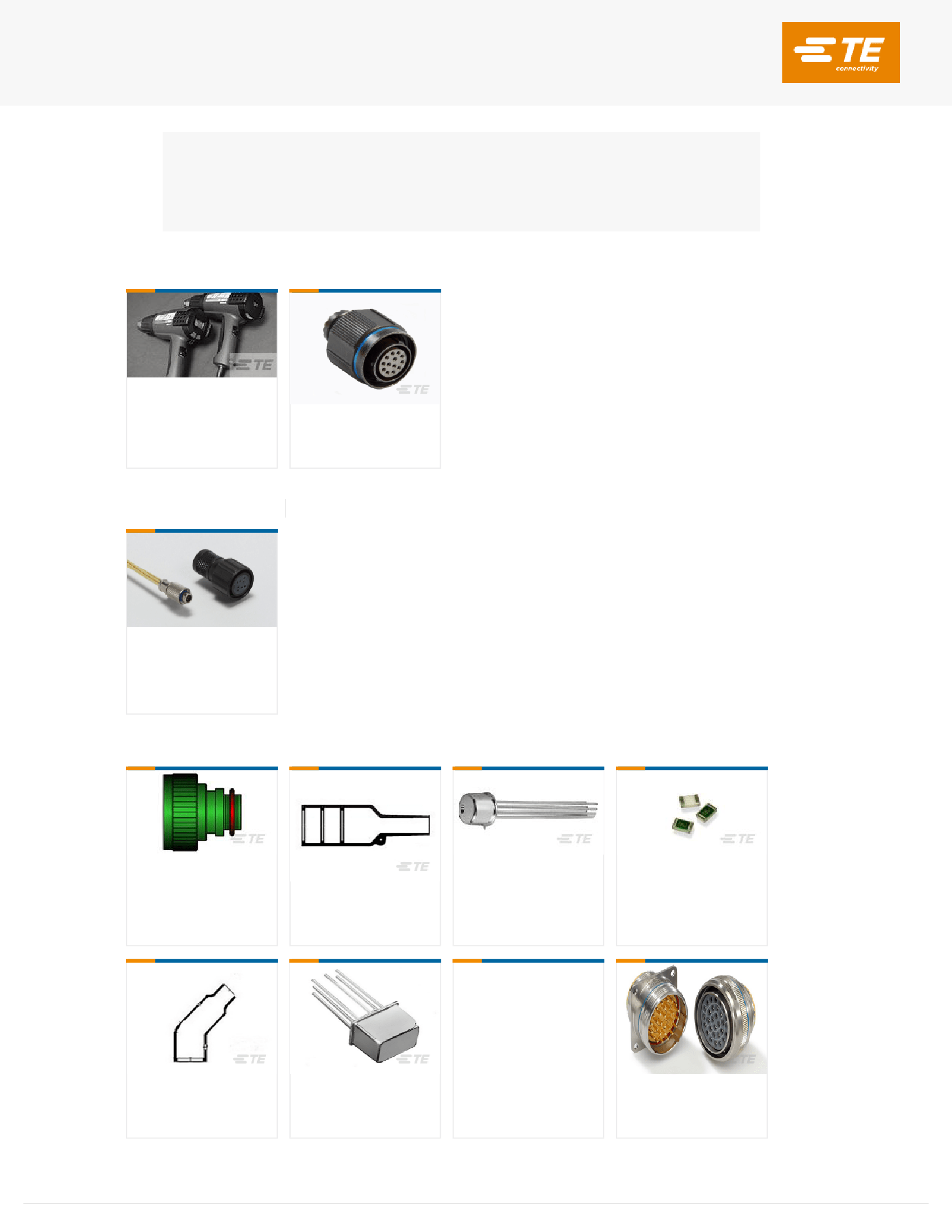

Compatible Parts
TE Part # CJ2087-000
HL2010E-KIT-120V
TE Part # YDTS26F15-35PEV001
PLUG ASSY
Also in the Series
DEUTSCH 38999 Series III
Standard Circular Connectors(38341)
Customers Also Bought
TE Part #661269-000
TXR21AB00-1605AI
TE Part #358203-000
Bulbous HS Boots: Lipped, Straight
TE Part #1617164-9
JMACT-5XM = M28776/1-025M
TE Part #2-1614894-3
CPF 0805 301K 0.1% 25PPM 1K RL
TE Part #642427-000
Heat Shrink Boots Poly Mold, Lipped
TE Part #1617147-5
JMGAP-26P = M39016/17-030P
TE Part #358279-000
382C312-50-01-0
TE Part #ZPF000000000007174
983-0RS 08-98 PN
For support call+1 800 522 6752
04/16/2021 06:51PM | Page 3
DTS24H15-35SE
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-Panel, 37 Position,
Sealable, Wire & Cable, 5A Contact Current Rating (Max), Signal
TE Part #1617119-5
J1MAW-18XP = M39016/7-021P
TE Part #CS8624-000
BSTS-15X4FR/NM
Documents
Product Drawings
DTS24H15-35SE
English
Datasheets & Catalog Pages
Hermetic Connectors
English
