SERIES
ESTABLISHED RELIABILITY
TO-5 RELAYS
SENSITIVE DPDT
432
ESTABLISHED RELIABILITY
SERIES
DESIGNATION
432
432D
432DD
432T
DPDT basic relay
RELAY TYPE
DPDT relay with internal diode for coil transient suppression
DPDT relay with internal diodes for coil transient suppression and polarity
reversal protection
DPDT relay with internal transistor driver and coil transient suppression
diode
INTERNAL CONSTRUCTION
DESCRIPTION
The TO-5 relay, originally conceived and developed by Teledyne, has become
one of the industry standards for low-level switching from dry circuit to 1
ampere. Designed for high-density PC board mounting, its small size and low
coil power dissipation make the 432 relay one of the most versatile
ultraminiature relays available.
The following unique construction features and manufacturing techniques
provide excellent resistance to environmental extremes and overall high
reliability.
• All welded construction.
• Unique uni-frame design, providing high magnetic efficiency and
mechanical rigidity.
• High force/mass ratios for resistance to shock and vibration.
• Advanced cleaning techniques provide maximum assurance of internal
cleanliness.
• Precious metal alloy contact material with gold plating assures excellent
high current and dry circuit switching capabilities.
The Series 432D and 432DD relays have internal discrete silicon diodes for
coil suppression and polarity reversal protection. The hybrid 432T relay has an
internal silicon suppression diode and a transistor driver. This hybrid package
reduces required PC board floor space by reducing the number of external
components needed to drive the relay.
By virtue of its inherently low intercontact capacitance and contact circuit
losses, the 432 relay has shown its worth as an RF switch for frequency
ranges well into the UHF spectrum (see Figure 1). In addition, the sensitive
Series 432 relay has a high resistance coil, thus requiring extremely low
operating power (200 milliwatts, typical at room temperature). The advantages
of reduced heat dissipation and power supply demands are a plus.

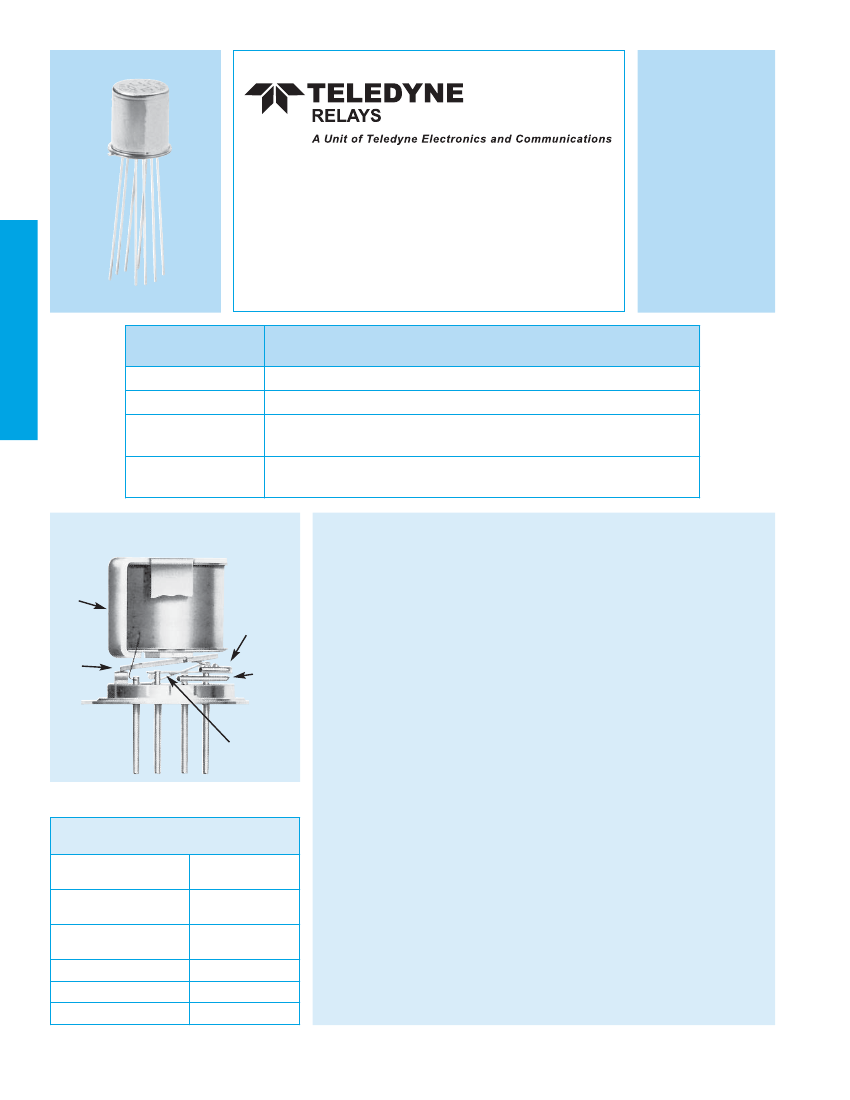

UNI-FRAME
UPPER
STATIONARY
CONTACT
ARMATURE
LOWER
STATIONARY
CONTACT
MOVING
CONTACT
ENVIRONMENTAL AND
PHYSICAL SPECIFICATIONS
Temperature
(Ambient)
Vibration
(General Note 1)
Shock
(General Note 1)
Acceleration
Enclosure
Weight
©2003 TELEDYNE RELAYS
–65°C to +125°C
30 g’s to 3000 Hz
75 g’s,
6 msec, half-sine
50 g’s
Hermetically sealed
0.159 oz. (4.5g) max.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
www.teledynerelays.com
432 Page
1
432/1203/Q1
SERIES 432
GENERAL ELECTRICAL SPECIFICATIONS
Contact Arrangement
Rated Duty
Contact Resistance
Contact Load Ratings (DC)
(See Fig. 2 for other DC
resistive voltage/current ratings)
Contact Load Ratings (AC)
Contact Life Ratings
(–65°C to +125°C unless otherwise noted) (Notes 2 & 3)
2 Form C (DPDT)
Continuous
0.1 ohm max. before life; 0.2 ohm max. after life at 1A/28Vdc (measured 1/8" from header)
Resistive:
Inductive:
Lamp:
Low Level:
Resistive:
1 Amp/28Vdc
200 mA/28Vdc (320 mH)
100 mA/28Vdc
10 to 50 μA/10 to 50mV
250 mA/115Vac, 60 and 400 Hz (Case not grounded)
100 mA/115Vac, 60 and 400 Hz (Case grounded)
10,000,000 cycles (typical) at low level
1,000,000 cycles (typical) at 0.5A/28Vdc resistive
100,000 cycles min. at all other loads specified above
ESTABLISHED RELIABILITY
Contact Overload Rating
2A/28Vdc Resistive (100 cycles min.)
Contact Carry Rating
Contact factory
Coil Operating Power
200 milliwatts typical at nominal rated voltage @ 25°C
Operate Time
4.0 msec max. at nominal rated coil voltage
Release Time
432 Series: 2.0 msec max. 432D, 432DD, 432T Series: 7.5 msec max.
Contact Bounce
1.5 msec max.
Intercontact Capacitance
0.4 pf typical
Insulation Resistance
10,000 megohms min. between mutually isolated terminals
Dielectric Strength
Atmospheric pressure: 500 Vrms/60Hz
70,000 ft.: 125 Vrms/60Hz
Negative Coil Transient (Vdc)
432D, 432DD, 432T
1.0 max
Diode P.I.V. (Vdc)
432D, 432DD, 432T
100 min.
Base Turn Off Voltage (Vdc)
0.3 min.
432T
Transistor
Emitter-base breakdown Voltage (BV
EBO
) (@25°C) (Vdc)
6.0 min.
Characteristics
Collector-base breakdown Voltage (BV
EBO
) (@25°C & lc = 100 μA) (Vdc)
75 min.
DETAILED ELECTRICAL SPECIFICATIONS
BASE PART
NUMBERS
(See Note 10 for full P/N example)
(–65°C to +125°C unless otherwise noted) (Note 3)
432-5
432D-5
432DD-5
432T-5
5.0
7.5
100
64
56.8
78.1
43.5
59.3
3.5
3.7
3.6
1.50
0.14
2.5
0.7
2.6
432-6
432D-6
432DD-6
432T-6
6.0
10.0
200
125
36.3
48.9
26.4
35.4
4.5
4.8
4.8
1.00
0.18
3.2
0.8
3.0
432-9
432D-9
432DD-9
432T-9
9.0
15.0
400
400
18.1
23.6
19.7
25.8
6.8
8.0
7.8
0.75
0.35
4.9
0.9
4.5
432-12
432D-12
432DD-12
432T-12
12.0
20.0
850
850
11.7
15.0
12.2
16.7
9.0
11.0
11.0
0.47
0.41
6.5
1.0
5.8
432-18
432D-18
432DD-18
432T-18
18.0
30.0
1600
1600
9.6
12.2
9.7
13.1
13.5
14.5
14.5
0.38
0.59
10.0
1.1
9.0
432-26
432D-26
432DD-26
432T-26
26.5
40.0
3300
3300
7.0
8.8
6.9
9.5
18.0
19.0
19.0
0.24
0.89
13.0
1.3
13.0
Nom.
Max.
432, 432D, 432T (Note 4)
Coil Resistance
(Ohms ±10% @25°C)
432DD (Note 4)
Min.
Coil Current (mAdc @25°C)
(432DD Series)
Max.
Min.
Coil Current (mAdc @25°C)
(Note 7)
(432T Series)
Max.
432, 432D
Pick-up Voltage (Vdc, Max.)
432DD
432T (Note 7)
Base Current to Turn On (mAdc, Max.)
(432T Series) (Note 7)
Min.
432, 432D, 432T
(Note 7)
Max.
Drop-out Voltage (Vdc)
Min.
432DD
Max.
Coil Voltage (Vdc)
PERFORMANCE CURVES
TYPICAL RF PERFORMANCE
(NOTE 2)
0
.1
.2
.3
.4
dB
INS
ERT
ION
LOS
TYPICAL DC CONTACT RATING (RESISTIVE)
300
S
LOAD VOLTAGE (VDC)
250
200
150
100
50
10
20
30
40
50
60
70
.01
0.5
.1
.5
1.0
RN
RETU
LOSS
R)
(VSW
S
ACT
O NT
1.92
1.22
ES
ATIO
ISOL
N AC
ROS
ISOL
N
ATIO
A
SS
CRO
POL
1.02
1.01
1.00
1.00
VSWR
SC
1.07
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
FIGURE 1
432 Page
2
FREQUENCY (GHz)
FIGURE 2
LOAD CURRENT (AMPS DC)
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
www.teledynerelays.com
©2003 TELEDYNE RELAYS
432/1203/Q1
SERIES 432

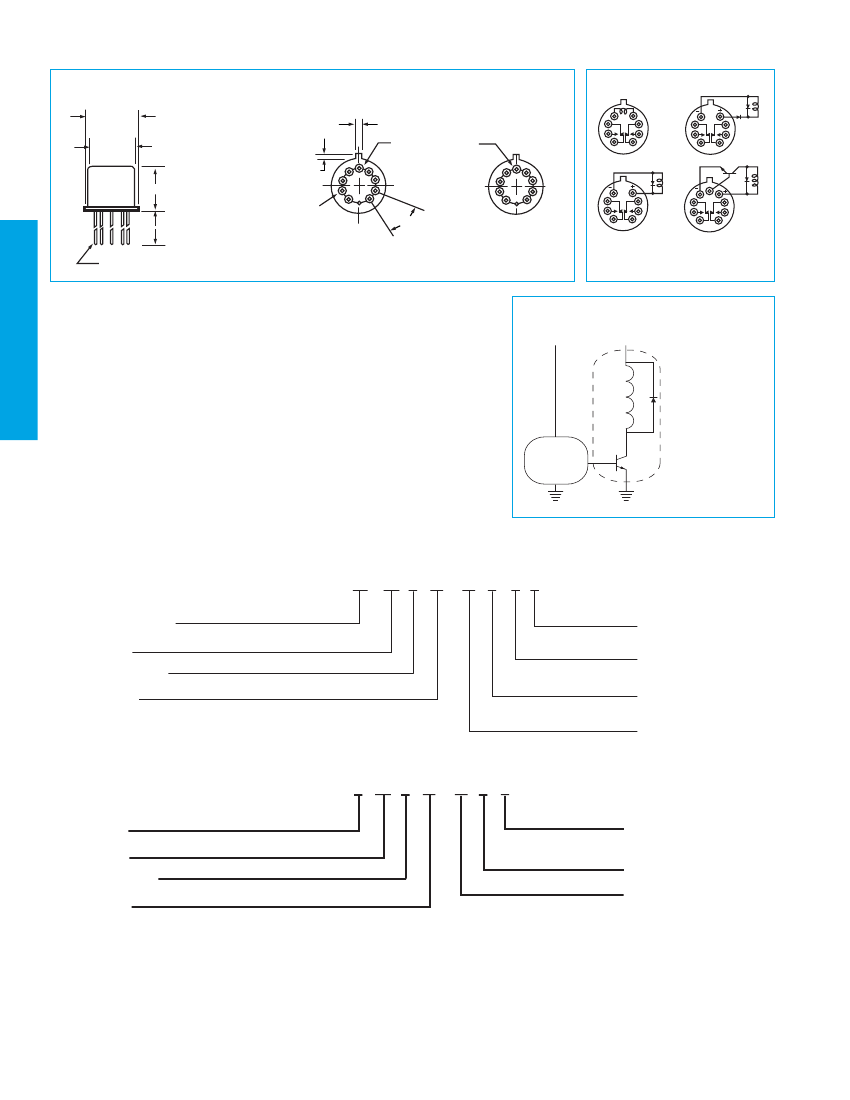

OUTLINE DIMENSIONS
.370
(9.40)
DIA. MAX.
.335
(8.51)
DIA. MAX.
.035 (.89)
±.010 (0.25)
.375 (9.52) MAX.
.200 (5.08)
±.010 (.25) DIA.
TERMINAL LOCATIONS AND PIN NUMBERING (REF. ONLY)
(Viewed from Terminals)
.031 (.79)
±.003 (0.08)
TRANSISTOR BASE
CONNECTION FOR
432T ONLY
SCHEMATIC DIAGRAMS
10
9
8
7
6
4
1
2
3
5
432
432DD
ESTABLISHED RELIABILITY
WIRE LEAD: .75 (19.05) MIN.
PIN: .187 (4.75) ±.010 (.25)
(See Note 6)
+.002 (.05)
.017 (.43) –.001 (.03) DIA.
36° ±3°
TYP.
432D
432T
DIMENSIONS ARE SHOWN IN INCHES (MILLIMETERS)
SCHEMATICS ARE VIEWED
FROM TERMINALS
GENERAL NOTES
1. Relay contacts will exhibit no chatter in excess of 10 μsec or transfer in
excess of 1 μsec.
2. “Typical” characteristics are based on available data and are best estimates.
No on-going verification tests are performed.
3. Unless otherwise specified, parameters are initial values.
4. For reference only. Coil resistance not directly measurable at relay terminals
due to internal series semiconductor. 432DD and 432T only.
5. Unless otherwise specified, relays will be supplied with either gold-plated or
solder-coated leads.
6. The slash and characters appearing after the slash are not marked on the
relay.
7. Limit Base Emitter current to 15 mAdc.
8. Applicable to all coil voltages. See Base current to turn on.
9. Screened HI-REL versions available. Contact factory.
10.
2
TYPICAL LOGIC INTERFACE
(See Note 8)
Vcc
Vr
Pin 1
Notes:
Logic 1 activates the relay.
Logic 0 de-activates the relay.
Vcc = logic bias power.
Vr = coil energization voltage.
Logic element
1 = 0.24 to 1.50mA
0 = 0.3Vdc min.
Pin 10
Pin 9
Teledyne Part Numbering System for
T R
® Established Reliability Relay
ER
432 Y
M - 26
A / S Q
Q= Solder Coated Leads
G= Gold Plated Leads
(Notes 5 and 6)
S= 0.187" leads
(Note 6)
Screening and Reliability
Level
Coil Voltage
Teledyne Part Numbering System for Military Qualified (JAN) Relays
J
432 Y
M - 26
P
L
Screening and Reliability
Level
Terminal Variant
P = 0.187"
Coil Voltage
Established Reliability
Designator
Relay Series
Optional Ground Pin
(See Appendix)
Pad Option
(See Appendix)
Military (JAN)
Designator
Relay Series
Optional Ground Pin
(See Appendix)
Pad Option
(See Appendix)
©2003 TELEDYNE RELAYS
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
www.teledynerelays.com
432 Page
3
432/1203/Q1
Appendix A: Spacer Pads
Pad designation and
bottom view dimensions
Ø.150
[3.81]
(REF)
Height
For use with the following:
ER411T
ER412, ER412D, ER412DD
712, 712D, 712TN,
RF300, RF310, RF320
ER420, ER422D, ER420DD, 421,
ER421D, ER421DD, ER422, ER422D,
ER422DD, 722, 722D, RF341
ER431T, ER432T,
ER432, ER432D, ER432DD
732, 732D, 732TN, RF303, RF313,
RF323
RF312
ER411, ER411D, ER411DD
Dim. H
Max.
.295 (7.49)
.300 (7.62)
.305 (7.75)
.400 (10.16)
.410 (10.41)
.350 (8.89)
.295 (7.49)
.400 (10.16)
.300 (7.62)
.410 (10.41)
.305 (7.75)
.300 (7.62)
Dim
H
MAX
“M4” Pad for TO-5
Dim
H
MAX
ER431, ER431D, ER431DD
RF311
“M4” Pad for TO-5
RF331
172, 172D
Dim
H
MAX
ER114, ER114D, ER114DD,
J114, J114D, J114DD
ER134, ER134D, ER134DD,
J134, J134D, J134DD
RF100
.400 (10.16)
.315 (8.00)
.420 (10.67)
.320 (8.13)
.300 (7.62)
.400 (10.16)
.325 (8.25)
.305 (7.75)
“M4” Pad for Centigrid
®
.156
[3.96]
(REF)
RF103
122C, A152
Dim
H
MAX
ER116C, J116C
ER136C, J136C
RF180
.256
[6.5]
(REF)
“M9” Pad for Centigrid
®
A150
Notes:
1. Spacer pad material: Polyester ¿lm.
2. To specify an “M4” or “M9” spacer pad, refer to the mounting variants portion of the part numbering
example in the applicable datasheet.
3. Dimensions are in inches (mm).
4. Unless otherwise speci¿ed, tolerance is ± .010 (.25).
5. Add 10 m to the contact resistance show in the datasheet.
6. Add 0.01 oz. (0.25 g) to the weight of the relay assembly shown in the datasheet.
© 2008 Teledyne Relays
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Appendix A: Spreader Pads
Pad designation and
bottom view dimensions
.370 [9.4]
MAX SQ
.100
[2.54]
Height
For use with the following:
ER411T, J411T, ER412, ER412D
ER412DD, J412, J412D, J412DD
ER412T, J412T
712, 712D, 712TN
ER431T, J431T, ER432, ER432D
ER432DD, J432, J432D, J432DD
ER432T, J432T
732, 732D, 732TN
ER420, J420, ER420D, J420D
ER420DD, J420DD, ER421, J421
ER421D, J421D, ER421DD
J422D, ER422DD, J422DD, 722
ER411T
ER412, ER412D, ER412DD
J412, J412D, J412DD
Dim. H
Max.
.388 (9.86)
.393 (9.99)
.493 (12.52)
.503 (12.78)
.398 (10.11)
Dim
H
MAX
.150
[3.81]
.014
[0.36]
(REF)
.300
[7.62]
.100
[2.54]
.200
[5.08]
.370
[9.4]
MIN
“M” Pad 5/ 6/
.390 [9.91]
SQ
.100
[2.54]
.441 (11.20)
.451 (11.46)
.451 (11.46)
.546 (13.87)
.556 (14.12)
.100
[2.54]
.150
[3.81]
.300
[7.62]
Dim
H
MAX
.300
[7.62]
.150
[3.81]
.130
[3.3]
712, 712D
ER421, ER421D, ER421DD
722, 732D
ER431T
ER432, ER432D, ER432DD
732, 732D
ER411, ER411D, ER411DD
ER411TX
ER412X, ER412DX, ER412DDX
ER412TX
712X, 712DX, 712TNX
ER420X, ER420DX, ER420DDX
ER421X, ER421DX, ER421DDX
ER422X, ER422DX
ER422DDX, 722X, 722DDX
ER431, ER431D, ER431DD
ER431TX
ER432X, ER432DX, ER432DDX
ER432TX
732X, 732DX, 732TNX
“M2” Pad 7/ 8/
.370 [9.4]
MAX SQ
.100
[2.54]
.388 (9.86)
.393 (9.99)
.398 (10.11)
Dim
H
MAX
.150
[3.81]
.300
[7.62]
.100
[2.54]
.014
[0.36]
(REF)
.200
[5.08]
.370
[9.4]
MIN
.493 (12.52)
.503 (12.78)
“M3” Pad 5/ 6/ 9/
Notes:
1. Spreader pad material: Diallyl Phthalate.
2. To specify an “M”, “M2” or “M3” spreader pad, refer to the mounting variants portion of the part number example
in the applicable datasheet.
3. Dimensions are in inches (mm).
4. Unless otherwise speci¿ed, tolerance is ± .010” (0.25).
5/. Add 25 m to the contact resistance shown in the datasheet.
6/. Add .01 oz. (0.25 g) to the weight of the relay assembly shown in the datasheet.
7/. Add 50 m to the contact resistance shown in the datasheet.
8/. Add 0.025 oz (0.71 g) to the weight of the relay assembly shown in the datasheet.
9/. M3 pad to be used only when the relay has a center pin (e.g. ER411M3-12A, 722XM3-26.)
(800) 284-7007 • www.teledynerelays.com
+44 (0) 1236 453124 • www.teledyne-europe.com
© 2008 Teledyne Relays
京公网安备 11010802033920号
EEWORLD
