XC6501A282MR

Description
Fixed Positive LDO Regulator, 2.8V, 0.36V Dropout, CMOS, PDSO5, SOT-25, 5 PIN
CategoryPower/power management    The power supply circuit
File Size882KB,34 Pages
ManufacturerTOREX
Websitehttp://www.torex.co.jp/chinese/
Environmental Compliance
Download Datasheet Parametric View All

XC6501A282MR Overview

Fixed Positive LDO Regulator, 2.8V, 0.36V Dropout, CMOS, PDSO5, SOT-25, 5 PIN

XC6501A282MR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTOREX
package instructionSOT-25, 5 PIN
Reach Compliance Codecompli
Maximum drop-back voltage 10.36 V
Maximum input voltage6 V
Minimum input voltage3.3 V
JESD-30 codeR-PDSO-G5
length2.9 mm
Number of functions1
Number of terminals5
Working temperatureTJ-Max125 °C
Maximum output current 10.2 A
Maximum output voltage 12.828 V
Minimum output voltage 12.772 V
Nominal output voltage 12.8 V
Package body materialPLASTIC/EPOXY
encapsulated codeLSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Regulator typeFIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height1.3 mm
surface mountYES
technologyCMOS
Terminal formGULL WING
Terminal pitch0.95 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width1.6 mm

XC6501A282MR Preview

XC6501

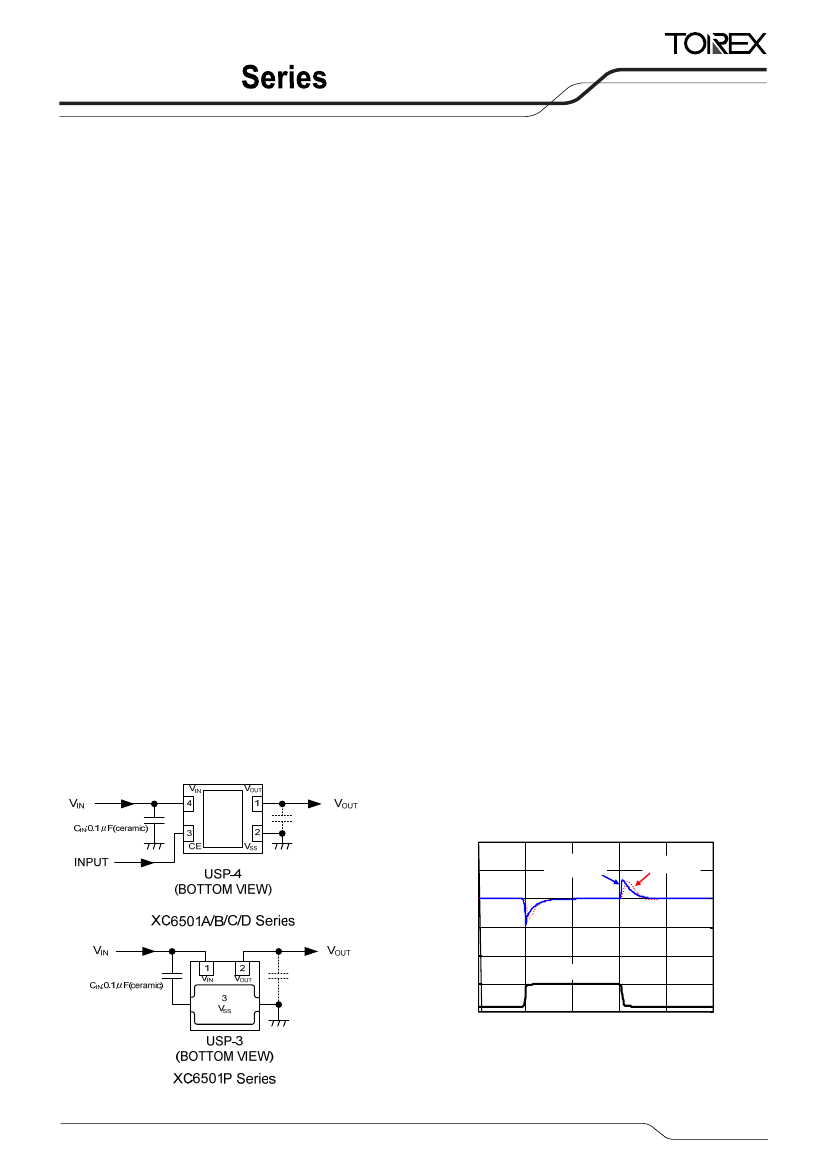

■GENERAL
DESCRIPTION
ETR03037-010a
200mA High Speed LDO Regulator, Output Capacitor-Less, Low Power Consumption
The XC6501 series is a high speed, low noise CMOS LDO regulator that can provide stable output voltages even without a load
capacitor C
L
. This is possible because phase compensation is carried out internally unlike other LDOs where it is done
externally. The series consists of a reference voltage source, driver transistor, error amplifier, current limit circuit, and phase
compensation circuit.
The CE function enables the circuit to be put into stand-by mode by inputting a low level signal to the CE pin thereby reducing
current consumption from an already low 13μA (in operation) to less than 0.1μA. In the stand-by mode, if a C
L
capacitor is used,
the electric charge stored at C
L
can be discharged via the internal auto-discharge switch and as a result, the V
OUT
pin quickly
returns to the V
SS
level.
The current limit fold-back circuit operates as a short circuit protection and a current limiter function for the output pin.
■APPLICATIONS
●Smart
phones / Mobile phones
●Portable
games
●Modules
(wireless, cameras,etc.)
●Bluetooth
●Digital-TV
tuners
■FEATURES
Maximum Output Current
Operating Voltage Range
Output Voltage Range
Output Voltage Accuracy
Dropout Voltage
Low Power Supply
Stand-by Current
Ripple Rejection
Protection Circuits
Output capacitor is not required
C
L
High Speed Auto Discharge
Operating Ambient Temperature
Packages
Environmentally Friendly
:
:
:
:
:
:
:
:
:
:
:
:
200mA
1.4½6.0V
1.2½5.0V
±1%
or
±0.02V
150mV@I
OUT
=100mA, V
OUT
=2.8V
13μ
@V
OUT
=2.8V
A
Less than 0.1μ
A
50dB@f=1kHz,V
OUT
=2.8V
Current limit
(300mA,
TYP.)
Short circuit protection
Internal phase compensation
-40℃½+85℃
SOT-25, SSOT-24, USP-4,
USPN-4,USP-3, WLP-4-01
EU RoHS Compliant, Pb Free
:
■TYPICAL
APPLICATION CIRCUIT
■TYPICAL
PERFORMANCE
CHARACTERISTICS
XC6501 Series
Ta=25
,tr=tf=5μs
C
IN
=0.1μF (ceramic)
3.2
(V)
3.0
2.8
2.6
2.4
2.2
2.0
Time (40μs/div)
Output Current
300
Output Current: I
OUT
(mA)
Without C
L
C
L
無し
C
L
=1.0μF
250
200
150
100
50
0
Output Voltage: V
OUT
1/34
XC6501 Series
■PIN
CONFIGURATION
V
OUT
1
V
SS
4
2 V
IN
3 CE
WLP-4-01
(BOTTOM VIEW)
*The heat dissipation pad of the USP-4 package is reference to solder as the reference
mount pattern and metal mask pattern for mounting strength. The mount pattern should
be electrically opened or connected to the V
SS
(No.2) pin.
■PIN
ASSIGNMENT
PIN NUMBER
WLP-4-01
2
1
4
3
-
USP-3
1
2
3
-
-
USP-4
4
1
2
3
-
SSOT-24
4
3
2
1
-
SOT-25
1
5
2
3
4
USPN-4
4
1
2
3
-
PIN NAME
V
IN
V
OUT
V
SS
CE
NC
FUNCTIONS
Power Supply Input
Output
Ground
ON/OFF Control
No Connection
■FUNCTION
CHART
1)XC6501 series A/B type
PIN NAME
SIGNAL
L
CE
H
OPEN
STATUS
OFF
ON
Undefined
2)XC6501 series C/D type
PIN NAME
SIGNAL
L
CE
H
OPEN
STATUS
OFF
ON
OFF
2/34
XC6501
Series
■PRODUCT
CLASSIFICATION
Ordering Information
XC6501①②③④⑤⑥-⑦
(*1)
DESIGNATOR
ITEM
SYMBOL
A
B
C
D
P
12½50
1
(*3)
Output Voltage Type
[Accuracy]
A
(*3)
2
B
HR
HR-G
GR
GR-G
NR
NR-G
MR
MR-G
7R-G
0R-G
DESCRIPTION
CE High Active, Without CE Pull-down, Without C
L
discharge
CE High Active, Without CE Pull-down, With C
L
discharge
CE High Active, With CE Pull-down, Without C
L
discharge
CE High Active, With CE Pull-down, With C
L
discharge
3 pin, without CE pin (USP-3)
ex.)28V
→ ②=2, ③=8
0.1V increments ex.)1.80V
→ ②=1, ③=8, ④=1
[±0.02V @ 1.2V½1.9V, ±1% @ 2.0V½5.0V]
0.05V increments ex.)1.85V
→ ②=1, ③=8, ④=A
[±0.02V @ 1.25V½1.95V, ±1% @ 2.05V½4.95V]
0.1V increments ex.)1.80V
→ ②=1, ③=8, ④=2
[±0.03V @ 1.2V½1.4V, ±2% @1.5V½5.0V]
0.05V increments ex.)1.85V
→ ②=1, ③=8, ④=B
[±0.03V @ 1.25V½1.45V, ±2% @ 1.55V½4.95V]
USP-3
(*2)
(3,000pcs/Reel)
USP-3
(*2)
(3,000pcs/Reel)
USP-4 (3,000pcs/Reel)
USP-4 (3,000pcs/Reel)
SSOT-24 (3,000pcs/Reel)
SSOT-24 (3,000pcs/Reel)
SOT-25 (3,000pcs/Reel)
SOT-25 (3,000pcs/Reel)
USPN-4 (5,000pcs/Reel)
WLP-4-01 (5,000pcs/Reel)
Regulator Type
②③
Output Voltage
⑤⑥-⑦
(*1)
Packages
(Order Unit)
(*1)
(*2)
The “-G” suffix denotes Halogen and Antimony free as well as being fully EU RoHS compliant.
USP-3 is available only for XC6501P series.
(*3)
They are not used in the WLP-4-01.
3/34
XC6501 Series

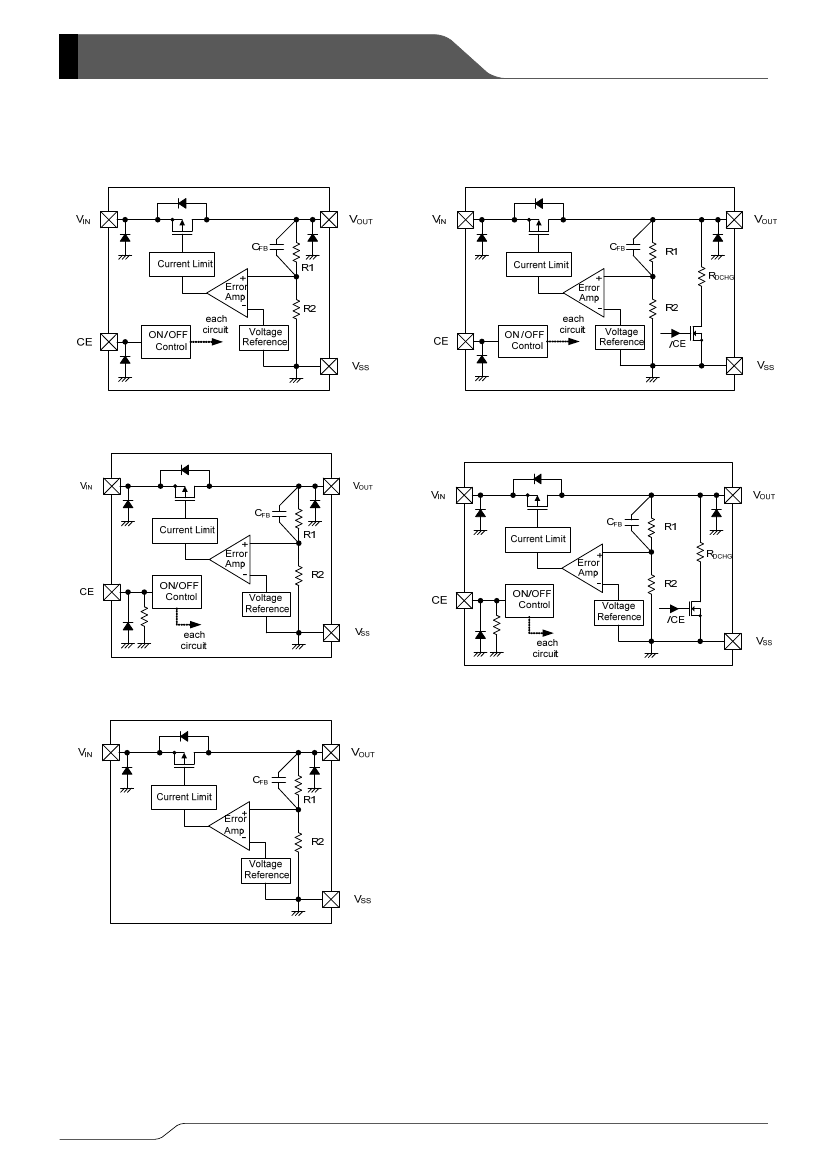

■BLOCK
DIAGRAMS
1) XC6501 Series A type
2) XC6501 Series B type
3) XC6501 Series C type
4) XC6501 Series D type
5) XC6501 Series P type
*Diodes inside the circuit are an ESD protection diode and a parasitic diode.
*図のダイオードは、静電保護用のダイオードと寄生ダイオードです。
4/34
XC6501
Series
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Input Voltage
Output Current
Output Voltage
CE Input Voltage
USPN-4
USP-3
Power Dissipation
USP-4
SSOT-24
SOT-25
WLP-4-01
Operating Ambient Temperature
Storage Temperature
* All voltages are described based on the V
SS
pin.
(*1) I
OUT
≦Pd/(V
IN
-V
OUT
(*2) The maximum value should be V
IN
+0.3 or +6.5 in the lowest.
(*3) The power dissipation figure shown is PCB mounted and is for reference only. Please refer to page 26~31 for details.
SYMBOL
V
IN
I
OUT
V
OUT
V
CE
Pd
Topr
Tstg
RATINGS
-0.3½+6.5
400
(*1)
-0.3½V
IN
+0.3 or +6.5
(*2)
-0.3½+6.5
100
600 (PCB mounted)
(*3)
120
1000 (PCB mounted)
(*3)
120
1000 (PCB mounted)
(*3)
150
500 (PCB mounted)
(*3)
250
600 (PCB mounted)
(*3)
660 ( PCB mounted)
(*3)
-40½+85
-55½+125
UNITS
V
mA
V
V
mW
5/34
