CMH2-100-5493-F datasheet, PDF

CMH2-100-5493-F: DescriptionFixed Resistor, Metal Glaze/thick Film, 2W, 549000ohm, 5000V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size166KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

CMH2-100-5493-F Overview

Fixed Resistor, Metal Glaze/thick Film, 2W, 549000ohm, 5000V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TT Electronics plc
package instruction	Axial,
Reach Compliance Code	compli
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V): 5000
structure	High Voltage
JESD-609 code	e0
Lead diameter	0.81 mm
Lead length	38.1 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	175 °C
Package diameter	7.54 mm
Package length	26.97 mm
Package shape	TUBULAR PACKAGE
Package form	Axial
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	549000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	5000 V

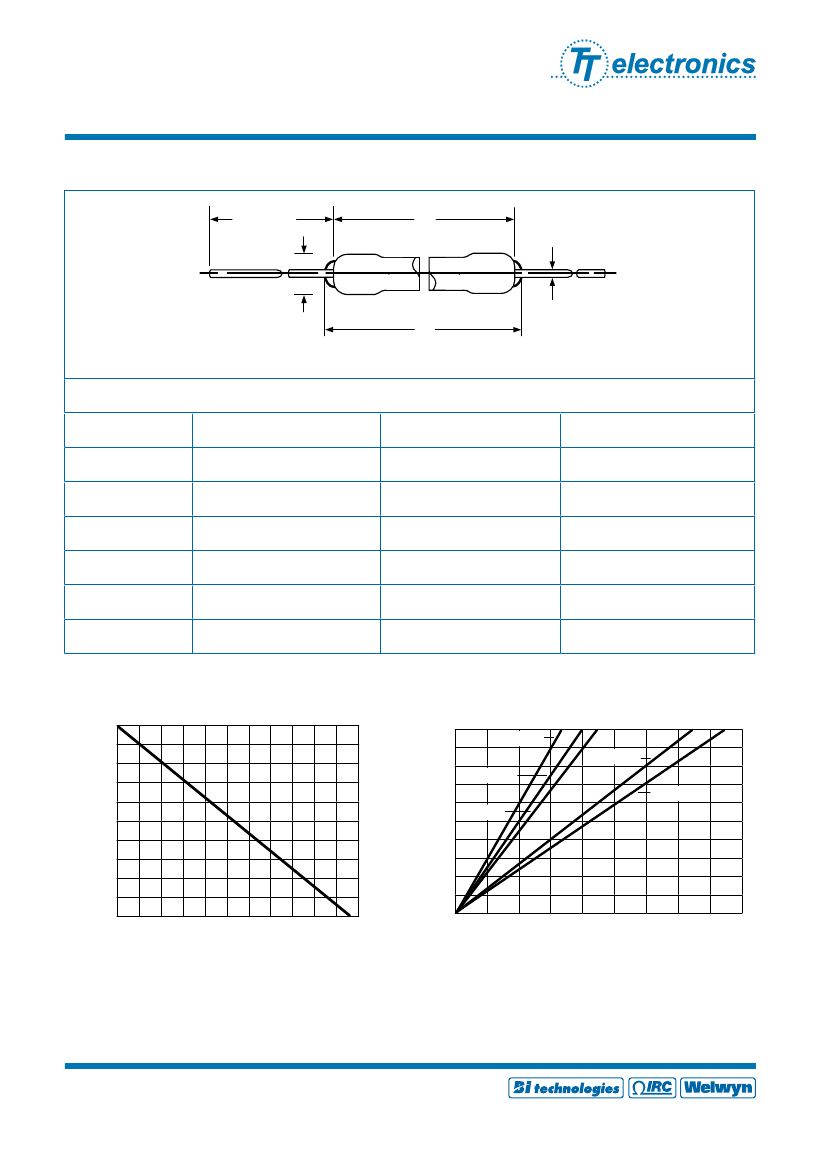

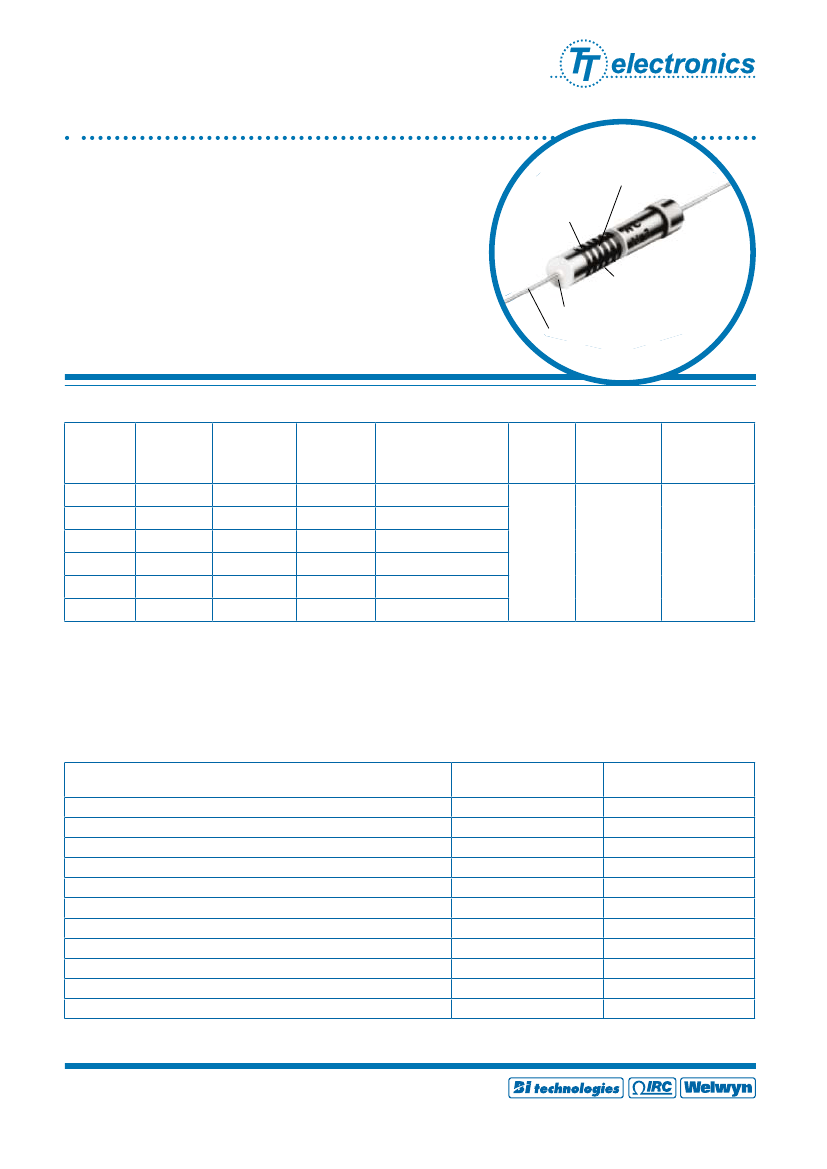

Thick Film High Voltage/

High Reliability MIL-Approved

Metal Glaze™ Resistors

CMH Series

·

1/4 watt to 5 watt

TCR of ±100 ppm/°C

Qualified to MIL-R-49462

330K ohm to 1G ohm range

±1%, ±2%, or ±5% tolerance

General Note

TT electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

www.bitechnologies.com www.irctt.com www.welwyn-tt.com

09. 11
