LM140ASG-12 datasheet, PDF - EEWORLD Datasheet

LM140ASG-12: DescriptionFixed Positive Standard Regulator, 12VCBCC3, CERAMIC, TO-220, 3 PIN; CategoryPower/power management The power supply circuit; File Size242KB，5 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

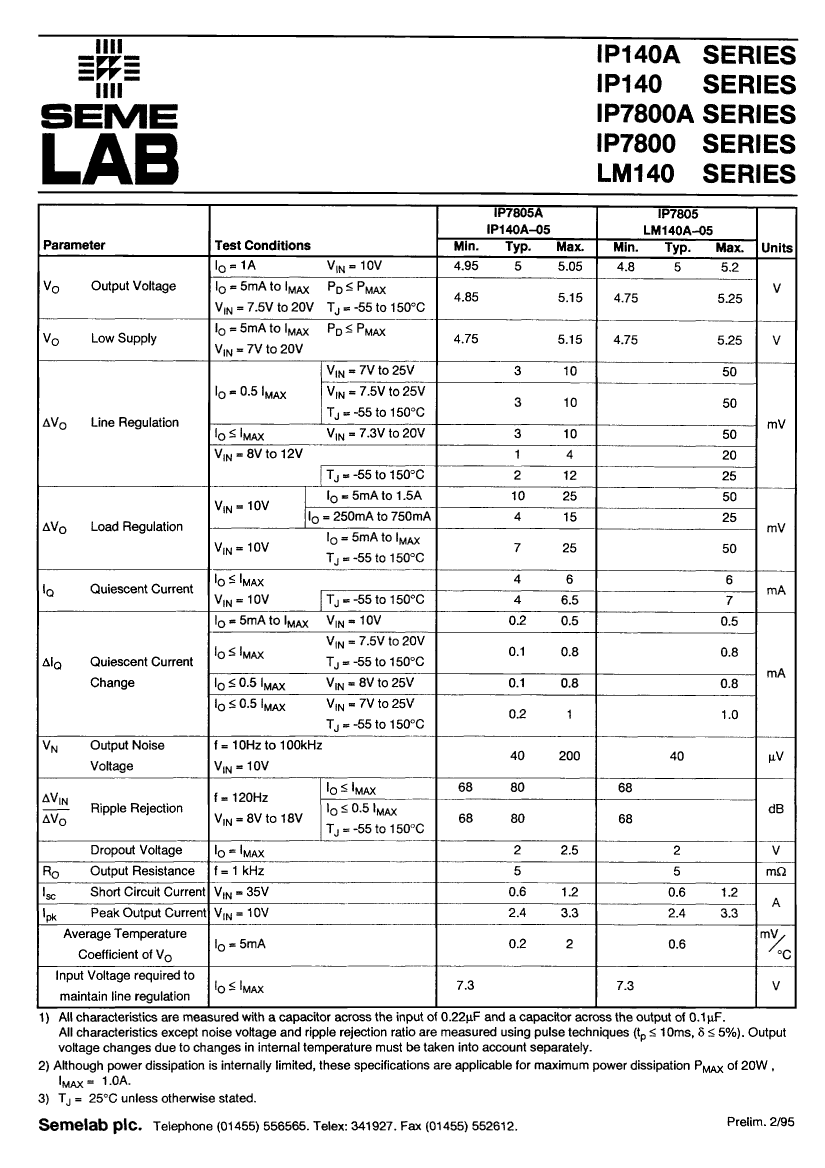

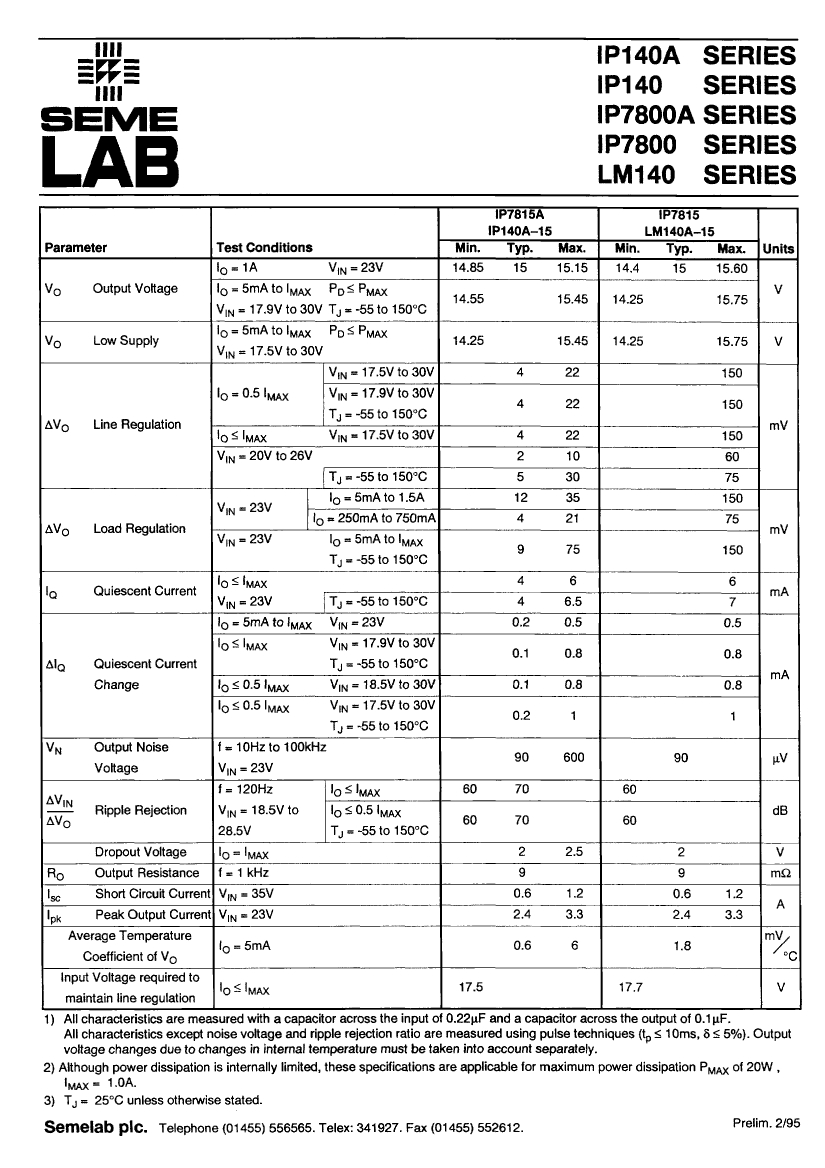

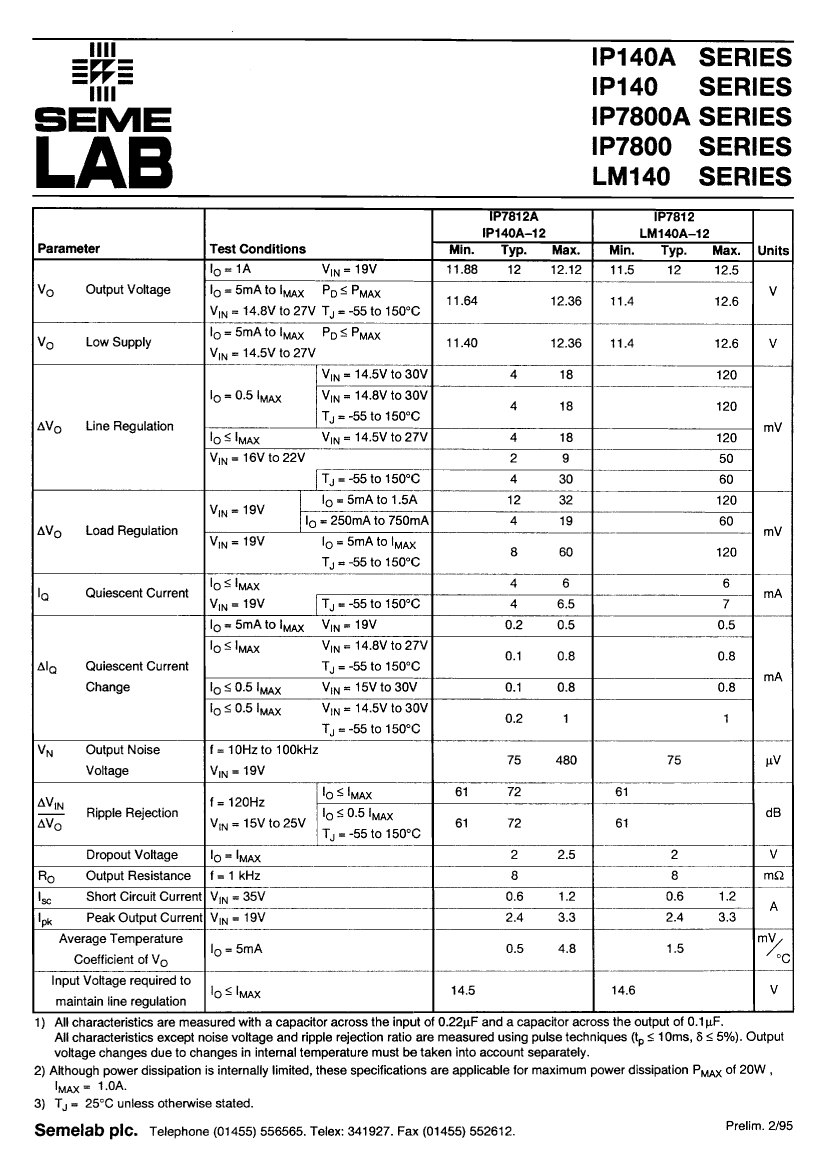

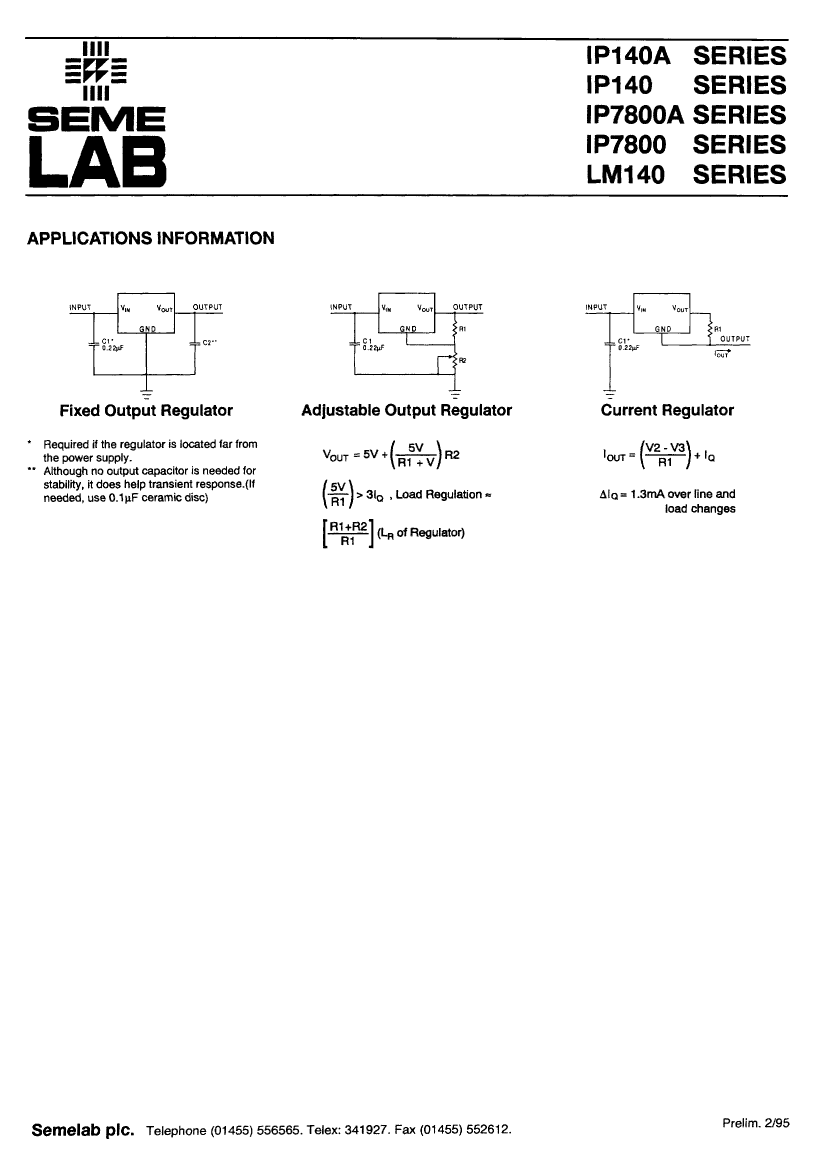

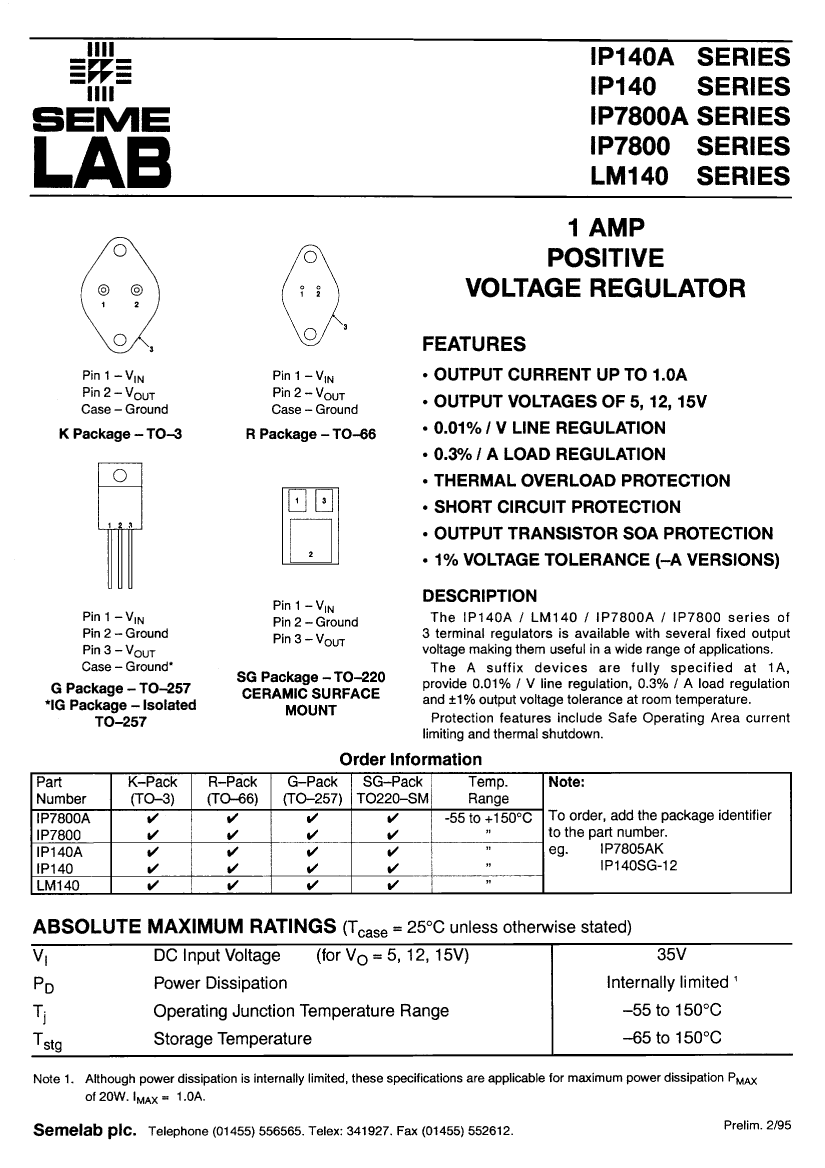

LM140ASG-12 Overview

Fixed Positive Standard Regulator, 12VCBCC3, CERAMIC, TO-220, 3 PIN

Parameter Name	Attribute value
Maker	TT Electronics plc
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum input voltage	30 V
Minimum input voltage	14.8 V
JESD-30 code	R-CBCC-N3
length	15.875 mm
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Operating temperatureTJ-Mi	-55 °C
Maximum output current 1	1 A
Maximum output voltage 1	12.6 V
Minimum output voltage 1	11.4 V
Nominal output voltage 1	12 V
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	4.1 mm
surface mount	YES
Terminal form	NO LEAD
Terminal location	BOTTOM
width	11.43 mm

	LM140ASG-12	LM140ASG-15	IP140SG
Description	Fixed Positive Standard Regulator, 12VCBCC3, CERAMIC, TO-220, 3 PIN	Fixed Positive Standard Regulator, 15VCBCC3, CERAMIC, TO-220, 3 PIN	Fixed Positive Standard Regulator, 5VCBCC3, CERAMIC, TO-220, SMT-3
Maker	TT Electronics plc	TT Electronics plc	TT Electronics plc
Reach Compliance Code	unknow	unknown	unknow
ECCN code	EAR99	EAR99	EAR99
Maximum input voltage	30 V	30 V	25 V
Minimum input voltage	14.8 V	17.5 V	7 V
JESD-30 code	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3
length	15.875 mm	15.875 mm	15.8 mm
Number of functions	1	1	1
Number of terminals	3	3	3
Working temperatureTJ-Max	150 °C	150 °C	150 °C
Maximum output current 1	1 A	1 A	1 A
Maximum output voltage 1	12.6 V	15.75 V	5.15 V
Minimum output voltage 1	11.4 V	14.25 V	4.85 V
Nominal output voltage 1	12 V	15 V	5 V
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	4.1 mm	4.1 mm	3.25 mm
surface mount	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal location	BOTTOM	BOTTOM	BOTTOM
width	11.43 mm	11.43 mm	11.5 mm
Operating temperatureTJ-Mi	-55 °C	-	-55 °C
