249-5027-000: DescriptionITT CANNON - 031-1303-000 - CONTACT; SOCKET; 20-16AWG; CRIMP; CategoryThe connector; File Size682KB，19 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet View All

249-5027-000 Overview

ITT CANNON - 031-1303-000 - CONTACT; SOCKET; 20-16AWG; CRIMP

Preview

Download Datasheet

View All

ARINC 600

BKAD/E/F

Low insertion force contacts.

Both environmental and non- environmental

versions.

Polarizing posts that are removable from the

mating face.

Field replaceable inserts for size 22 and

power contacts.

Up to 800 size 22 contacts in one connector.

Crimp, coax, power, printed circuit and wire

wrappable post style contacts.

Uses standard DPX crimp, insertion/extraction

tooling.

Waveguide connections available.

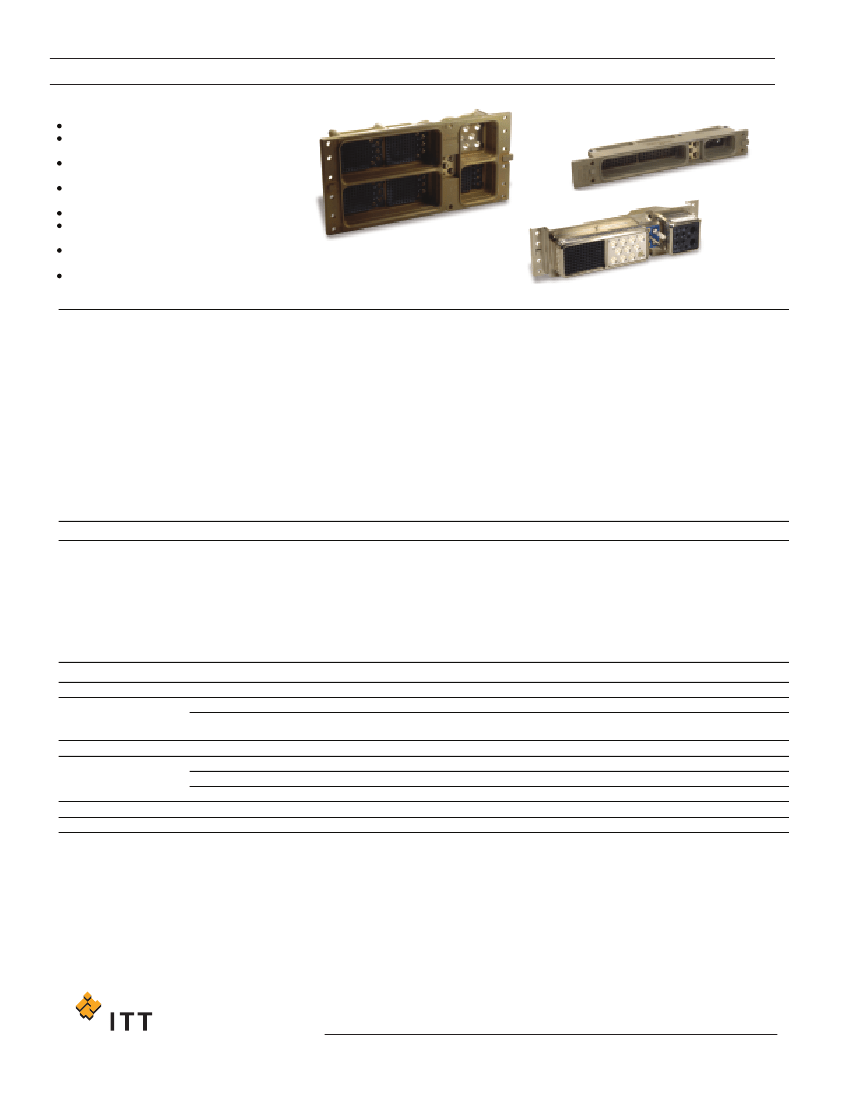

BKAD/E

Rear Release/Rear Removable

Size 12, 16, 20, 22 Crimp Contacts

BKAF

Front Release/Front Removable

Size 22 Solder Tail and Wrap Post Contacts

BKAD/E connectors represent the standard

for new avionic systems developed to support

the air transportation market. Several important

design concerns have been addressed and

solved in this new series. High mating

forces of pluggable modules in a rack have been

reduced by approximately two-thirds.

The low insertion force contacts are also inter-

changeable with the contacts used in the DPX

series and permit retrofit of existing equipment.

This new connector is totally intermateable and

intermountable with ARINC 600 connectors now in

the field.

The BKAF permits the user to easily replace a

contact in case of problems, rather than disas-

semble the entire connector--it is available with

size 22 contacts in wrap post or solder-tail ver-

sions. The system maintains the advantages of low

insertion force technology incorporated in all ARINC

600 connectors.

Pos-Aline Connector Construction Feature

In the ARINC 600 connector series, Size 22 con-

tacts are the only size that utilize this design

feature. The hooded socket extends from its in-

sulator while the pin contacts are shrouded by its

front insulator.

All other contacts used in this series employ stan-

dard contact design.

The result is that the complement of contacts for

the plug connectors will consist of pin contacts for

size 22 and socket contacts for all others. The

receptacle contacts will be just the reverse, socket

contact for size 22 and pin contacts for the

balance.

Material Specifications

BKAD

Material

Shell & Waveguide

Finish

Insulator

Material

Contacts

Finish

Termination

Grommets/Seals

O-Ring

Material

Aluminum alloy

Alodine

1200

Thermoset

Copper alloy

Gold over Nickel

Crimp

N/A

BKAE

Aluminum alloy

Alodine

1200

Thermoset

Copper alloy

Gold over Nickel

Crimp

Silicone-based Elastomer

BKAF

Aluminum alloy

Alodine

1200

Thermoset

Copper alloy

Gold over Nickel

P.C./Wrap Post

N/A

Specifications

QQ A-591/A380

MIL-C-5541

N/A

QQ-C-533

MIL-G-45204

N/A

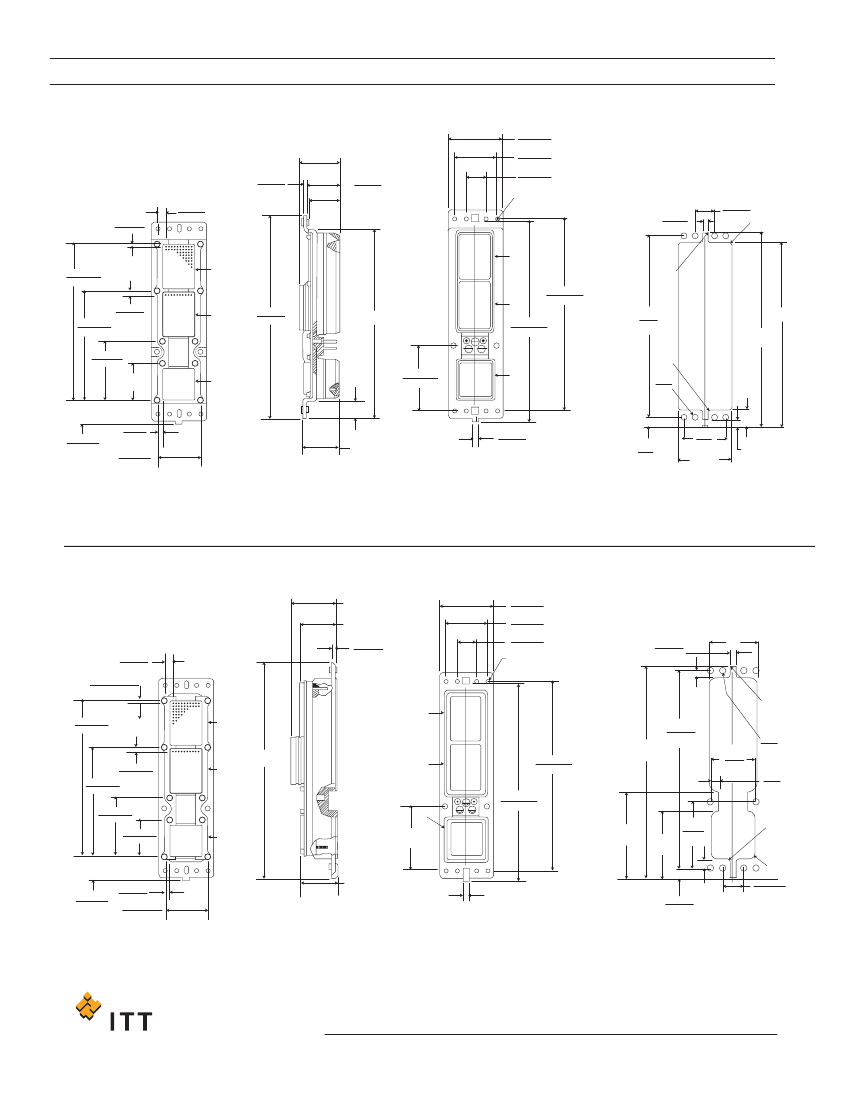

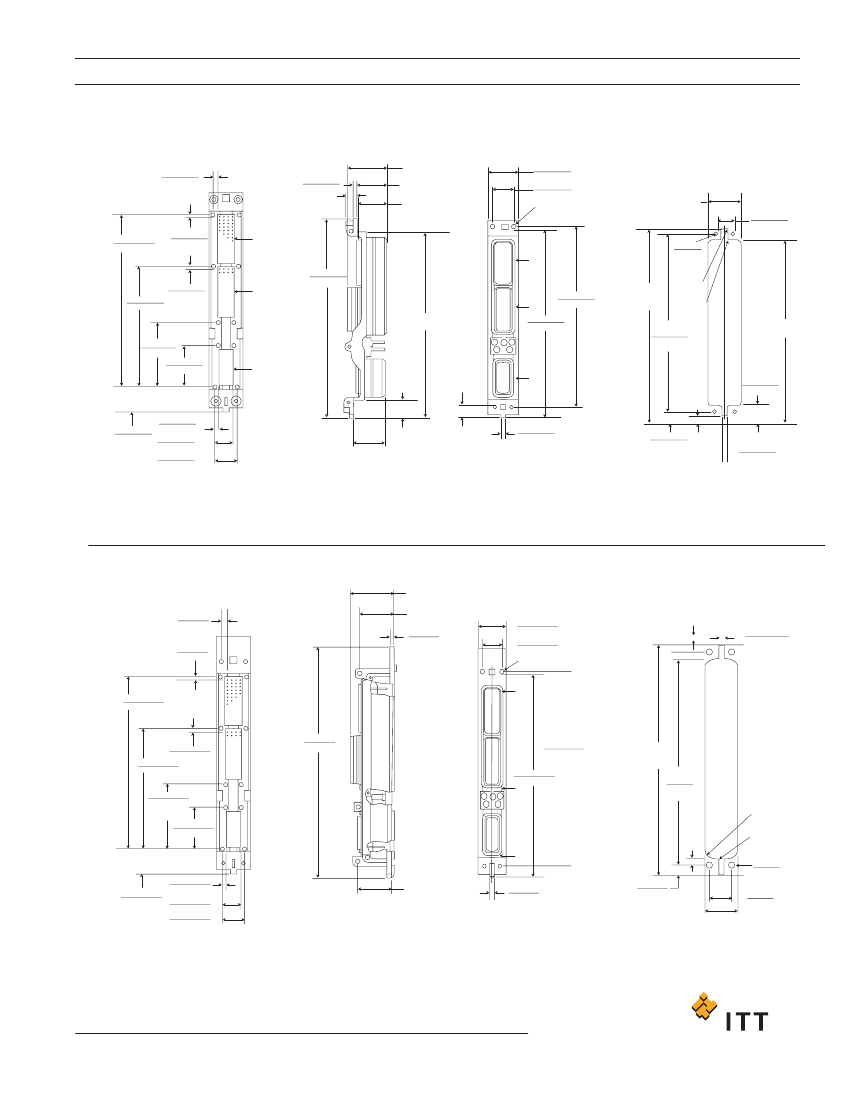

Dimensions shown in inch (mm)

Specifications and dimensions subject to change

www.ittcannon.com

Recommended Resources

LA5511 principle block diagram and typical application circuit

Wanhe XD60-A electric heating cupboard circuit diagram

Charger circuit diagram using U2403B

GEL-Cell Charger Circuit
