Technology
Film assembly
Self-healing property
1) Metal-end spray layer
2) Free margin
3) Metallization, flat or CSP
(with or without structure)
4) Heavy-edge
5) Dielectric
1) Organic dielectric
2) Metalized electrodes
3) Material displacing shock wave
4) Air gap
5, 6) Plasma discharge zone
7) Boundary layer between
plasma zone and
dielectric
8) Break down channel
9) Dielectric in gas zone
10) Isolation area

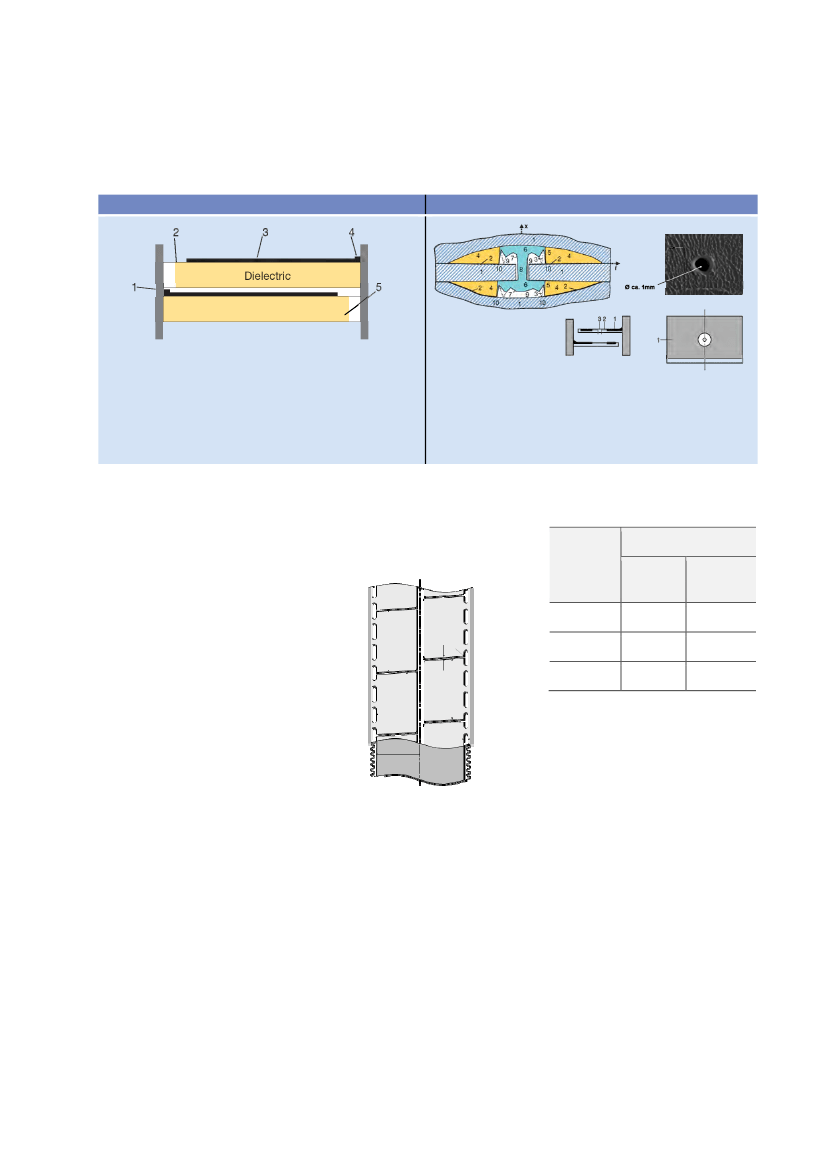

Fig. 1:
Cross section of a metalized film capacitor
Fig. 2:
Self-healing property of a metalized film capacitor
Metallized film capacitors (fig.1)
have the advantage that for
certain failures in the dielectric the
capacitor will not go into short
thanks to the ultrathin metallized
electrode (thickness typical 10 to
100 nm) and the use of aluminium
as material for the electrodes. If a
breakdown occurs, the aluminium
will evaporate around the break-
down spot and immediately
oxidize to Al
2
O
3
, which is an
excellent insulator. So the
breakdown spot becomes high-
impedance and is insulated from
the rest of the capacitor. The
insulated area is formed in a few
microseconds and ensures the full
functionality of the capacitor after
breakdown.
This behaviour is called
“clearing”
or
“self-healing”
(fig. 2). In prin-
ciple there should not be any
further clearing during the service
life, since all capacitors are
typically “cleared” with a voltage
of 1.5 times the rated voltage
during the production process.
Additionally, to limit the energy
dissipation during a clearing event,
for some designs at least one
electrode is divided into segments,
connected by small links or fuses.
The capacitors are typically
named “segmented” or
“structured” metalized film
capacitors. See fig. 3 example of
a “T-segmentation”:
Typical rated voltages (V):
IGBT
rated
voltage
PCC capacitor
Rated
voltage
Maximum
voltage
1)
500
550
950
650 - 705 450
750
1200
500
900
1) For limited time, please refer to data sheet
EPCOS possesses different
winding technologies:
The stacked technology,
typically used for PCC film
capacitors, for which the film is
already wound flat on the
winding machine. This tech-
nology offers the highest fill
factor and the lowest ESR.
The flat pressed winding tech-
nology which is most commonly
used on the market for this type
of application today. This tech-
nology offers the lowest costs at
a good performance.
The rated voltage is defined as the
continuous operating voltage tak-
ing into account for the calculation
of the expected lifetime.
The maximum voltage is the
maximum operating voltage to be
applied on the capacitor for short
operations (e.g. up to 10% of the
expected calculated lifetime).
A detailed lifetime calculation
based on a mission profile (voltage,
temperature) can be submitted
upon request.
© EPCOS AG 2016
2

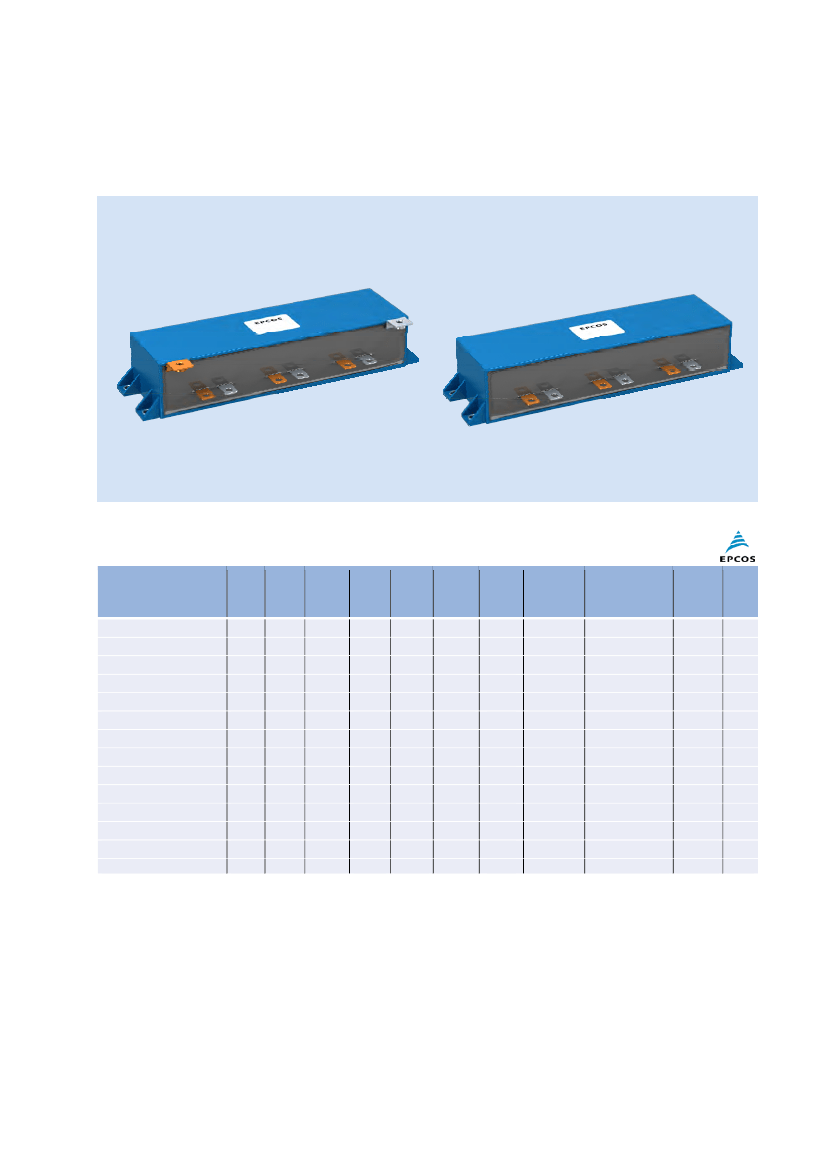

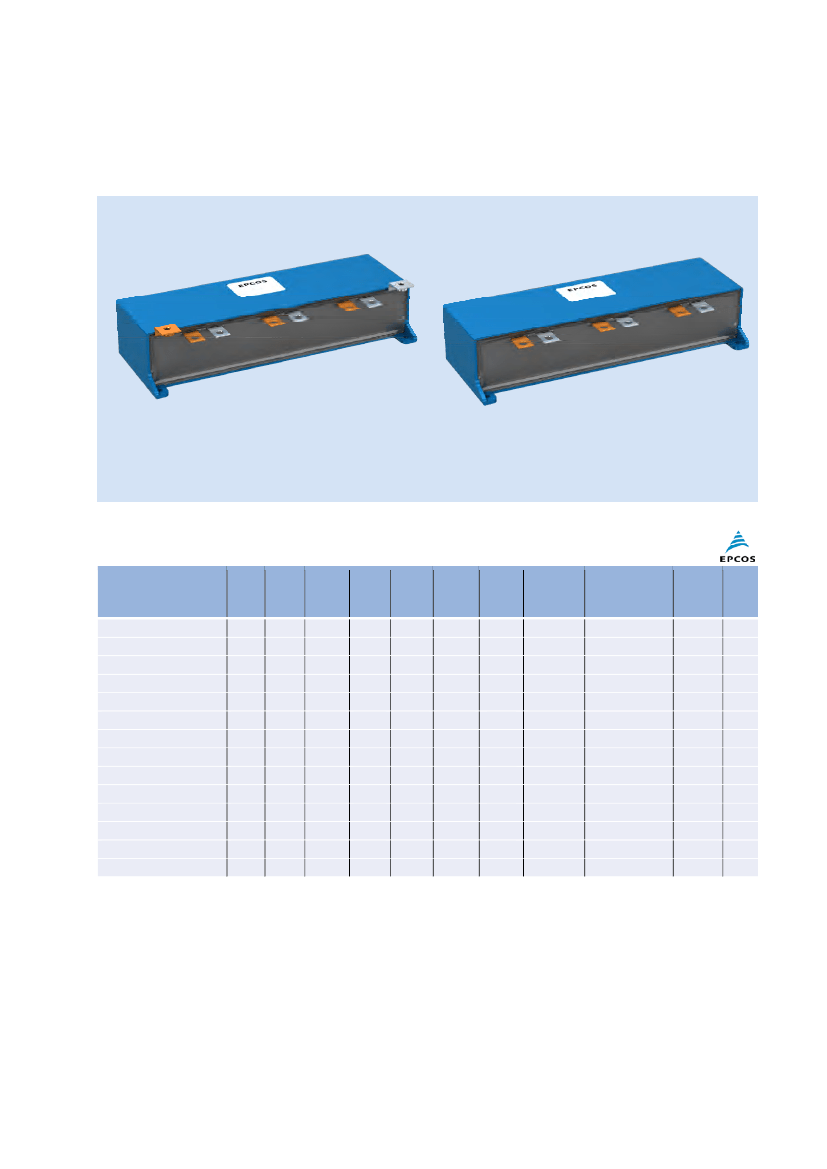

PCC for Infineon HybridPack 1 (HP1)
PRELIMINARY
TM

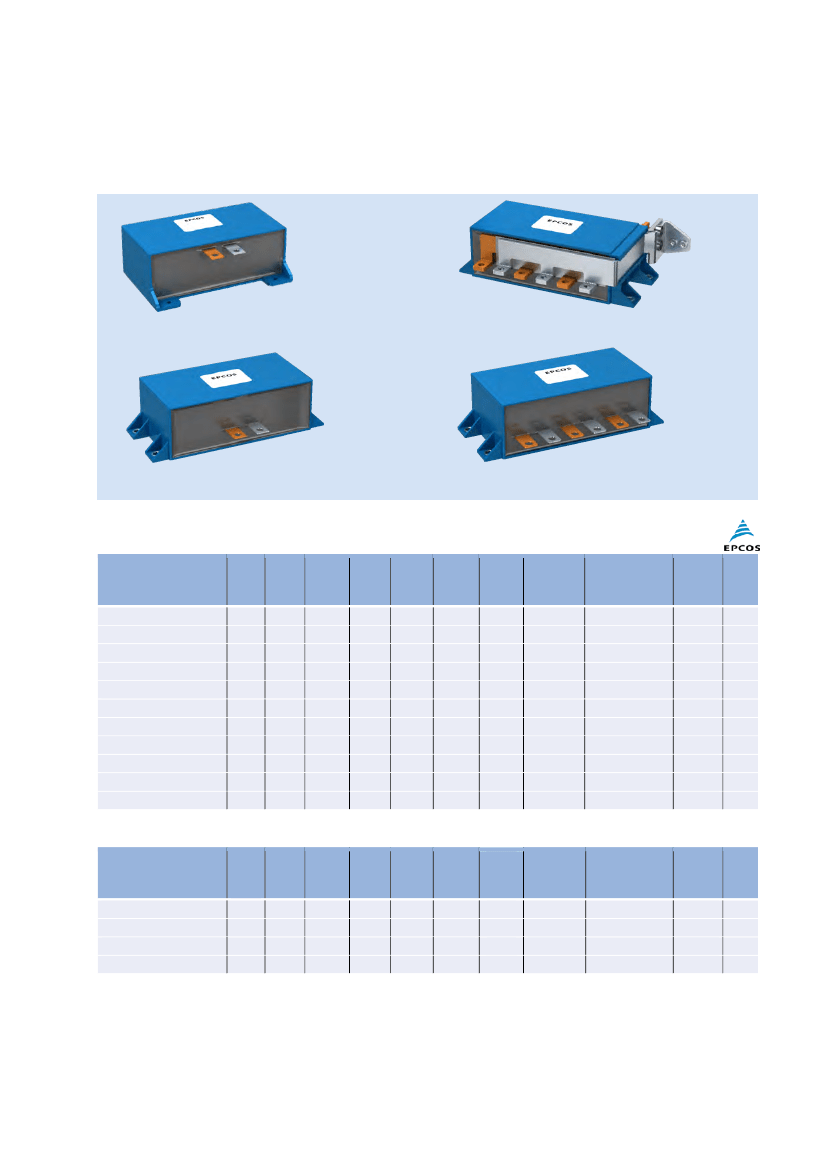

Fig. 1a
- For HP1 platform
Additional fixing may be necessary upon
application requirements
Fig. 2a
- For HP1-DC6 platform
With side mounting external DC bus bars
Fig. 1b
- For HP1 platform
With side mounting terminals
Fig. 2b
- For HP1-DC6 platform
With side mounting terminals without external DC bus bars
HP1 platform 650 V – FS***xR07A1**
Ordering code
C
R
μF
B25655J4307K001
B25655P4467K000
B25655P4567K000
B25655P4407K100
2)
B25655P4507K100
2)
B25655P4607K100
3)
B25655P4467K001
B25655P4567K001
B25655P4407K101
2)
B25655P4507K101
2)
B25655P4607K101
3)
300
460
560
400
500
600
460
560
400
500
600
V
RDC
I
max
1)
V
450
450
450
450
450
450
450
450
450
450
450
A
120
150
150
120
120
120
150
150
120
120
120
L
self
nH
30
25
25
25
25
25
25
25
25
25
25
R
S
m
0.8
0.6
0.6
0.8
0.8
0.8
0.6
0.6
0.8
0.8
0.8
Î
kA
0.9
1.5
1.8
1.4
1.6
2.0
1.5
1.8
1.4
1.6
2.0
I
S
kA
2.7
5.0
5.6
4.4
5.0
6.0
5.0
5.6
4.4
5.0
6.0
tan
120 Hz
8 · 10-4
5 · 10-4
5 · 10-4
5 · 10-4
5 · 10-4
5 · 10-4
5 · 10-4
5 · 10-4
5 · 10-4
5 · 10-4
5 · 10-4
Dimensions
LxWxH
mm
140 x 72 x 50
140 x 72 x 50
140 x 72 x 50
140 x 72 x 50
140 x 72 x 50
140 x 72 x 50
140 x 72 x 50
140 x 72 x 50
140 x 72 x 50
140 x 72 x 50
140 x 72 x 50
Weight Fig.
kg
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1a
1a
1a
1a
1a
1a
1b
1b
1b
1b
1b
HP1-DC6 platform 705 V – FS***R07A3**
Ordering code
C
R
μF
B25655P4607J011
B25655P4607J021
2)
B25655P4477J111
B25655P4477J121
2)
1)
2)
3)
V
RDC
I
max
1)
V
450
450
450
450
A
150
150
120
120
L
self
nH
25
25
25
25
R
S
m
0.6
0.6
0.8
0.8
Î
kA
1.5
1.5
1.1
1.1
I
S
kA
4.5
4.5
3.0
3.0
tan
120 Hz
10 · 10-4
10 · 10-4
10 · 10-4
10 · 10-4
Dimensions
LxWxH
mm
140 x 72 x 50
140 x 72 x 50
140 x 72 x 50
140 x 72 x 50
Weight Fig.
kg
0.9
0.75
0.9
0.75
2a
2b
2a
2b
600
600
470
470
Considering maximum hot spot temperature at +105 °C and cooling efficiency to be validated.
Preferred types.
Reduced life time, please refer to data sheet.
Green marked lines: New types …K/J1xx available during 2016.
Red marked line: Not recommended for new designs.
Further mechanical configurations and capacitor values upon request.
2-line EMC filter for HP1-DC6 platform available under preliminary order code P100316-P001.
More information for Infineon HP1-DC6 module, refer to:
http://www.infineon.com/
© EPCOS AG 2016
3
