TF1207 datasheet, PDF - EEWORLD Datasheet

TF1207: DescriptionSOLID STATE IGBT GATE DRIVER MODULE; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size233KB，5 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

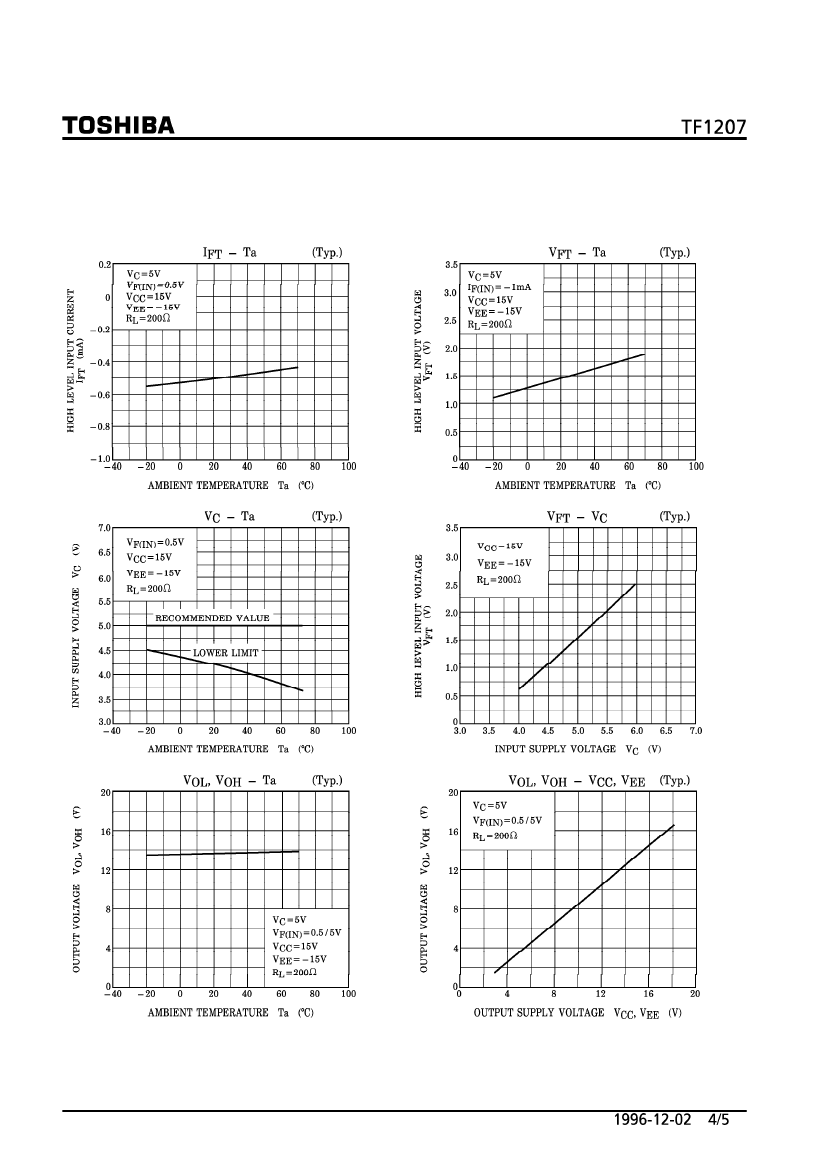

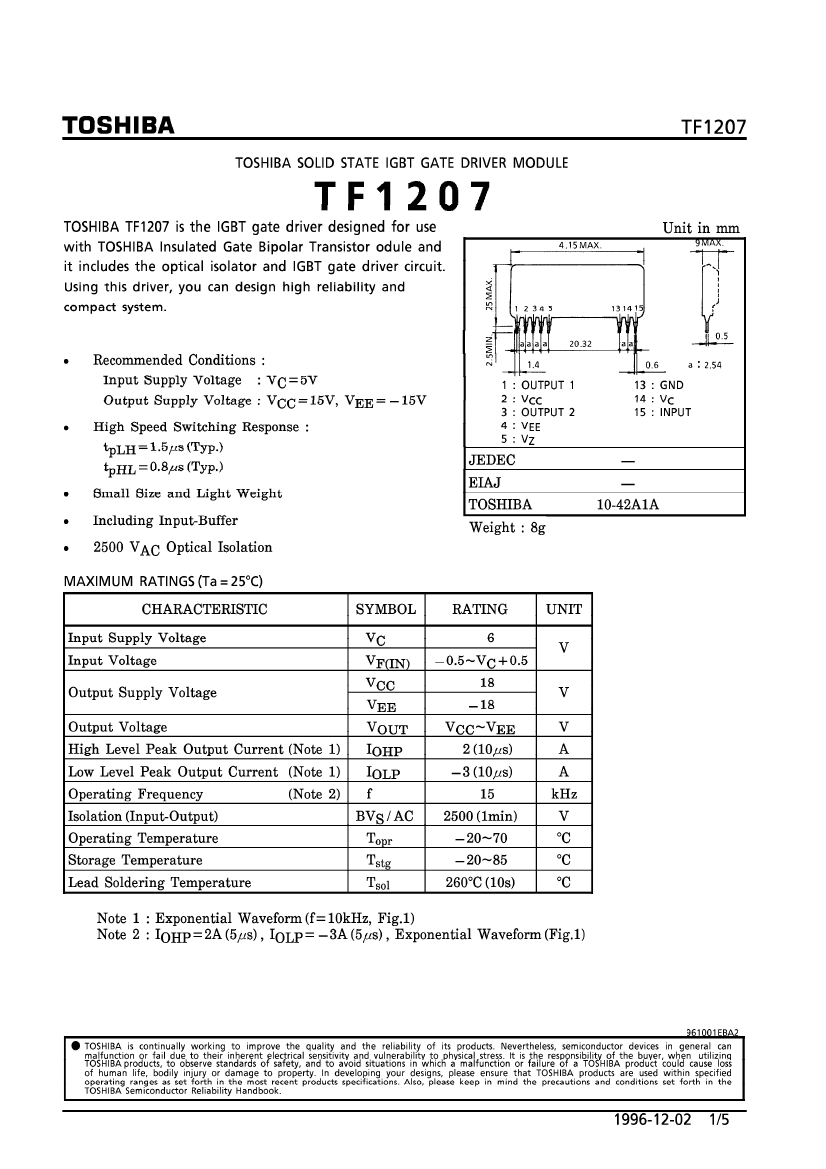

TF1207 Overview

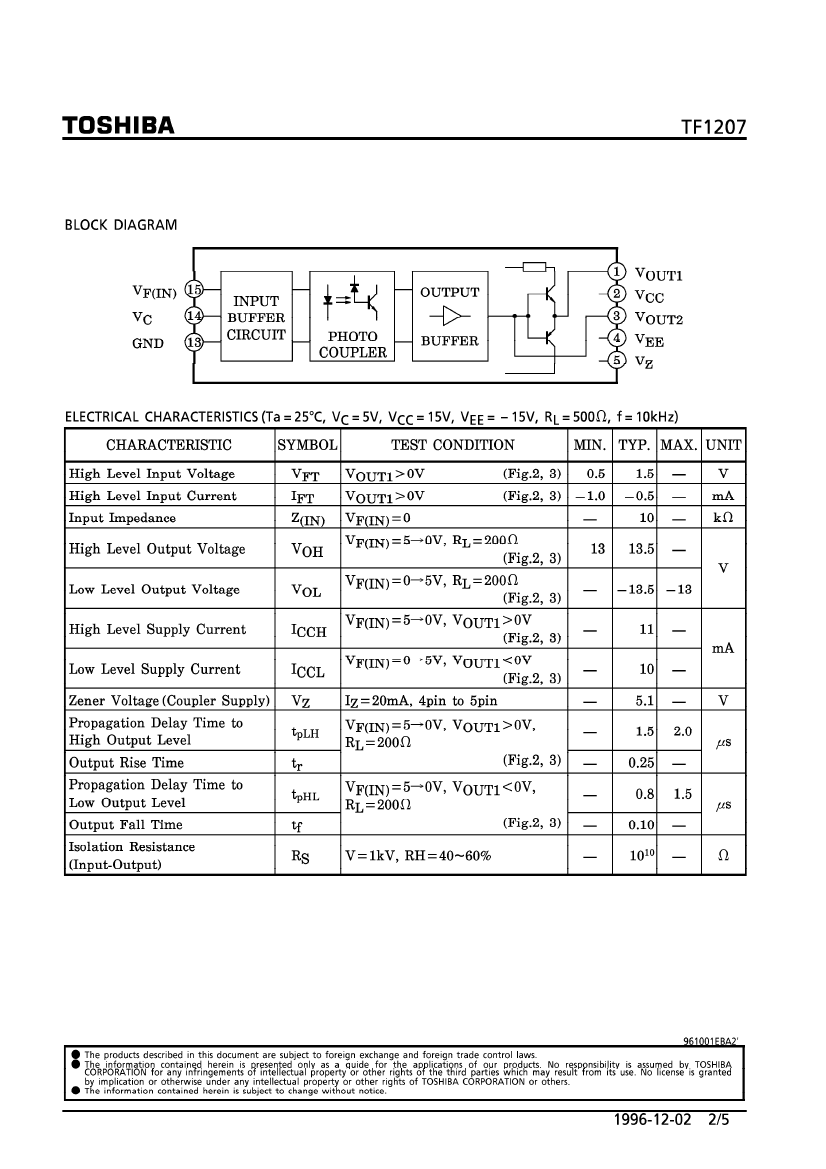

SOLID STATE IGBT GATE DRIVER MODULE

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-XSMA-T8
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Output characteristics	OPEN-EMITTER
Output current flow direction	SOURCE
Nominal output peak current	3 A
Output polarity	INVERTED
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Nominal supply voltage	5 V
Supply voltage1-Nom	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

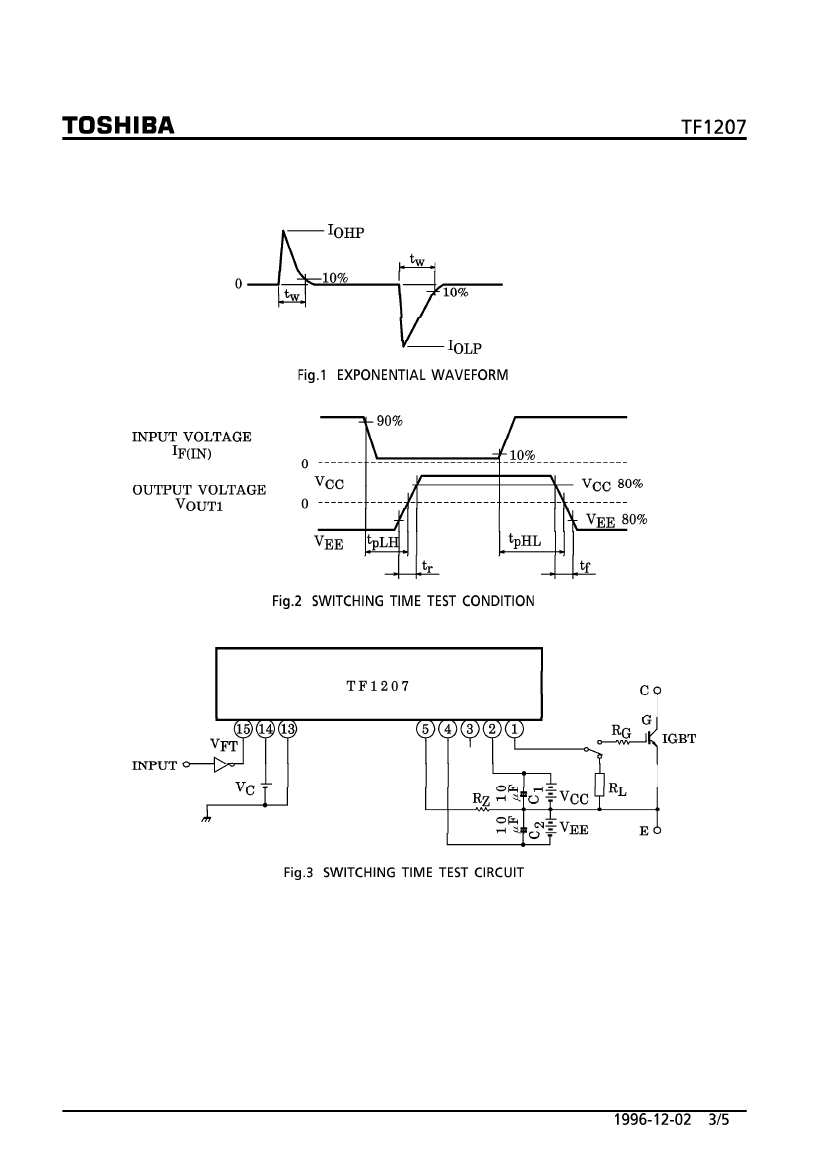

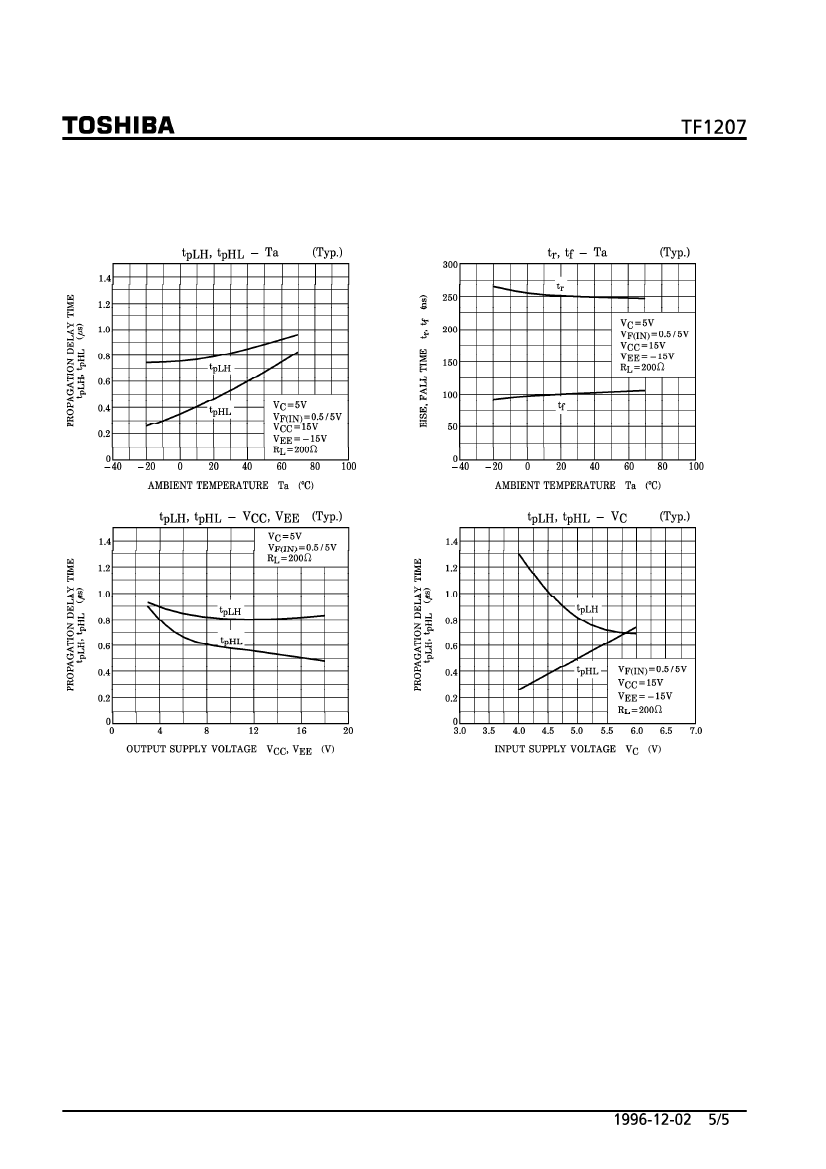

Disconnect time	1.5 µs
connection time	2 µs
