PWR105.65% datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> PWR105.65%

PWR105.65%: DescriptionFixed Resistor, Wire Wound, 10W, 5.6ohm, 5% +/-Tol, Through Hole Mount, RADIAL LEADED; CategoryPassive components The resistor; File Size73KB，1 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

PWR105.65% Overview

Fixed Resistor, Wire Wound, 10W, 5.6ohm, 5% +/-Tol, Through Hole Mount, RADIAL LEADED

PWR105.65% Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TT Electronics plc
package instruction	RADIAL LEADED
Reach Compliance Code	compli
ECCN code	EAR99
Other features	FLAME PROOF
JESD-609 code	e0
Manufacturer's serial number	PWR
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	250 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	10 W
Rated temperature	25 °C
resistance	5.6 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Tolerance	5%

Preview

Download Datasheet

View All

ISO-9001

Registered

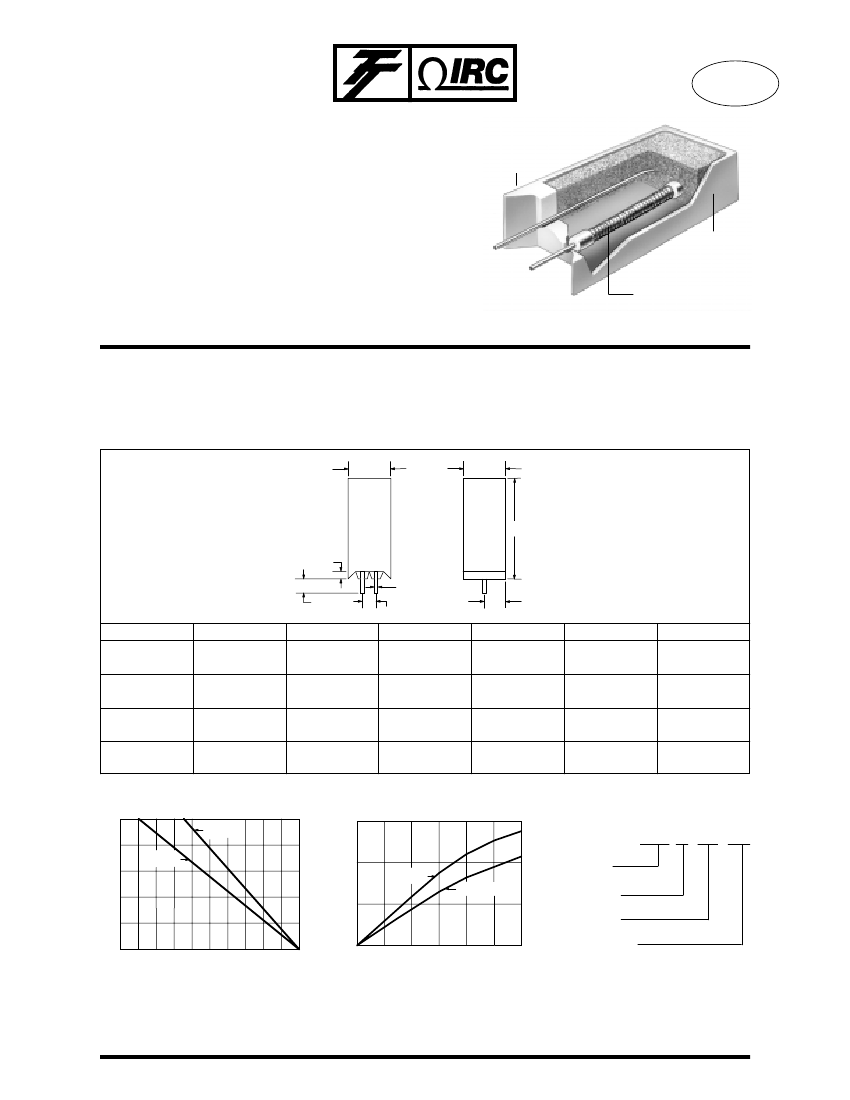

GENERAL PURPOSE STAND-UP POWER

WIREWOUND RESISTOR

Fireproof high temp.

ceramic case with

stand-off

PWR

SERIES

•

3, 5, 7 and 10 watts

0.1 ohm to 18K ohm range

Radial leads for PC mount

TC's from 300 ppm/°C to +5500 ppm/°C

Inorganic fireproof

encapsulant

Alloy resistance wire on

fiberglass substrate

Manufactured in Barbados

SPECIFICATIONS:

- Power Rating: 3,5,7, and 10 watts

- Resistance Range:

3 watt: 0.1Ω to 7.5K 7 watt 0.1Ω to 18K

5 watt: 0.1Ω to 8.5K 10 watt 0.18Ω to 18K

- Tolerance: ±5% and ±10%

(refer to PWRG for tolerances less than 5% pg. 107)

- Flameproof inorganic construction

- EIA RS-344, insulated fixed wirewound resistors

DIMENSIONS

(Inches and (mm)):

Meniscus

0.080

±0.032

permitted to

bottom of feet

0.170

±0.062

IRC Type

0.475 ±0.030

(12.0 ±0.8)

0.500 ±0.030

(12.7 ±0.8)

0.500 ±0.030

(12.7 ±0.8)

0.630 ±0.032

(16.0 ±0.81)

0.320 ±0.030

(8.1 ±0.8)

0.350 ±0.030

(8.8 ±0.8)

0.350 ±0.030

(8.8 ±0.8)

0.510 ±0.032

(13.2 ±0.81)

1.00 ±0.030

(25.4 ±0.8)

1.00 ±0.030

(25.4 ±0.8)

1.50 ±0.032

(38.1 ±0.81)

1.39 ±0.032

(35.3 ±0.81)

0.200 ±0.062

(5.08 ±1.6)

0.200 ±0.062

(5.08 ±1.6)

0.200 ±0.062

(5.08 ±1.6)

0.290 ±0.062

(7.4 ±1.6)

0.175 ±0.062

(4.44 ±1.6)

0.175 ±0.062

(4.44 ±1.6)

0.175 ±0.062

(4.44 ±1.6)

0.250 ±0.062

(6.4 ±1.6)

0.036 ±0.002

(0.91 ±0.05)

0.036 ±0.002

(0.91 ±0.05)

0.036 ±0.002

(0.91 ±0.05)

0.036 ±0.002

(0.91 ±0.05)

PWR-3

PWR-5

PWR-7

PWR-10

POWER DERATING:

100

% Rated Load

100

150

200

250

PWR-3, 5

PWR-7, 10

HOT SPOT TEMPERATURE

RISE AT 25°C

Hot Spot Temperature (°C)

300

HOW TO ORDER:

Sample Part No.:

PWR 10 12K 10%

200

PWR-7, 10

PWR-3, 5

100

Type

Power

Range

Ambient Temperature (°C)

% Rated Power

100

120

Tolerance

WIRE AND FILM TECHNOLOGIES

736 Greenway Road · PO Box 1860

Boone, North Carolina 28607-1860

Tel: 704-264-8861

Fax: 704-264-8865
