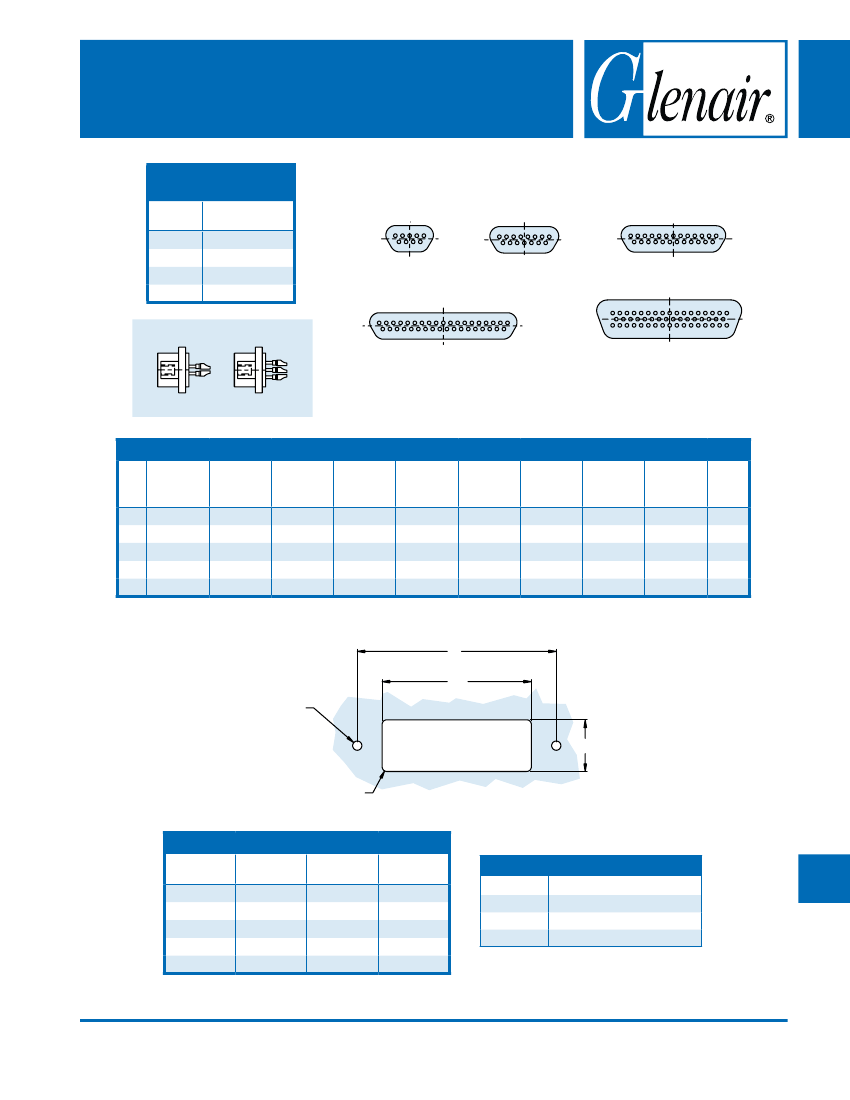

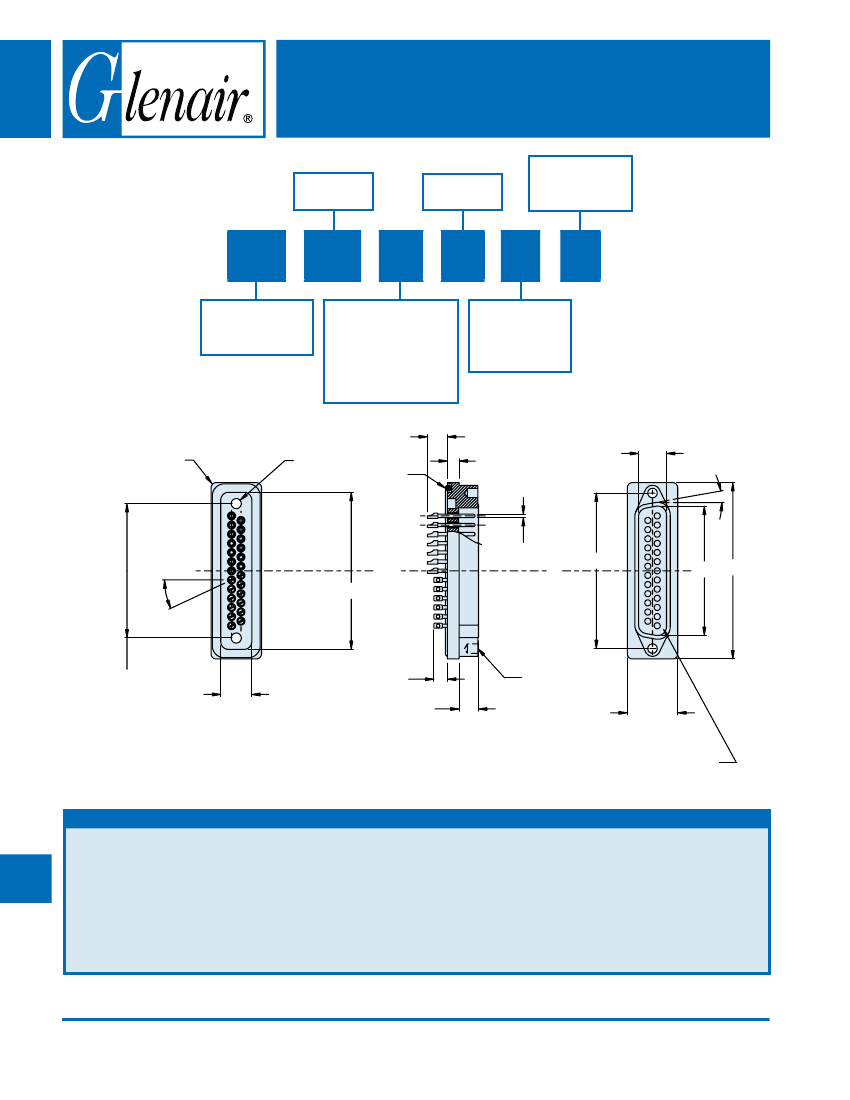

O-Ring Panel Sealing
Glass-Sealed D-Subminiature Connector
O-Ring Material
See Table III
(Omit for Viton)
280-014
MIL-DTL-24308/9 Type Hermetic
MIL-DTL
24308
Connector
Style
Shell Size
280
-
014
MIL-DTL-24308/9
D-Subminiature
Hermetic
H
1
P
-
1
Contact Style
(Pin Only)
P
= Solder Cup
X
= Eyelet
Class
H
= Carbon Steel/
Tin Plated
K
= Stainless Steel/
Nickel Plated,
Dull Finish
R.062
Typ
TERMINATION
vIEW
4-40 UNC-2B
X .100 DP
(Typ 2 Pl)
O-Ring
.238 Max
H
ENGAGEMENT
vIEW
10°
D
Typ
Ø.040 ±.001
F
25° Typ
Eyelets
Mounting
Holes
(See Table II)
.161 Max
K
C
B
A
G
#4-40 UNC-2B
X .125 Min
Full Thread
E
Insert Arrangements Shown
Are For Reference Only
APPLICATION NOTES
1.
To be identified with manufacturer’s name, part number and date
code, space permitting.
Contact Style: Eyelet or solder cup (see part development).
Material/Finish:
Shell: H = FT - Carbon steel/tin plated
.
4.
H
2.
3.
Performance:
DWV - 500 VAC Pin-to-Shell
I.R. - 5,000 MegOhms Min @ 500 VDC
Hermeticity - <1 x 10
-7
scc He/sec @1
atmosphere differential
Glenair 280-014 will mate with any QPL MIL-DTL-24308/1, /2
and /23 receptacle of the same size and arrangement.
Metric dimensions (mm) are indicated in parentheses.
K = Z16 - Stainless steel/nickel plated dull finish.
Insulators: Glass bead/N.A.
Contacts: Alloy 52/gold plated
O-Ring: Specify (see Table III)/N.A.
5.
6.
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
H-16
O-Ring Panel Sealing
Glass-Sealed D-Subminiature Connector
TABLE III: O-RING
MATERIAL
Dash
Number
None
-1
-2
-3
Material
Viton
Nitrile
Fluorosilicone
Silicone
1
1 2 3 4 5
6 7 8 9
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
2
1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25
3
9 CONTACTS
15 CONTACTS
25 CONTACTS
SOLDER CUP ORIENTATION
4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
5
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
18
33
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
37 CONTACTS
50 CONTACTS
SIZES 1-4
SIZE 5
TABLE I: CONNECTOR DIMENSIONS
Shell
Size
1
2
3
4
5
Dim
Dim
Dim
Dim
Dim
Dim
Dim
Dim
Dim
O-Ring
A
B
C
D
E
F
G
H
K
2-
± .015 (± 0.4) ± .004 (± 0.1) ± .005 (± 0.1) ± .004 (± 0.1) ± .010 (± 0.3) ± .010 (± 0.3) ± .010 (± 0.3) ± .006 (± 0.2) ± .010 (± 0.3)
1.213 (30.8)
1.541 (39.1)
2.088 (53.0)
2.729 (69.3)
2.635 (66.9)
.667 (16.9)
.993 (25.2)
1.535 (39.0)
2.183 (55.4)
2.079 (52.8)
.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.441 (11.2)
.600 (15.2)
.600 (15.2)
.600 (15.2)
.600 (15.2)
.610 (15.5)
.874 (22.2)
1.270 (32.3)
1.760 (44.7)
2.418 (61.4)
2.418 (61.4)
.272 (6.9)
.372 (9.5)
.372 (9.5)
.372 (9.5)
.372 (9.5)
.155 (3.9)
.155 (3.9)
.160 (4.1)
.160 (4.1)
.160 (4.1)
.235 (6.0)
.235 (6.0)
.230 (5.8)
.230 (5.8)
.230 (5.8)
-017
-022
-027
-031
-031
or
w)
RECOMMENDED PANEL CUTOUT
SEE TABLE II
C
XA
Ø.120/.115
Typ 2 Pl
YA
R.062 Max
Typ
d Code
REAR MOUNT
CODES
Shell
Size
1
2
3
4
5
TABLE II: PANEL CUT-OUT
Dim
XA
.520 (13.2)
.850 (21.6)
1.380 (35.1)
2.035 (51.7)
1.850 (47.0)
Dim
YA
.220 (5.6)
.220 (5.6)
.220 (5.6)
.220 (5.6)
.300 (7.6)
Dim
C
.874 (22.2)
1.070 (27.2)
1.560 (39.6)
2.200 (55.9)
2.200 (55.9)
HERMETIC LEAK RATE MOD CODES
Designator
–585A
–585B
–585C
Rate
Required Leak Rate
1 x 10
-10
cc’s Helium per second
1 x 10
-9
cc’s Helium per second
1 x 10
-8
cc’s Helium per second
er second
er second
er second
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
DES
H-17
utgassing
MIL-DTL
24308
280-014
MIL-DTL-24308/9 Type Hermetic
H
