Semflex
High Performance Test Cable Assembly
SWI Series
280 Group
Emerson Network Power Connectivity Solutions
offers the Semflex SWI 280 test cable assembly
series. This line incorporates low loss performance
cable and precision connectors providing for a
good interconnect cable. These cables are ideal
for in-box or in-cabinet applications to 18 GHz.
These assemblies feature low loss double shielded
cable with a PTFE
jacket. The double shielded
construction of these cables gives outstanding
shielding effectiveness of greater than -85db at 18
GHz. The assemblies feature precision stainless
steel connectors designed to meet MIL-C-39012,
MIL-STD-348a or all applicable industry
specifications, and are available in straight male,
straight female, bulkhead, and right angle styles.
These cable assemblies feature low loss, excellent
VSWR, and are excellent to increase the
performance of any system.
Key Features & Benefits
Precision stainless steel connectors
Low loss PTFE tape Dielectric
FEP outer jacket
Double shielded for -85 dB leakage at 18GHz
Applications
General purpose, low loss interconnections
High temperature (+200° C)
Low temperature (-65° C)
Available Connectors
N, TNC
Straight male, right angle male; bulkhead female
Emerson Network Power
Connectivity Solutions
Semflex
299 Johnson Ave.
Waseca, MN 56093
1-800-247-8256
Whilst due care has been taken to ensure the contents of this data sheet are
accurate, Emerson Network Power Connectivity Solutions cannot accept
liability for any errors or omissions that may occur. We reserve the right to
alter specifications of products without prior notice.
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
2010 Emerson Electric Co.
pi-SWI-280.pdf

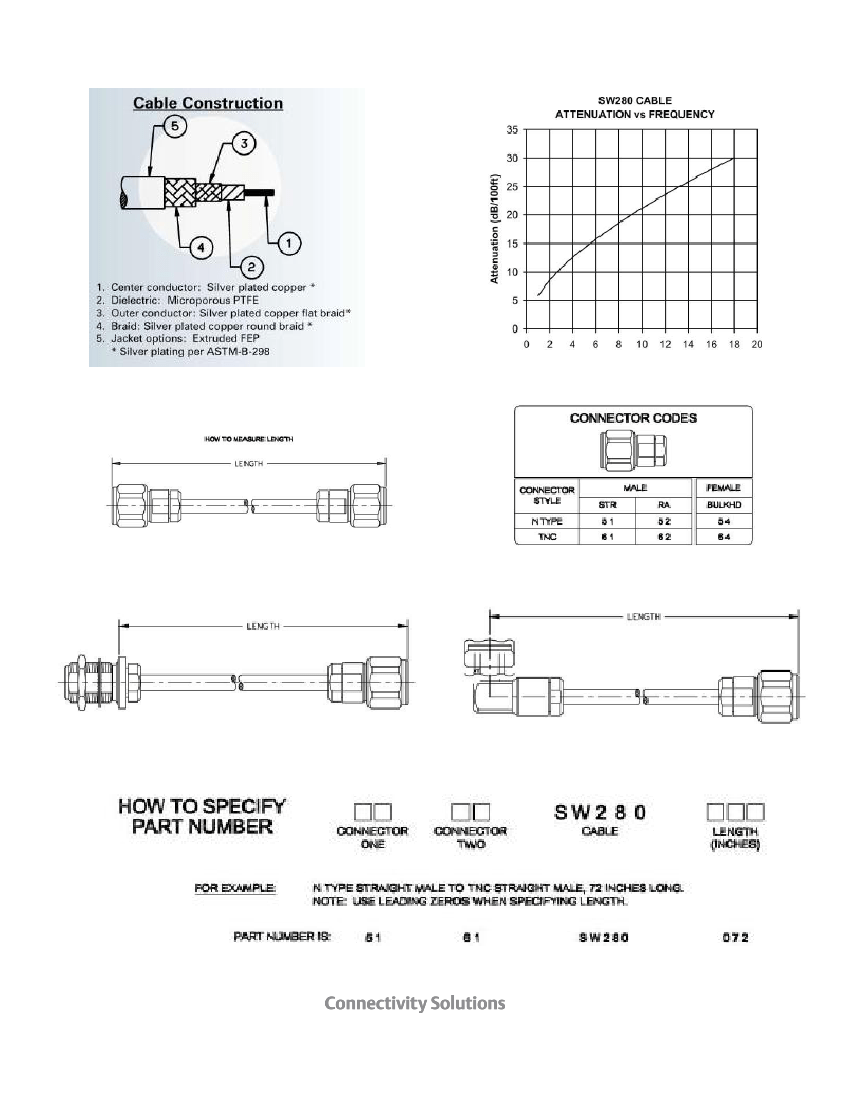

Additional Specifications
Assemby
Connectors
Cable size
Standard Lengths
N, TNC, straight male, right angle male; bulkhead female
.280 inches, nominal outer diameter
Electricals
Velocity of Propagation
RF Leakage Min. @ 18GHz
Impedance
Capacitance
Delay
Breakdown Voltage
Phase Stability vs. Flexure
76.5%
-85 dB/ft
50 Nominal
27 pF/ft
>13kV
88.58 pF/m
1.34 ns/ft 4.40 ns/m
Mechanical/ Environmental
Nominal Diameter
Minimum Bend Radius
Temperature
Weight
.280 inches .711 cm
1.5 inches
0.09 lb./ft
3.81 cm
.13g/m
-65 °C to + 200°C
Materials and Finishes Connector
Body
Nut
Gasket
Contact
Insulator
Stainless Steel
Stainless Steel
Silicon Rubber
BeCu / Gold plated
PTFE
FEP
Silver Copper
Silver Copper
Micro-porous PTFE
Silver Copper
Materials and Finishes Cable
Cable Jacket
Outer Shield
Inter Shield
Inter Conductor
Dielectric
Center Conductor
Emerson Network Power
Connectivity Solutions
Semflex
299 Johnson Ave.
Waseca, MN 56093
1-800-247-8256
Whilst due care has been taken to ensure the contents of this data sheet are
accurate, Emerson Network Power Connectivity Solutions cannot accept
liability for any errors or omissions that may occur. We reserve the right to
alter specifications of products without prior notice.
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
2010 Emerson Electric Co.
pi-SWI-280.pdf
