292D105X9016R2 datasheet, PDF - EEWORLD Datasheet

292D105X9016R2: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 16V, 1uF, SURFACE MOUNT, 0805, CHIP; CategoryPassive components capacitor; File Size208KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

292D105X9016R2 Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 16V, 1uF, SURFACE MOUNT, 0805, CHIP

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	, 0805
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	1 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e3
leakage current	0.0005 mA
Manufacturer's serial number	292D
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
ripple current	52 mA
size code	0805
surface mount	YES
Delta tangent	0.04
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND

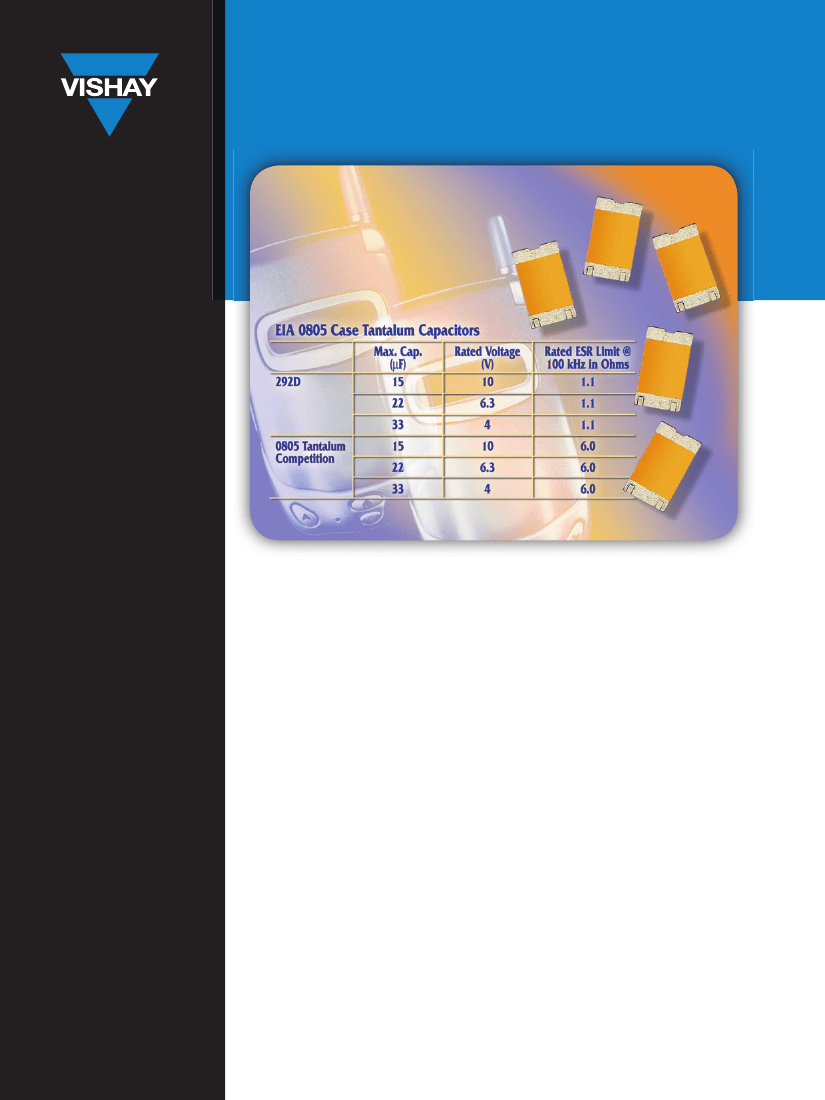

CAPACITORS –

Model 292D

PRODUCT SHEET

292D Leadframeless Tantalum Molded Chip Capacitor vs. MLCC

Most ratings available with ESR typical values of 1 Ω or less, for LDO applications

FEATURES

• Tighter capacitance tolerances and increased stability over full temperature

range (- 55 ºC to + 125 ºC)

• Higher capacitance values available at lower voltages in 0805 package

with 1.2 mm and 1.6 mm maximum height

• No piezoelectric (microphonic) effect

• Better mechanical stress performance

APPLICATIONS

• Hearing aids

• High-end portables, phones

• Small portable information appliances

• PDA’s

w w w. v i s h a y. c o m

The datasheet for Model 292D is available on our web site at

www.vishay.com/doc?40042
