D102M20Z5UH6TJ5

Description
CAPACITOR, CERAMIC, 100 V, Z5U, 0.001 uF, THROUGH HOLE MOUNT, RADIAL LEADED
CategoryPassive components    capacitor
File Size128KB,6 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

D102M20Z5UH6TJ5 Overview

CAPACITOR, CERAMIC, 100 V, Z5U, 0.001 uF, THROUGH HOLE MOUNT, RADIAL LEADED

D102M20Z5UH6TJ5 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerVishay
package instruction,
Reach Compliance Codeunknow
ECCN codeEAR99
capacitance0.001 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
Manufacturer's serial numberLV100V
Installation featuresTHROUGH HOLE MOUNT
multi-layerN
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Package shapeDISK PACKAGE

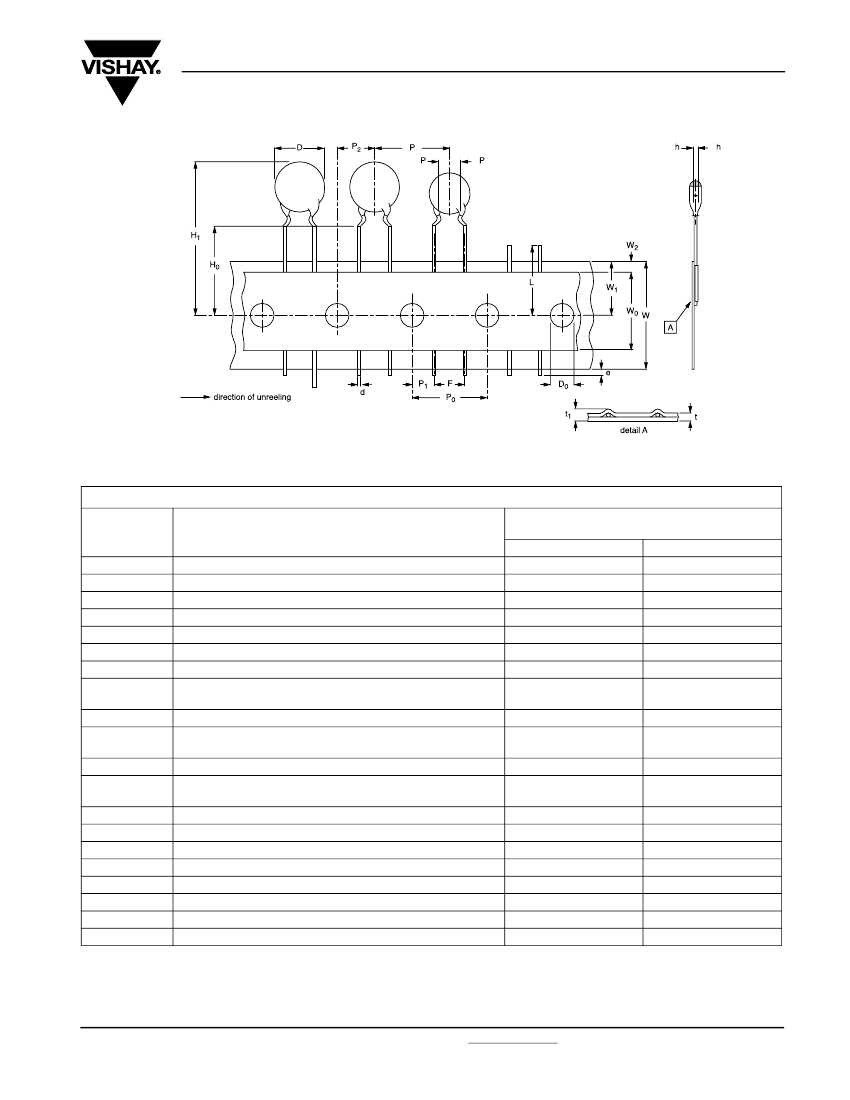

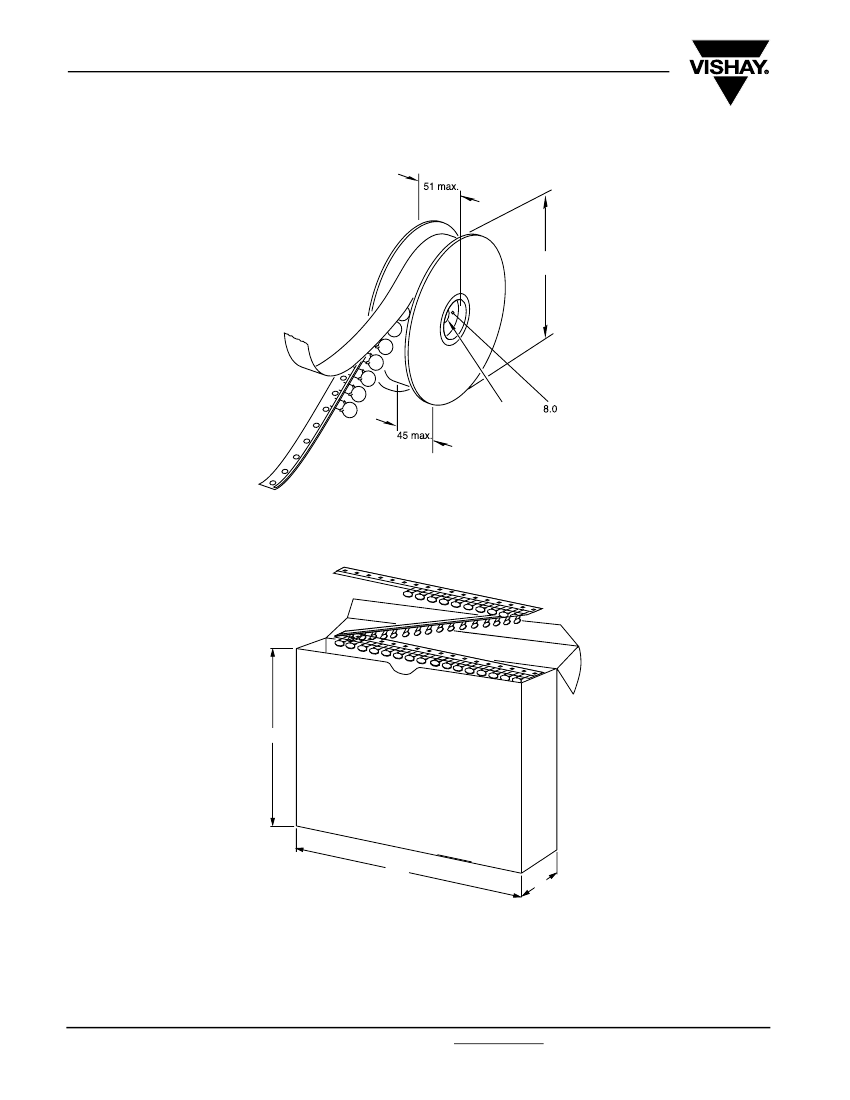

method of packingTR, 14 INCH
positive tolerance20%
Rated (DC) voltage (URdc)100 V
surface mountNO
Temperature characteristic codeZ5U
Temperature Coefficient-56/+22% ppm/°C
Terminal shapeWIRE
LV 100 V
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1 and 2, 100 V (DC) General Purpose
FEATURES
Low losses
D
High stability
High capacitance in small size
Kinked (preferred) or straight leads
Lead (Pb)-free available
SH
e3
RoHS
COMPLIANT
tangent
line
APPLICATIONS
Bypassing
Coupling
Resonant circuit
F
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm.
Capacitors with 5 mm (0.20") lead spacing
The capacitors have inward kinked leads with a spacing of
5 mm (0.200") and a lead length from 4 to 30 mm.
Encapsulation is made of phenolic resin.
TEMPERATURE COEFFICIENTS:
Class 1 NP0; SL0
Class 2 Y5P; Z5U; Y5V; Z5V
CAPACITANCE RANGE:
Class 1, at 1 MHz, 1.2 V (RMS); 1.0 to 100 pF
1 kHz, 1 ± 0.2 V (RMS) for capacitance values higher than
1000 pF
Class 2, at 1 kHz, 1 ± 0.2 V (RMS); 150 to 47 000 pF
SECTIONAL SPECIFICATIONS:
Class 1 IEC 60 384-8,
Class 2 IEC 60 384-9,
EIA 198
RATED DC VOLTAGE:
100 V
DIELECTRIC STRENGTH:
250 % of rated voltage
CLIMATIC CATEGORY:
Class 1 55/125/21
Class 2 10/85/21 and 30/85/21
INSULATION RESISTANCE AT 100 V (DC):
10 000 MΩ
OPERATING TEMPERATURE RANGE:
Class 1 - 55 to + 125 °C
Class 2 - 30 to + 85 °C
TOLERANCE ON CAPACITANCE:
± 0.25 pF; ± 0.5 pF; ± 5 % ; ± 10 %; ± 20 %; + 80/- 20 %
DISSIPATION FACTOR:
MARKING
Marking indicates capacitance value and tolerance in
accordance with “EIA 198”.
Class 1, C
30 pF;
20 x (10/C + 0.7) x 10
-4
maximum
Class 1, C > 30 pF;
0.2 %
Class 2,
3.0 %
The capacitors meet the essential requirements of “EIA 198”. Unless stated otherwise all electrical values apply at an ambient
temperature of 25 ± 3 °C, at normal atmospheric conditions.
www.vishay.com
24
For technical questions, contact: CDC@vishay.com
Document Number: 28511
Revision: 26-Oct-06
