D Series
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1 and 2, 50 V
DC
, General Purpose
FEATURES
D
D
• Low losses
• High stability
• High capacitance in small size
Tangent
line
SH
Tangent
line
• Kinked (preferred) or straight leads
DR
• Compliant to RoHS directive 2002/95/EC
APPLICATIONS
• Bypassing
• Coupling
F
F
• Resonant circuit
Capacitors with 5 mm (0.20") and 2.5 mm (0.10") lead spacing
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm.
The capacitors have inward kinked leads with a spacing of
5 mm (0.20") and straight leads with 2.5 mm (0.10"), lead
length from 4 mm to 30 mm.
Encapsulation is made of phenolic resin.
QUICK REFERENCE DATA
DESCRIPTION
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
1
100
Through hole
CLASS 1
(NP0, SL0)
50
150
47 000
CLASS 2
(Y5P, Z5U, Y5V,
Z5V)
CAPACITANCE RANGE
Class 1, at 1 MHz, 1.2 V
RMS
; 1.0 pF to 100 pF
1 kHz, 1 V
RMS
± 0.2 V
RMS
for capacitance values higher than
1000 pF
Class 2, at 1 kHz, 1 V
RMS
± 0.2 V
RMS
150 pF to 47 000 pF
MARKING
Marking indicates capacitance value and tolerance in
accordance with “EIA 198”
OPERATING TEMPERATURE RANGE
Class 1, - 55 °C to + 125 °C
Class 2, - 30 °C to + 85 °C
RATED DC VOLTAGE
50 V
DIELECTRIC STRENGTH
250 % of rated voltage
TEMPERATURE COEFFICIENT Y5R (2C4) -
30 °C TO + 85 °C
Class 1, NP0; SL0
Class 2, Y5P; Z5U; Y5V; Z5V
INSULATION RESISTANCE AT 500 V
DC
≥
10 000 MΩ
SECTIONAL SPECIFICATIONS
Class 1, IEC 60 384-8,
Class 2, IEC 60 384-9,
EIA 198
TOLERANCE ON CAPACITANCE
± 5 %; ± 10 %; ± 20 %; + 80 %/- 20 %
DISSIPATION FACTOR
Class 1, C
≤
30 pF
≤
20 x (10/C + 0.7) x 10
-4
maximum
Class 1, C > 30 pF
≤
0.2 %
Class 2,
≤
3.0 %
CLIMATIC CATEGORY
Class 1, - 55 °C to + 125 °C
Class 2, - 30 °C to + 85 °C
Note
•
The capacitors meet the essential requirements of “IEC 60384-9 and EIA 198”. Unless stated otherwise all electrical values apply at an
ambient temperature of 25 °C ± 3 °C, at normal atmospheric conditions
www.vishay.com
22
For technical questions, contact:
CDC@vishay.com
Document Number: 28510
Revision: 04-Jan-10
D Series
Ceramic Disc Capacitors
Vishay BCcomponents
Class 1 and 2, 50 V
DC
, General Purpose
ORDERING INFORMATION, CLASS 1, 50 V
DC
, KINKED
C
(pF)
CLASS 1 NP0
1.0
1.5
2.2
3.3
4.7
6.8
10
12
15
18
22
27
33
39
47
CLASS 1 SL0
56
68
± 5.0
82
100
Notes
(1)
SH = seated height; DR = run down
•
Maximum thickness 4.0 mm
•
Lead style codes refer to lead configurations
5.0
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D560J20SL0F6.J5R
D560J20SL0F6.L2R
D680J20SL0F6.J5R
D680J20SL0F6.L2R
D820J20SL0F6.J5R
D820J20SL0F6.L2R
D101J20SL0F6.J5R
D101J20SL0F6.L2R
± 5.0
5.0
± 0.5 pF
± 0.25 pF
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D109C20C0KF6.J5R
D109C20C0KF6.L2R
D159C20C0KF6.J5R
D159C20C0KF6.L2R
D229C20C0JF6.J5R
D229C20C0JF6.L2R
D339C20C0JF6.J5R
D339C20C0JF6.L2R
D479C20C0HF6.J5R
D479C20C0HF6.L2R
D689D20C0HF6.J5R
D689D20C0HF6.L2R
D100J20C0GF6.J5R
D100J20C0GF6.L2R
D120J20C0GF6.J5R
D120J20C0GF6.L2R
D150J20C0GF6.J5R
D150J20C0GF6.L2R
D180J20C0GF6.J5R
D180J20C0GF6.L2R
D220J20C0GF6.J5R
D220J20C0GF6.L2R
D270J20C0GF6.J5R
D270J20C0GF6.L2R
D330J20C0GF6.J5R
D330J20C0GF6.L2R
D390J20C0GF6.J5R
D390J20C0GF6.L2R
D470J20C0GF6.J5R
D470J20C0GF6.L2R
TOL.
(%)
D
MAX.
(mm)
SH/DR
MAX. (1)
(mm)
CLEAR TEXT CODE
13
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
Document Number: 28510
Revision: 04-Jan-10
For technical questions, contact:
CDC@vishay.com
www.vishay.com
23
D Series
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1 and 2, 50 V
DC
, General Purpose
ORDERING INFORMATION, CLASS 2, 50 V
DC
, KINKED
C
(pF)
CLASS 2 Y5P
150
180
220
330
5
470
680
1000
± 10
1500
1800
2200
3300
4700
6800
10 000
Notes
(1)
SH = seated height; DR = run down
•
Maximum thickness 4.0 mm
•
Lead style codes refer to lead configurations
7.5
8.5
10
6.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D151K20Y5PF6.J5R
D151K20Y5PF6.L2R
D181K20Y5PF6.J5R
D181K20Y5PF6.L2R
D221K20Y5PF6.J5R
D221K20Y5PF6.L2R
D331K20Y5PF6.J5R
D331K20Y5PF6.L2R
D471K20Y5PF6.J5R
D471K20Y5PF6.L2R
D681K20Y5PF6.J5R
D681K20Y5PF6.L2R
D102K20Y5PF6.J5R
D102K20Y5PF6.L2R
D152K20Y5PF6.J5R
D152K20Y5PF6.L2R
D182K25Y5PF6.J5R
D182K25Y5PF6.L2R
D222K25Y5PF6.J5R
D222K25Y5PF6.L2R
D332K25Y5PF6.J5R
D332K25Y5PF6.L2R
D472K29Y5PF6.J5R
D472K29Y5PF6.L2R
D682K33Y5PF6.J5R
D682K33Y5PF6.L2R
D103K39Y5PF6.J5R
D103K39Y5PF6.L2R
TOL.
(%)
D
MAX.
(mm)
SH/DR
MAX. (1)
(mm)
CLEAR TEXT CODE
13
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
ORDERING INFORMATION, CLASS 2, 50 V
DC
, KINKED AND STRAIGHT
C
(pF)
CLASS 2 Z5U
1000
1500
2200
3300
4700
6800
± 20
6.5
± 20
5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D102M20Z5UF6.J5R
D102M20Z5UF6.L2R
D152M20Z5UF6.J5R
D152M20Z5UF6.L2R
D222M20Z5UF6.J5R
D222M20Z5UF6.L2R
D332M20Z5UF6.J5R
D332M20Z5UF6.L2R
D472M20Z5UF6.J5R
D472M20Z5UF6.L2R
D682M25Z5UF6.J5R
D682M25Z5UF6.L2R
TOL.
(%)
D
MAX.
(mm)
SH/DR
MAX. (1)
(mm)
CLEAR TEXT CODE
13
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
www.vishay.com
24
For technical questions, contact:
CDC@vishay.com
Document Number: 28510
Revision: 04-Jan-10
D Series
Ceramic Disc Capacitors
Vishay BCcomponents
Class 1 and 2, 50 V
DC
, General Purpose
ORDERING INFORMATION, CLASS 2, 50 V
DC
, KINKED AND STRAIGHT
C
(pF)
CLASS 2 Z5U
10 000
15 000
22 000
CLASS 2 Y5V
1000
1500
2200
3300
4700
6800
10 000
15 000
22 000
CLASS 2 Z5V
4700
10 000
+ 80/-20
22 000
47 000
Notes
(1)
SH = seated height; DR = run down
•
Maximum thickness 4.0 mm
•
Lead style codes refer to lead configurations
7.5
10
5
6.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D472Z20Z5VF6.J5R
D472Z20Z5VF6.L2R
D103Z25Z5VF6.J5R
D103Z25Z5VF6.L2R
D223Z29Z5VF6.J5R
D223Z29Z5VF6.L2R
D473Z39Z5VF6.J5R
D473Z39Z5VF6.L2R
+ 80/-20
6.5
7.5
8.5
10
5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D102Z20Y5VF6.J5R
D102Z20Y5VF6.L2R
D152Z20Y5VF6.J5R
D152Z20Y5VF6.L2R
D222Z20Y5VF6.J5R
D222Z20Y5VF6.L2R
D332Z20Y5VF6.J5R
D332Z20Y5VF6.L2R
D472Z20Y5VF6.J5R
D472Z20Y5VF6.L2R
D682Z25Y5VF6.J5R
D682Z25Y5VF6.L2R
D103Z29Y5VF6.J5R
D103Z29Y5VF6.L2R
D153Z33Y5VF6.J5R
D153Z33Y5VF6.L2R
D223Z39Y5VF6.J5R
D223Z39Y5VF6.L2R
± 20
7.5
8.5
10
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
D103M29Z5UF6.J5R
D103M29Z5UF6.L2R
D153M33Z5UF6.J5R
D153M33Z5UF6.L2R
D223M39Z5UF6.J5R
D223M39Z5UF6.L2R
TOL.
(%)
D
MAX.
(mm)
SH/DR
MAX. (1)
(mm)
CLEAR TEXT CODE
13
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
PACKAGING
D
MAX.
5.0 (0.20")
6.5 (0.25")
7.5 (0.29")
8.5 (0.33")
10.0 (0.39")
11.0 (0.43")
SIZE
CODE
20
25
29
33
39
43
PACKAGING QUANTITIES
BULK
REEL
AMMO
1000
2500
2000
Note
• The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel or in ammopack
Document Number: 28510
Revision: 04-Jan-10
For technical questions, contact:
CDC@vishay.com
www.vishay.com
25
D Series
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1 and 2, 50 V
DC
, General Purpose
D
P
2
P
ΔP
Δh
ΔP
Δh
H
1
W
2
H
0
W
1
W
0
W
A
e
P
1
Direction of unreeling
Ød
F
P
0
D
0
t
1
Kinked capacitors on tape, lead
spacing
5.0 mm (0.2")
detail A

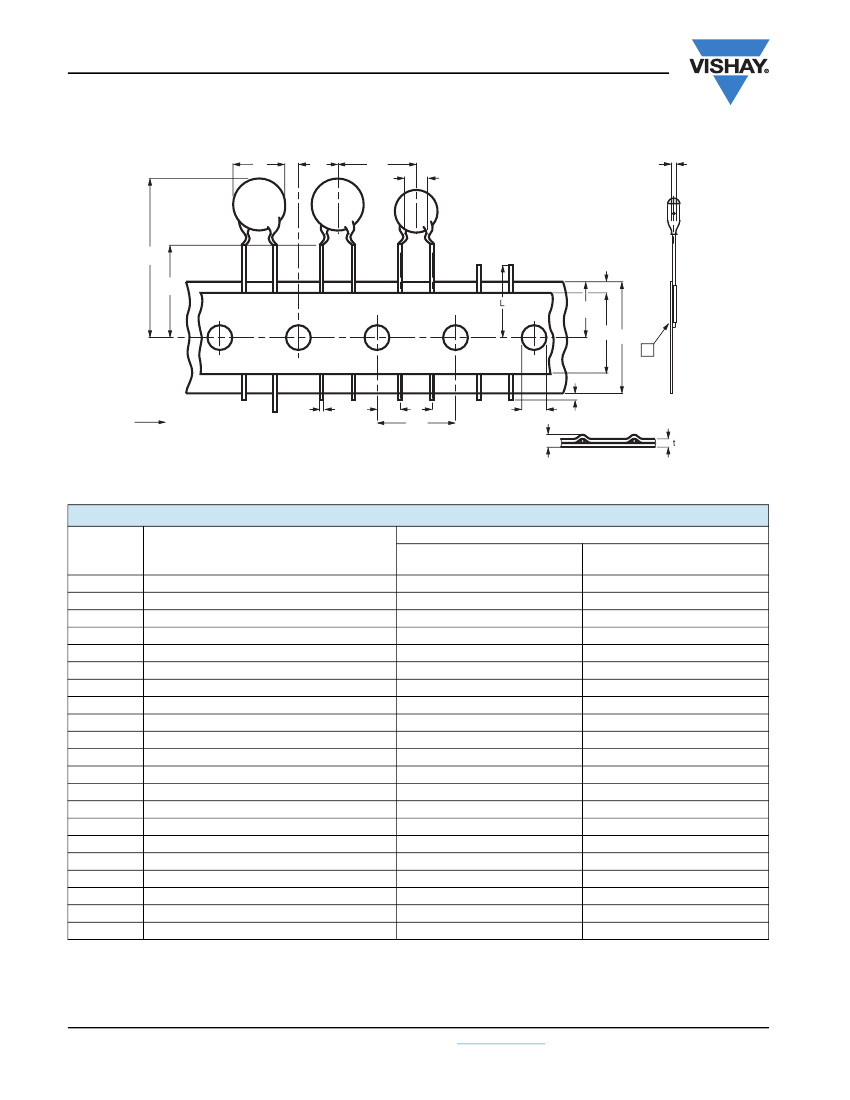

DIMENSIONS OF TAPE
DIMENSIONS (mm)
SYMBOL
PARAMETER
FEED-HOLE PITCH
P
0
= 12.7
NOMINAL
D
d
P
P
0 (1)
ΔP
P
1 (2)
P
2 (2)
F
Δh
W
W
0
W
1
W
2
H
0
H
1
e
L
D
0
t
t
1
Body diameter
Lead diameter
Pitch between capacitors
Feed-hole pitch
Plane deviation
Feed-hole center to lead center
Feed-hole center to component center
Lead spacing
Component alignment
Tape width
Hold-down tape width
Hole position
Hold-down tape margin
Height to seating plane
Maximum component height
Lead end protrusion
Maximum length of snipped lead
Feed-hole diameter
Total tape thickness
Maximum thickness of tape and wires
11.0 maximum
0.6
12.7
12.7
1.0 maximum
3.85
6.35
5.0
0
18.0
5.0 minimum
9.0
3.0 maximum
16.0
32.0
1.0 maximum
11.0
4.0
0.9 maximum
1.5 maximum
FEED-HOLE PITCH
P
0
= 15.0
TOLERANCE
-
± 0.05
± 1.0
± 0.3
-
± 0.7
± 1.3
0.6/- 0.4
± 1.0
+ 1.0/- 0.5
-
+ 0.75/- 0.5
-
± 0.5
-
-
-
± 0.2
-
-
Notes
(1)
Cumulative pitch error: ±
≤
1 mm/20 pitches
(2)
Obliquity maximum 3°
www.vishay.com
26
For technical questions, contact:
CDC@vishay.com
Document Number: 28510
Revision: 04-Jan-10
