DG403AZ

Description
SPDT, 2 Func, CMOS, CQCC20
CategoryAnalog mixed-signal IC    The signal circuit
File Size131KB,1 Pages
ManufacturerVishay
Websitehttp://www.vishay.com

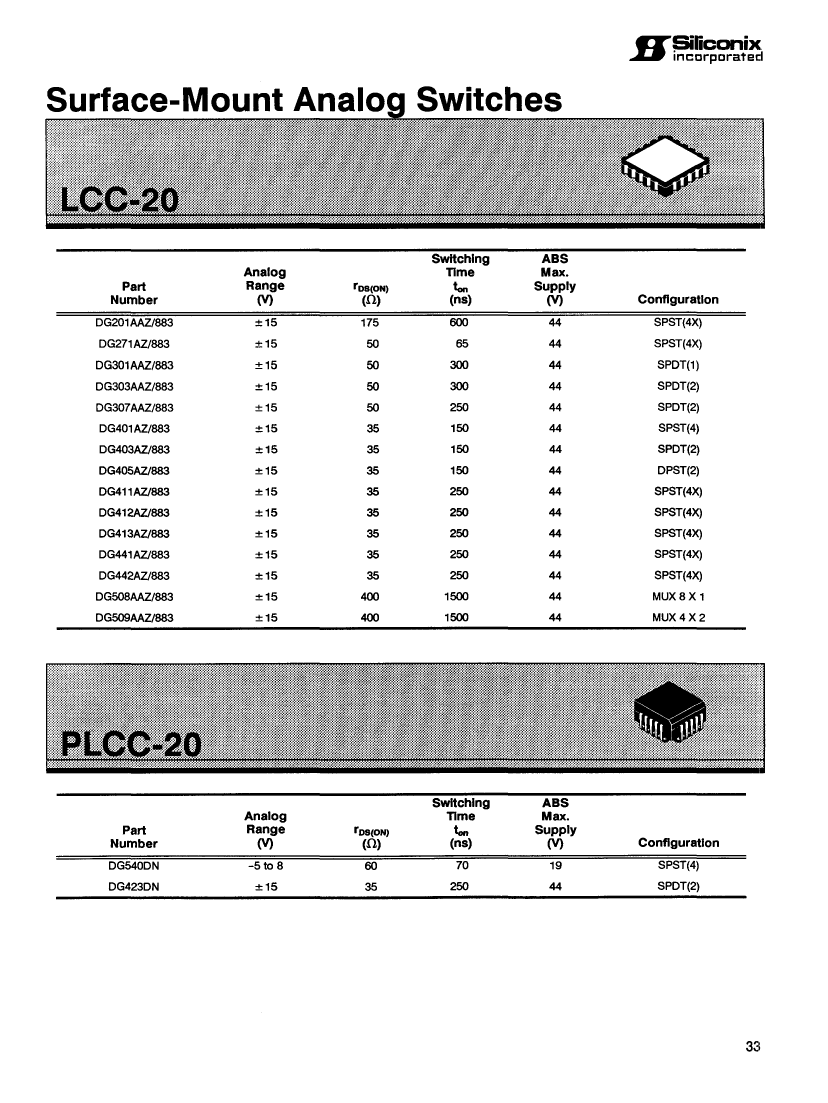

Download Datasheet Parametric Compare View All

DG403AZ Overview

SPDT, 2 Func, CMOS, CQCC20

DG403AZ Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerVishay
package instructionQCCN, LCC20,.35SQ
Reach Compliance Codeunknow
Analog Integrated Circuits - Other TypesSPDT
JESD-30 codeS-XQCC-N20
JESD-609 codee0
normal positionNO/NC
Number of functions2
Number of terminals20
Maximum on-state resistance (Ron)45 Ω
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
outputSEPARATE OUTPUT
Package body materialCERAMIC
encapsulated codeQCCN
Encapsulate equivalent codeLCC20,.35SQ
Package shapeSQUARE
Package formCHIP CARRIER
power supply5,+-15 V
Certification statusNot Qualified
surface mountYES
Maximum connection time150 ns
switchBREAK-BEFORE-MAKE
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD

DG403AZ Related Products

DG403AZ DG423DN 364502V167 DG401AZ
Description SPDT, 2 Func, CMOS, CQCC20 SPDT, 2 Func, 1 Channel, CMOS, PQCC20, PLASTIC, LCC-20 RAST 5 connectors, pitch 5.0 mm SPST, 2 Func, CMOS, CQCC20
Is it Rohs certified? incompatible incompatible - incompatible
Maker Vishay Vishay - Vishay
package instruction QCCN, LCC20,.35SQ QCCJ, - QCCN, LCC20,.35SQ
Reach Compliance Code unknow unknown - unknow
Analog Integrated Circuits - Other Types SPDT SPDT - SPST
JESD-30 code S-XQCC-N20 S-PQCC-J20 - S-XQCC-N20
JESD-609 code e0 e0 - e0
Number of functions 2 2 - 2
Number of terminals 20 20 - 20
Maximum on-state resistance (Ron) 45 Ω 35 Ω - 45 Ω
Maximum operating temperature 125 °C 85 °C - 125 °C
Minimum operating temperature -55 °C -40 °C - -55 °C
Package body material CERAMIC PLASTIC/EPOXY - CERAMIC
encapsulated code QCCN QCCJ - QCCN
Package shape SQUARE SQUARE - SQUARE
Package form CHIP CARRIER CHIP CARRIER - CHIP CARRIER
Certification status Not Qualified Not Qualified - Not Qualified
surface mount YES YES - YES
Maximum connection time 150 ns 250 ns - 150 ns
technology CMOS CMOS - CMOS
Temperature level MILITARY INDUSTRIAL - MILITARY
Terminal surface Tin/Lead (Sn/Pb) TIN LEAD - Tin/Lead (Sn/Pb)
Terminal form NO LEAD J BEND - NO LEAD
Terminal pitch 1.27 mm 1.27 mm - 1.27 mm
Terminal location QUAD QUAD - QUAD
