L2010HR280FNT

Description
RESISTOR, THIN FILM, 1 W, 1 %, 50 ppm, 0.28 ohm, SURFACE MOUNT, 2010, CHIP, ROHS COMPLIANT
CategoryPassive components    The resistor
File Size107KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

L2010HR280FNT Overview

RESISTOR, THIN FILM, 1 W, 1 %, 50 ppm, 0.28 ohm, SURFACE MOUNT, 2010, CHIP, ROHS COMPLIANT

L2010HR280FNT Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instruction, 2010
Reach Compliance Codecompli
ECCN codeEAR99
JESD-609 codee2
Manufacturer's serial numberL
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR
Rated power dissipation(P)1 W
Rated temperature70 °C
resistance0.28 Ω
Resistor typeFIXED RESISTOR
size code2010
surface mountYES
technologyTHIN FILM
Temperature Coefficient50 ppm/°C
Terminal surfaceTin/Silver (Sn/Ag) - with Nickel (Ni) barrie
Terminal shapeWRAPAROUND
Tolerance1%
Operating Voltage50 V

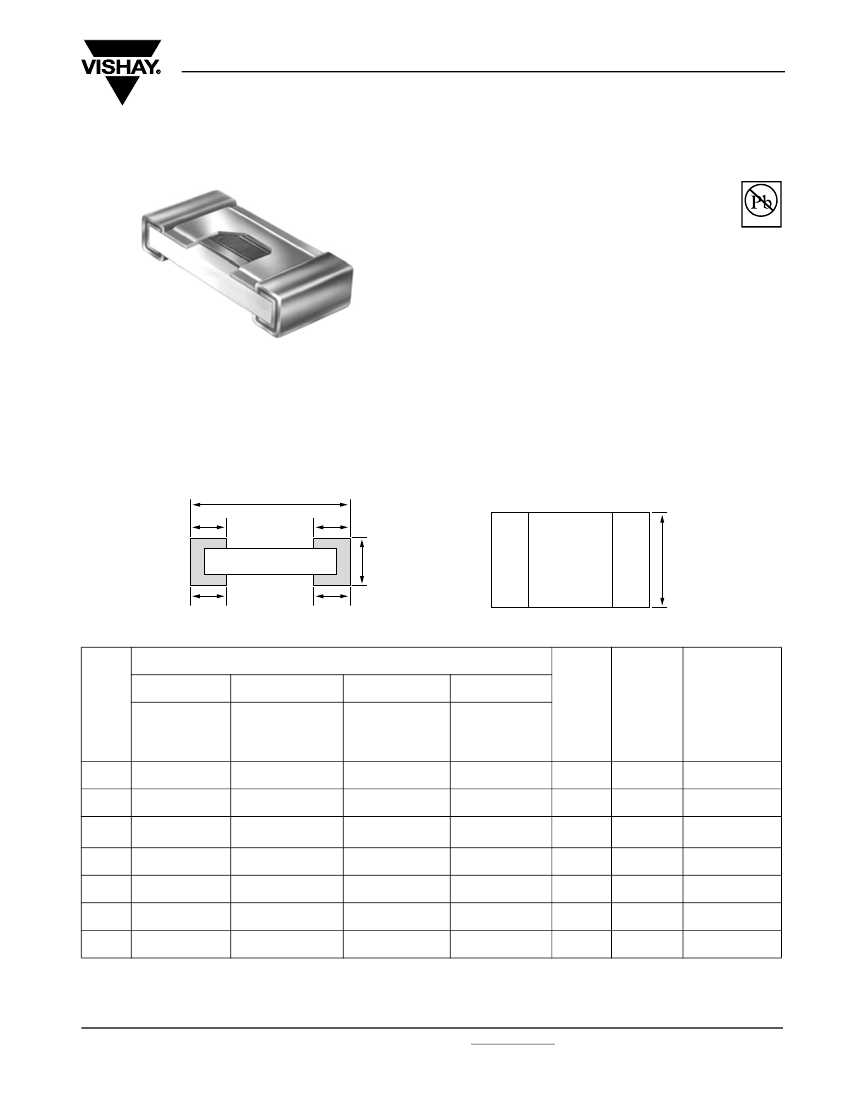

L
Vishay Sfernice
Ultra Low Value
Thin Film Resistors
FEATURES
NiCr + Ta
2
O
5
resistive layer
Pre-soldered or gold terminations
No inductance for high frequency applications
Alumina substrates for high power handling
capability
Resistance range: 0.1
Ω
to 9.99
Ω
TCR down to 100 ppm/°C
Power rating: Up to 1 W at + 70 °C
With extremely low resistance and high power capabilities,
these ultra low value resistors are available with solderable
or weldable terminations.
Pb-free
Available
RoHS*
COMPLIANT
DIMENSIONS
in millimeters [inches]
A
D
D
C
B
E
E
DIMENSION
CASE
SIZE
A
MAX .TOL
+ 0.64 [+ 0.025]
MIN. TOL.
- 0.13 [- 0.005]
1.27 [0.050]
1.52 [0.060]
1.91 [0.075]
2.54 [0.100]
3.20 [0.126]
3.81 [0.150]
5.08 [0.200]
B
MAX. TOL.
+ 0.26 [+ 0.010]
MIN. TOL.
- 0.13 [- 0.005]
1.27 [0.050]
0.75 [0.030]
1.27 [0.050]
1.27 [0.050]
1.60 [0.063]
1.27 [0.050]
2.54 [0.100]
C
MAX. TOL
+ 0.64 [+ 0.025]
MIN. TOL.
- 0.13 [- 0.005]
0.38 [0.015]
0.38 [0.015]
0.38 [0.015]
0.38 [0.015]
0.38 [0.015]
0.38 [0.015]
0.38 [0.015]
D/E
MAX. TOL.
+ 0.13 [+ 0.005]
MIN. TOL.
- 0.13 [- 0.005]
0.38 [0.015]
0.38 [0.015]
0.38 [0.015]
0.38 [0.015]
0.38 [0.015]
0.38 [0.015]
0.38 [0.015]
POWER
RATING
mW
LIMITING
ELEMENT
VOLTAGE
V
RESISTANCE
RANGE
0505
0603
0705
0805
1005
1206
1505
2010
125
125
200
250
330
500
1000
50
50
50
50
50
50
50
0.1
Ω...
9.99
Ω
0.1
Ω...
9.99
Ω
0.1
Ω...
9.99
Ω
0.1
Ω...
9.99
Ω
0.1
Ω...
9.99
Ω
0.1
Ω...
9.99
Ω
0.1
Ω...
9.99
Ω
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 53018
Revision: 19-Aug-08
For technical questions, contact: sfer@vishay.com
