ECS-2018240-AM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> ECS-2018240-AM

ECS-2018240-AM: DescriptionCRYSTAL OSCILLATOR, CLOCK, 24 MHz, CMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4-PIN; CategoryPassive components oscillator; File Size165KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-2018240-AM Overview

CRYSTAL OSCILLATOR, CLOCK, 24 MHz, CMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4-PIN

ECS-2018240-AM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECS
Reach Compliance Code	compliant
Other features	TRI-STATE; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	ECS-2018
Installation features	SURFACE MOUNT
Nominal operating frequency	24 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
physical size	2.5mm x 2.0mm x 0.9mm
longest rise time	10 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	GOLD OVER NICKEL
Base Number Matches	1

Preview

Download Datasheet

View All

Low Voltage HCMOS

2.5 x 2.0 mm Footprint

Low current consumption

Pb Free/RoHS Compliant

ECS-2018

SMD CLOCK OSCILLATOR

ECS-2018 (1.8V) subminiature SMD oscillators. Ideal for

today's high density applications.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

ECS-2018 (+1.8V)

PARAMETERS

Frequency Range

Operating Temperature

Storage Temperature

Supply Voltage

Frequency Stability *

CONDITIONS

MIN

0.750

-10

-40

-55

+1.71

TYP

MAX

50.000

+70

+85

+100

+1.89

± 100

± 50

± 25

2.5

3.0

3.5

45/55

10% VDD

UNITS

MHz

°C

VDC

ppm

µA

VDC

ppm

Standard

Extended (N Option)

VDD

Option A

Option B

Option C

0.75 to 30 MHz

30.1 to 40 MHz

40.1 to 50 MHz

Pin 1 = VIL

@ 50% VDD level

10% VDD to 90% level

VOL

VOH

CMOS

+1.8

Input Current

Stand-by Current

Output Symmetry

Rise and Fall Times

"0" level

"1" level

Output Load

Disable delay time

Startup time

Aging

90% VDD

150

±5

* Note: Inclusive of 25°C tolerance, operating temperature,input voltage change, load change, shock and vibration.

DIMENSIONS (mm)

Pin Connections

Pin #1

Pin #2

Pin #3

Pin #4

Tri-State

Ground

Output

Tri-State Control Voltage

Note: Terminals (A & B) should

not be connected.

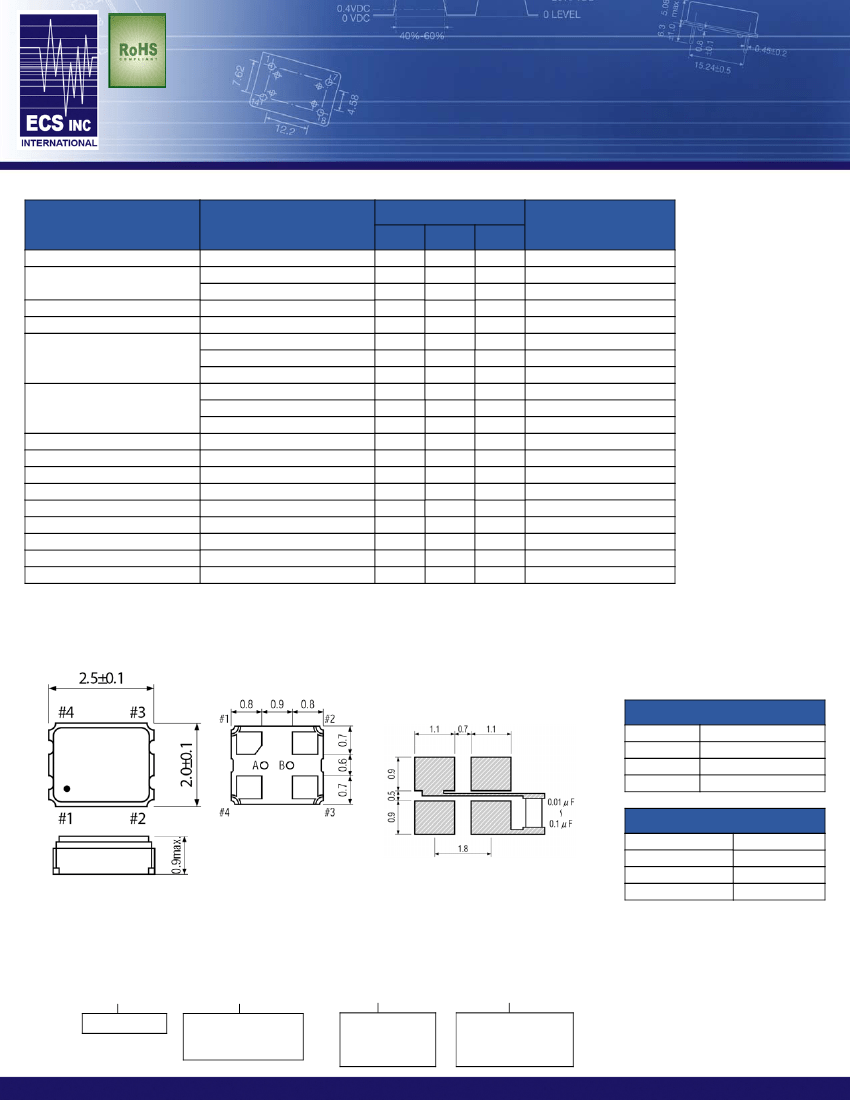

Figure 1) Top, Side and Bottom views

Figure 2) Suggested Land Pattern

Pad 1

Open

VIH 70% VDD Min

VIL 30% VDD Max

Pad 4

Oscillation

No Oscillation

Note: Internal crystal oscillation to be halted

(Pin #1=VIL)

PART NUMBERING GUIDE: Example ECS-2018-200-BN

ECS

Series

2018 = +1.8V

Frequency Abbreviation

200 = 20.000 MHz

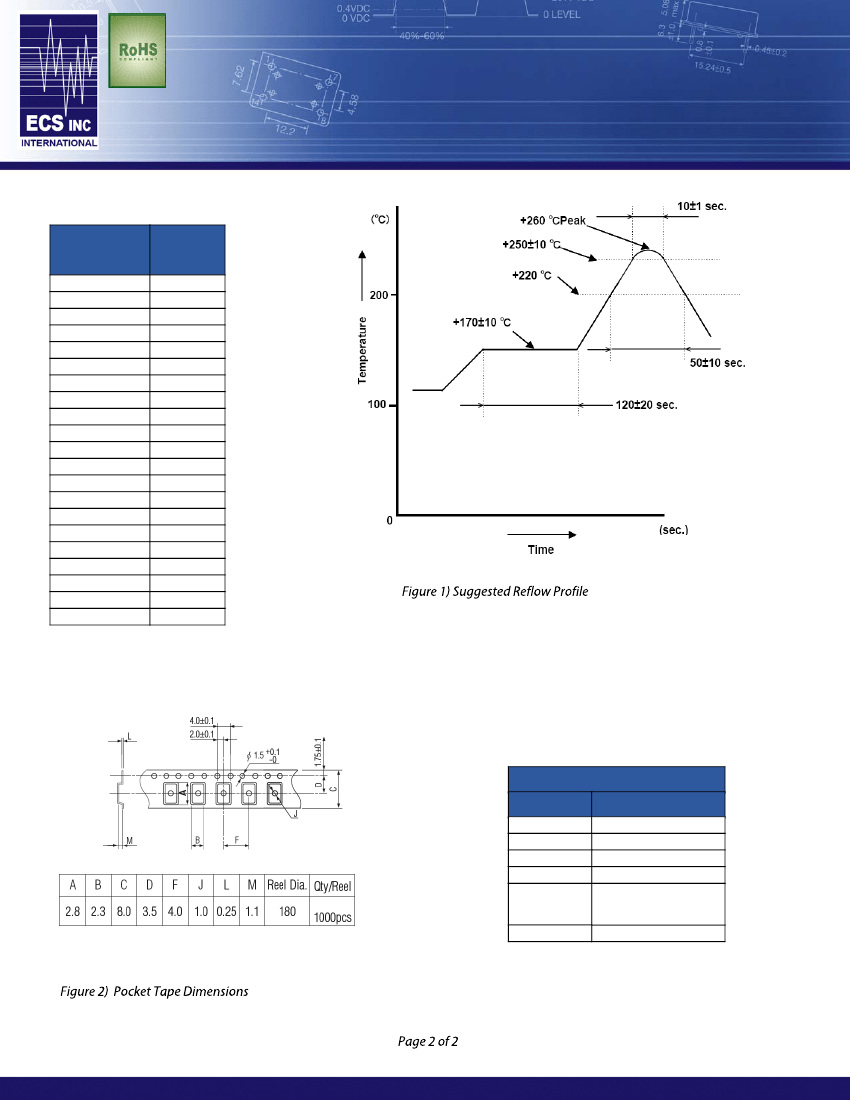

See Frequency

Abbreviations (Pg 2)

Stability

Temperature

Blank = -10 ~ +70°C

M = -20 ~ +70°C

N = -40 ~ +85°C

Fax: 913.782.6991

www.ecsxtal.com

A = ± 100 ppm

B = ± 50 ppm

C = ± 25 ppm

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787
