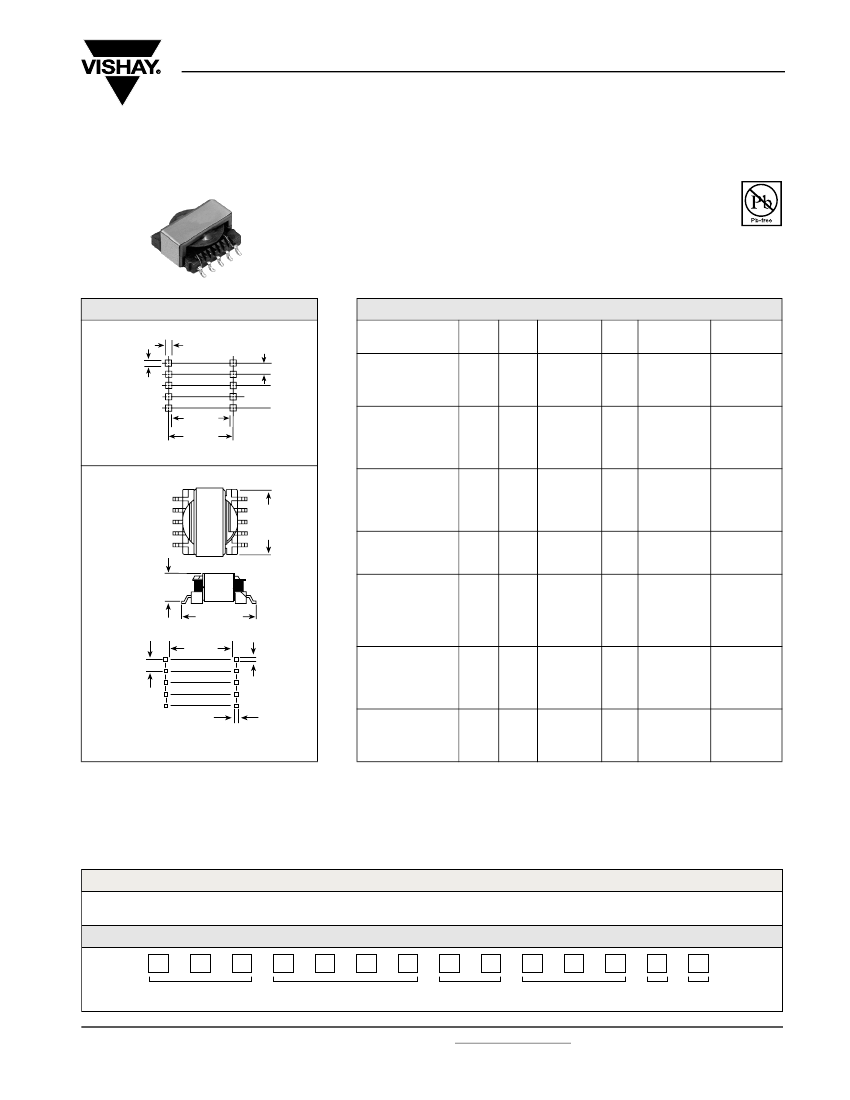

LPE-6562
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped, Custom Configurations Available
ELECTRICAL SPECIFICATIONS
(Multiple winds are connected in parallel)
Inductance Range:
10 µH to 330 000 µH, measured at 0.10 V RMS
at 10 kHz without DC current, using an HP 4263A or HP 4284A
impedance analyzer
DC Resistance Range:
0.03
Ω
to 53.7
Ω,
measured at + 25 °C ± 5 °C
Rated Current Range:
3.00 amps to 0.06 amps
Dielectric Withstanding Voltage:
500 V RMS, 60 Hz, 5 seconds
RoHS
COMPLIANT
DIMENSIONS
in inches [millimeters]
Pad Layout
0.092 [2.34] Pad Dimensions
Typical, 10 places
0.100 [2.54]
0.058
[1.47]
0.545
[13.84]
0.603
[15.32]
Reference Only
Typical
4 places
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
Ungapped Models
LPE-6562-221NA
220 ± 30 %
A
0.28
0.90
N/A
LPE-6562-331NA
330 ± 30 %
A
0.34
0.81
N/A
LPE-6562-471NA
470 ± 30 %
A
0.40
0.74
N/A
LPE-6562-681NA
680 ± 30 %
A
0.48
0.67
N/A
LPE-6562-102NA
1000 ± 30 %
A
0.59
0.61
LPE-6562-152NA
1500 ± 30 %
A
0.72
0.55
N/A
LPE-6562-222NA
2200 ± 30 %
A
0.87
0.50
N/A
LPE-6562-332NA
3300 ± 30 %
A
1.07
0.45
N/A
LPE-6562-472NA
4700 ± 30 %
A
1.27
0.41
N/A
LPE-6562-682NA
6800 ± 30 %
A
1.53
0.38
N/A
N/A
A
1.86
0.34
LPE-6562-103NA 10 000 ± 30 %
2.27
0.31
N/A
LPE-6562-153NA 15 000 ± 30 %
A
0.16
N/A
A
8.67
LPE-6562-223NA 22 000 ± 30 %
10.6
0.14
N/A
LPE-6562-333NA 33 000 ± 30 %
A
A
12.7
0.13
N/A
LPE-6562-473NA 47 000 ± 30 %
A
15.2
0.12
N/A
LPE-6562-683NA 68 000 ± 30 %
A
18.5
0.11
N/A
LPE-6562-104NA 10 000 ± 30 %
A
37.7
0.08
N/A
LPE-6562-154NA 150 000 ± 30 %
A
45.6
0.07
N/A
LPE-6562-224NA 220 000 ± 30 %
A
53.7
0.06
N/A
LPE-6562-334NA 330 000 ± 30 %
Gapped Models
LPE-6562-100MB
10
± 20 %
B
0.03
3.09
5.055
LPE-6562-150MB
15
± 20 %
B
0.04
2.79
4.160
LPE-6562-220MB
22
± 20 %
B
0.05
2.26
3.460
LPE-6562-330MB
33
± 20 %
B
0.08
1.81
2.840
LPE-6562-470MB
47
± 20 %
D
0.12
1.48
2.390
LPE-6562-680MB
68
± 20 %
C
0.19
1.20
1.990
LPE-6562-101MB
100 ± 20 %
D
0.29
0.98
1.650
E
0.45
0.78
1.350
LPE-6562-151MB
150 ± 20 %
0.71
1.115
LPE-6562-221MB
220 ± 20 %
E
0.54
0.912
LPE-6562-331MB
330 ± 20 %
E
0.84
0.57
1.24
0.47
0.765
LPE-6562-471MB
470 ± 20 %
E
0.637
E
1.89
0.38
LPE-6562-681MB
680 ± 20 %
0.31
0.526
LPE-6562-102MB
1000 ± 20 %
E
2.91
LPE-6562-152MB
1500 ± 20 %
E
4.50
0.25
0.430
0.355
E
6.90
0.20
LPE-6562-222MB
2200 ± 20 %
E
10.4
0.16
0.290
LPE-6562-332MB
3300 ± 20 %
E
15.7
0.13
0.243
LPE-6562-472MB
4700 ± 20 %
* DC current that will create a maximum temperature rise of 30 °C when applied at + 25 °C
ambient. ** DC current that will typically reduce the initial inductance by 20 %.
UNGAPPED MODELS:
Highest possible inductance with the lowest DCR and highest Q
capability. Beneficial in filter, impedance matching and line coupling devices.
GAPPED MODELS:
Capable of handling large amounts of DC current, tighter inductance
tolerance with better temperature stability than ungapped models. Beneficial in DC to DC
converters or other circuits carrying DC currents or requiring inductance stability over a
temperature range.
IND.
(µH)
DCR MAX. RATED* SATURATING
IND. SCHEMATIC MAX. DC CURRENT CURRENT**
TOL.
LETTER
(Ω)
(Amps)
(Amps)
Dimensional Outline
6
5
0.606
[15.39]
Max.
1
10
0.335 [8.51]
Max.
0.695
[17.65]
Max.
0.100
[2.54]
Typ.
0.575
[14.60]
0.028
[0.71]
0.028
[0.71]
Foot print Diagram
NOTE:
Pad layout guidelines per MIL-STD-275E
(printed wiring for electronic equipment).
Tolerances: xx ± 0.01" [± 0.25 mm]. xxx ± 0.005"
[± 0.12 mm].
The underside of these components contains
metal and thus should not come into contact with
active circuit traces.
DESCRIPTION
LPE
6562
1000 µH
± 30 %
A
ER
e2
MODEL SIZE INDUCTANCE
VALUE
INDUCTANCE TOLERANCE CORE PACKAGE CODE JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
L
P
E
6
5
SIZE
6
2
E
R
1
0
INDUCTANCE
VALUE
2
N
TOL.
T
CORE
PRODUCT FAMILY
PACKAGE
CODE
Document Number: 34066
Revision: 17-Apr-07
For technical questions, contact: magnetics@vishay.com
www.vishay.com
159
LPE-6562
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped, Custom Configurations Available

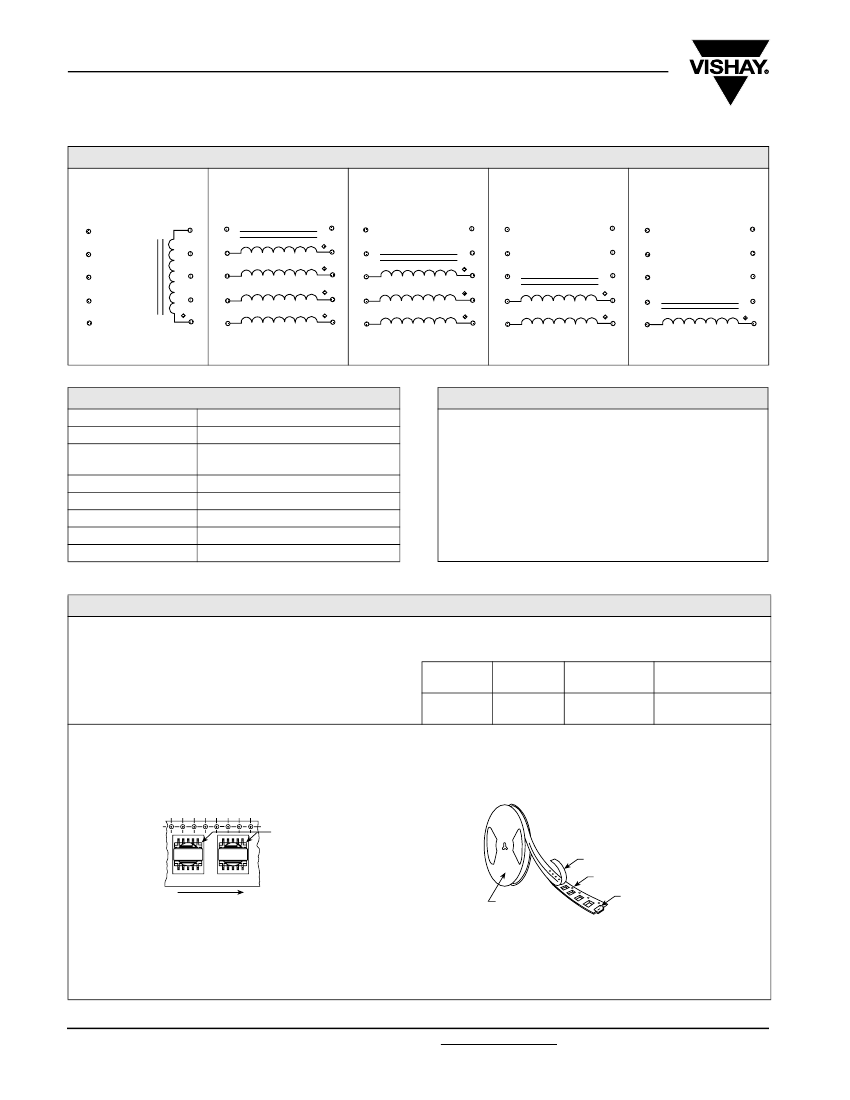

SCHEMATIC (TOP VIEW)
Schematic A
6
5
6
Schematic B
5
6
Schematic C
5
6
Schematic D
5
6
Schematic E
5
7
8
4
3
7
8
4
7
8
4
7
4
7
4
3
3
8
3
8
3
9
10
2
1
9
2
1
9
10
2
9
2
9
10
2
1
10
1
10
1
NOTE:
Schematic A is for Ungapped LPE Series
ENVIRONMENTAL PERFORMANCE
TEST
Thermal Cycling
Operating
Temperature
High Humidity
Soldering Heat
Mechanical Shock
Vibration
Solderability
CONDITIONS
Withstands - 55 °C to + 125 °C
- 55 °C to + 125 °C*
85 %
Tested to + 230 °C
Per MIL-STD-202, Method 213 (100G)
Per MIL-STD-202, Method 204 (20G)
Per industry standards
PART MARKING
- Vishay Dale
- Date code
- Marking code (Suffix of model #)
- Pin 1 indicator
* Must be checked in end use application
PACKAGING
TAPE SPECIFICATIONS:
Carrier Tape Type: Conductive
Cover Tape Type: Anti-static
Cover Tape Adhesion to Carrier: 40 ± 30 grams
REEL SPECIFICATIONS:
Diameter (flange): 13" [330.2 mm]
Maximum Width (over flanges): 1.197" [30.4 mm]
Tape and Reel Orientation
STANDARDS:
All embossed carrier tape packaging will be
accomplished in compliance with latest revision of EIA-481
“Taping of Surface Mount Components for Automatic Placement”.
MODEL
LPE-6562
TAPE
WIDTH
32 mm
COMPONENT
PITCH
20 mm
UNITS PER
13 INCH REEL
300
Pin 1
Indicator
Cover Tape
Carrier Tape
USER DIRECTION OF FEED
Label Area
Embossed Cavity
www.vishay.com
160
For technical questions, contact: magnetics@vishay.com
Document Number: 34066
Revision: 17-Apr-07
