M10, M11, M12, M25
Vishay Draloric
Not for New Designs,
alternatively please use TNPW e3
Thin Film, Rectangular, Resistor Chips
FEATURES
•
Metal film layer on high quality ceramic
•
Protective top coat
•
Pure tin on nickel barrier layer
RoHS
COMPLIANT
•
Low temperature coefficient and tight tolerances (± 0.1 %;
± 10 ppm/K)
•
56 days at 40 °C and 93 % relative humidity down to
≤
± 0.2 %
STANDARD ELECTRICAL SPECIFICATIONS
SIZE
MODEL
INCH
M10
0402
METRIC
1005
POWER RATING
P
70 °C
EN 140
401-801
0.063
EIA
575
0.063
LIMITING ELEMENT TEMPERATURE
VOLTAGE MAX.
COEFFICIENT
V≅
ppm/K
25
± 25; ± 50
± 25
M11
0603
1608
0.1
0.063
75
± 50
± 25
M12
0805
2012
0.125
0.1
150
± 50
± 25
M25
1206
3216
0.25
0.125
200
± 50
TOLERANCE
%
± 0.5; ± 1
± 0.1; ± 0.25;
± 0.5; ± 1
± 0.1; ± 0.25; ± 0.5;
±1
± 0.1; ± 0.25;
± 0.5; ± 1
± 0.1; ± 0.25; ± 0.5;
±1
± 0.1; ± 0.25;
± 0.5; ± 1
± 0.1; ± 0.25; ± 0.5;
±1
RESISTANCE
RANGE
E-SERIES
Ω
10R - 20K
(1)
10R - 56K
(1)
10R - 56
(1)
1R0 - 100K
(1)
10R - 100K
(1)
10R - 100K
(1)
1R0 - 220K
(1)
10R - 220K
(1)
10R - 220K
(1)
1R0 - 330K
(1)
24 - 96
24 - 96
24 - 96
24 - 96
Notes:
(1)
Higher values on request, ask about extended value ranges
•
Power rating depends on the max. temperature at the solder point, the component placement density and the substrate material
•
Marking: 4 digits, M10 - no marking
TECHNICAL SPECIFICATIONS
PARAMETER
Rated Dissipation at 70 °C
(EN 140 401-801| EIA 575)
Limiting Element Voltage
(3)
Insulation Voltage (1 min)
Thermal Resistance
(2)
Insulation Resistance
Category Temperature Range
Failure Rate
Weight/1000 pieces
UNIT
W
V≅
V
dc/ac peak
K/W
Ω
°C
h
-1
g
0.65
2
M10
0.063
25
> 50
≤
870
(2)
-
0.1
75
> 100
≤
550
(2)
-
M11
0.063
0.125
150
> 200
≤
440
(2)
> 10
9
- 55 to + 125 (+ 155)
0.3 x 10
- 9
5.5
10
-
M12
0.1
0.25
200
> 300
≤
220
(2)
-
M25
0.125
Notes:
(2)
Measuring conditions in acc. with EN 140 401-801
(3)
Rated voltage: P x R
www.vishay.com
202
For technical questions, contact: filmresistors.thinfilmchip@vishay.com
Document Number: 20028
Revision: 03-Jun-08
Not for New Designs,
alternatively please use TNPW e3
M10, M11, M12, M25
Vishay Draloric
Thin Film, Rectangular, Resistor Chips
DIMENSIONS
SIZE
INCH METRIC
0402
0603
0805
1206
1005
L
DIMENSIONS [in
millimeters]
W
H
T1
T2
1.0 ± 0.05 0.5 ± 0.05 0.35 ± 0.05 0.25 ± 0.1 0.2 ± 0.1
+ 0.10
1608 1.55 - 0.05 0.85 ± 0.1 0.45 ± 0.05 0.30 ± 0.2 0.3 ± 0.2
2012
3216
2.0 + 0.20 1.25 ± 0.15 0.45 ± 0.05 0.30+ 0.20 0.3 ± 0.2
- 0.10
- 0.10
3.2 + 0.10 1.6 ± 0.15 0.55 ± 0.05 0.45 ± 0.2 0.4 ± 0.2
- 0.20
SOLDER PAD DIMENSIONS
[in millimeters]
SIZE
REFLOW
a
0.4
0.5
0.7
0.9
b
0.6
0.9
1.4
1.7
l
0.5
1.0
1.2
2.0
0.9
0.9
1.1
0.9
1.3
1.7
1.0
1.3
2.3
WAVE SOLDERING
a
b
l
INCH
0402
0603
0805
1206
METRIC
1005
1608
2012
3216
PART NUMBER AND PRODUCT DESCRIPTION
PART NUMBERING: M1004020D5620DP000
M
MODEL/SIZE
M100402
M110603
M120805
M251206
1
0
0
4
0
2
0
D
5
6
2
0
D
P
0
0
0
SPECIAL
Up to 2 digits
00
= standard
SPECIAL CHARACTER
0
= Neutral
TCR
D
= ± 25 ppm/K
C
= ± 50 ppm/K
VALUE
3 digit value
1 digit multiplier
Multiplier
8
= *10
- 2
9
= *10
- 1
0
= *10
0
1
= *10
1
2
= *10
2
3
= *10
3
TOLERANCE
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
=±1%
PACKAGING
(1)
P0
P1
P5
PN
PZ
PRODUCT DESCRIPTION: M10 25 562R 0.5 % P0
M10
MODEL
M10
M11
M12
M25
25
TCR
±
25
ppm/K
±
50
ppm/K
562R
RESISTANCE VALUE
49K9
= 49.9 kΩ
5R1
= 5.1
Ω
0.5 %
TOLERANCE
±
0.1
%
±
0.25
%
±
0.5
%
±
1
%
P0
PACKAGING
(1)
P0
P1
P5
PN
PZ
Notes:
(1)
Please refer to table PACKAGING, page 146
(2)
Products can be ordered using either the PRODUCT DESCRIPTION or the PART NUMBER
Document Number: 20028
Revision: 03-Jun-08
For technical questions, contact: filmresistors.thinfilmchip@vishay.com
www.vishay.com
203
M10, M11, M12, M25
Vishay Draloric
Not for New Designs,
alternatively please use TNPW e3
Thin Film, Rectangular, Resistor Chips

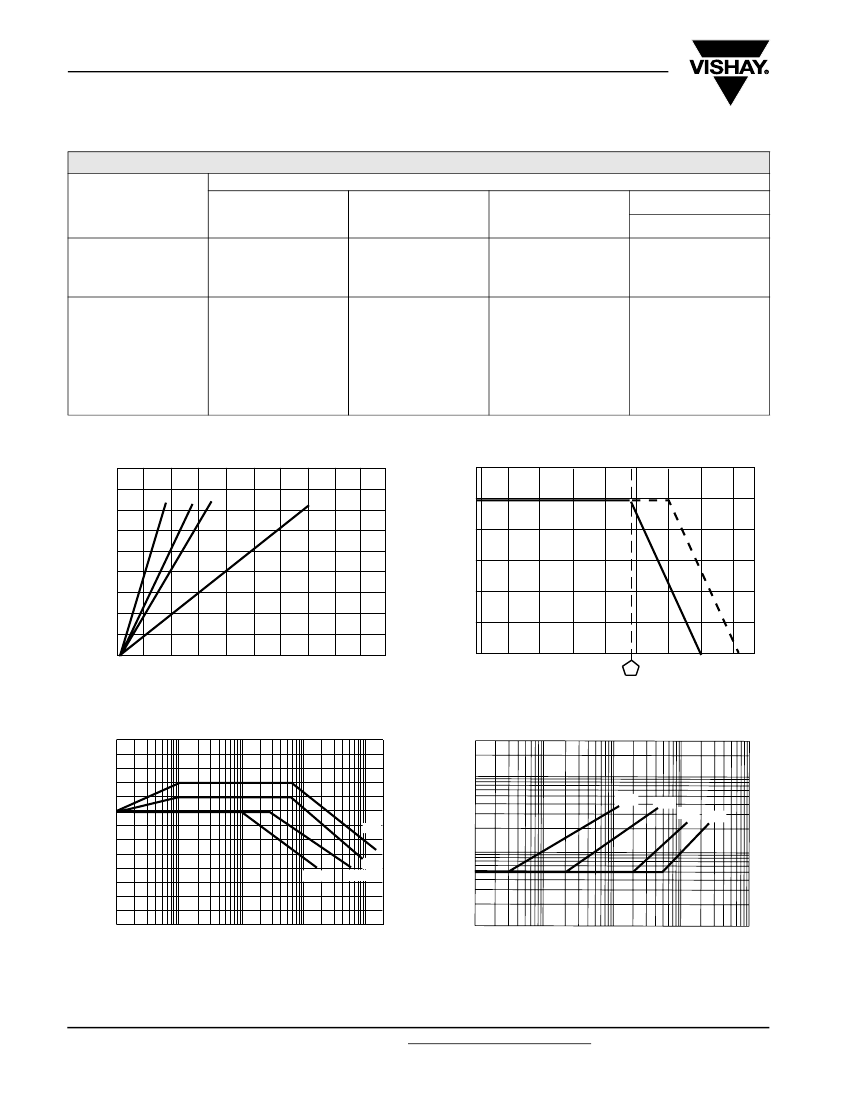

PACKAGING
REEL
MODEL
PACKING CODE
TAPE WIDTH
DIAMETER
PIECES/REEL
PAPER
180 mm/7"
330 mm/13"
10 000
50 000
P0
PZ
M10
8 mm
M11
M12
M25
8 mm
180 mm/7"
180 mm/7"
330 mm/13"
1000
(1)
5000
20 000
P1
P5
PN
Note:
(1)
For
≤
TCR 25 ppm/K and Tolerance
≤
0.1 % only
Temperature in Rise in °C
Rated Power in
%
90
80
70
60
50
40
30
20
10
0
0
0.1
0.2
0.3
0.4
0.5
0
- 55
-25
0
25
50
75
100
125
150 175
70
Ambient Temperature in °C
40
20
0402 0603 0805
1206
120
100
80
60
Temperature Rise
Power in W
Derating
Current Noise in µV/V
Non-Linearity A
3
in dB
120
110
100
M25
3
2
1
0.5
0.3
M10
M11
M12 M25
90
0.1
80
70
60
10
M10
M12
M11
0.05
0.03
100
1K
Non-Linearity
10K
100K
Resistance Value in W
0.01
100
Current Noise
1K
10K
100K
1M
Resistance Value in W
www.vishay.com
204
For technical questions, contact: filmresistors.thinfilmchip@vishay.com
Document Number: 20028
Revision: 03-Jun-08
Not for New Designs,
alternatively please use TNPW e3
M10, M11, M12, M25
Vishay Draloric
Thin Film, Rectangular, Resistor Chips
Phase Angle in
ϑ
°
[Z]-RO in
%
RO
60
M11
40
20
0
10
Ω
100
Ω
1K
Ω
60
M11
40
20
0
10
Ω
100
Ω
100
Ω
1K
Ω
- 20
- 40
- 60
-
80
4.75K
Ω
10K
Ω
2
5
10
50
100
500 1000
- 20
- 40
4.75K
Ω
- 60
10K
Ω
-
80
2
5
10
50
100
500 1000

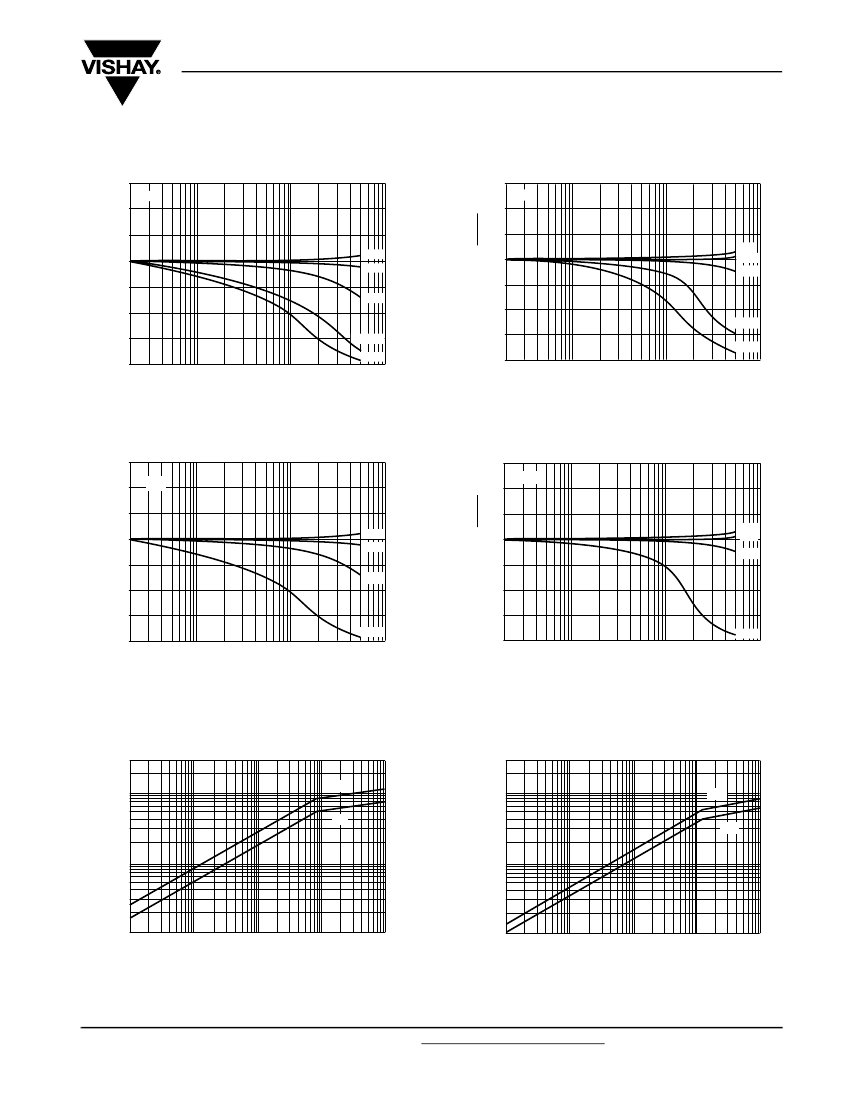

HF Performance
Frequency f in MHz
HF Performance
Frequency f in MHz
Phase Angle in
ϑ
°
[Z]-RO in
%
RO
60
40
20
0
10
Ω
100
Ω
1K
Ω
M12
60
M12
40
20
0
10
Ω
100
Ω
1K
Ω
- 20
- 40
- 60
-
80
10K
Ω
2
5
10
50
100
500 1000
- 20
- 40
- 60
-
80
10K
Ω
2
5
10
50
100
500 1000
HF Performance
Frequency f in MHz
HF Performance
Frequency f in MHz
Test Voltage in V
Test Voltage in V
3K
M12
3K
1K
1K
M12
M11
M11
100
100
10
10R
100R
1K
10K
100K
10
10R
100R
1K
10K
100K
Resistance Value in
Ω
Resistance Value in
Ω
Single-Pulse High Voltage Overload Test
1.2/50 µs EN140000 4.27
Single-Pulse High Voltage Overload Test
10/700 µs EN140000 4.27
Document Number: 20028
Revision: 03-Jun-08
For technical questions, contact: filmresistors.thinfilmchip@vishay.com
www.vishay.com
205
M10, M11, M12, M25
Vishay Draloric
Power Rating
P
in W
100
M25
M12
M11
M10
Not for New Designs,
alternatively please use TNPW e3
Thin Film, Rectangular, Resistor Chips
Power Rating
P
in W
100
M25
10
M12
M11
M10
1
10
1
0.1
Secondary conditions:
a) P 0 (peak pulse, single pulse)
b)
ϑ
u
≤
70
°
C
c) U
max
see diagram (Max pulse voltage)
10
- 4
10
- 3
10
- 2
0.1
0.01
10
- 5
Pulse Rating P
0
10
- 1
1
10
Square Pulse
t
i
in s
0.01
10
-5
Secondary conditions:
a) P
≤
P70 (permissible constant power at
ϑ
u = 70
°
C)
b)
ϑ
u
≤
70
°
C
c) U
max
see diagram (Max pulse voltage)
10
-4
10
-3
10
-2
10
-1
1
10
Pulse Rating P
≤
P70
Square Pulse
t
i
in s
Pulse Voltage Ü
max
in V
1000
Secondary conditions:
a) P see diagram (pulse Rating)
b)
ϑ
u
≤
70
°
C
800
M25
600
M12
400
200
M11
M10
0
10
- 5
10
- 4
10
- 3
10
- 2
Maximum Pulse Voltage
10
- 1
1
10
Square Pulse
t
i
in s
ASSEMBLY
The suitability of conformal coatings, if applied, shall be qualified by appropriate means to ensure the long-term stability of the
whole system.
www.vishay.com
206
For technical questions, contact: filmresistors.thinfilmchip@vishay.com
Document Number: 20028
Revision: 03-Jun-08
