2ALF5LB-230: Description22 mm LED Illuminated Metal Flush Momentary Operator; File Size150KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet View All

2ALF5LB-230 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2ALF5LB-230	-	-	View	Buy Now

2ALF5LB-230 Overview

22 mm LED Illuminated Metal Flush Momentary Operator

Preview

Download Datasheet

View All

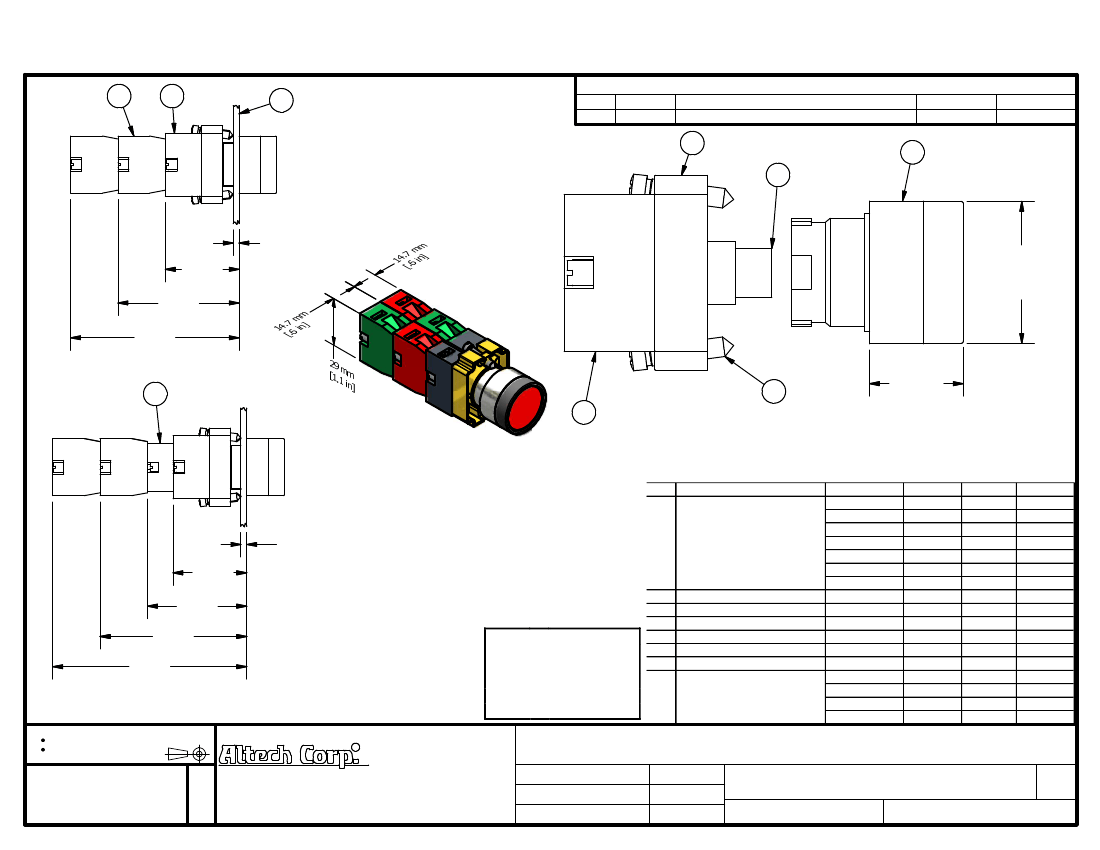

revision for dwg #

1PB-2ALFxLB-yyy

rev

ch.no.

description

original design

date

11/2/2007

revised by

Philipp E.

37 mm

[1.5 in]

61 mm

[2.4 in]

85 mm

[3.4 in]

19.00 mm

[.7 in]

Up to

four

switch contacts can be installed.

* = Selector Switch is supplied with mounting bracket, bulb holder

and LED (ITEM 1,2,3,4 and 5)

** = Switch Contacts must be ordered separatly

ITEM DESCRIPTION

CAT. NO.

2ALF1LB-yyy

2ALF3LB-yyy

LED Illuminated Metal

2ALF4LB-yyy

1* Selector Switch (Flush,

2ALF5LB-yyy

Momentary)

2ALF6LB-yyy

2ALF7LB-yyy

2ALF8LB-yyy

2* Mounting Bracket

2BRK

3* LED Bulb

MCB9xyyy

4* Mounting Bracket Screws

incl. in 2BRK

5* Blub Holder

2LHB

6 Panel

7 Maintained Action mechanisim 2PPM

8** Switch Contacts

COLOR

MIN. QTY. MAX. QTY.

White

Green

Red

Amber

Blue

Clear

Yellow

Black

Green

Red

Green/Black

Red/Black

max. 6 mm

[.25 in]

37 mm

[1.5 in]

50 mm

[2.0 in]

74 mm

[2.9 in]

98 mm

[3.9 in]

For maintained action use Cat. No.

2PPM (ITEM 7)

unless otherwise specified:

all dimensions are in millimeters

third angle projection

tolerance

XX.X

XX.XX

ALL

This Drawing is the property of

yyy

Voltage

012

12V AC/DC

024

24V AC/DC

048

48V AC/DC

110

110V AC/DC

230

230V AC

230D

230V DC

and is a confidential

disclosurelent without

consideration other than the

borrower’s agreement that it

shall not be reproduced,

copied, lent or disposed of

directly or indirectly nor

used for any purpose other

than that for which it is

specifically furnished.

titel

22 mm LED Illuminated Metal Flush Momentary Operator

2ALFxLB-yyy (x=color, yyy=voltage)

11/2/2007

0.5 mm

0.2 mm

−

1 mm

35 Royal Road

Flemington, NJ 08822-6000

(908) 806-9400

Fax (908) 806-9490

drawn by:

Philipp Ernstberger

checked by:

Laszlo Gyorgypal

released by:

Laszlo Gyorgypal

drawing no.:

28.90 mm

[1.1 in]

max. 6 mm

[.25 in]

rev.:

1PB-2ALFxLB-yyy

scale:

sheet:

of:
