Adam Technologies, Inc.
INTRODUCTION:
Adam Tech 2FCS Series 2.00mm IDC Sockets are low profile,
precision designed flat cable sockets that feature 2.00mm pin to pin
and row to row centerlines. These sockets quickly and easily mass
terminate flat cable in one simple step. Their versatility allows them
to mate with a multitude of 2.00mm pin headers. Our superior
selectively gold plated contact design provides a smooth high
pressure wiping action to ensure excellent continuity. They are used
with a single layer of 1.00mm flat cable. Their small size, light weight
and high density make them ideal for compact and limited space
applications.
FEATURES:
Low Profile and High Density
Uses Single layer 1.00mm Flat Cable
Quickly and easily mass terminates standard Flat Cable
MATING CONNECTORS:
Adam Tech 2.0mm 2BHR series box headers and 2PH series pin
headers
SPECIFICATIONS:
Material:
Insulator: PBT, glass reinforced, rated UL94V-0
Insulator Color: Black
Contacts: Phosphor Bronze
Contact Plating:
Gold flash (30
µin
optional) over nickel underplate on contact area,
tin over copper underplate on IDC area
Electrical:
Operating voltage: 250V AC max.
Current rating: 1 Amp max.
Contact resistance: 20 mΩ max. initial
Insulation resistance: 3000 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
Insertion force: 0.661 lbs per contact max.
Withdrawal force: 0.044 lbs per contact min.
Recommended wire size: 30 - 28 Awg stranded
Cable retention: 24 lbs. min axial force per inch.
Mating durability: 500 cycles min.
Temperature Rating:
Operating temperature: -40°C to +105°C
PACKAGING:
Anti-ESD plastic trays
SAFETY AGENCY APPROVALS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596

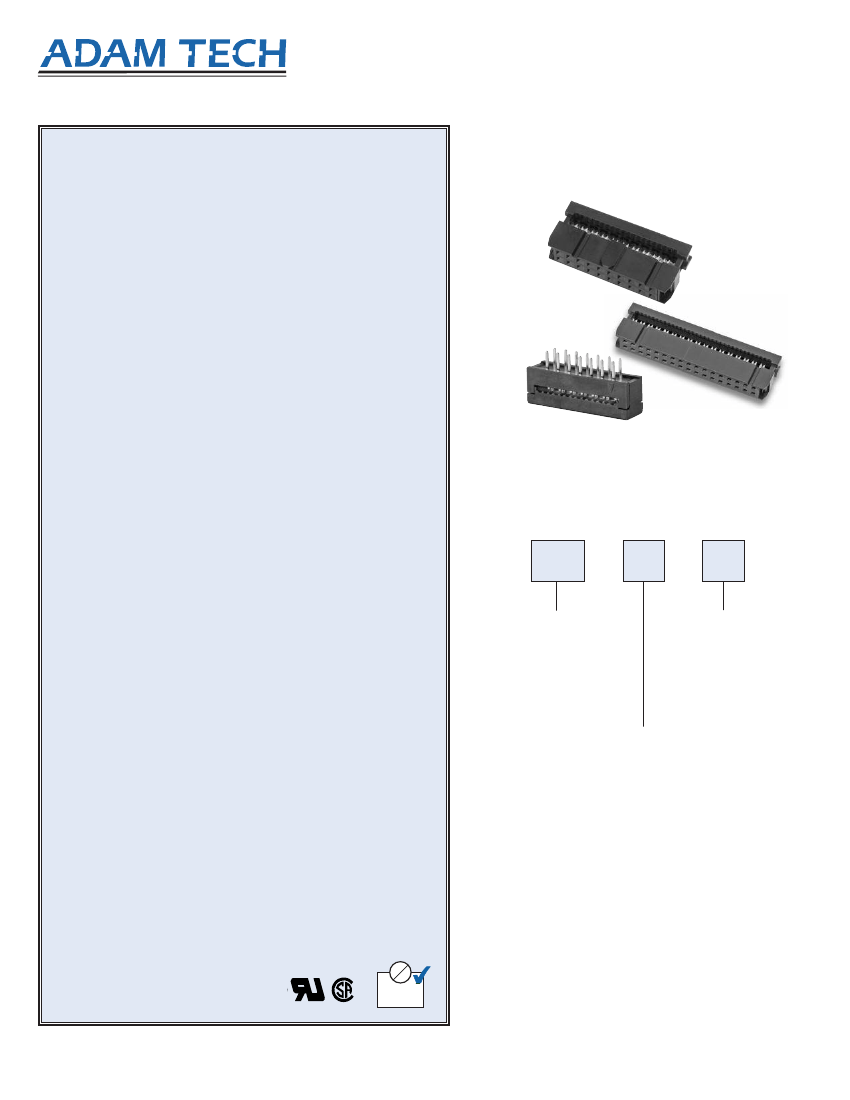

2.00mm IDC SOCKET &
TRANSITION PLUG
.079" [2.00 X 2.00] CENTERLINE
2FCS & 2FTR SERIES
ORDERING INFORMATION
2FCS
40
SG
SERIES INDICATOR
2FCS
= 2.00mm
Flat Cable
IDC Socket
2FTR
= 2.00mm
Flat Cable
Transition Plug
PLATING OPTIONS
SG
= Selectively
Gold-Plated
POSITIONS
2FCS:
06, 08, 10, 12,
24, 26, 34, 36,
2FTR:
08, 10, 12, 14,
30, 34, 40, 44,
14, 16, 18, 20, 22,
40, 44, 50, 60, 68
16, 20, 22, 24, 26,
50, 68
NOTE:
Mating Box Headers for this series located on page 264
Pb
UL
®
®
®
D E
V
RoHS
COMPLIANT
2002
/ 95
/ EC
OPTIONS:
Add designator(s) to end of part number
30
= 30 µin gold plating in contact area
PB
= Polarizing bump
318
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
