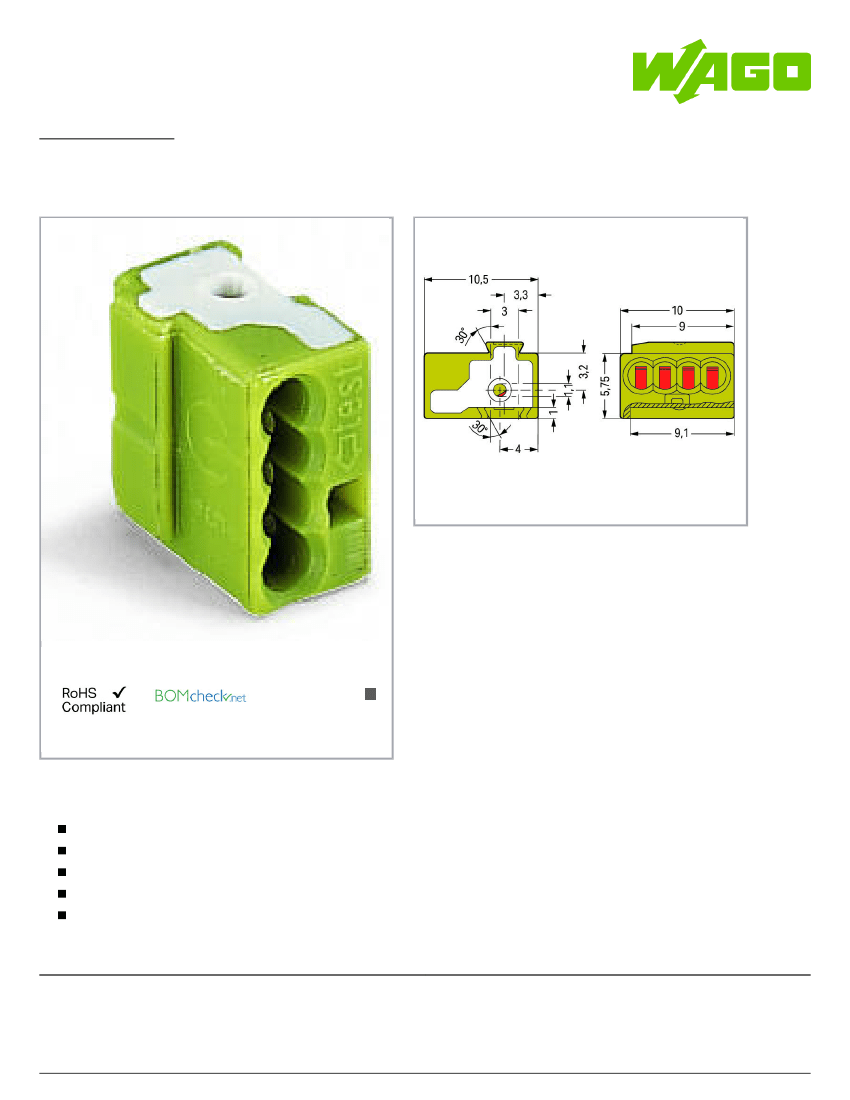

Data sheet | Item number: 243-725
4-conductor modular PCB connector; for individual solder pins; 0.8 mm Ø;
Pin spacing 5.75 mm; 1-pole; dark gray
www.wago.com/243-725
Color:
Item description
Compact, 4-conductor PCB connectors with PUSH WIRE
®
connection
Can be assembled to connector strips via dovetail joints
Push-in termination of solid conductors
Four entries for power supply and potential distribution
Quick and easy PCB replacement, without disrupting looped-through potentials
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 1/7
Data sheet | Item number: 243-725
www.wago.com/243-725
Data
Electrical data
Ratings per IEC/EN 60664-1
Ratings per
Nominal voltage (III/3)
Rated surge voltage (III/3)
Rated voltage (III/2)
Rated surge voltage (III/2)
Nominal voltage (II/2)
Rated surge voltage (II/2)
Rated current
Legend (ratings)
IEC/EN 60664-1
250
V
4
kV
320
V
4
kV
630
V
4
kV
6
A
(III / 2) ≙ Overvoltage category III / Pollution degree 2
Approvals per UL 1059
Rated voltage UL (Use Group B)
Rated current UL (Use Group B)
Rated voltage UL (Use Group D)
Rated current UL (Use Group D)
150
V
7
A
150
V
7
A
Approvals per CSA
Rated voltage CSA (Use Group B)
Rated current CSA (Use Group B)
Rated voltage CSA (Use Group D)
Rated current CSA (Use Group D)
150
V
7
A
150
V
7
A
Connection data
Connection technology
Connectable conductor materials
Solid conductor
Conductor diameter
Strip length
Conductor connection direction to PCB
Pole No.
Total number of connection points
PUSH WIRE
®
Copper
0,5 … 1 mm² / 24 … 18 AWG
0,5 … 1 mm
5 … 6 mm / 0.2 … 0.24 inch
0
°
1
4
Total number of potentials
1
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 2/7
Data sheet | Item number: 243-725
www.wago.com/243-725
Total number of potentials
Number of connection types
Number of levels
1
1
1
Geometrical Data
Pin spacing
Width
Height
Depth
Solder pin length
Solder pin diameter
Drilled hole diameter with tolerance
5,75 mm / 0.226 inch
5,75 mm / 0.226 inch
10 mm / 0.394 inch
10,5 mm / 0.413 inch
4.5
mm
1
mm
1,2
(-0,05 … +0,05)
mm
Plug connection
Contact type (pluggable connector)
Connector (connection type)
Mating direction to the PCB
Female connector/socket
for PCB
90
°
PCB contact
PCB contact
THT
Material Data
Color
Material group
Insulation material
Flammability class per UL94
Clamping spring material
Contact material
Contact plating
Weight
dark gray
I
Polyamide 66 (PA 66)
V0
Copper alloy
Electrolytic copper (E
Cu
)
tin-plated
0.8
g
Environmental Requirements
Limit temperature range
-60 … +105 °C
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 3/7
Data sheet | Item number: 243-725
www.wago.com/243-725
Commercial data
Packaging type
Country of origin
GTIN
Customs tariff number
BOX
DE
4055143467407
85369010000
Approvals / Certificates
Country specific Approvals
Logo
Approval
CSA
DEKRA Certification B.V.
Additional Approval Text
C22.2
Certificate
name
70048857
Ship Approvals
Logo
Approval
ABS
American Bureau of Shipping
Additional Approval Text
-
Certificate
name
18-
HG1755093-
PDA
UL-Approvals
Logo
Approval
UR
Underwriters Laboratories Inc.
Additional Approval Text
UL 1059
Certificate
name
20190731-
E45172
Counterpart
Compatible products
Marking accessories
Item no.: 210-332/575-103
www.wago.com/210-332
Marking strips; as a DIN A4 sheet; MARKED; 1-12 (160x); Height of marker strip: 3 mm; Strip length 182
/575-103
mm; Horizontal marking; Self-adhesive; white
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 4/7
Data sheet | Item number: 243-725
www.wago.com/243-725
Downloads
Documentation
Additional Information
Technical explanations
Apr 3, 2019
pdf
3.6 MB
Download
CAD/CAE-Data
PCB Design
Symbol and Footprint 243-725
CAx data for your PCB design, consisting of "schematic symbols and PCB footprints",
allow easy integration of the WAGO component into your development environment.
Supported formats:
Accel EDA 14 & 15
Altium 6 to current version
Cadence Allegro
DesignSpark
Eagle Libraries
KiCad
Mentor Graphics BoardStation
Mentor Graphics Design Architect
Mentor Graphics Design Expedition 99 and 2000
OrCAD 9.X PCB and Capture
PADS PowerPCB 3, 3.5, 4.X, and 5.X
PADS PowerPCB and PowerLogic 3.0
PCAD 2000, 2001, 2002, 2004, and 2006
Pulsonix 8.5 or newer
STL
3D STEP
TARGET 3001!
View Logic ViewDraw
Quadcept
Zuken CadStar 3 and 4
Zuken CR-5000 and CR-8000
PCB Component Libraries (EDA), PCB CAD Library Ultra Librarian
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
URL
Download
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 5/7
