B580B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B580B

B580B: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 80V V(RRM), Silicon, DO-214AA, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size1MB，3 Pages; ManufacturerWeitron Technology; Websitehttp://weitron.com.tw/

Download Datasheet Parametric Compare View All

B580B Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 80V V(RRM), Silicon, DO-214AA, SMB, 2 PIN

B580B Parametric

Parameter Name	Attribute value
Maker	Weitron Technology
package instruction	R-PDSO-C2
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	80 V
Maximum reverse current	200 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	C BEND
Terminal location	DUAL

B580B Preview

B520B thru B5200B

Surface Mount Schottky Barrier Rectifiers

Features:

*Low Profile Packeage

*Ldeal for Automated Placement

*Guard Ring for Over Voltage Protection

*Low Forward Voltage Drop

*Component in Accordance to RoHS 2002/95/EC

*AEC-Q101 Qualified

REVERSE VOLTAGE

20 TO 200 VOLTS

FORWARD CURRENT

5.0 AMPERE

Mechanical Data

*Case : Molded Plastic. UL Flammability

Classification Rating 94V-0

*Terminals: Lead Free Plating (Tin Finish) Solderable

Per MIL-STD-202, Method 208

*Polarity :Cathode Band

*Weight : 0.095 grams

SMB(DO-214AA)

SMB Outline Dimension

SMB

Dim

Min

3.30

4.06

1.96

0.15

5.00

0.10

0.76

2.00

Unit:mm

Max

3.94

4.80

2.21

0.31

5.59

0.20

1.52

2.62

WEITRON

http://www.weitron.com.tw

1/3

23-Jul-2013

B520B thru B5200B

MAXIMUM RATINGS (TA=25°C unless otherwise noted)

(TA 25°C l

t d)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

Peak forward surge current, 8.3ms single half sine-

wave superimposed on rated load

Maximum Instantaneous Forward Voltage

IF=5A @ 25°C

Maximum DC Reverse Current @ Tc=25°C

at Rated DC Blocking Voltage @ Tc=100°C

Typical Junction Capacitance(NOTE1)

Typical Thermal Resistance(NOTE2)

Operating Temperature Range

Storage Temperature Range

NOTES:

1.Measured at 1.0MHZ and applied reverse voltage of 4.0V DC

2.Device mounted on FR-4 substrate, 1"*1", 2oz, single-sided, PC boards with 0.1"*0.15" copper pad.

SYMBOL

RRM

RMS

FSM

θJa

θJC

STG

-55 to +125

-55 to +150

300

0.55

0.5

210

-55 to +150

170

520B

530B

540B

550B

560B

5.0

100.0

0.70

0.85

0.2

5.0

150

110

0.87

0.90

UNIT

580B 5100B 5150B 5200B

100

150

105

150

200

140

200

°C/W

°C

WEITRON

http://www.weitron.com.tw

2/3

23-July-2013

B520B thru B5200B

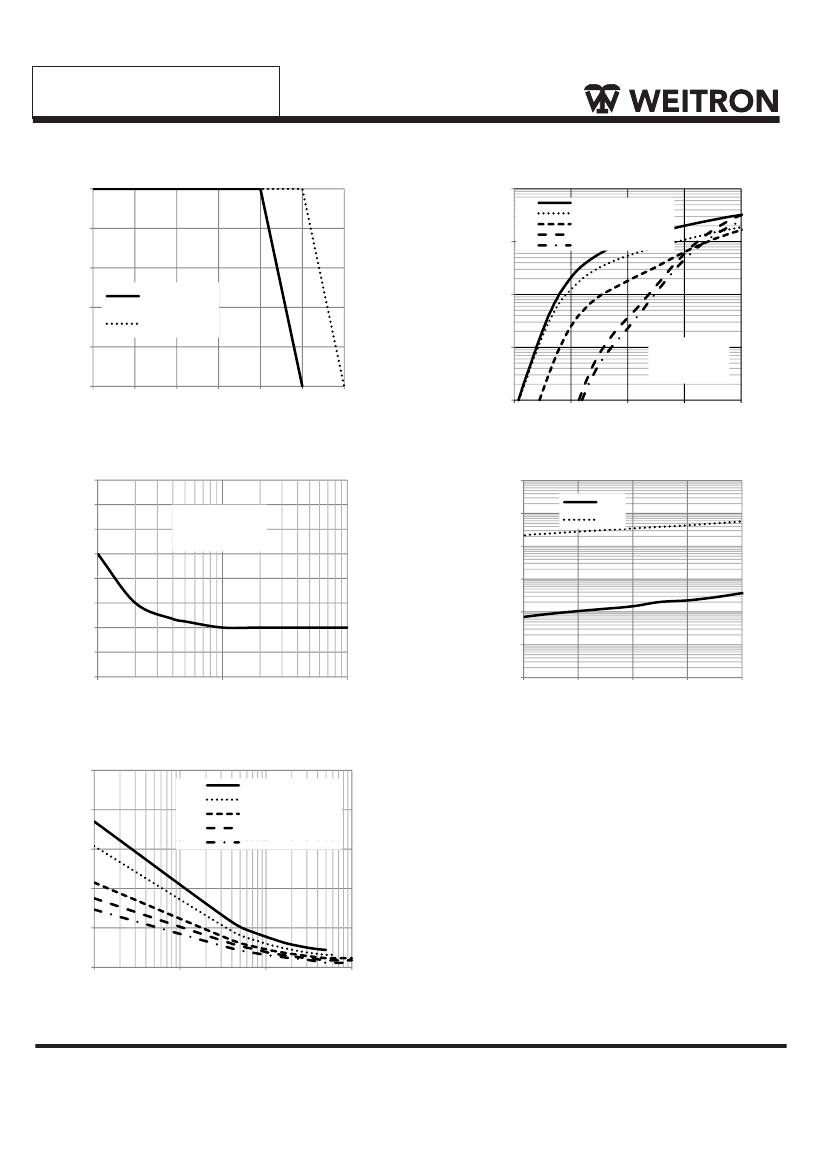

FIG. 1-TYPICAL FORWARD CURRENT DERATING CURVE

INSTANTANEOUS FORWARD CURRENT (A)

AVERAGE FO

ORWARD CURRENT,(A)

FIG. 2-TYPICAL FORWARD CHARACTERISTICS

100.00

B520B~B540B

B550B~B560B

B580B~B5100B

B5150B

B5200B

10.00

B520B~B560B

B5100B~B5200B

1.00

0.10

TJ=25℃ PULSE

WIDTH 300us 2%

DUTY CYCLE

100

125

150

AMBIENT TEMPERATURE(℃)

0.01

0.2

0.4

0.6

0.8

1.0

FORWARD VOLTAGE (V)

FIG. 3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT

160

PEAK FORWARD SURGE CURRENT (A)

FIG. 4-TYPICAL REVERSE CHARACTERISTICS

100

REVERSE LEAKAG CURRENT (mA)

25℃

100℃

140

120

100

NUMBER OF CYCLES AT 60Hz

TJ=25℃ 8.3ms Single

Half Sine Wave

JEDEC method

0.1

0.01

0.001

0.0001

100

( )

PERCENTAGE RATED PEAK REVERSE VOLTAGE (%)

FIG. 5-TYPICAL JUNCTION CAPACITANCE

1000

B520B~B540B

B550B~B560B

800

JUNCTION CAPACITANCE (pF)

B580B~B5100B

B5150B

600

B5200B

400

200

100

REVERSE VOLTAGE (V)

WEITRON

http://www.weitron.com.tw

3/3

23-July-2013

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

B580B Related Products

	B580B	B5100B
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 80V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, DO-214AA, SMB, 2 PIN
Maker	Weitron Technology	Weitron Technology
package instruction	R-PDSO-C2	SMB, 2 PIN
Reach Compliance Code	unknow	unknown
ECCN code	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V	0.85 V
JEDEC-95 code	DO-214AA	DO-214AA
JESD-30 code	R-PDSO-C2	R-PDSO-C2
Maximum non-repetitive peak forward current	100 A	100 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Guideline	AEC-Q101	AEC-Q101
Maximum repetitive peak reverse voltage	80 V	100 V
Maximum reverse current	200 µA	200 µA
surface mount	YES	YES
technology	SCHOTTKY	SCHOTTKY
Terminal form	C BEND	C BEND
Terminal location	DUAL	DUAL
