SB1020D – SB10100D
10A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
WON-TOP ELECTRONICS
Pb
Features
Schottky Barrier Chip
Guard Ring for Transient Protection
Low Forward Voltage Drop
Low Power Loss, High Efficiency
High Surge Current Capability
Epoxy Meet UL 94V-0 Classification
For Use in Low Voltage, High Frequency
Inverters, Free Wheeling, and Switching
Power Supplies
A
C
J
B
D
PIN 1
2
3
E
G
H
K
P
P
2
Mechanical Data
Case: D
2
PAK/TO-263, Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 1.7 grams (approx.)
Mounting Position: Any
Marking: Type Number
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 4
D PAK/TO-263
Dim
Min
Max
A
B
C
D
9.80
9.60
4.40
8.50
—
1.00
—
1.20
0.30
2.35
10.40
10.60
4.80
9.10
2.80
1.40
0.99
1.40
0.70
2.75
PIN 1
PIN 3
Case, PIN 2
E
G
H
J
K
P
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
@T
A
=25°C unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
SB
SB
SB
SB
SB
SB
SB
SB
1020D 1030D 1040D 1045D 1050D 1060D 1080D
10100D
20
14
30
21
40
28
45
32
10
150
0.55
0.2
20
450
73
2.0
-55 to +150
350
0.75
0.85
50
35
60
42
80
56
100
70
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@T
C
= 100°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
C
J
R
θJA
R
θJC
T
J
, T
STG
Unit
V
V
A
A
V
mA
pF
°C/W
°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single Half Sine-Wave Superimposed
on Rated Load (JEDEC Method)
Forward Voltage
Peak Reverse Current
At Rated DC Blocking Voltage
@I
F
= 10A
@T
J
= 25°C
@T
J
= 100°C
Typical Junction Capacitance (Note 1)
Thermal Resistance Junction to Ambient (Note 2)
Thermal Resistance Junction to Case (Note 2)
Operating and Storage Temperature Range
Note: 1. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
2. Mounted on FR-4 PCB with minimum recommended pad size.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
1
®
SB1020D – SB10100D
I
(AV)
, AVERAGE FORWARD RECTIFIED CURRENT (A)
WON-TOP ELECTRONICS
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
100
Pulse Width = 300µs
1% Duty Cycle
T
J
= 25°C
1050D – 1060D
1020D – 1045D
8
10
6
4
1080D – 10100D
1.0
2
Resistive or
Inductive Load
0
0
15
30 45 60 75 90 105 120 135 150
T
C
, CASE TEMPERATURE (°C)

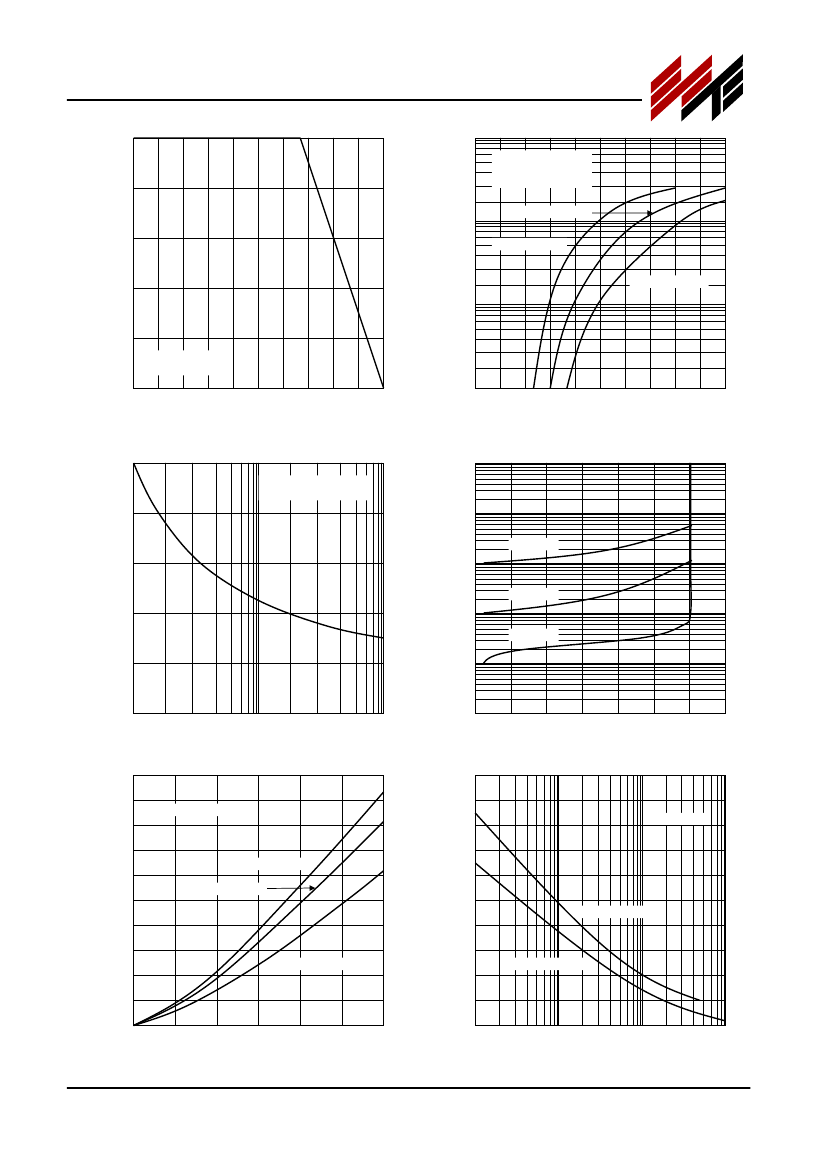

Fig. 1 Forward Current Derating Curve
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
0.1
0
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
150
Single Half-Sine-Wave
JEDEC Method
100
120
10
T
J
= 100°C
90
1.0
T
J
= 75°C
60
0.1
T
J
= 25°C
30
0.01
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 3 Forward Surge Current Derating Curve
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 4 Typical Reverse Characteristics
1500
C
J
, JUNCTION CAPACITANCE (pF)
10
9
P
D
, POWER DISSIPATION (W)
8
7
1080D – 10100D
DC, T
J
= 150°C
1200
f = 1MHz
6
1050D – 1060D
900
1020D – 1045D
5
4
3
1020D – 1045D
600
1050D – 10100D
2
1
0
0
8
4
6
10
2
12
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
Fig. 5 Forward Power Dissipation
300
0
0.1
1
10
V
R
, DC REVERSE VOLTAGE (V)
Fig. 6 Typical Junction Capacitance
100
www.wontop.com
2
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
®
SB1020D – SB10100D
WON-TOP ELECTRONICS
MARKING INFORMATION
RECOMMENDED FOOTPRINT
0.33
(8.38)
0.12
(3.05)
SB10xxD
0.42
(10.66)
0.08
(2.032)
0.24
(6.096)
0.04
(1.016)
SB10xxD
xx
Polarity
= Device Number
= 20, 30, 40, 45, 50, 60, 80 or 100
= As Marked on Body
0.63
(17.02)
inches(mm)
PACKAGING INFORMATION
TAPE & REEL
Direction of Unreeling
16mm
330mm
24mm
4mm
24mm
Product ID Label
1.6mm
Reel Diameter
(mm)
330
Quantity
(PCS)
800
Inner Box Size
L x W x H (mm)
340 x 337 x 45
Quantity
(PCS)
800
Carton Size
L x W x H (mm)
370 x 370 x 420
Quantity
(PCS)
6,400
Approx. Gross Weight
(KG)
15.0
Note:
1. Paper reel, white or gray color.
2. Components are packed in accordance with EIA standard 481-1 and 481-2.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
3
®
SB1020D – SB10100D
WON-TOP ELECTRONICS
ORDERING INFORMATION
Product No.
SB1020D-T3
SB1030D-T3
SB1040D-T3
SB1045D-T3
SB1050D-T3
SB1060D-T3
SB1080D-T3
SB10100D-T3
1.
2.
Package Type
D PAK
D PAK
D PAK
D PAK
D PAK
D PAK
D PAK
D PAK
2
2
2
2
2
2
2
2
Shipping Quantity
800/Tape & Reel
800/Tape & Reel
800/Tape & Reel
800/Tape & Reel
800/Tape & Reel
800/Tape & Reel
800/Tape & Reel
800/Tape & Reel
Shipping quantity given is for minimum packing quantity only. For minimum
order quantity, please consult the Sales Department.
To order RoHS / Lead Free version (with Lead Free finish), add “-LF”
suffix to part number above. For example, SB1020D-T3-LF.
WON-TOP ELECTRONICS and
are registered trademarks of Won-Top Electronics Co., Ltd (WTE). WTE has checked all information carefully and
believes it to be correct and accurate. However, WTE cannot assume any responsibility for inaccuracies. Furthermore, this information does not give the
purchaser of semiconductor devices any license under patent rights to manufacturer. WTE reserves the right to change any or all information herein
without further notice.
WARNING:
DO NOT USE IN LIFE SUPPORT EQUIPMENT. WTE power semiconductor products are not authorized for use as critical components in life
support devices or systems without the express written approval.
Won-Top Electronics Co., Ltd.
No. 44 Yu Kang North 3rd Road,
Chine Chen Dist., Kaohsiung 806, Taiwan
Phone:
886-7-822-5408 or 886-7-822-5410
Fax:
886-7-822-5417
Email:
sales@wontop.com
Internet:
http://www.wontop.com
We power your everyday.
www.wontop.com
4
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
