WPMLV-1608-M07: DescriptionRESISTOR, VOLTAGE DEPENDENT, 9V, 0.1J, SURFACE MOUNT, CHIP, 1608; CategoryPassive components The resistor; File Size206KB，1 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com; Environmental Compliance

Download Datasheet Parametric Compare View All

WPMLV-1608-M07 Overview

RESISTOR, VOLTAGE DEPENDENT, 9V, 0.1J, SURFACE MOUNT, CHIP, 1608

WPMLV-1608-M07 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	World Produts Inc.
package instruction	CHIP, 1608
Reach Compliance Code	unknow
ECCN code	EAR99
Circuit maximum DC voltage	9 V
Circuit RMS maximum voltage	7 V
Maximum energy absorption capacity	0.1 J
Manufacturer's serial number	WPMLV
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Resistor type	VARISTOR
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND

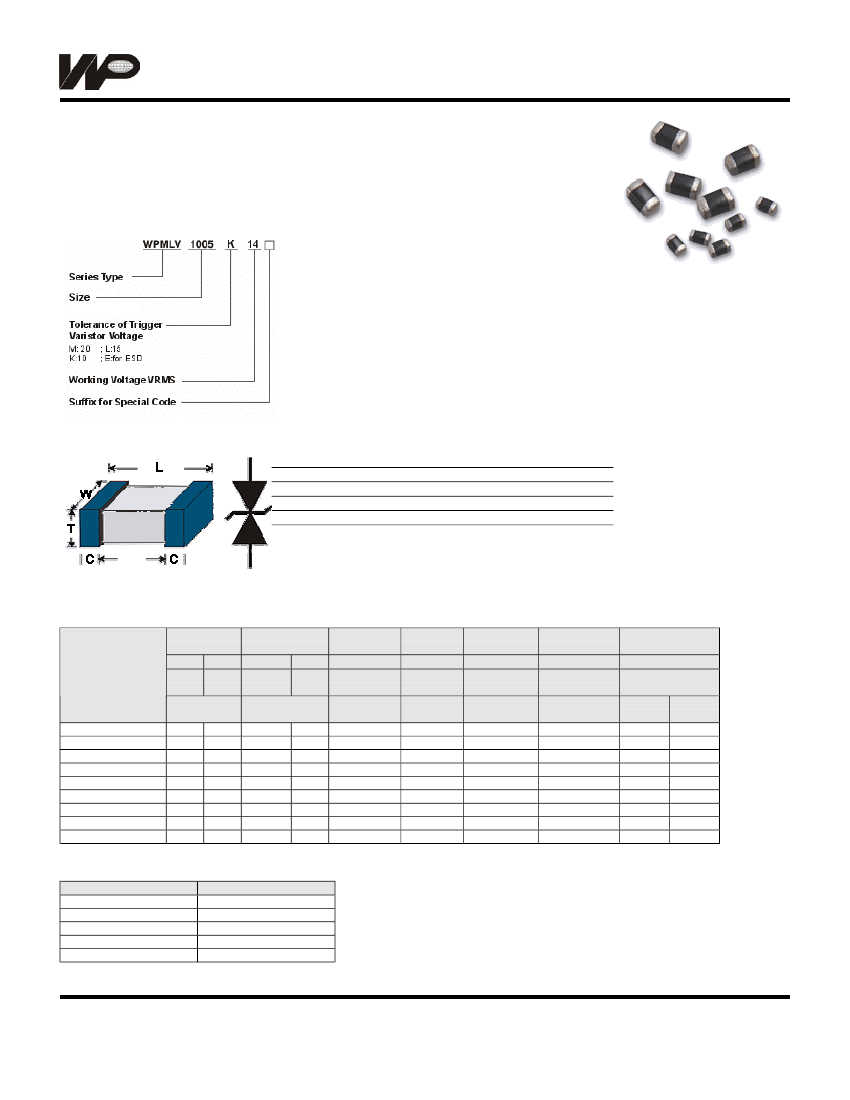

WPMLV-1608-M07 Preview

MULTILAYER VARISTOR

WPMLV Series

Excellent clamping ratio, Compact size (EIA0603 & 0402),

Quick response time (<1nSec.), Low voltage,

High transient current capability, Over Voltage Protector

Explanation of Part Number

Example Part Number:

Applications

1.

2.

3.

4.

5.

6.

Mother Board/Notebook

Cellular Phone

PDA and handheld device

DSC/ DV

Scanner

Set-Top Box

Dimensions

L

W

T

C

1.00 ± 0.10

0.50 ± 0.10

0.30 ± 0.20

1005

(0.04

±

0.004)

(0.02

±

0.004)

(0.02

±

0.004)

(0.01

±

0.004)

1608

1.60 ± 0.20 (0.063

±

0.008)

0.80 ± 0.20 (0.032

±

0.008)

0.80 ± 0.20 (0.032

±

0.008)

0.30 ± 0.20 (0.01

±

0.008)

Unit : millimeters ( inches )

SPECIFICATIONS

Working

Voltage

V

RMS

V

DC

Volts Volts

(Max) (Max)

< 50 µ A

WPMLV-1005-M04

WPMLV-1005-M07

WPMLV-1005-L08

WPMLV-1005-K11

WPMLV-1005-K14

WPMLV-1608-M04

WPMLV-1608-M07

WPMLV-1608-K11

WPMLV-1608-K14

4

7

8

11

14

4

7

11

14

5.5

9

11

14

18

5.5

9

14

18

Varistor

Voltage

V

∆V

V

Volts

%

(Max.)

1mA DC

8

12.5

15

18

22

8

12.5

18

22

±20

±15

±10

±20

±10

Resistance

Ir

6

X10 ohm

(Max.)

5 VDC

±10*

±10

Peak

current

Imax

Amps

(Max.)

8/20µ s

20

30

Clamping

Voltage

Vc

Volts

(Max.)

1A8/20µ s

19

32

33

35

45

19

27

35

40

Transient

energy

Wmax

Joules

(Max.)

10/1000µ s

0.05

0.1

Capacitance

Cp*

pF(typ.)

1V

RMS

1KHz

350

61

50

40

32

300

235

160

140

1V

RMS

1MHz

330

57

45

35

24

270

205

140

120

Part No.

Ir-Resistance at 5V DC * Measured resistance at 3.3V DC

Additional Items

Operating Temperature

Storage Temperature

Response Time

Solderability

Solder Reaching

General Specifications

o

-55 C ~ +125 C

o

-55 C ~ +125 C

<1 ns

o

235 C 2 Sec

o

260 C 10 Sec

WORLD PRODUCTS INC.

http://www.worldproducts.com/

P.O. Box 517, 19654 Eighth St. East, Sonoma, CA 95476 Phone (707) 996-5201 Fax (707) 996-3380

revised 02/06/03

REV ID 1.20

1
