PLC18V8Z35A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> PLC18V8Z35A

PLC18V8Z35A: DescriptionOT PLD, 35ns, CMOS, PQCC20; CategoryProgrammable logic devices Programmable logic; File Size523KB，14 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

PLC18V8Z35A Overview

OT PLD, 35ns, CMOS, PQCC20

PLC18V8Z35A Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknow
Other features	ZERO STAND BY POWER; SECURITY FUSE
maximum clock frequency	21 MHz
JESD-30 code	S-PQCC-J20
Dedicated input times	8
Number of I/O lines	8
Number of terminals	20
Maximum operating temperature	75 °C
Minimum operating temperature
organize	8 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD
propagation delay	35 ns
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	J BEND
Terminal location	QUAD

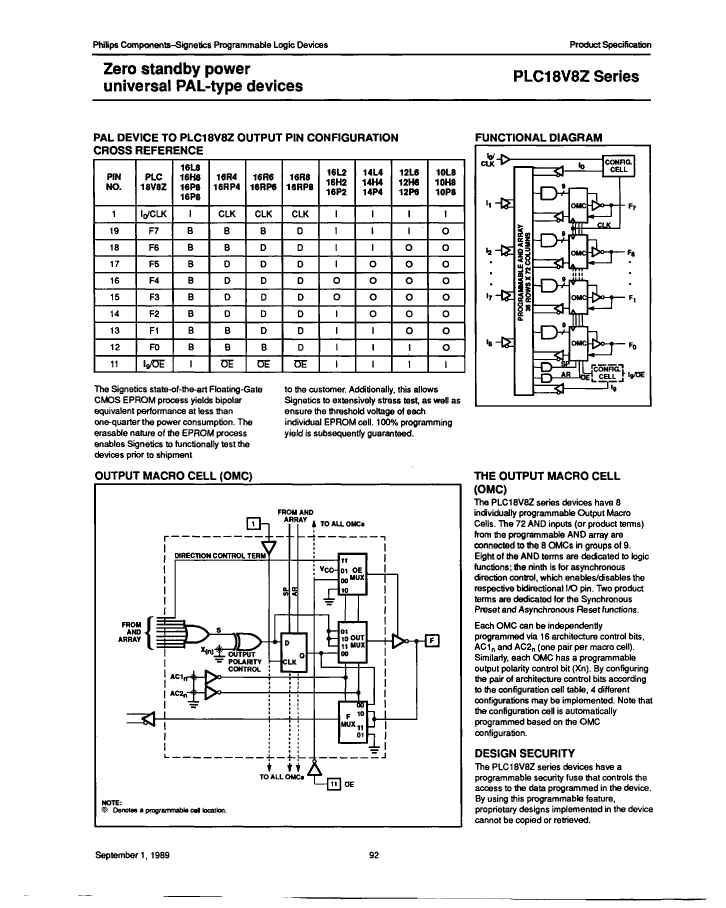

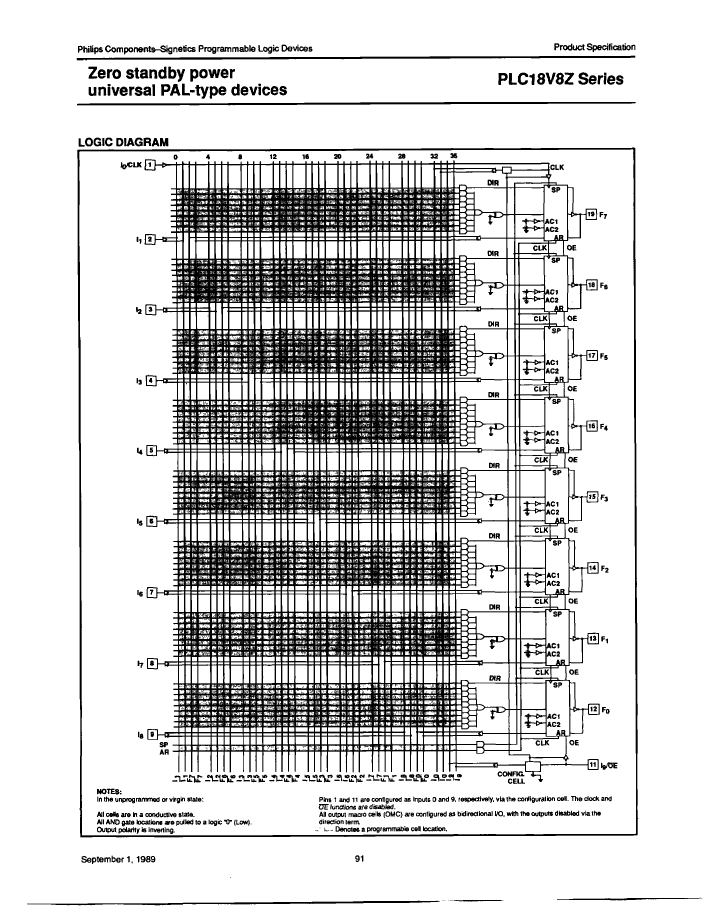

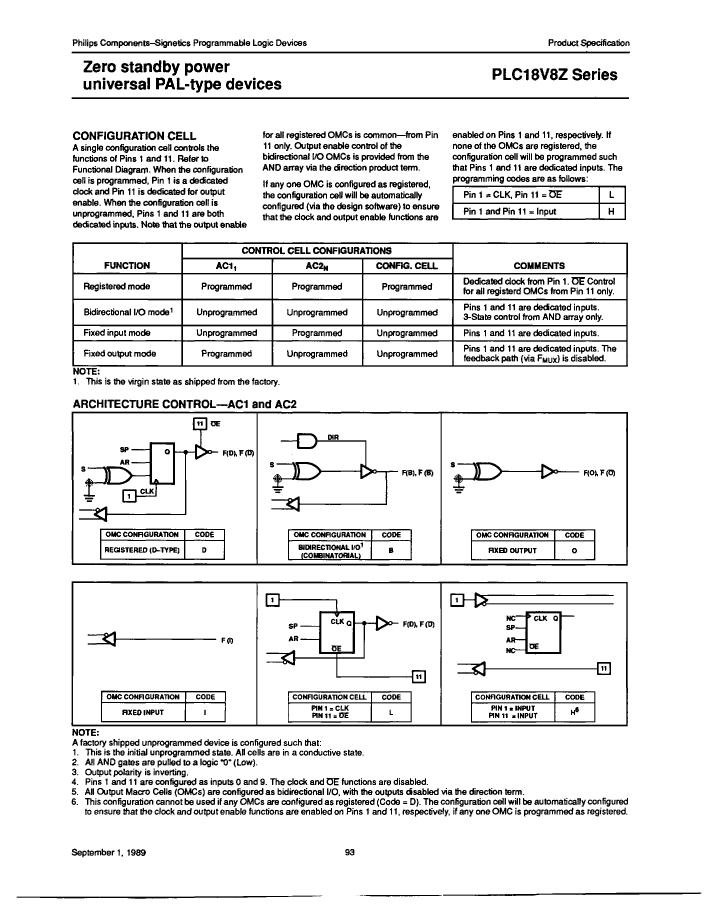

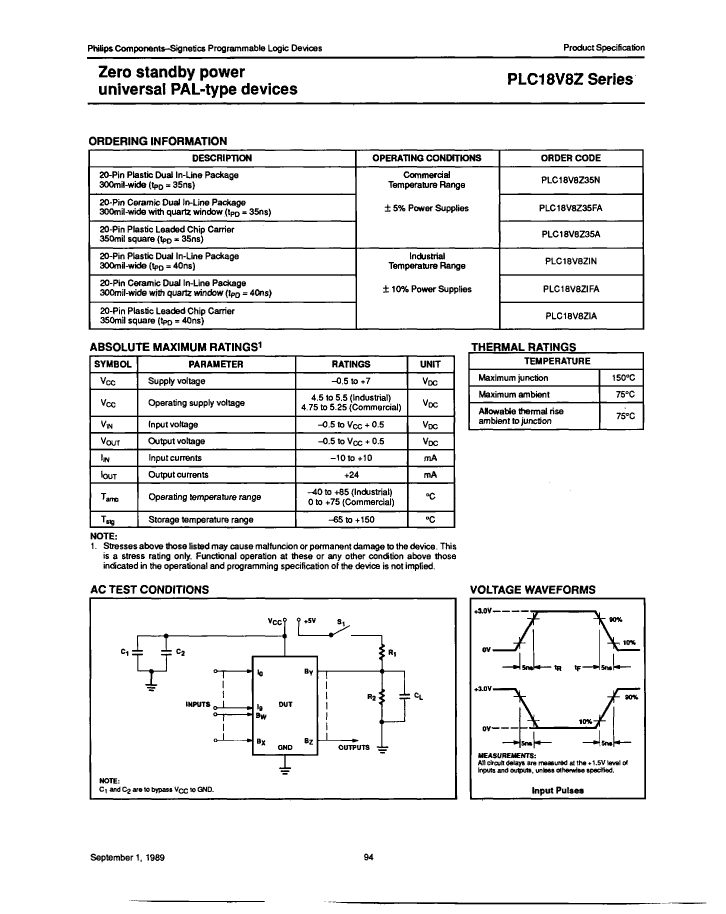

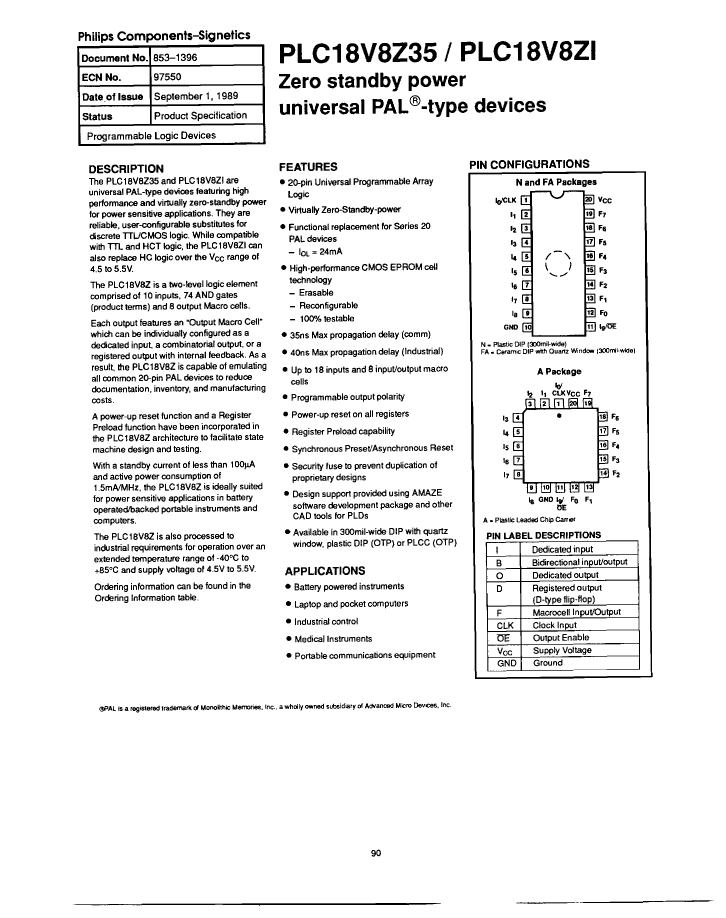

Preview

Download Datasheet

View All

PLC18V8Z35A Related Products

	PLC18V8Z35A	PLC18V8ZIFA	PLC18V8Z35A-T	PLC18V8ZIA-T	PLC18V8Z35FA	PLC18V8Z35N	PLC18V8ZIA	PLC18V8ZIN
Description	OT PLD, 35ns, CMOS, PQCC20	OT PLD, 40ns, CMOS, CDIP20	OT PLD, 35ns, CMOS, PQCC20	OT PLD, 40ns, CMOS, PQCC20	OT PLD, 35ns, CMOS, CDIP20	OT PLD, 35ns, CMOS, PDIP20	OT PLD, 40ns, CMOS, PQCC20	OT PLD, 40ns, CMOS, PDIP20
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	ZERO STAND BY POWER; SECURITY FUSE	ZERO STAND BY POWER; SECURITY FUSE	ZERO STAND BY POWER; SECURITY FUSE	ZERO STAND BY POWER; SECURITY FUSE	ZERO STAND BY POWER; SECURITY FUSE	ZERO STAND BY POWER; SECURITY FUSE	ZERO STAND BY POWER; SECURITY FUSE	ZERO STAND BY POWER; SECURITY FUSE
maximum clock frequency	21 MHz	18 MHz	21 MHz	18 MHz	21 MHz	21 MHz	18 MHz	18 MHz
JESD-30 code	S-PQCC-J20	R-CDIP-T20	S-PQCC-J20	S-PQCC-J20	R-CDIP-T20	R-PDIP-T20	S-PQCC-J20	R-PDIP-T20
Dedicated input times	8	8	8	8	8	8	8	8
Number of I/O lines	8	8	8	8	8	8	8	8
Number of terminals	20	20	20	20	20	20	20	20
Maximum operating temperature	75 °C	85 °C	75 °C	85 °C	75 °C	75 °C	85 °C	85 °C
organize	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE
Programmable logic type	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD
propagation delay	35 ns	40 ns	35 ns	40 ns	35 ns	35 ns	40 ns	40 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.5 V	5.25 V	5.5 V	5.25 V	5.25 V	5.5 V	5.5 V
Minimum supply voltage	4.75 V	4.5 V	4.75 V	4.5 V	4.75 V	4.75 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	INDUSTRIAL	COMMERCIAL EXTENDED	INDUSTRIAL	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	INDUSTRIAL	INDUSTRIAL
Terminal form	J BEND	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal location	QUAD	DUAL	QUAD	QUAD	DUAL	DUAL	QUAD	DUAL
