2-pin Types: 380L and 380LX. 4-pin or 5-pin Types: 382L and 382LX
Types 380L, 382L, 380LX & 382LX,
85
ºC

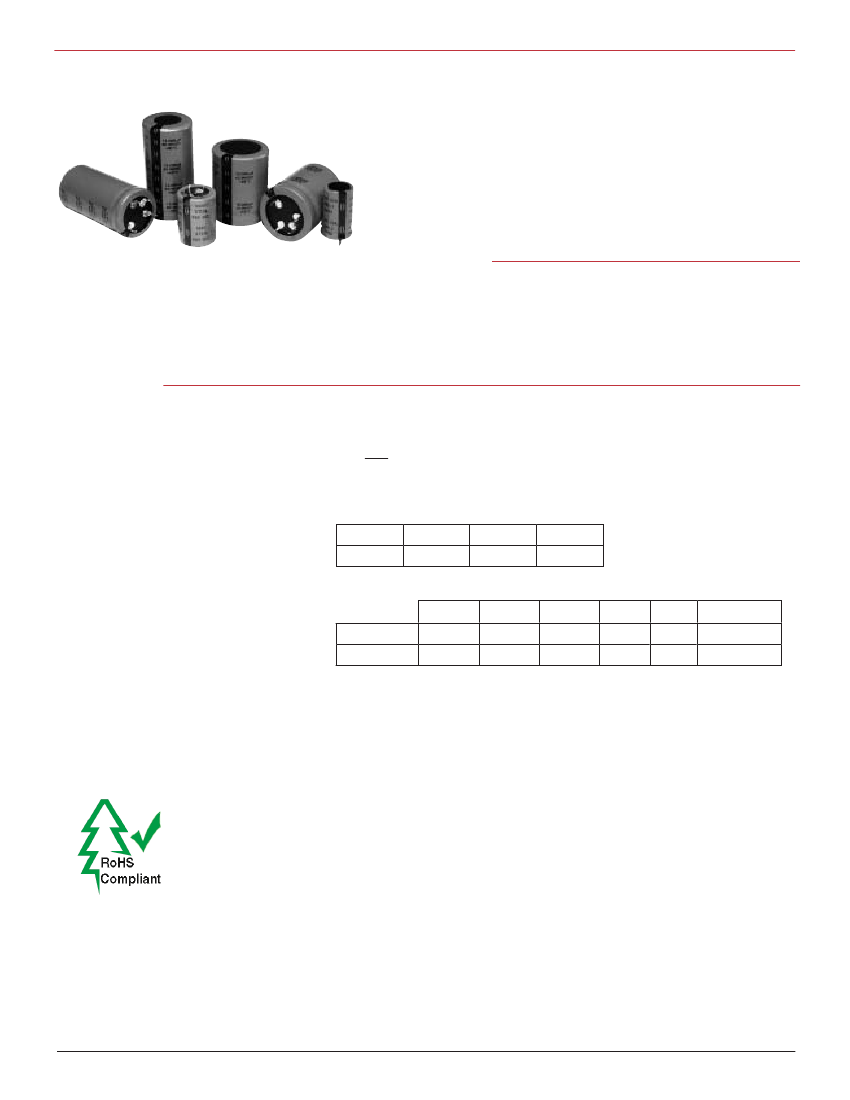

High-Capacitance Snap-In
The excellent value of Type 380L/LX capacitors finds application
in switching power supply input and output circuits and even
motor drives where the high surface area of multiple units in
parallel approaches the ripple capability of our Type 520C
computer-grade capacitor. Type 380LX delivers more capacitance
per can size while Type 380L available in the largest case sizes
gives lower ESR for the same capacitance. Types 382L and
382LX give the choice of 4 or 5 leads for stable, reverse proof
mounting.
Highlights
• Latest available ratings, worldwide
• Top performance in power supplies and motor drives
• Big selection of 46 case sizes
• 2, 4 and 5 leads available
Specifications
Operating Temperature:
Rated Voltage:
Capacitance:
Leakage Current:
Ripple Current Multipliers:
–40 °C to 85 °C up to 300 V, –25 °C to 85 °C
≥315
V
16 Vdc to 500 Vdc
33 µF to 270,000 µF
±20%
≤3√CV
µA at 5 min.
Ambient Temperature
45 °C
1.5
60 °C
1.4
70 °C
1.3
85 °C
1.0
Frequency
50 Hz
16-100 Vdc
160-450 Vdc
0.93
0.75
60 Hz
0.95
0.80
120 Hz
1.00
1.00
500 Hz 2 kHz
1.05
1.20
1.08
1.25
10 kHz & up
1.15
1.40
Complies with the EU
Directive
2002/95/EC
requirement restricting the
use of Lead (Pb), Mercury
(Hg), Cadmium (Cd),
Hexavalent
chromium
(Cr(VI)), PolyBrominated
Biphenyls (PBB) and
PolyBrominated Diphenyl
Ethers (PBDE).
EIA Ripple Life:
3,000 h @ full load at +85 °C per EIA IS-749
∆Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
Load Life Test:
3,000 h
@ full load at +85 °C
∆Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
Shelf Life:
1,000 h @ 85 °C
∆Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
Vibration:
10 to 55 Hz, 0.06” and 10 g max, 2 h in each plane
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Types 380L, 382L, 380LX & 382LX,
85
ºC
High-Capacitance Snap-In

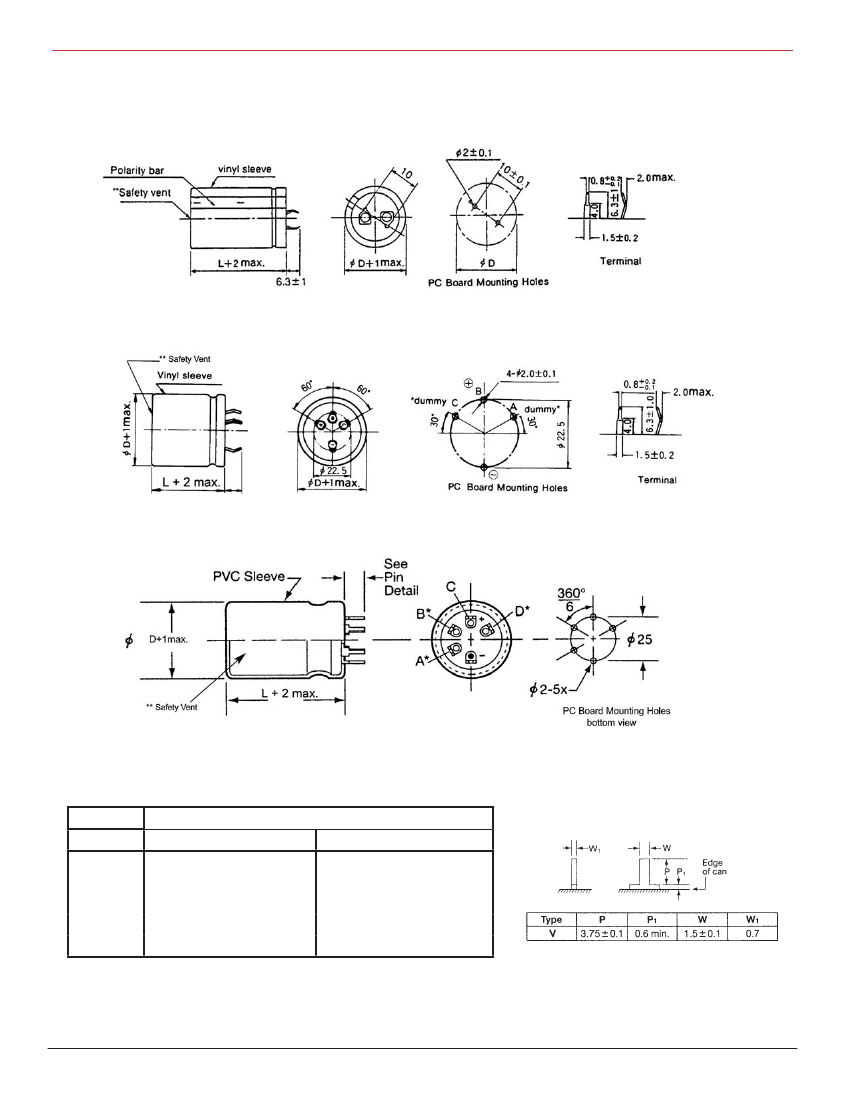

Outline Drawings
Two Pins
380L/LX (22 through 40mm diameter)
Four Pins
382L/LX (35 and 40mm diameter)
Five Pins
382L/382LX (40 and 50mm diameter)
Connection
Terminal
A
B
C
D
–
40 mm Dia.
dummy
dummy
positive (+)
dummy
negative (–)
50 mm Dia.
negative (–)
dummy
positive (+)
positive (+)
negative (–)
V Terminal Standoff Pin Dimensions
Notes:
* Use dummy terminals for mechanical support only. Make no electrical connection because they resistively connect through the
electrolyte to the negative terminal.
** Safety Vent may be on the bottom or on the side of the can.
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com

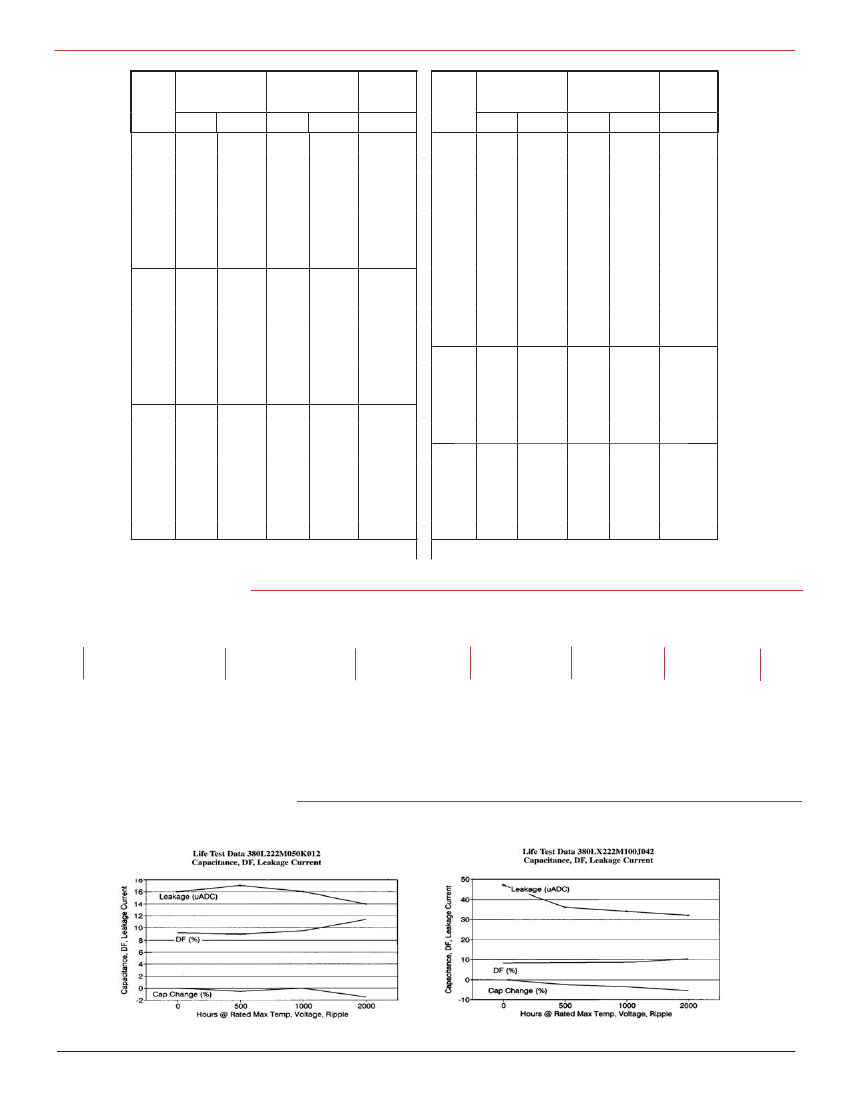

Insulated Case Dimensions
Case
Code
H20
H01
H02
H03
H04
H45
H05
J20
J01
J02
J03
J04
J45
J05
K20
K01
K02
K03
K04
K45
K05
DIAMETER
"D"
mm
22
22
22
22
22
22
22
25
25
25
25
25
25
25
30
30
30
30
30
30
30
inches
0.87
0.87
0.87
0.87
0.87
0.87
0.87
0.98
0.98
0.98
0.98
0.98
0.98
0.98
1.18
1.18
1.18
1.18
1.18
1.18
1.18
Types 380L, 382L, 380LX & 382LX,
85
ºC
High-Capacitance Snap-In
LENGTH
"L"
mm
20
25
30
35
40
45
50
20
25
30
35
40
45
50
20
25
30
35
40
45
50
0.79
0.98
1.18
1.38
1.57
1.77
1.97
0.79
0.98
1.18
1.38
1.57
1.77
1.97
0.79
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
14
16
19
22
24
28
31
16
20
24
27
31
35
38
25
30
35
40
44
48
53
Case
Code
A20
A01
A02
A03
A04
A45
A05
A06
A07
A08
A10
N04
N05
N06
N08
N10
B05
B06
B08
B09
B10
DIAMETER
"D"
mm
35
35
35
35
35
35
35
35
35
35
35
40
40
40
40
40
50
50
50
50
50
inches
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.57
1.57
1.57
1.57
1.57
1.97
1.97
1.97
1.97
1.97
LENGTH
"L"
mm
20
25
30
35
40
45
50
63
70
80
105
40
50
63
80
105
50
63
80
92
105
0.79
0.98
1.18
1.38
1.57
1.77
1.97
2.48
2.76
3.15
4.13
1.57
1.97
2.48
3.15
4.13
1.97
2.48
3.15
3.62
4.13
Typical
Weight
35
42
48
54
62
67
74
88
98
112
144
82
105
130
185
265
136
168
239
241
325
inches (grams)
inches (grams)
Part Numbering System
382LX
272
M
200
N05
2
V
380L
(2 pins)
272
= 2700 µF
380LX
(2 pins)
333
= 33000 µF
382L
(4 or 5 pins)
382LX
(4 or 5 pins)
Type
Capacitance
Tolerance
M
=
±
20%
Rated
Voltage
Vdc
Case Code Insulation 382L & LX
2
= PVC
# of pins

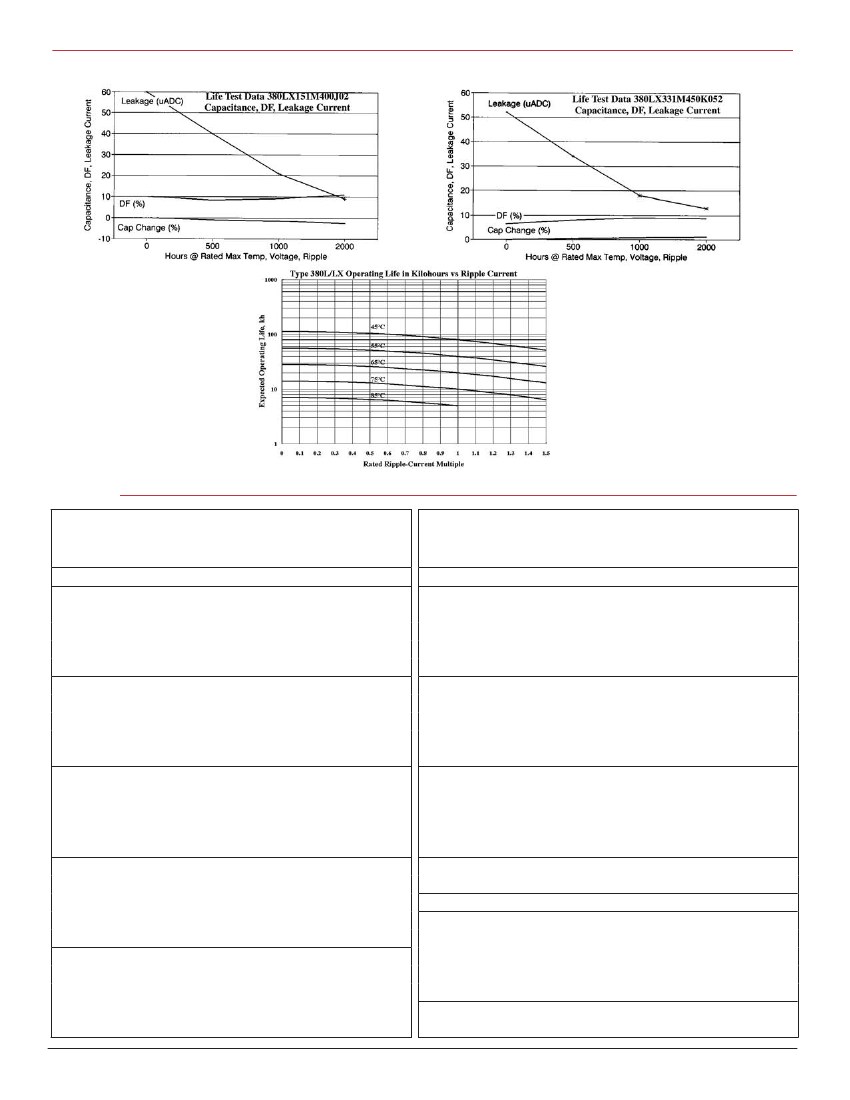

Typical Performance Curves
blank
= 4 pins
(35 or 40 mm dia)
V
= 5 pins
(40 or 50 mm dia)
