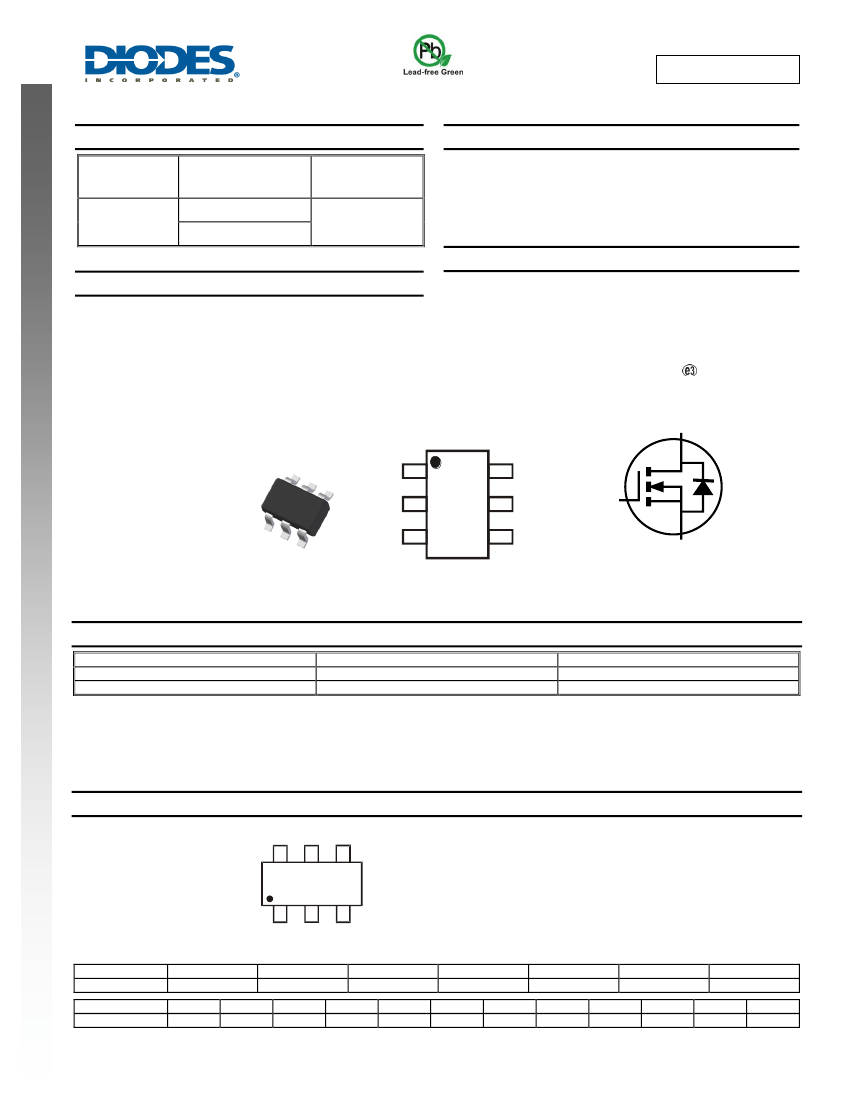

Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Description and Applications
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
) and yet maintain superior switching performance,
making it ideal for high efficiency power management applications.
DC-DC Converters
Power Management Functions
Backlighting
Case: TSOT26
Case Material: Molded Plastic, ―Green‖ Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish – Tin Finish Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.013 grams (Approximate)
D
TSOT26
D
1
D
2
G
3
Top View
6
5
4
D
D
S
G
S
Equivalent Circuit
Top View
Pin Configuration
Ordering Information
(Note 4)
Part Number
DMN2028UVT-7
DMN2028UVT-13
Notes:
Case
TSOT26
TSOT26
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
