844031BG-01: DescriptionClock Generator, 340MHz, CMOS, PDSO8, 4.40 X 3 MM, 0.925 MM HEIGHT, MO-153, TSSOP-8; CategoryThe embedded processor and controller Microcontrollers and processors; File Size312KB，14 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

844031BG-01 Overview

Clock Generator, 340MHz, CMOS, PDSO8, 4.40 X 3 MM, 0.925 MM HEIGHT, MO-153, TSSOP-8

844031BG-01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
package instruction	4.40 X 3 MM, 0.925 MM HEIGHT, MO-153, TSSOP-8
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	ALSO OPERATES TA 3.3 V SUPPLY
JESD-30 code	R-PDSO-G8
length	4.4 mm
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	340 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	2.5/3.3 V
Master clock/crystal nominal frequency	27.2 MHz
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum slew rate	75 mA
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	3 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

Preview

Download Datasheet

View All

FEMTOCLOCKS™ CRYSTAL-TO-LVDS

CLOCK GENERATOR

ICS844031-01

ENERAL

ESCRIPTION

The ICS844031-01 is an Ethernet Clock Generator. The

ICS844031-01 uses an 18pF parallel resonant crystal over the

range of 19.6MHz - 27.2MHz. For Ethernet applications, a

25MHz crystal is used to generate 312.5MHz. The ICS844031-

01 has excellent <1ps phase jitter perfor mance, over the

1.875MHz - 20MHz integration range. The ICS844031-01 is

packaged in a small 8-pin TSSOP, making it ideal for use in

systems with limited board space.

EATURES

•

One differential LVDS output

•

Crystal oscillator interface, 18pF parallel resonant crystal

(19.6MHz - 27.2MHz)

•

Output frequency range: 245MHz - 340MHz

•

VCO range: 490MHz - 680MHz

•

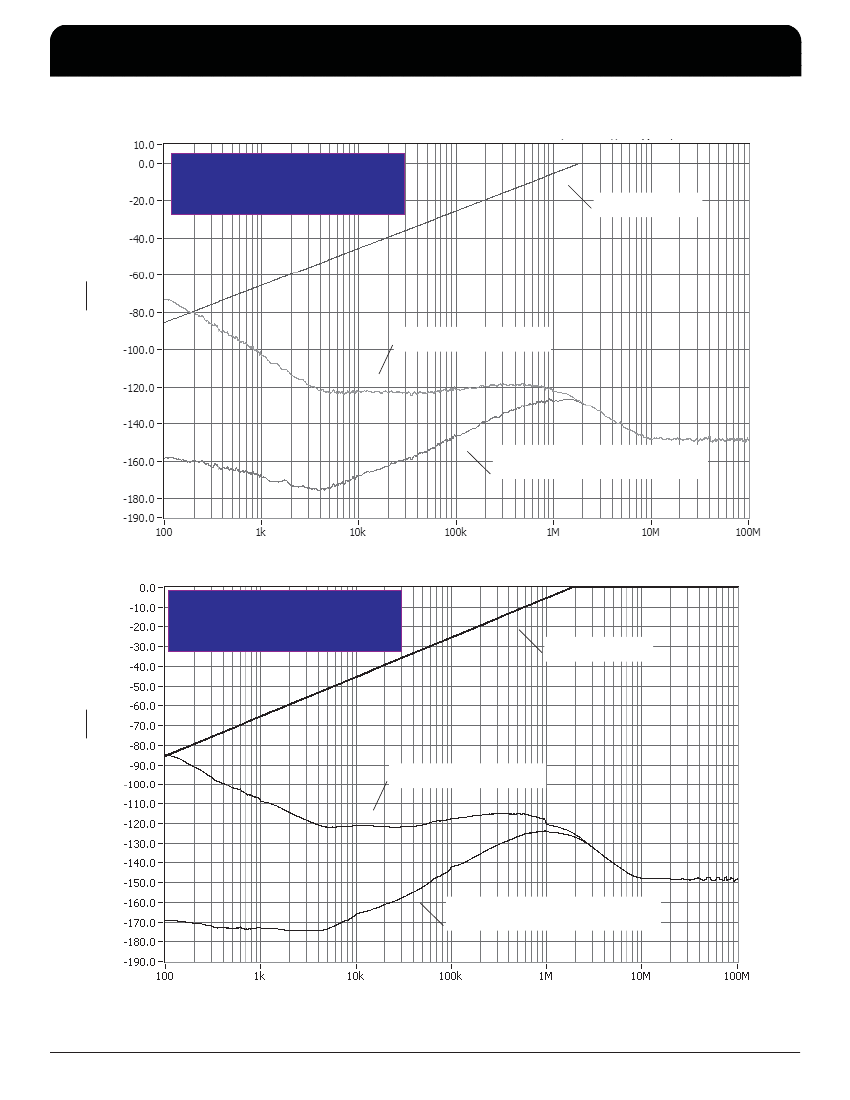

RMS phase jitter @ 312.5MHz, using a 25MHz crystal

(1.875MHz - 20MHz): 0.53ps (typical)

•

3.3V or 2.5V operating supply

•

0°C to 70°C ambient operating temperature

•

Available in both standard (RoHS 5) and lead-free (RoHS 6)

packages

OMMON

ONFIGURATION

ABLE

Inputs

Crystal Frequency (MHz)

Multiplication

Value M/N

12.5

Output Frequency

(MHz)

312.5

LOCK

IAGRAM

Pullup

SSIGNMENT

DDA

GND

XTAL_OUT

XTAL_IN

OSC

XTAL_OUT

Phase

Detector

VCO

490MHz - 680MHz

N = ÷2

(fixed)

ICS844031-01

8-Lead TSSOP

4.40mm x 3.0mm x 0.925mm

package body

G Package

Top View

M = ÷25

(fixed)

IDT

™

/ ICS

™

LVDS CLOCK GENERATOR

ICS844031BG-01 REV. A OCTOBER 23, 2012
