IDT73200L12L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> IDT73200L12L

IDT73200L12L: DescriptionPipeline Register, 16-Bit, CMOS, CQCC52, LCC-52; CategoryThe embedded processor and controller Microcontrollers and processors; File Size214KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT73200L12L Overview

Pipeline Register, 16-Bit, CMOS, CQCC52, LCC-52

IDT73200L12L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	LCC
package instruction	LCC-52
Contacts	52
Reach Compliance Code	_compli
ECCN code	3A001.A.3
boundary scan	NO
maximum clock frequency	83.33 MHz
External data bus width	16
JESD-30 code	S-CQCC-N52
JESD-609 code	e0
length	19.05 mm
low power mode	NO
Number of terminals	52
Maximum operating temperature	70 °C
Minimum operating temperature
Output data bus width	16
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC52,.75SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.2098 mm
Maximum slew rate	60 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER

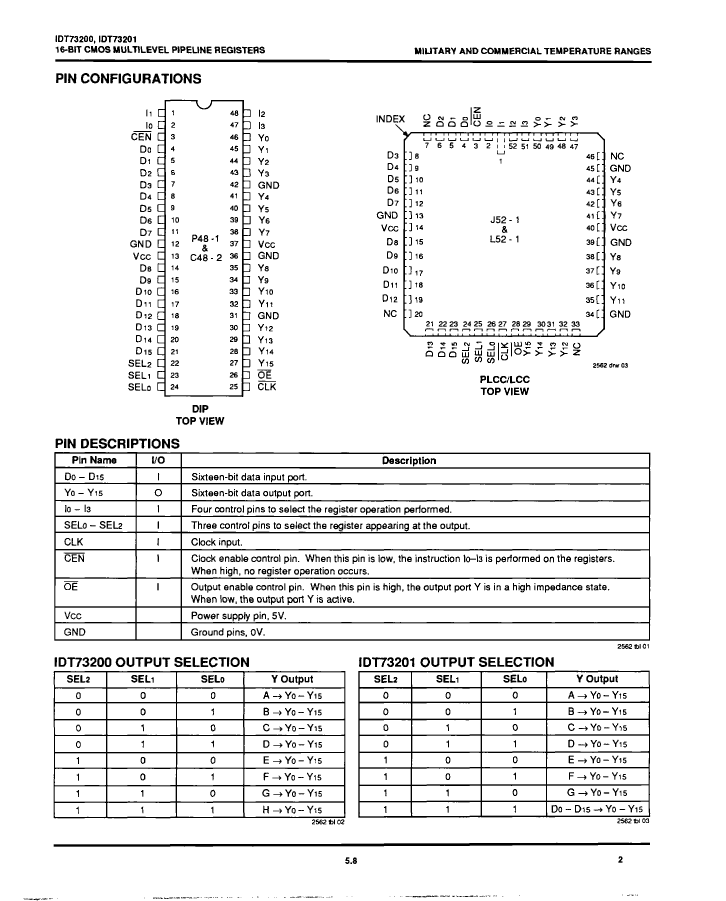

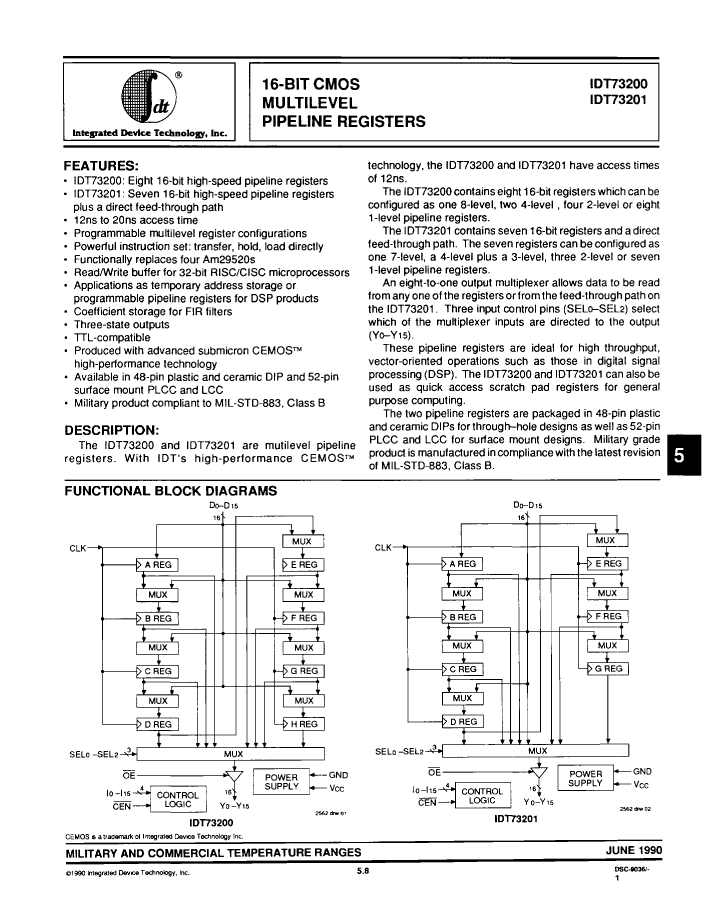

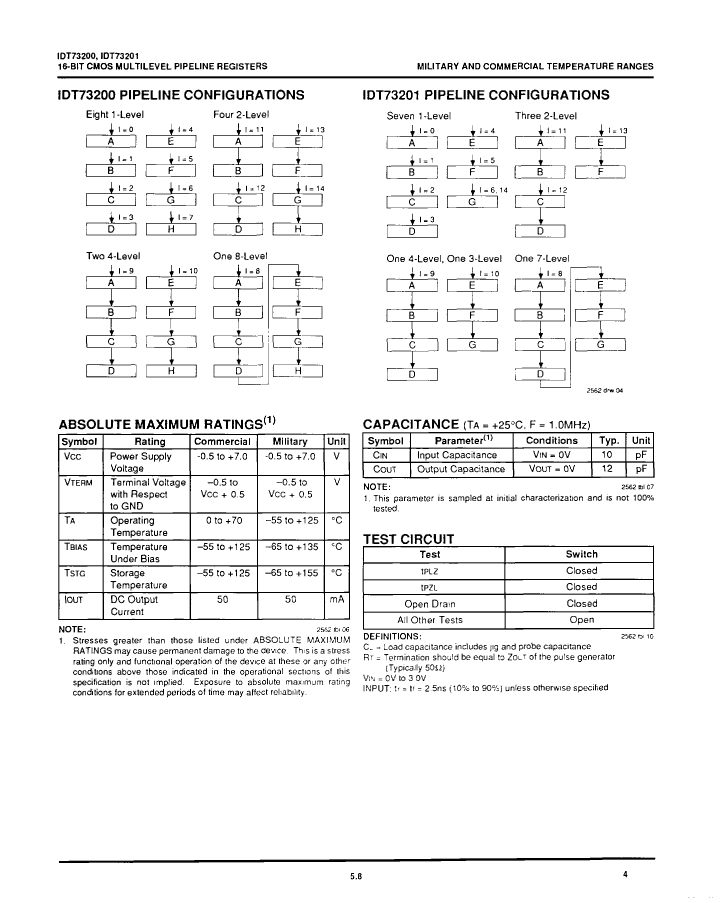

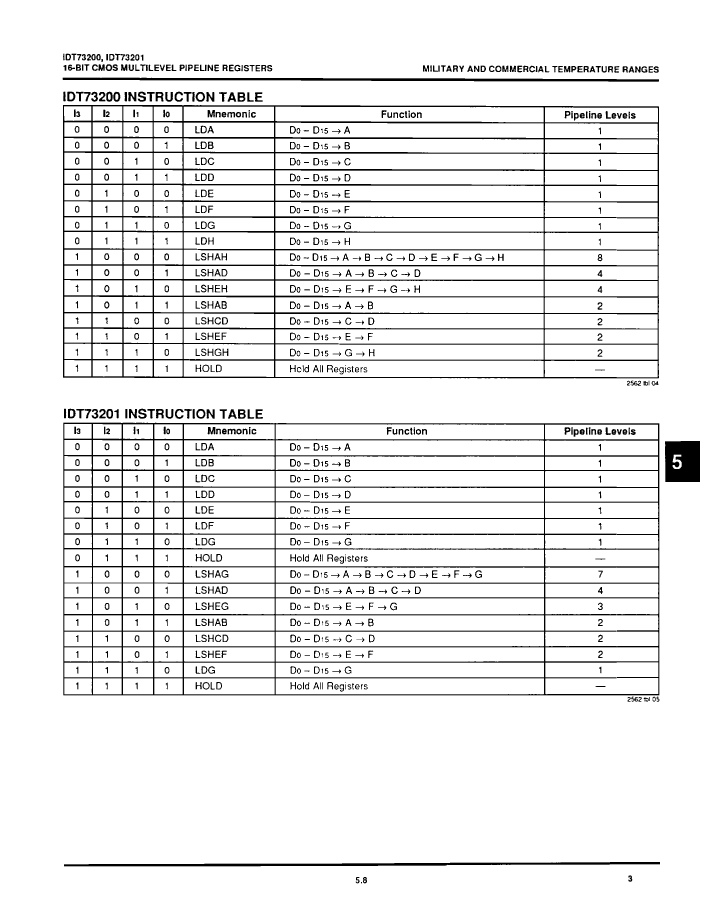

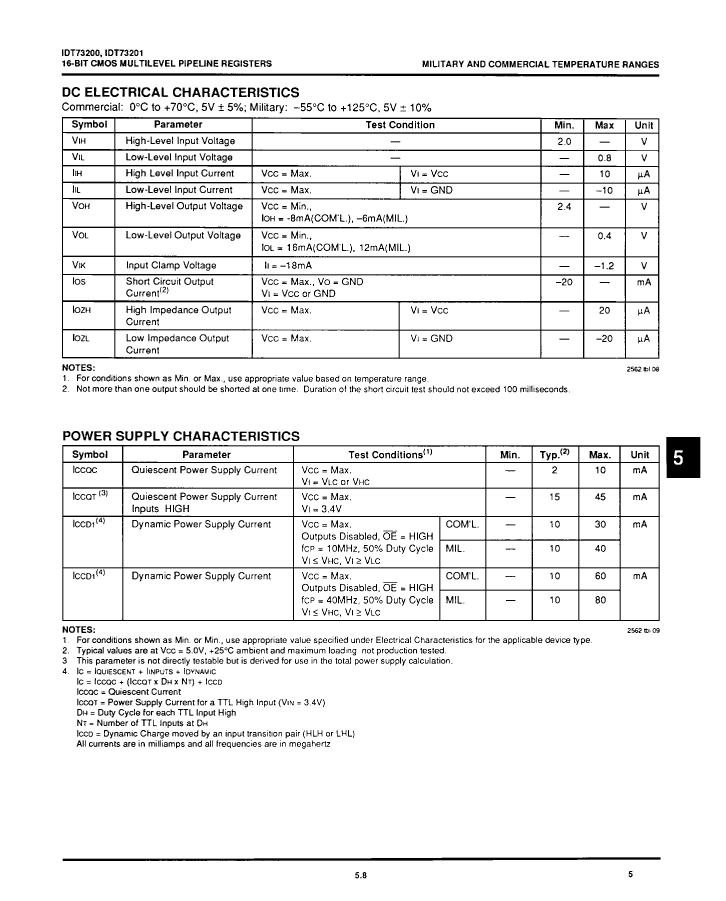

Preview

Download Datasheet

View All

IDT73200L12L Related Products

	IDT73200L12L	IDT73201L15LB	IDT73200L15LB	IDT73200L20LB	IDT73201L20LB	IDT73201L12L	IDT73200L15L	IDT73201L15L
Description	Pipeline Register, 16-Bit, CMOS, CQCC52, LCC-52	Pipeline Register, 16-Bit, CMOS, CQCC52, LCC-52	Pipeline Register, 16-Bit, CMOS, CQCC52, LCC-52	Pipeline Register, 16-Bit, CMOS, CQCC52, LCC-52	Pipeline Register, 16-Bit, CMOS, CQCC52, LCC-52	Pipeline Register, 16-Bit, CMOS, CQCC52, LCC-52	Pipeline Register, 16-Bit, CMOS, CQCC52, LCC-52	Pipeline Register, 16-Bit, CMOS, CQCC52, LCC-52
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	LCC	LCC	LCC	LCC	LCC	LCC	LCC	LCC
package instruction	LCC-52	LCC-52	LCC-52	LCC-52	LCC-52	LCC-52	LCC-52	LCC-52
Contacts	52	52	52	52	52	52	52	52
Reach Compliance Code	_compli	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	3A001.A.3	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.3	3A001.A.3	3A001.A.3
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	83.33 MHz	66.67 MHz	66.67 MHz	50 MHz	50 MHz	83.33 MHz	66.67 MHz	66.67 MHz
External data bus width	16	16	16	16	16	16	16	16
JESD-30 code	S-CQCC-N52	S-CQCC-N52	S-CQCC-N52	S-CQCC-N52	S-CQCC-N52	S-CQCC-N52	S-CQCC-N52	S-CQCC-N52
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	19.05 mm	19.05 mm	19.05 mm	19.05 mm	19.05 mm	19.05 mm	19.05 mm	19.05 mm
low power mode	NO	NO	NO	NO	NO	NO	NO	NO
Number of terminals	52	52	52	52	52	52	52	52
Maximum operating temperature	70 °C	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C	70 °C
Output data bus width	16	16	16	16	16	16	16	16
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN
Encapsulate equivalent code	LCC52,.75SQ	LCC52,.75SQ	LCC52,.75SQ	LCC52,.75SQ	LCC52,.75SQ	LCC52,.75SQ	LCC52,.75SQ	LCC52,.75SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.2098 mm	2.2098 mm	2.2098 mm	2.2098 mm	2.2098 mm	2.2098 mm	2.2098 mm	2.2098 mm
Maximum slew rate	60 mA	80 mA	80 mA	80 mA	80 mA	60 mA	60 mA	60 mA
Maximum supply voltage	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	19.05 mm	19.05 mm	19.05 mm	19.05 mm	19.05 mm	19.05 mm	19.05 mm	19.05 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
