Data Sheet
PCDS_LCUD_LCUD_A218E_XX.X_SS
Description
Duplex patch cord, LCD classic to LCD classic, UPC, duplex fig.8 2x1.8mm_XX.X_yellow, SM G.657.A2, A-B / B-A
Features
- Push-pull mechanism for best handling and high packing density
- One-piece design for easy termination
- Short rigid length
- Switchable duplex connectors
Features
Technical Data
General Data
Description
General Typ
Operation temperature
Polarity
UL Rating
RoHS compliant 2001/65/EU
REACH compliant
Values
Duplex LC patch cord
-25 up to 70°C
A-B / B-A straight polarity (standard)
UL 94 V-0
Yes
Yes
Connector left
Description
Connector typ
Polish
Color Housing
Color Clip
Color Boot
Design connector acc. To
Performance class H+S
Insertion loss 97% dB / mean dB
Return Loss
Durability
Tensil load
Tensil load acc. To GR-326-COR
Values
LC duplex Classic
UPC
Blue
Blue
Black
IEC 61754-20, TIA 604-10-A
S
0.45 / 0.2
50
1000
2 x 100 N
Fullfiled
Connector right
Description
Connector typ
Polish
Color Housing
Color Clip
Color Boot
Design connector acc. To
Performance class H+S
Insertion loss 97% dB / mean dB
Return Loss
Durability
Values
LC duplex Classic
UPC
Blue
Blue
Black
IEC 61754-20, TIA 604-10-A
S
0.45 / 0.2
50
1000
Document: DOC-0000751563 AO / PDO C / date of publication: 27.03.2020 19:34:21 / uncontrolled copy
Page 1/2
Data Sheet
PCDS_LCUD_LCUD_A218E_XX.X_SS
Tensil load
Tensil load acc. To GR-326-COR
2 x 100 N
Fullfiled
Cable
Description
Cable typ
Fiber count
Fiber
Fiber typ
Outer diameter
Outer jacket material
Values
Duplex Cable Figure 8
2
2 x 0.9 mm
E9/125-SM G.657.A2
1.7 mm
Jacket material according to UL 94V-0

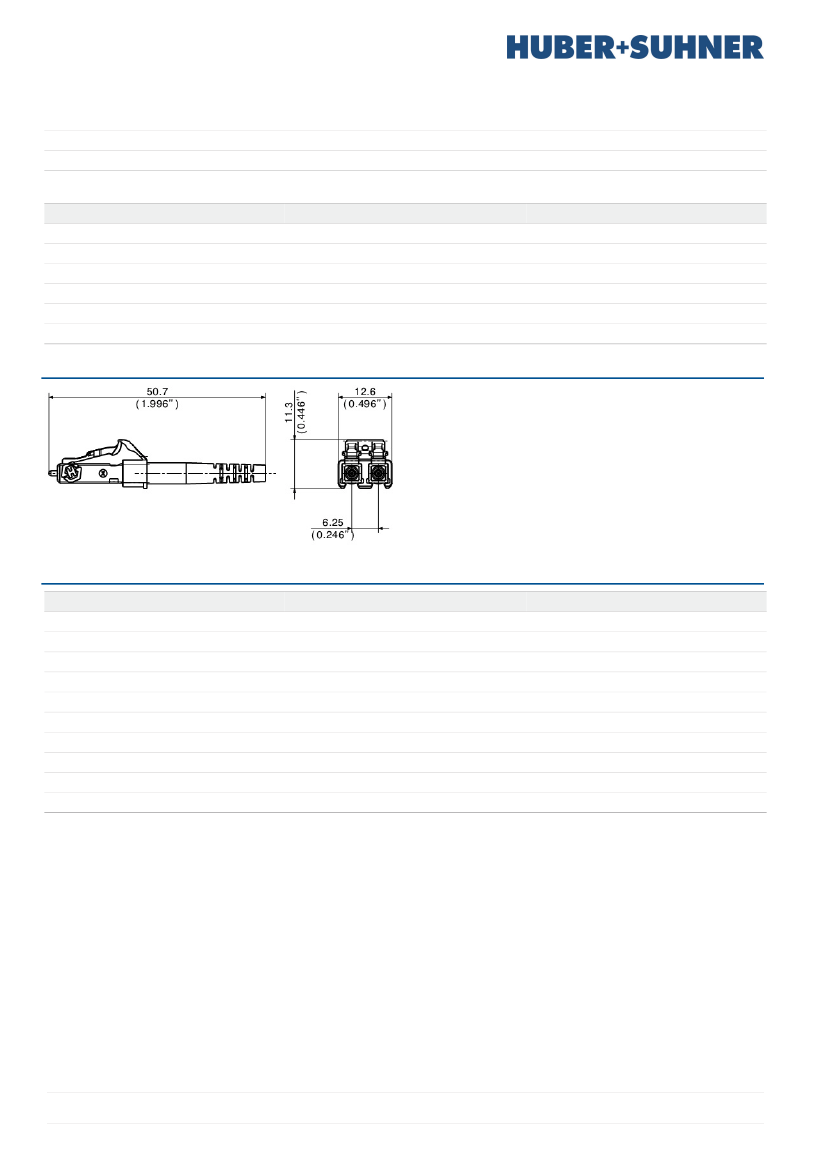

Technical Drawing
Ordering information
Meter (m)
Item number
85020915
85020916
85020917
85020918
85020920
85020921
85020923
85020924
85020926
85020927
Description
PCDS_LCUD_LCUD_A217E_01.0_SS
PCDS_LCUD_LCUD_A217E_02.0_SS
PCDS_LCUD_LCUD_A217E_03.0_SS
PCDS_LCUD_LCUD_A217E_03.5_SS
PCDS_LCUD_LCUD_A217E_05.0_SS
PCDS_LCUD_LCUD_A217E_06.0_SS
PCDS_LCUD_LCUD_A217E_07.0_SS
PCDS_LCUD_LCUD_A217E_10.0_SS
PCDS_LCUD_LCUD_A217E_15.0_SS
PCDS_LCUD_LCUD_A217E_20.0_SS
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000751563 AO / PDO C / date of publication: 27.03.2020 19:34:21 / uncontrolled copy
Page 2/2
