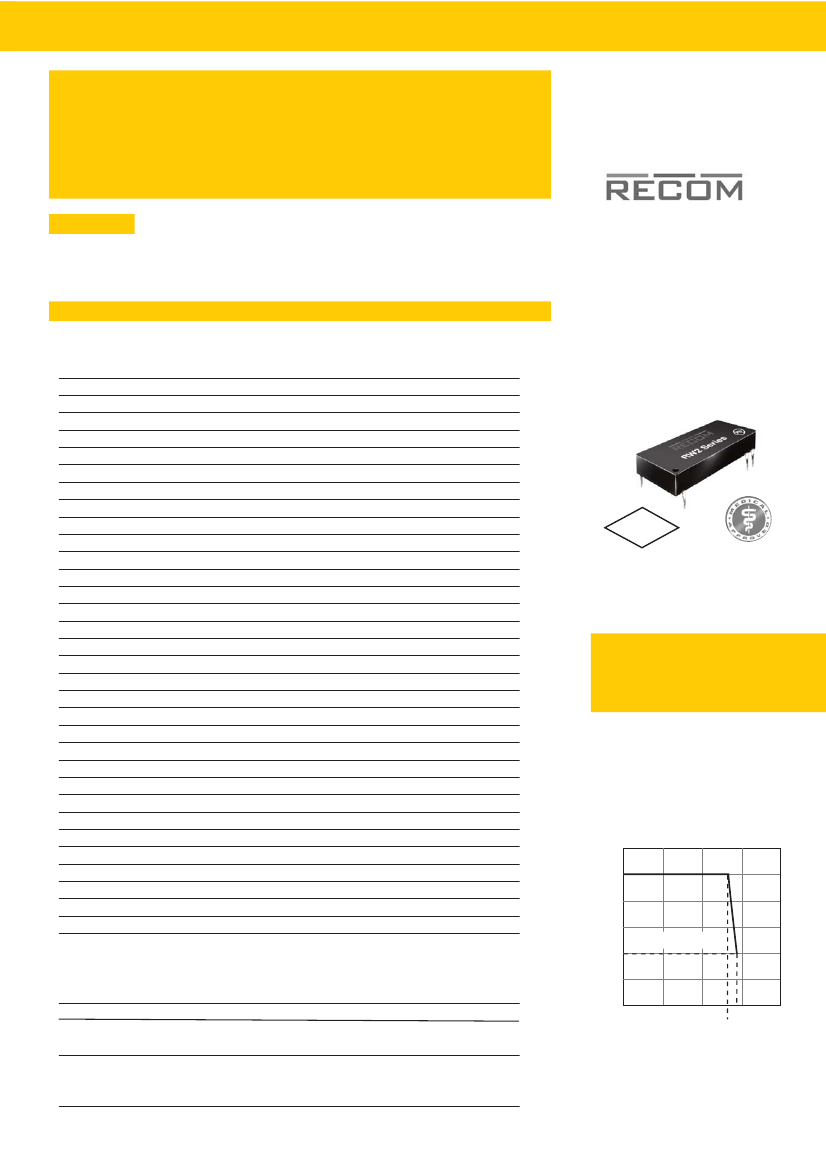

Features
Regulated
Converters
Description
●
●
●
●
●
●
●
2:1 Wide Range Voltage Input
1kVDC, 2kVDC and 3kVDC Isolation
Approved for Medical Applications
Continuous Short Circuit Protection
Low Ripple and Noise
DIP16, mini DIP16 and SMD Cases Styles
Efficiency to 83 %
ECONOLINE
DC/DC-Converter
with 3 year Warranty
High power-density, 2:1 input voltage range and a wide temperature range of -40°C to +85°C
are just some of the characteristics of this versatile DIP16 converter, ideal for highly
sophisticated industrial and medical designs where a regulated converter is required but
space is at a premium. Three different case styles and isolation options are available.
Selection Guide
Input
Rated Output Output Current Efficiency
Voltage Range
Voltage
Full Load
typ./nom Vin
DIP16 (Mini & SMD)
(VDC)
(VDC)
(mA)
(%)
RW2-053.3S (H2/H3)
4.5 - 9
3.3
500
68
RW2-0505S (H2/H3)
4.5 - 9
5
400
73
RW2-0512S (H2/H3)
4.5 - 9
12
166
75
RW2-0515S (H2/H3)
4.5 - 9
15
134
75
RW2-123.3S (H2/H3)
9 - 18
3.3
500
69
RW2-1205S (H2/H3)
9 - 18
5
400
75
RW2-1212S (H2/H3)
9 - 18
12
166
80
RW2-1215S (H2/H3)
9 - 18
15
134
80
RW2-243.3S (H2/H3)
18 - 36
3.3
500
70
RW2-2405S (H2/H3)
18 - 36
5
400
78
RW2-2412S (H2/H3)
18 - 36
12
166
83
RW2-2415S (H2/H3)
18 - 36
15
134
83
RW2-483.3S (H2/H3)
36 - 72
3.3
500
73
RW2-4805S (H2/H3)
36 - 72
5
400
76
RW2-4812S (H2/H3)
36 - 72
12
166
81
RW2-4815S (H2/H3)
36 - 72
15
134
81
RW2-0505D (H2/H3)
4.5 - 9
±5
±200
73
RW2-0509D (H2/H3)
4.5 - 9
±9
±111
74
RW2-0512D (H2/H3)
4.5 - 9
±12
±83
75
RW2-0515D (H2/H3)
4.5 - 9
±15
±67
75
RW2-1205D (H2/H3)
9 - 18
±5
±200
75
RW2-1209D (H2/H3)
9 - 18
±9
±111
78
RW2-1212D (H2/H3)
9 - 18
±12
±83
80
RW2-1215D (H2/H3)
9 - 18
±15
±67
80
RW2-2405D (H2/H3)
18 - 36
±5
±200
78
RW2-2409D (H2/H3)
18 - 36
±9
±111
81
RW2-2412D (H2/H3)
18 - 36
±12
±83
83
RW2-2415D (H2/H3)
18 - 36
±15
±67
83
RW2-4805D (H2/H3)
36 - 72
±5
±200
78
RW2-4809D (H2/H3)
36 - 72
±9
±111
81
RW2-4812D (H2/H3)
36 - 72
±12
±83
83
RW2-4815D (H2/H3)
36 - 72
±15
±67
83
Part Number
Max
Capacitive
Load
(1)
4700µF
1000µF
1000µF
1000µF
4700µF
1000µF
1000µF
1000µF
4700µF
1000µF
1000µF
1000µF
4700µF
1000µF
1000µF
1000µF
±680µF
±680µF
±680µF
±680µF
±680µF
±680µF
±680µF
±680µF
±680µF
±680µF
±680µF
±680µF
±680µF
±680µF
±680µF
±680µF
2 Watt
DIP16, Mini
DIP16
&
SMD
Single
&
Dual
Output
2011/65/EU
6/6
RoHS
EN-60950-1 Certified
(All Suffixes)
EN-60601-1 Certified*
(*/H suffix)
RW2
Derating-Graph
(Ambient Temperature)
100
Output Power (%)
80
60
40
20
0
-40
95
85
Operating Temperature °C
0
50
150
Safe Operating Area
Standard Isolation is 1kVDC. Add suffix “/H2” for 2kVDC Isolation, “/H3” for 3kVDC Isolation.
Add no suffix for standard case style, “/SMD” for SMD package or “/B” for smaller case size
e.g. RW2-0505S/H3, RW2-0505D/H2/SMD or RW2-0505S/B
Notes
Note 1:
Maximum capacitive load is defined as the capacitive load that will allow start up in
under 1second without damage to the converter
Note 2:
The RW2 series require a minimum of 10% loading on the output to maintain specified
regulation. Operating under un-load condition will not damage these devices, however
they may not meet all listed specifications.
www.recom-international.com
REV:0/2014
Refer to Application Notes
E-131
ECONOLINE
DC/DC-Converter
Electrical Specifications
(measured at T
A
= 25°C, at nominal input voltage and rated output current unless otherwise specified)
Input Voltage Range
Output Accuracy
Line Voltage Regulation
Load Voltage Regulation
Minimum Load
Output Ripple and Noise (20MHz limited)
Switching Frequency (at full Load)
Efficiency at Full Load
Isolation Voltage
H2-Suffix
H3-Suffix
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
Operating Temperature Range
Storage Temperature Range
Case Temperature
Relative Humidity
Package Weight
Packing Quantity
MTBF (+25°C)
(+85°C)
RW2
Series
(20% to 100% full load)
2:1
±2% typ.
±0.5% max.
±0.5% typ.
10%
(2)
50mVp-p max.
100kHz min. / 700kHz max.
70% min. / 80% typ.
1000VDC
500VAC / 60Hz
2000VDC
1000VAC / 60Hz
3000VDC
1500VAC / 60Hz
30pF max.
1GΩ min.
Continuous
–40°C to +85°C (see Graph)
–55°C to +125°C
100°C max.
95% RH
6.4g
20 pcs per tube
22 pcs per Tube
4366 x10³ hours
658 x10³ hours
(tested for 1 second)
(rated for 1 minute*)
(tested for 1 second)
(rated for 1 minute*)
(tested for 1 second)
(rated for 1 minute*)
}
For Detailed Information see
Application Notes chapter "MTBF"
Case Style A, SMD
Case Style B
using MIL-HDBK 217F
using MIL-HDBK 217F
**Any data referred to in this datasheet are of indivative nature and based on our practical experience only. For further details, please refer to our Application Notes.
Package Style and Pinning (mm)
RW2
24.2
9.70
15.24
2.54
0.50
7 8
14.50
4.60
8.50
22.1
4.00
15.24
2.54
2.54
12.55
16.9
±
0.2
1.00 dia.
10.16
1.00 dia.
Case Style A
1
Case Style B
1
7 8
2.54
14.50
Bottom View
16
10 9
12.55
2.54
16
Bottom View
10 9
10.16
2.54
7 x 2.54
Top View
7 x 2.54
Top View
16 Pin DIP Package
Recommended Footprint Details
16 Pin Mini-DIP Package
Recommended Footprint Details
24.2
10.20
9.70
2.54
0.50
7 8
14.50
Pin Connections
(All Case Styles)
Pin #
1
7
8
9
10
16
Single
–Vin
NC
NC
+Vout
–Vout
+Vin
Dual
–Vin
NC
Com
+Vout
–Vout
+Vin
SMD Case Style
Pin area 0.1 x 0.50
1
18.55
2.54
1.54
2.03
19.27
17.24
Top View
1
XX.X ± 0.5 mm
XX.XX ± 0.35 mm
6.0
Bottom View
16
10 9
Certifications
EN General Safety Report: SPCLVD1212007
EN60950-1:2006 + A12:2011
EN Medical Safety Report: MDD1205098-3 + RM1205098-3
IEC/EN 60601-1 3rd Edition Medical Report + ISO14971 Risk Assessment
7 x 2.54
17.78
16 Pin SMD Package
Recommended Pad Details
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
E-132
REV: 0/2014
www.recom-power.com
