SMAJ17C: DescriptionTrans Voltage Suppressor Diode, 17V V(RWM), Bidirectional,; CategoryDiscrete semiconductor diode; File Size510KB，4 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

SMAJ17C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMAJ17C	-	-	View	Buy Now

SMAJ17C Overview

Trans Voltage Suppressor Diode, 17V V(RWM), Bidirectional,

SMAJ17C Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	unknow
Breakdown voltage nominal value	19.9 V
Maximum clamping voltage	27.6 V
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
polarity	BIDIRECTIONAL
Maximum repetitive peak reverse voltage	17 V
surface mount	YES

Preview

Download Datasheet

View All

SMAJ SERIES

DATA SHEET

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

VOLTAGE - 5.0 to 440 Volts

400 Watt Peak Pulse Power

FEATURE

For surface mounted applications in order to optimize board space.

Low profile package.

Built-in strain relief.

Glass passivated junction.

Low inductance.

Excellent clamping capability.

Repetition Rate (duty cycle):0.01%.

Fast response time: typically less than 1.0ps from 0 Volts to V

for unidirectional types.

Typical I

less than 1µA above 10V.

High Temperature soldering: 250°C/10 seconds at terminals.

Plastic package has Underwriters Laboratory Flammability 94V-O.

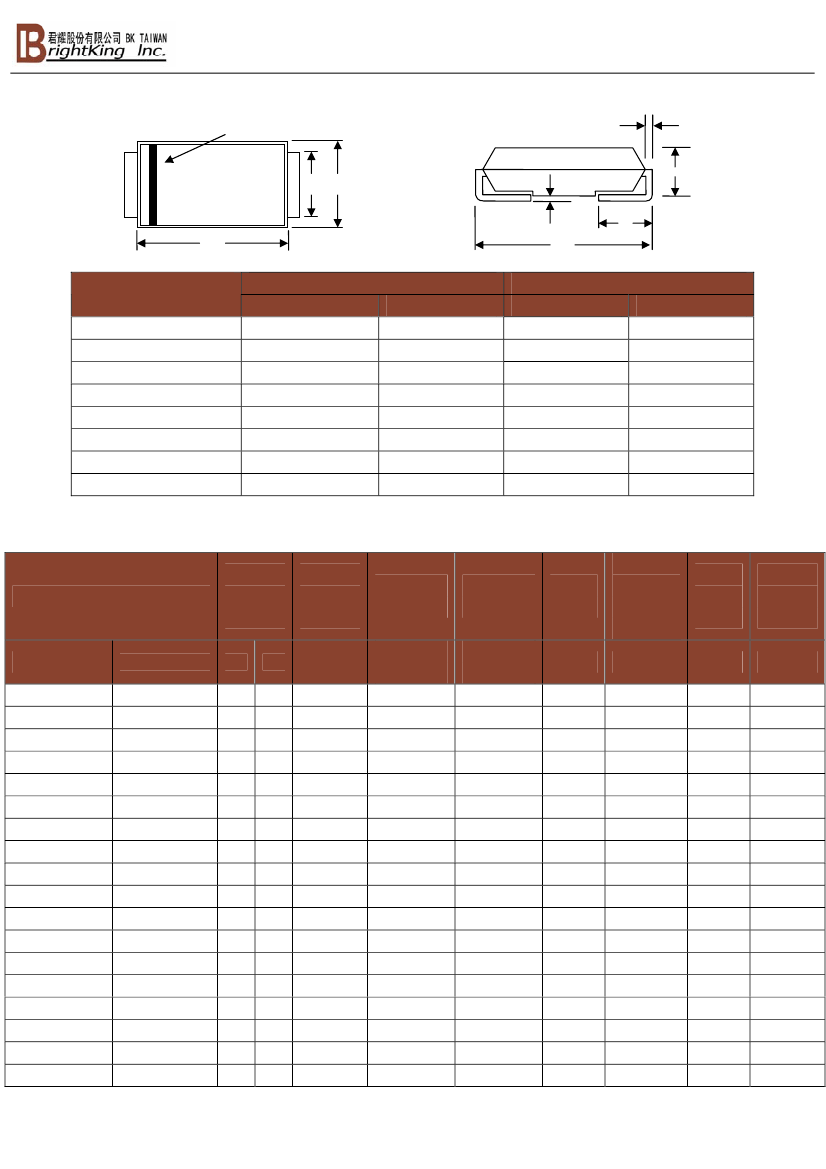

DO-241AC (SMA)

MECHANICAL DATE

Case: JEDEC DO214AC. Molded plastic over glass passivated junction.

Terminal: Solder plated, solderable per MIL-STD-750, Method 2026.

Polarity: Color band denoted positive end (cathode) except Bidirectional.

Standard Packaging: 12mm tape (EIA STD RS-481).

Weight: 0.002 ounce, 0.061 grams.

DEVICES FOR BIPOLAR APPLICATION

For bidirectional use C or CA suffix for types SMAJ5.0 thru types SMAJ440 (e.g.SMAJ5.0CA, SMAJ440CA), electrical

characteristics apply in both directions.

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25℃ ambient temperature unless otherwise specified.

RATING

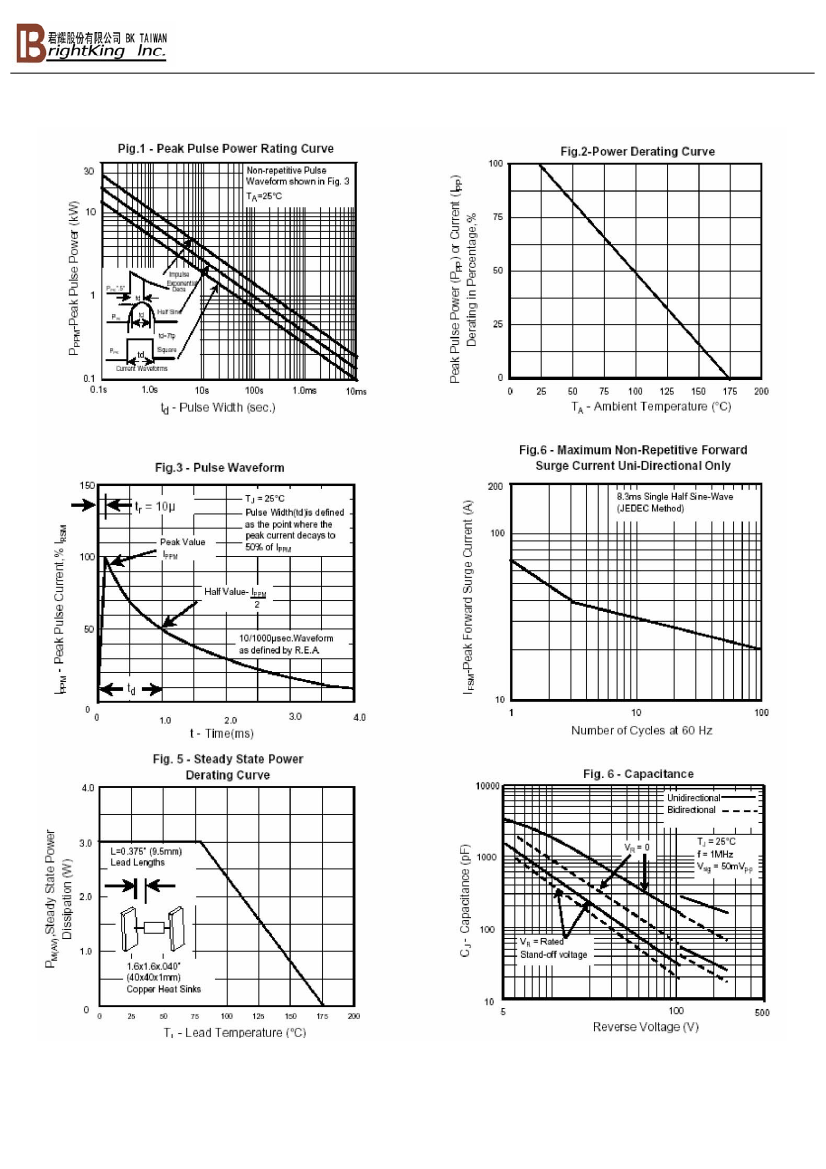

Peak Pulse Power Dissipation on 10/1000µs waveform (Note 1, 2, FIG.1).

Peak Pulse Current of on 10/1000µs waveform (Note 1, FIG.3).

Peak Forward Surge Current,8.3ms Single Half Sine-Wave Superimposed

on Rated Load,(JEDEC Method) (Note2,3)

Operating junction and Storage Temperature Range.

SYMBOL

PPM

M(AV)

FSM

STG

VALUE

Minimum 400

See Table 1

-55 to +150

UNITS

Watts

Amps

℃

Notes: 1. Non-repetitive current pulse, per Fig. 3 and derated above TA = 25℃ per Fig. 2.

2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.

3.8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.

www.brightking.com
