TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PBT
FLAMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: GOLD
QUALITY CLASS: 3 AS PER CECC 75 301-802
PITCH: 2.54MM
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 125°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 3A
WORKING VOLTAGE: 250V AC
INSULATOR RESISTANCE: >1000 MOHM
DIELECTRIC WITHSTANDING VOLTAGE: 500V AC/MN
CONTACT RESISTANCE: 20 mOHM MAX
SOLDERING
WAVE PROCESS ONLY
PACKAGING
TRAY

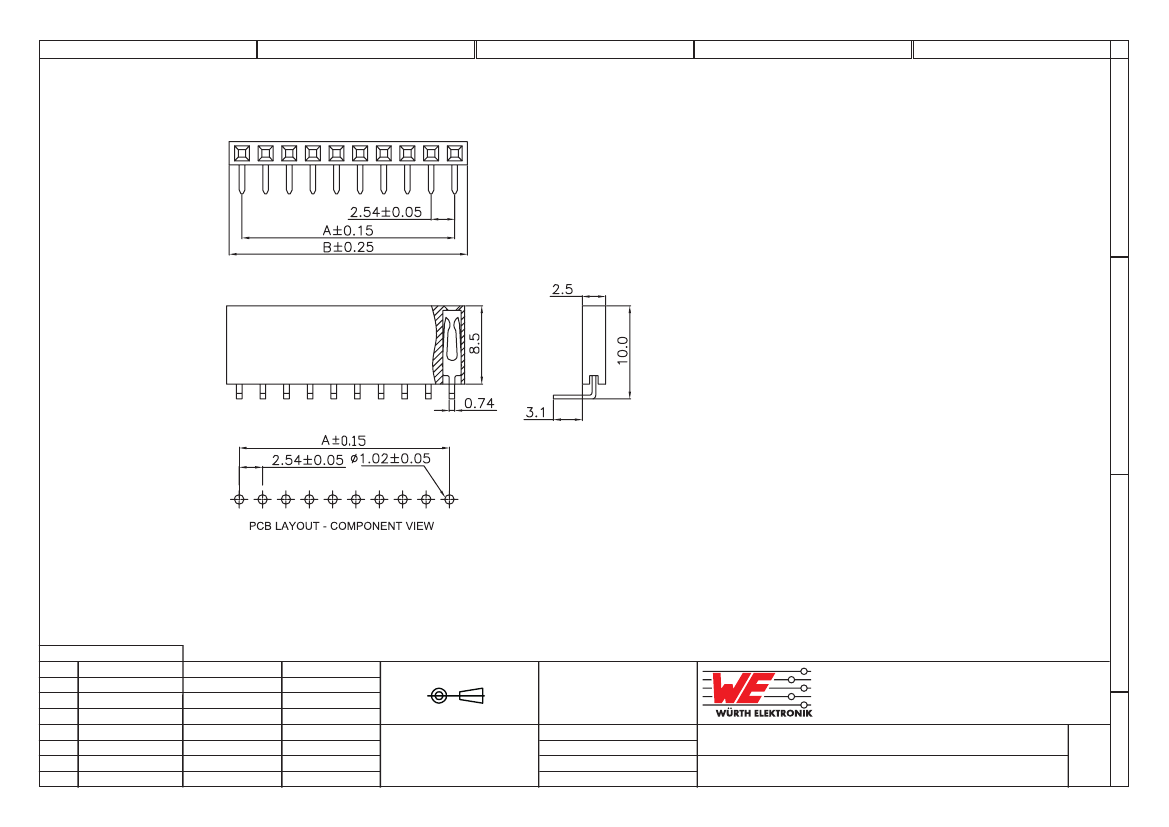

DIMENSION
A = 2.54 x (NB. PIN - 1)
B = 2.54 x (NB. POSITIONS) + 0.5
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
23-AUG-10
06-NOV-08
DATE

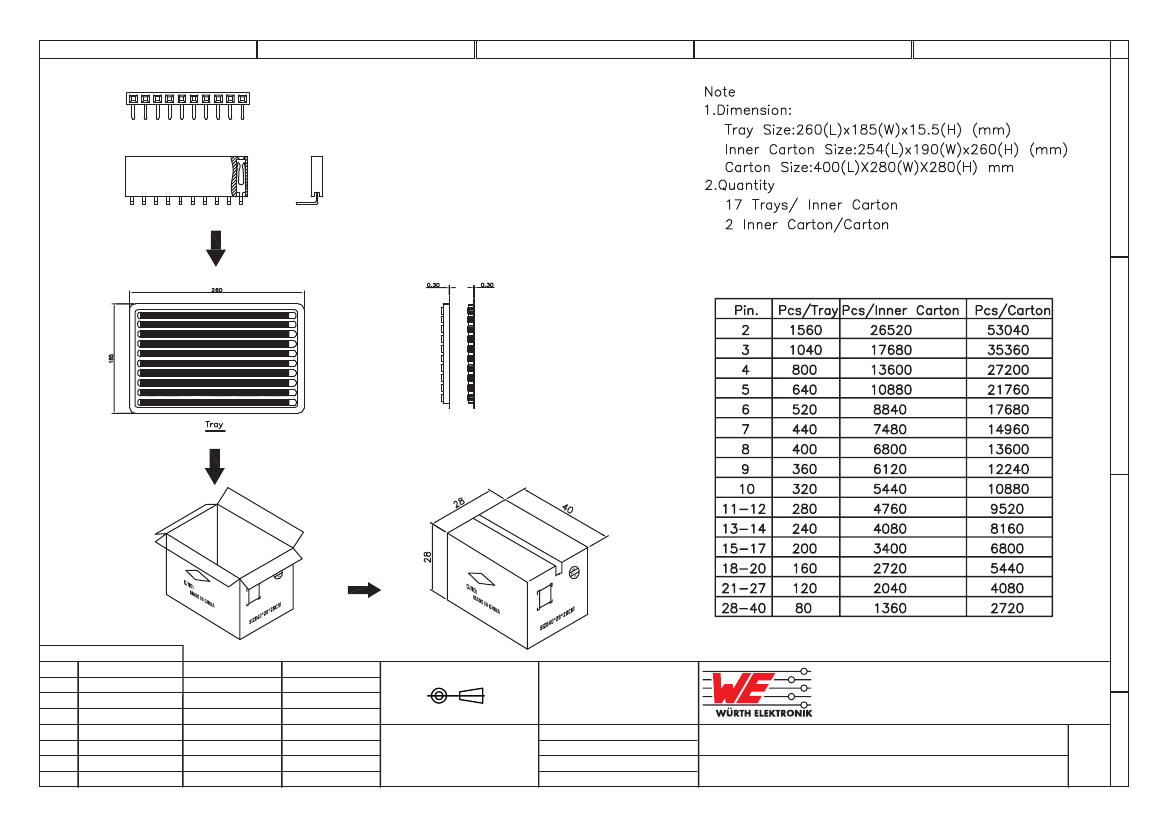

PACKAGING
PDF
FILE
JC
JP
BY
APPROVAL: RJ
SCALE:
SHEET: 1/2
DRAW: MIKE WU
WERI PART NO: 6130 xx 143 121
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: 2.54MM ANGLED SOCKET HEADER
SIZE
A4
D
1
2
3
4
5
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
DATE
FILE
BY
APPROVAL: RJ
SCALE:
SHEET: 2/2
DRAW: PEARL
WERI PART NO: 6130 xx 143 121_TPK
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: 2.54MM ANGLED SOCKET HEADER
SIZE
A4
D
1
2
3
Cleaning and Washing:
4
5
Cautions and Warnings:
The following conditions apply to all goods within the product services of the
Connectors of Würth Elektronik eiSos GmbH & Co. KG:
General:
• This electronic component is designed and developed with the intention for use in general electronics equipment.
• Before incorporating the components into any equipment in the field such as military, aerospace, aviation, nuclear control,
submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster
prevention, medical, public information
network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury
to human body, Würth Elektronik must be asked for a written approval.
• In addition, even electronic component in general electronic equipment, when used in electrical circuits that require
high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be
performed by the user before usage.
• The connector is designed and manufactured to be used within the datasheet specified values.
• Do not use the connector outside the datasheet specifications.
• Prevent any damage or scratches on the connector, especially on the actuator.
• Direct mechanical impact to the product shall be prevented (e.g overlapping of the PCB´s).
• The responsibility for the applicability of the customer specific products and use in a particular customer design is
always within the authority of the customer. All technical specification for standard products do also apply to customer
specific products.
• Würth Elektronik products are qualified according to international standards which are listed into each product
reliability report.
All products characteristics are therefore given according to results obtained throughout these detailed tests protocols.
May any product characteristic be qualified by the customer, out of given Würth Elektronik specifications, Würth Elektronik
cannot insure its validity and sustainability over time.
• The Connectors are designed to be used along with Würth Elektronik counterparts and tools. Würth Elektronik cannot
insure the reliability of these components while being used with other products.
• Parts are not constructed for washing, so washing can cause malfunction afterwards.
• Cleaning agent that are used to clean the customer applications might damage or change the characteristics of
the component, body, pins and termination.
• Please do not submerse our washable products into water or cleaning agents or put them in locations exposed to
water completely.
• When cleaning by hand (brushing), please do not use excessive force on our connectors to avoid malfunction
afterwards, because customer could deform function relevant areas.
• We recommended a solution without organic acid (preserve the plating against corrosion) volatile, without residues
and compatible with the plastic.
• We recommend to perform tests and to let a part in immersion in the solution 8 to 12 hours and see if there is
a degradation.
Storage Conditions:
• The Connectors are considered MSL1 into closed original packaging and are not subject to storage time limits
regarding the moisture sensivity but all products shall be used before the end of the period of 12 months based
on the products date code, if not 100% solderability can’t be warranted.
Handling:
• Do not repeatedly operate the connector with excessive force. It may damage or deforms the contact dome which
results in malfunction.
• In the case a product requires particular handling precautions, in addition to the general recommendations
mentioned here before, these will appear on the product datasheet.
A
B
Product Specific:
Soldering:
• The solder profile must comply with the Würth Elektronik technical soldering specification, otherwise this will void the warranty.
• Other soldering methods are not verified and have to be validated by the customer at his own risk.
C
RoHS Compliant
G
F
E
D
C
B
A
REV
25/01/2018
DATE
UPDATE
