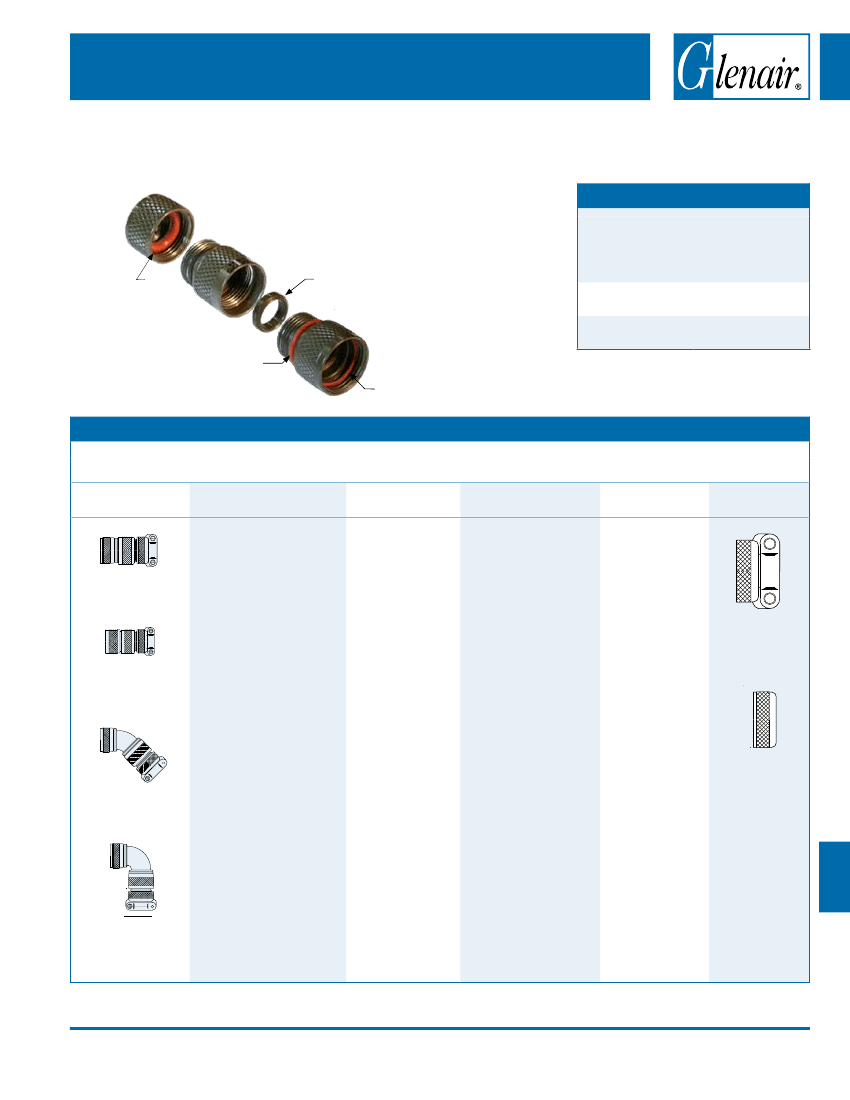

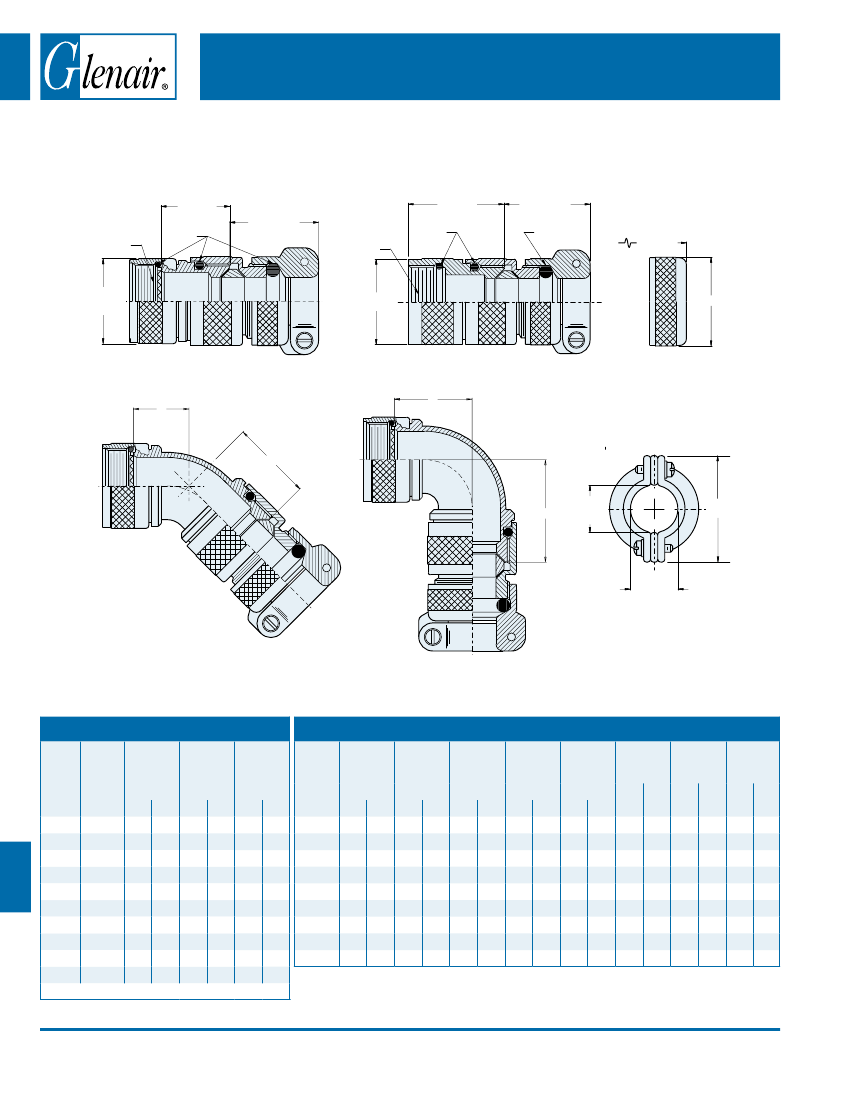

Series 80 “Mighty Mouse”

Backshells, Boots and Clamps

Environmental EMI Backshells

Compression

Nut

These backshells feature an EMI

ring for easy shield termination. O-

rings provide watertight seals on the

cable jacket and on the backshell-to-

connector interface.

EMI Ring

MAterIALS

Adapter, Clamp,

Nut and Saddles

O-Rings

Hardware

Aluminum Alloy

6061-T6 or 300

Series Stainless

Steel

Silicone Rubber

300 Series

Stainless Steel

O-Ring

how to order

390MS077

Part Number

M

Shell Material / Finish

M

Sample Part Number

07

04-

6

Length

Straight Entry

390MS Only

Length

Code

Length

(Inches)

.625

.750

.875

1.000

1.125

1.250

1.375

1.500

1.625

1.750

1.875

2.000

2.125

2.250

2.375

2.500

N

Clamp Style

Size Code

Cable entry Code

Cable

entry

Code

Cable Sealing

dia.

Max.

Min.

.109

.172

.234

.297

.359

.422

.484

.547

.609

.031

.078

.140

.203

.265

.328

.390

.453

.515

Straight Entry,

NF

Aluminum / Cadmium with

Rotatable Coupling

Olive Drab Chromate

Aluminum / Zinc-Nickel

with Olive Drab Chromate

Aluminum / Zinc-Nickel

with Black Chromate

Stainless Steel /

Passivated

390MS077

Aluminum / Electroless

Nickel

Size

Code

thread

Size

.2500-32

.3125-32

.3750-32

.4375-28

.5000-28

.5625-24

.6250-24

.6875-24

.7500-20

.9375-20

ZN

Straight Entry,

Direct Coupling

390MS076

ZNU

Z1

05

06

11

07

08

09

10

12

13

14

01-

02-

03-

04-

05-

06-

07-

08-

09-

390MB077

45° Entry

Rotatable Coupling

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

Omit for screw

clamp with

saddle bars

Optional

Compression

Nut, Low Profile

N

90° Entry

Rotatable Coupling

390MA077

Specify length in

increments of .125

inches (3.18 mm.)

www.glenair.com

CAGE Code 06324

Printed in U.S.A.

e-Mail: sales@glenair.com

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

Rev. 07-AUG-2008

L-17
