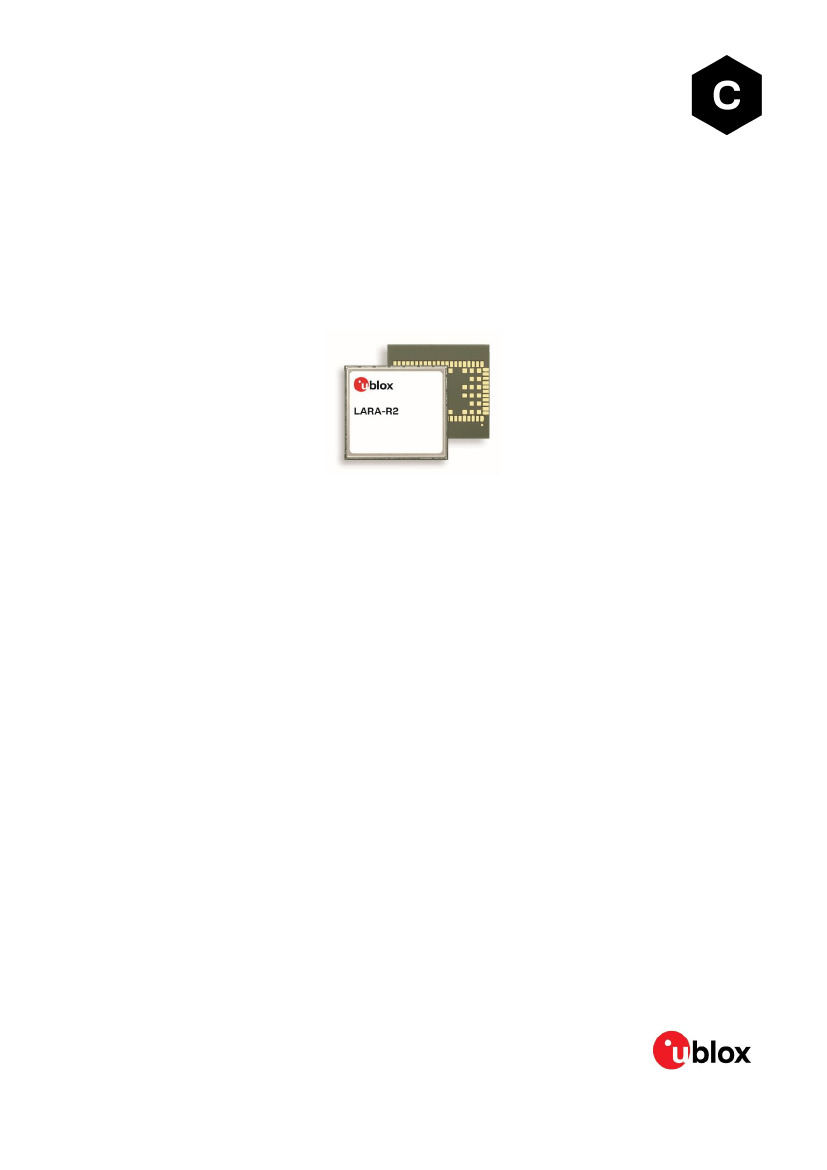

LARA-R2 series
Size-optimized LTE Cat 1 modules in single and multi -
mode configurations
Data Sheet
Abstract
Technical data sheet describing the LARA-R2 series multi-mode cellular modules. The modules are
a cost efficient and performance optimized LTE Cat 1 / 3G / 2G multi-mode solution covering up to
four LTE bands, up to two UMTS/HSPA bands and up to two GSM/EGPRS bands in the very small
and compact LARA form factor.
www.u-blox.com
UBX-16005783 - R18
LARA-R2 series - Data Sheet
Document Information
Title
Subtitle
Document type
Document number
Revision and date
Disclosure Restriction
Product status
Functional Sample
In Development /
Prototype
Engineering Sample
Initial Production
Mass Production /
End of Life
LARA-R2 series
Size-optimized LTE Cat 1 modules in single and multi-mode configurations
Data Sheet
UBX-16005783
R18
20-Dec-2018
Corresponding content status
Draft
Objective Specification
Advance Information
Early Production Information
Production Information
For functional testing. Revised and supplementary data will be published later.
Target values. Revised and supplementary data will be published later.
Data based on early testing. Revised and supplementary data will be published later.
Data from product verification. Revised and supplementary data may be published later.
Document contains the final product specification.
This document applies to the following products:
Product name
LARA-R202
Type number
LARA-R202-02B-00
LARA-R202-02B-01
LARA-R202-02B-02
LARA-R203
LARA-R203-02B-00
LARA-R203-02B-01
LARA-R203-02B-02
LARA-R204
LARA-R211
LARA-R204-02B-00
LARA-R204-02B-02
LARA-R211-02B-00
LARA-R211-02B-01
LARA-R211-02B-02
LARA-R220
LARA-R220-62B-00
LARA-R220-62B-01
LARA-R220-62B-02
LARA-R280
LARA-R280-02B-00
LARA-R280-02B-01
LARA-R280-02B-02
LARA-R280-02B-03
Modem version
30.42
30.42
30.42
30.39
30.39
30.39
31.34
31.40
30.31
30.49
30.49
30.44
30.44
30.44
30.43
30.43
30.43
30.43
Application version
A01.00
A01.01
A01.02
A01.00
A01.02
A01.03
A01.00
A01.00
A01.00
A01.01
A01.02
A01.03
A01.04
A01.05
A01.01
A01.02
A01.03
A01.04
PCN reference
UBX-17057959
UBX-18018067
UBX-18057549
UBX-17048311
UBX-18018067
UBX-18057549
UBX-17012269
UBX-18046834
UBX-17012270
UBX-17054295
UBX-18057549
UBX-17061668
UBX-18050698
UBX-18057549
UBX-17063950
UBX-18018067
UBX-18052020
UBX-18057549
Product status
End of Life
End of Life
Mass Production
End of Life
End of Life
Mass Production
End of Life
Mass Production
End of Life
End of Life
Initial Production
Obsolete
End of Life
Mass Production
Obsolete
Obsolete
End of Life
Mass Production
u-blox or third parties may hold intellectual property rights in the products, names, logos and designs included in this
document. Copying, reproduction, modification or disclosure to third parties of this document or any part thereof is only
permitted with the express written permission of u-blox.
The information contained herein is provided “as is” and u-blox assumes no liability for its use. No warranty, either express or
implied, is given, including but not limited to, with respect to the accuracy, correctness, reliability and fitness for a particular
purpose of the information. This document may be revised by u-blox at any time without notice. For the most recent
documents, visit www.u-blox.com.
Copyright © u-blox AG.
UBX-16005783 - R18
Page 2 of 46
LARA-R2 series - Data Sheet
Contents
Document Information ................................................................................................................................ 2
Contents .......................................................................................................................................................... 3
1
Functional description ......................................................................................................................... 5
1.1
1.2
1.3
1.4
1.5
1.6
Overview ........................................................................................................................................................ 5
Product features ......................................................................................................................................... 5
Block diagram .............................................................................................................................................. 6
Product description .................................................................................................................................... 6
AT command support ................................................................................................................................ 8
Supported features .................................................................................................................................... 8
Power management .................................................................................................................................. 11
Module supply input (VCC) .............................................................................................................. 11
RTC supply input / output (V_BCKP) ............................................................................................. 11
Generic digital interfaces supply output (V_INT) ........................................................................ 11
Antenna RF interfaces ...................................................................................................................... 11
Antenna detection ............................................................................................................................. 11
Module power-on ...............................................................................................................................12
Module power-off ...............................................................................................................................12
Module reset ...................................................................................................................................... 13
Module / host configuration selection .......................................................................................... 13
SIM interface ..................................................................................................................................... 13
SIM detection .................................................................................................................................... 13
UART interface .................................................................................................................................. 14
USB interface ..................................................................................................................................... 15
HSIC interface ................................................................................................................................... 16
DDC (I
2
C) interface ............................................................................................................................. 17
SDIO interface .................................................................................................................................... 17
2
Interfaces ................................................................................................................................................ 11
2.1
2.1.1
2.1.2
2.1.3
2.2.1
2.2.2
2.3.1
2.3.2
2.3.3
2.3.4
2.4.1
2.4.2
2.5.1
2.5.2
2.5.3
2.5.4
2.5.5
2.2 Antenna interfaces .................................................................................................................................... 11
2.3 System functions .......................................................................................................................................12
2.4 SIM ............................................................................................................................................................... 13
2.5 Serial communication .............................................................................................................................. 14
2.6 Audio ............................................................................................................................................................. 17
2.7 Clock output ................................................................................................................................................ 17
2.8 GPIO ............................................................................................................................................................. 18
3
4
Pin definition ......................................................................................................................................... 19
3.1
4.1
Pin assignment .......................................................................................................................................... 19
Absolute maximum rating....................................................................................................................... 24
Maximum ESD ................................................................................................................................... 24
Electrical specifications ................................................................................................................... 24
4.1.1
4.2 Operating conditions ................................................................................................................................ 25
UBX-16005783 - R18
Page 3 of 46
LARA-R2 series - Data Sheet
4.2.1
4.2.2
4.2.3
4.2.4
4.2.5
4.2.6
4.2.7
4.2.8
4.2.9
Operating temperature range ........................................................................................................ 25
Supply/power pins ............................................................................................................................ 25
Current consumption ....................................................................................................................... 26
LTE RF characteristics .................................................................................................................... 27
3G RF characteristics ...................................................................................................................... 29
2G RF characteristics ...................................................................................................................... 29
ANT_DET pin......................................................................................................................................30
PWR_ON pin .......................................................................................................................................30
RESET_N pin ......................................................................................................................................30
4.2.10 SIM pins .............................................................................................................................................. 31
4.2.11 USB pins ............................................................................................................................................. 31
4.2.12 HSIC pins ............................................................................................................................................ 32
4.2.13 DDC (I
2
C) pins..................................................................................................................................... 32
4.2.14 Generic Digital Interfaces pins ....................................................................................................... 32
5
6
Mechanical specifications ............................................................................................................... 35
Qualification and approvals............................................................................................................. 36
6.1
Reliability tests .......................................................................................................................................... 36
6.2 Approvals .................................................................................................................................................... 36
7
Product handling & soldering...........................................................................................................37
7.1
Packaging ................................................................................................................................................... 37
Reels .................................................................................................................................................... 37
Tapes ...................................................................................................................................................38
7.1.1
7.1.2
7.2 Moisture Sensitivity Levels ..................................................................................................................... 39
7.3 Reflow soldering ........................................................................................................................................ 39
7.4 ESD precautions ........................................................................................................................................ 39
8
9
Default settings .................................................................................................................................. 40
Labeling and ordering information ................................................................................................ 41
9.1
Product labeling ......................................................................................................................................... 41
9.2 Explanation of codes ................................................................................................................................ 42
9.3 Ordering information ................................................................................................................................ 42
Appendix ....................................................................................................................................................... 43
A
Glossary ................................................................................................................................................. 43
Related documents ................................................................................................................................... 44
Revision history .......................................................................................................................................... 45
Contact .......................................................................................................................................................... 46
UBX-16005783 - R18
Page 4 of 46
LARA-R2 series - Data Sheet
1
1.1
Functional description
Overview
The LARA-R2 series comprises LTE Cat 1 / 3G / 2G multi-mode modules in the very small LARA LGA
form-factor (26.0 x 24.0 mm, 100-pin) that are easy to integrate in compact designs.
LARA-R2 series modules support up to four LTE bands, up to two 3G UMTS/HSPA bands and up to
two 2G GSM/(E)GPRS bands for voice and/or data transmission.
LARA modules are form-factor compatible with u-blox SARA, LISA and TOBY cellular module families:
this facilitates easy migration from u-blox GSM/GPRS, CDMA, UMTS/HSPA, and other LTE modules,
maximizes the investments of customers, simplifies logistics, and enables very short time-to-market.
The modules are ideal for applications that are transitioning to LTE from 2G and 3G, due to the long
term availability and scalability of LTE networks.
With a range of interface options and an integrated IP stack, the modules are designed to support a
wide range of data-centric applications. The unique combination of performance and flexibility make
these modules ideally suited for medium speed M2M applications, such as smart energy gateways,
remote access video cameras, digital signage, telehealth and telematics.
LARA-R2 series modules support Voice over LTE (VoLTE) and voice service over 3G or 2G (CSFB) for
applications that require voice, such as security and surveillance systems.
1.2
Model
Product features
Region
Radio Access
Technology
Positioning
Interfaces
Audio
Features
Grade
Embedded TCP/UDP stack
Embedded HTTP,FTP,TSL
1.2 update via serial
FW
Dual stack IPv4 / IPv6
AssistNow Software
Jamming detection
Antenna supervisor
Network indication
GNSS via modem
UMTS bands
Analog audio
Standard
Professional
●
●
●
●
●
●
Digital audio
CellLocate®
Rx Diversity
FOTA client
LARA-R202
LARA-R203
LARA-R204
LARA-R211
LARA-R220
LARA-R280
North
2,4 850
America 5,12 1900
North
2,4,12
America
North
4,13
America
Europe 3,7,20
Japan
APAC
1,19
3,8,28 2100
■
= CSFB only
●
●
□
900
2
●
1800
●
●
●
●
□
●
2
●
●
●
●
□
●
2
●
●
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
9
9
9
9
9
9
●
●
●
●
●
●
●
●
●
●
□
□
□
□
□
□
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
■
●
●=
Available in any firmware
□
= Available in future firmware
* = HW ready
Table 1: LARA-R2 series main features summary
1
2
LTE band 12 is a superset that includes band 17: the LTE band 12 is supported along with Multi-Frequency Band Indicator (MFBI) feature
Not supported by LARA-R211-02B-00
UBX-16005783 - R18
Functional description
Page 5 of 46
Automotive
GSM bands
LTE bands
1
DDC (I
2
C)
USB 2.0
VoLTE
SDIO *
HISC *
GPIOs
UART
京公网安备 11010802033920号
EEWORLD
