TIP30, TIP30A,TIP30B, TIP30C
PNP SILICON POWER TRANSISTORS
●
●
●
●
●
Designed for Complementary Use with the
TIP29 Series
30 W at 25°C Case Temperature
1 A Continuous Collector Current
3 A Peak Collector Current
Customer-Specified Selections Available
B
C
E
TO-220 PACKAGE
(TOP VIEW)
1
2
3
Pin 2 is in electrical contact with the mounting base.
MDTRACA
absolute maximum ratings at 25°C case temperature (unless otherwise noted)
RATING
TIP30
Collector-base voltage (I
E
= 0)
TIP30A
TIP30B
TIP30C
TIP30
Collector-emitter voltage (I
B
= 0)
TIP30A
TIP30B
TIP30C
Emitter-base voltage
Continuous collector current
Peak collector current (see Note 1)
Continuous base current
Continuous device dissipation at (or below) 25°C case temperature (see Note 2)
Continuous device dissipation at (or below) 25°C free air temperature (see Note 3)
Unclamped inductive load energy (see Note 4)
Operating junction temperature range
Storage temperature range
Lead temperature 3.2 mm from case for 10 seconds
NOTES: 1.
2.
3.
4.
V
EBO
I
C
I
CM
I
B
P
tot
P
tot
½LI
C
2
T
j
T
stg
T
L
V
CEO
V
CBO
SYMBOL
VALUE
-80
-100
-120
-140
-40
-60
-80
-100
-5
-1
-3
-0.4
30
2
32
-65 to +150
-65 to +150
250
V
A
A
A
W
W
mJ
°C
°C
°C
V
V
UNIT
This value applies for t
p
≤
0.3 ms, duty cycle
≤
10%.
Derate linearly to 150°C case temperature at the rate of 0.24 W/°C.
Derate linearly to 150°C free air temperature at the rate of 16 mW/°C.
This rating is based on the capability of the transistor to operate safely in a circuit of: L = 20 mH, I
B(on)
= -0.4 A, R
BE
= 100
Ω,
V
BE(off)
= 0, R
S
= 0.1
Ω,
V
CC
= -20 V.
JULY 1968 - REVISED SEPTEMBER 2002
Specifications are subject to change without notice.
NOITAMROFNI
TCUDORP
1
TIP30, TIP30A,TIP30B, TIP30C
PNP SILICON POWER TRANSISTORS
electrical characteristics at 25°C case temperature
PARAMETER
Collector-emitter
breakdown voltage
TEST CONDITIONS
TIP30
V
(BR)CEO
I
C
= -30 mA
(see Note 5)
V
CE
= -80 V
I
CES
Collector-emitter
cut-off current
Collector cut-off
current
Emitter cut-off
current
Forward current
transfer ratio
Collector-emitter
saturation voltage
Base-emitter
voltage
Small signal forward
current transfer ratio
Small signal forward
current transfer ratio
V
CE
= -100 V
V
CE
= -120 V
V
CE
= -140 V
I
CEO
I
EBO
h
FE
V
CE(sat)
V
BE
h
fe
V
CE
= -30 V
V
CE
= -60 V
V
EB
=
V
CE
=
V
CE
=
-5 V
-4 V
-4 V
V
BE
= 0
V
BE
= 0
V
BE
= 0
V
BE
= 0
I
B
= 0
I
B
= 0
I
C
= 0
I
C
= -0.2 A
I
C
=
I
C
=
I
C
=
-1 A
- 1A
-1 A
(see Notes 5 and 6)
(see Notes 5 and 6)
(see Notes 5 and 6)
f = 1 kHz
f = 1 MHz
20
3
40
15
75
-0.7
-1.3
V
V
I
B
= 0
TIP30A
TIP30B
TIP30C
TIP30
TIP30A
TIP30B
TIP30C
TIP30/30A
TIP30B/30C
MIN
-40
-60
-80
-100
-0.2
-0.2
-0.2
-0.2
-0.3
-0.3
-1
mA
mA
mA
V
TYP
MAX
UNIT
I
B
= -125 mA
V
CE
=
-4 V
V
CE
= -10 V
V
CE
= -10 V
I
C
= -0.2 A
I
C
= -0.2 A
|
h
fe
|
NOTES: 5. These parameters must be measured using pulse techniques, t
p
= 300 µs, duty cycle
≤
2%.
6. These parameters must be measured using voltage-sensing contacts, separate from the current carrying contacts.
thermal characteristics
PARAMETER
R
θJC
R
θJA
Junction to case thermal resistance
Junction to free air thermal resistance
MIN
TYP
MAX
4.17
62.5
UNIT
°C/W
°C/W
resistive-load-switching characteristics at 25°C case temperature
PARAMETER
t
on
t
off
†
TEST CONDITIONS
I
C
= -1 A
V
BE(off)
= 4.3 V
I
B(on)
= -0.1 A
R
L
= 30
Ω
†
MIN
I
B(off)
= 0.1 A
t
p
= 20 µs, dc
≤
2%
TYP
0.3
1
MAX
UNIT
µs
µs
Turn-on time
Turn-off time
Voltage and current values shown are nominal; exact values vary slightly with transistor parameters.
2
JULY 1968 - REVISED SEPTEMBER 2002
Specifications are subject to change without notice.
NOITAMROFNI
TCUDORP
TIP30, TIP30A,TIP30B, TIP30C
PNP SILICON POWER TRANSISTORS
TYPICAL CHARACTERISTICS
TYPICAL DC CURRENT GAIN
vs
COLLECTOR CURRENT
1000
V
CE
= -4 V
T
C
= 25°C
t
p
= 300 µs, duty cycle < 2%
TCS632AD
COLLECTOR-EMITTER SATURATION VOLTAGE
vs
BASE CURRENT
V
CE(sat)
- Collector-Emitter Saturation Voltage - V
-10
TCS632AE
I
C
= -100 mA
I
C
= -300 mA
I
C
= -1 A
h
FE
- DC Current Gain
100
-1·0
10
-0·1
1
-0·001
-0·01
-0·1
-1·0
-0·01
-0·1
-1·0
-10
-100
-1000
I
C
- Collector Current - A
I
B
- Base Current - mA
Figure 1.
Figure 2.
BASE-EMITTER VOLTAGE
vs
COLLECTOR CURRENT
-1·0
V
CE
= -4 V
T
C
= 25°C
V
BE
- Base-Emitter Voltage - V
-0·9
TCS632AF
-0·8
-0·7
-0·6
-0·5
-0·01
-0·1
I
C
- Collector Current - A
-1·0
Figure 3.
JULY 1968 - REVISED SEPTEMBER 2002
Specifications are subject to change without notice.
NOITAMROFNI
TCUDORP
3
TIP30, TIP30A,TIP30B, TIP30C
PNP SILICON POWER TRANSISTORS
MAXIMUM SAFE OPERATING REGIONS
MAXIMUM FORWARD-BIAS
SAFE OPERATING AREA
-100
SAS632AB
I
C
- Collector Current - A
-10
t
p
= 300 µs, d = 0.1 = 10%
t
p
= 1 ms, d = 0.1 = 10%
t
p
= 10 ms, d = 0.1 = 10%
DC Operation
-1·0
-0·1
TIP30
TIP30A
TIP30B
TIP30C
-10
-100
-1000
-0·01
-1·0
V
CE
- Collector-Emitter Voltage - V
Figure 4.
THERMAL INFORMATION
MAXIMUM POWER DISSIPATION
vs
CASE TEMPERATURE
40
P
tot
- Maximum Power Dissipation - W
TIS631AB
30
20
10
0
0
25
50
75
100
125
150
T
C
- Case Temperature - °C
Figure 5.
4
JULY 1968 - REVISED SEPTEMBER 2002
Specifications are subject to change without notice.
NOITAMROFNI
TCUDORP
TIP30, TIP30A,TIP30B, TIP30C
PNP SILICON POWER TRANSISTORS

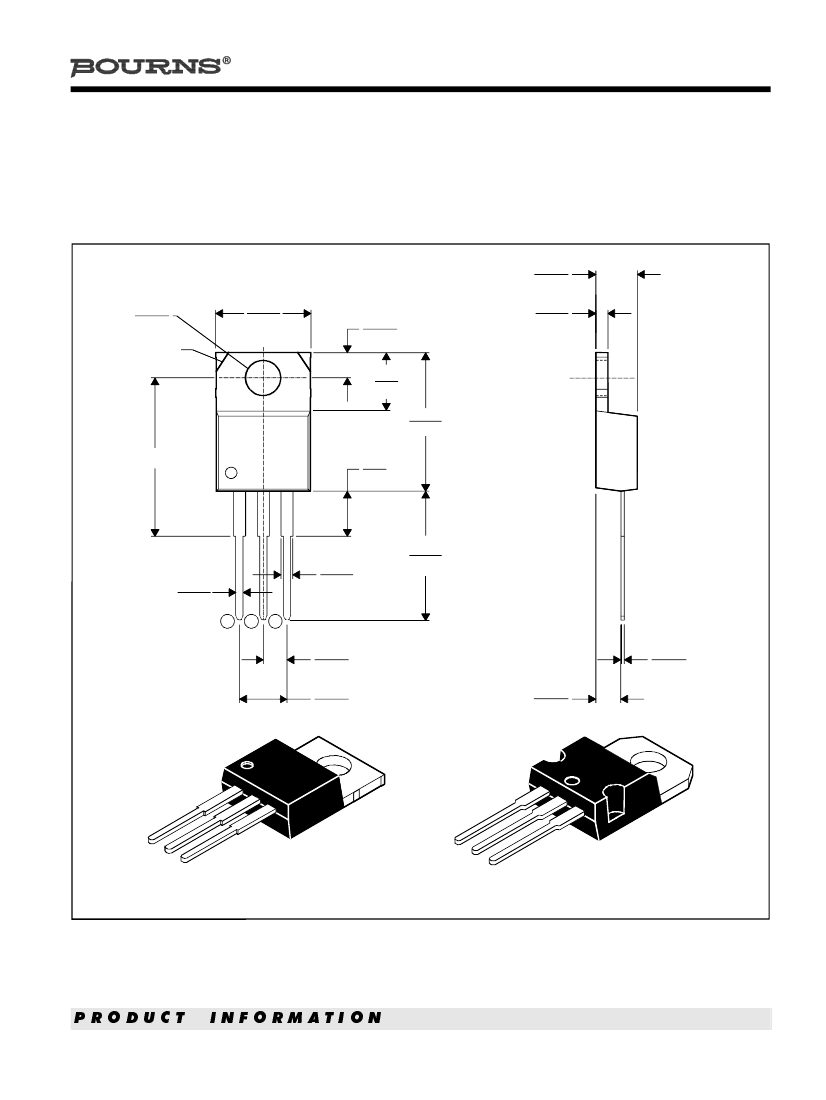

MECHANICAL DATA
TO-220
3-pin plastic flange-mount package
This single-in-line package consists of a circuit mounted on a lead frame and encapsulated within a plastic
compound. The compound will withstand soldering temperature with no deformation, and circuit performance
characteristics will remain stable when operated in high humidity conditions. Leads require no additional
cleaning or processing when used in soldered assembly.
TO220
4,70
4,20
ø
3,96
3,71
10,4
10,0
2,95
2,54
6,6
6,0
15,90
14,55
1,32
1,23
see Note B
see Note C
6,1
3,5
0,97
0,61
1
2
3
1,70
1,07
14,1
12,7
2,74
2,34
5,28
4,88
2,90
2,40
0,64
0,41
VERSION 1
VERSION 2
ALL LINEAR DIMENSIONS IN MILLIMETERS
NOTES: A. The centre pin is in electrical contact with the mounting tab.
B. Mounting tab corner profile according to package version.
C. Typical fixing hole centre stand off height according to package version.
Version 1, 18.0 mm. Version 2, 17.6 mm.
MDXXBE
JULY 1968 - REVISED SEPTEMBER 2002
Specifications are subject to change without notice.
NOITAMROFNI
TCUDORP
5
