revision for dwg #
1PB-3PSFxyy
rev
4
ch.no.
-
-
description
original design
date
11/2/2007
revised by
Philipp E.
n
28.7 mm
n
20.2 mm
8.5 mm
[.3 in]
42.6 mm
[1.7 in]
[.8 in]
max. 6 mm
[.25 in]
2
3
1
* = Push Button is supplied with mounting nut and rubber gasket (ITEM 2 and 3)
ITEM DESCRIPTION
yy
=
Contact Configuration
10
=
1NO Contact
01
=
1NC Contact
11
=
1NO + 1NC Contacts
20
=
2NO Contacts
02
=
2NC Contacts
unless otherwise specified:
all dimensions are in millimeters
third angle projection
tolerance
XX
XX.X
XX.XX
ALL
This Drawing is the property of
R
1*
Economy Plastic Psuh Button
2*
3*
4
titel
Mounting Nut
Rubber Gasket
Panel
CAT. NO.
3PSF1
yy
3PSF2
yy
3PSF3
yy
3PSF4
yy
3PSF6
yy
3PSF8
yy
P2BRK
3PRG1
-
COLOR
White
Black
Green
Red
Blue
Yellow
Black
Black
-
[1.1 in]
MIN. QTY. MAX. QTY.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
-
-
=
=
=
=
±
0.5 mm
±
0.2 mm
−
mm
±
1 mm
M
E
T
R
I
C
35 Royal Road
Flemington, NJ 08822-6000
(908) 806-9400
Fax (908) 806-9490
and is a confidential
disclosurelent without
consideration other than the
borrower’s agreement that it
shall not be reproduced,
copied, lent or disposed of
directly or indirectly nor
used for any purpose other
than that for which it is
specifically furnished.

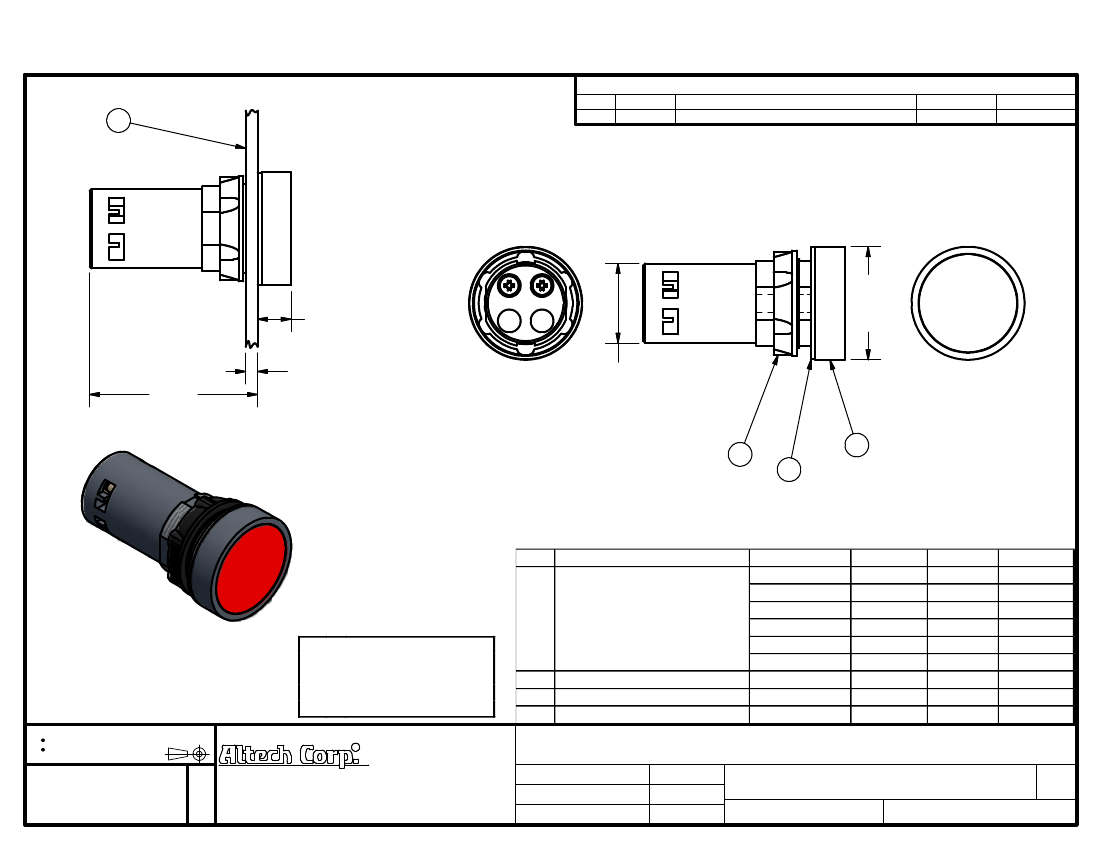

Economy Non-Illuminated Plastic Momentary Push Buttons 3PSFxyy
(x=color, yy=contact configuration)
11/2/2007
drawn by:
Philipp Ernstberger
checked by:
Laszlo Gyorgypal
released by:
Laszlo Gyorgypal
drawing no.:
rev.:
-
1PB-3PSFxyy
scale:
-
sheet:
1
of:
1
