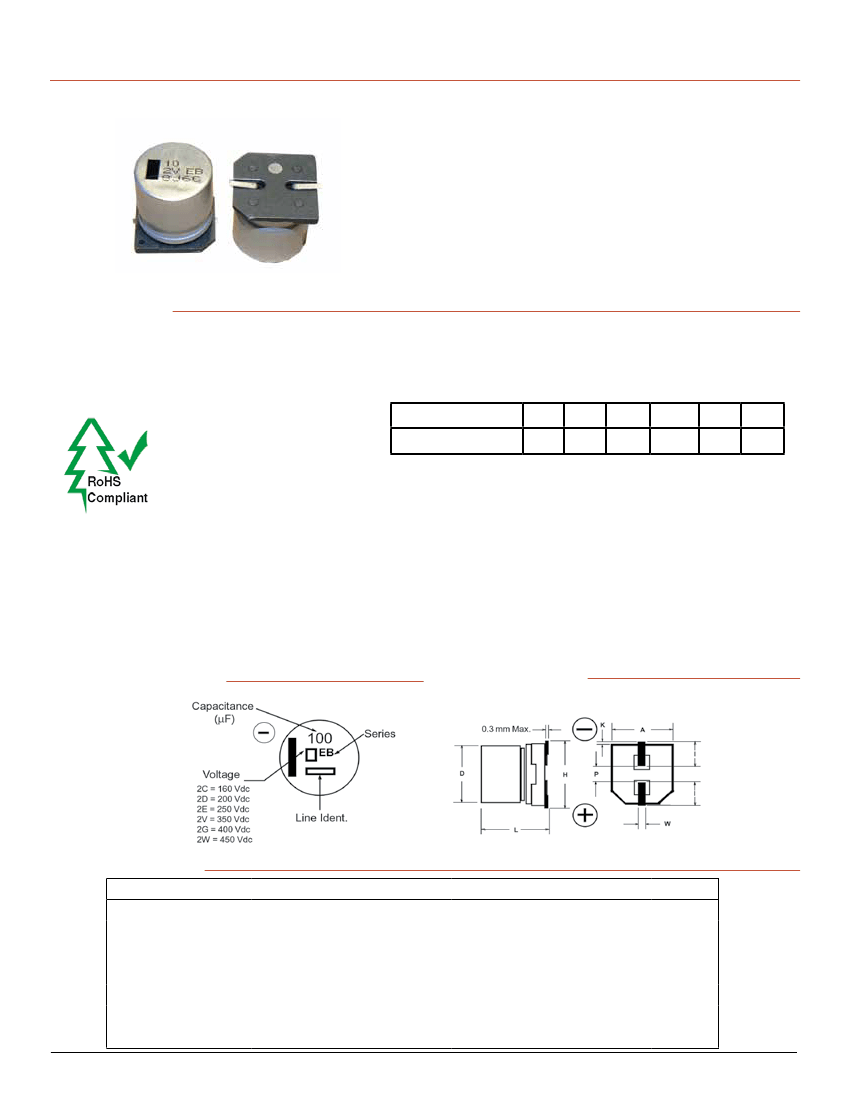

Type AEB
SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C
Low Impedance and Long Life for High Voltage, High Ripple Current Applications
Type AEB capacitors are it for high voltage applications like input
bus capacitors in board mounted miniature AC/DC supplies. The
AEB’s low impedance in ratings up to 450 Vdc, and long life, make
it ideal for power supply input and other high voltage applications.
The vertical, cylindrical cases make easy automatic mounting and
reflow soldering.
Specifications
Highlights
• +105 °C,
Up to 5000 Hour Load Life
• Capacitance Range: 2.2 µF to 100 µF
• Voltage Range: 160 Vdc to 450 Vdc
–25 °C to +105 °C
160, 200, 250, 350, 400, 450 Vdc
2.2 µF to 100 µF
±20% @ 120 Hz and +20 °C
Rated Voltage
Z(-25°C)/Z(+20°C)
160
2
200
2
250
3
350
5
400
6
450
6
Operating Temperature:
Rated Voltage:
Capacitance:
Capacitance Tolerance:
Impedance Ratio (at 120 Hz):
Life Test:
Complies with the EU Direc-
tive 2002/95/EC require-
ment restricting the use of
Lead (Pb), Mercury (Hg),
Cadmium (Cd), Hexavalent
chromium (Cr(VI)), PolyBro-
minated Biphenyls (PBB)
and PolyBrominated Diphe-
nyl Ethers (PBDE).
5000 h @ +105 °C, L — S Cases
4000 h @ +105 °C, K Case
3000 h @ +105 ºC, J Case
∆ Capacitance ±
20%
DF:
≤
200% of limit
DCL:
≤
100% of limit
Shelf Test:
1000 h @ 105 °C
∆
Capacitance ± 20%
DF:
≤
200% of limit
DCL:
≤
100% of limit
AEB Series Marking
Outline Drawing
Case Dimensions
Case Code
J
K
L
P
U
R
S
D ±0.5
10.0
10.0
12.5
16.0
16.0
18.0
18.0
L ±0.5
13.5
16.5
16.5
16.5
21.5
16.5
21.5
A ±0.2
10.3
10.3
13.5
17.0
17.0
19.0
19.0
H (max)
12
12
15
19
19
21
21
I (ref)
3.5
3.5
4.7
5.5
5.5
6.7
6.7
W
0.9 ±0.2
0.9 ±0.2
0.9 ±0.3
1.2 ±0.3
1.2 ±0.3
1.2 ±0.3
1.2 ±0.3
P (ref)
4.6
4.6
4.4
6.7
6.7
6.7
6.7
K (mm)
0.7 ± 0.2
0.7 ± 0.2
0.7 ± 0.3
0.7 ± 0.3
0.7 ± 0.3
0.7 ± 0.3
0.7 ± 0.3
