RL-5022-S-68 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> RL-5022-S-68

RL-5022-S-68: DescriptionGeneral Purpose Inductor, 68uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, ROHS COMPLIANT; CategoryPassive components inductor; File Size846KB，2 Pages; ManufacturerRenco Electronics Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

RL-5022-S-68 Overview

General Purpose Inductor, 68uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, ROHS COMPLIANT

RL-5022-S-68 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renco Electronics Inc.
package instruction	7360
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	7360
structure	Shielded
core material	Ferrite
DC Resistance	0.138 Ω
Nominal inductance(L)	68 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	RL-5022-S
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	7.62 mm
Package length	18.54 mm
Package form	SMT
Package width	15.24 mm
method of packing	TR, 13 Inch
Maximum rated current	2 A
self resonant frequency	9 MHz
series	RL-5022-S
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	FLAT
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

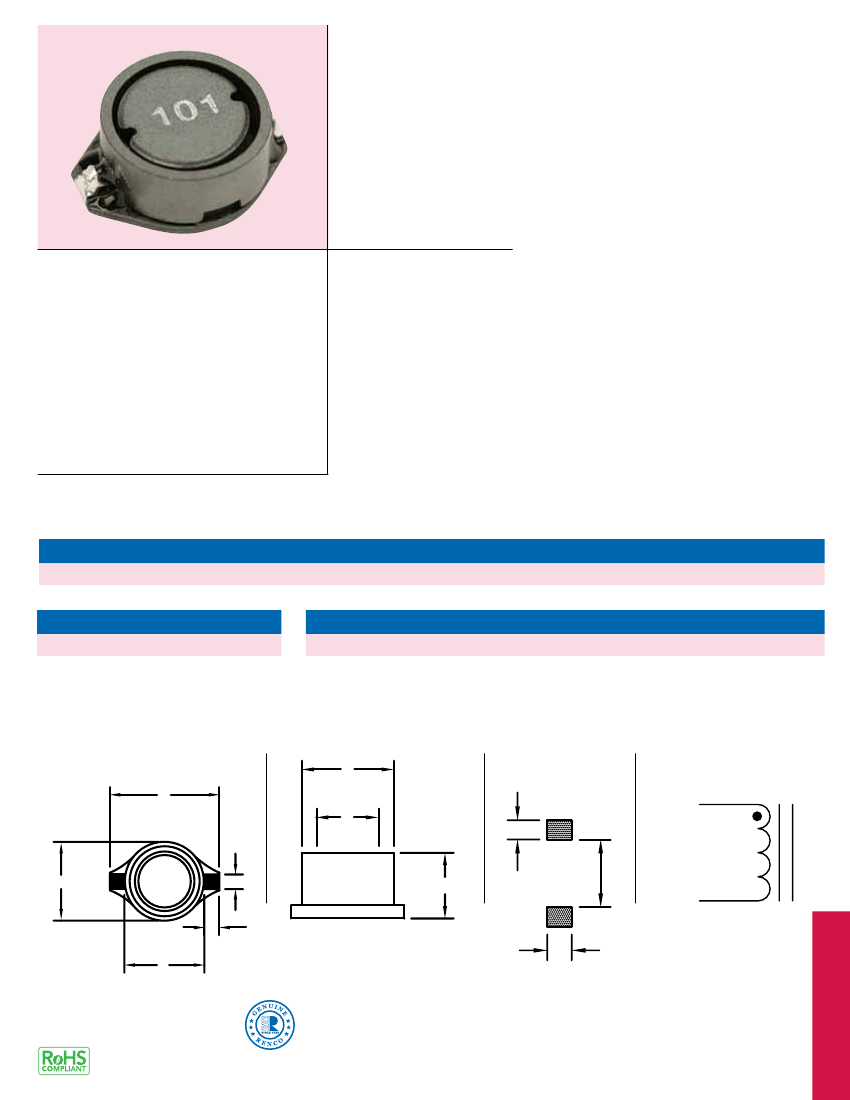

RL-5022-S

SHIELDED SMD

POWER INDUCTORS

DESCRIPTION

• Shielded Power Inductor

FEATURES & APPLICATIONS

• Shielded surface mount power inductors in a small

0.600” X 0.730” package

• Exceptionally low DC resistance

• Flat top for reliable pick and place operations

• Available in 13 values with inductance ratings from

10 µH to 1.0 mH and currents up to 3.9 A

ENVIRONMENTAL DATA

•

Storage temperature range:

-55°C to +130°C

Operating temperature range:

-40°C to +130°C

PACKAGING INFORMATION

• Packaging information: pg. 489

Verify operation with sample in actual circuit. Order samples at www.rencousa.com.

MECHANICAL DIMENSIONS

U.S. Standard (mm)

PART NUMBER

RL-5022-S

A (MAX.)

0.730 (18.54)

B (MAX.)

0.600 (15.24)

0.100 (2.54)

0.500 (12.70)

0.100 (2.54)

0.565 (14.35)

PART NUMBER

RL-5022-S

PART WEIGHT

3.50g (0.12oz)

0.500 (12.70)

H (MAX.)

0.300 (7.62)

I (REF.)

0.490 (12.45)

J (REF.)

0.115 (2.92)

K (REF.)

0.110 (2.79)

FRONT VIEW

SIDE VIEW

RECOMMENDED

LAND PATTERN

SCHEMATIC

RENCO ELECTRONICS INC.

595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certiﬁed

Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600

SURFACE MOUNTS

RL-5022-S-68 Related Products

	RL-5022-S-68	RL-5022-S-1000	RL-5022-S-330	RL-5022-S-33	RL-5022-S-22	RL-5022-S-47	RL-5022-S-470	RL-5022-S-680	RL-5022-S-100	RL-5022-S-10
Description	General Purpose Inductor, 68uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, ROHS COMPLIANT	General Purpose Inductor, 1000uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, ROHS COMPLIANT	General Purpose Inductor, 330uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, ROHS COMPLIANT	General Purpose Inductor, 33uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, ROHS COMPLIANT	General Purpose Inductor, 22uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, ROHS COMPLIANT	General Purpose Inductor, 47uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, ROHS COMPLIANT	General Purpose Inductor, 470uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, ROHS COMPLIANT	General Purpose Inductor, 680uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, ROHS COMPLIANT	General Purpose Inductor, 100uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, ROHS COMPLIANT	General Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	7360	7360	7360	7360	7360	7360	7360	7360	7360	7360
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	Renco Electronics Inc.	-	-	-	-	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.
uppercase and lowercase codes	7360	-	7360	7360	7360	-	-	-	7360	7360
structure	Shielded	-	Shielded	Shielded	Shielded	-	-	-	Shielded	Shielded
core material	Ferrite	-	Ferrite	Ferrite	Ferrite	-	-	-	Ferrite	Ferrite
DC Resistance	0.138 Ω	-	0.78 Ω	0.075 Ω	0.059 Ω	-	-	-	0.207 Ω	0.04 Ω
Nominal inductance(L)	68 µH	-	330 µH	33 µH	22 µH	-	-	-	100 µH	10 µH
Inductor Applications	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-	-	-	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	-	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	-	1	1	1	-	-	-	1	1
Number of terminals	2	-	2	2	2	-	-	-	2	2
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C	-	-	-	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-	-	-	-40 °C	-40 °C
Package height	7.62 mm	-	7.62 mm	7.62 mm	7.62 mm	-	-	-	7.62 mm	7.62 mm
Package length	18.54 mm	-	18.54 mm	18.54 mm	18.54 mm	-	-	-	18.54 mm	18.54 mm
Package form	SMT	-	SMT	SMT	SMT	-	-	-	SMT	SMT
Package width	15.24 mm	-	15.24 mm	15.24 mm	15.24 mm	-	-	-	15.24 mm	15.24 mm
method of packing	TR, 13 Inch	-	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	-	-	-	TR, 13 Inch	TR, 13 Inch
Maximum rated current	2 A	-	0.86 A	2.8 A	3.1 A	-	-	-	1.7 A	3.9 A
self resonant frequency	9 MHz	-	4 MHz	14 MHz	18 MHz	-	-	-	7 MHz	30 MHz
Shape/Size Description	CYLINDRICAL PACKAGE	-	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	-	-	-	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	YES	-	YES	YES	YES	-	-	-	YES	YES
surface mount	YES	-	YES	YES	YES	-	-	-	YES	YES
Terminal location	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	-	-	-	DUAL ENDED	DUAL ENDED
Terminal shape	FLAT	-	FLAT	FLAT	FLAT	-	-	-	FLAT	FLAT
Test frequency	0.1 MHz	-	0.1 MHz	0.1 MHz	0.1 MHz	-	-	-	0.1 MHz	0.1 MHz
Tolerance	20%	-	20%	20%	20%	-	-	-	20%	20%
