JPE-200-BL-55 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> JPE-200-BL-55

Preview

JPE-200-BL-55: DescriptionShunts/Jumper Connector; CategoryThe connector The connector; File Size395KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

JPE-200-BL-55 Overview

Shunts/Jumper Connector

JPE-200-BL-55 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-tec Interconnect Ltd.
Reach Compliance Code	compli
Other features	ROHS COMPLIANT
body width	0.079 inch
subject depth	0.138 inch
body length	0.154 inch
Body/casing type	PLUG
Connector type	SHUNTS / JUMPER CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	JPE
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	2

Preview

Download Datasheet

View All

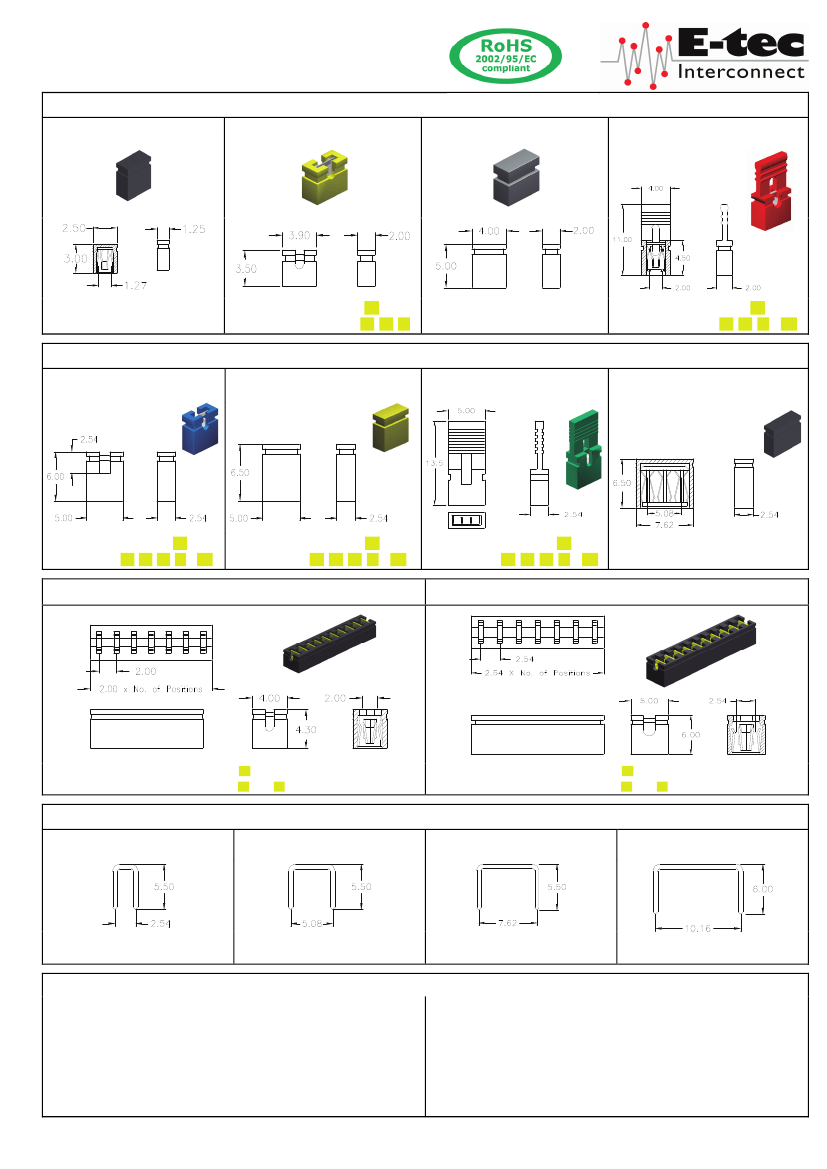

Mini – Jumpers

1.27mm, 2.00mm, 2.54mm & 5.08mm

1.27mm

JPC – type

-

top closed

-

JPE – type

&

2.00 mm

-

top open

-

Mini

-

Jumpers

-

top closed

-

JPH – type

-

with handle

-

JPC – type

Order Code:

JPC – 127 – BL –

55

Order Code:

JPE – 200 – BL –

55

Order Code: JPC – 200 – BL –

55

Order Code:

JPH – 200 – BL –

55

Other colours:

RD, BU, YL

Other colours:

RD, BU, YL & WH

2.54 mm

JPE – type

top open - commercial type -

&

5.08 mm

Mini

-

Jumpers

JPC – type

top closed

JPC – type

top closed

JPH – type

with handle

Order Code:

JPE – 254 – BL –

55

Order Code:

JPC – 254 – BL –

55

Order Code:

JPH – 254 – BL –

55

Order Code:

JPC – 508 – BL –

55

Other colours:

GR, RD, BU, YL & WH

Other colours:

GR, RD, BU, YL & WH

Other colours:

GR, RD, BU, YL & WH

2.00 mm

Multi

-

Jumper

2.54 mm

Multi

-

Jumper

Order Code:

JPM – xx – 200 – BL –

55

No. of Jumper :

02

to

11

Order Code:

JPM – xx – 254 – BL –

55

No. of Jumper :

02

to

10

Non

JPW – type

254

Insulated

JPW – type

508

Wire

Shorting

JPW – type

762

Links

JPW – type

102

Order Code

Order Code:

JPW – 254 –

55

JPW – 508 –

55

JPW – 762 –

55

JPW – 102 –

55

Specifications

Max. current rating

1.27 & 2.00mm pitch : 1 A

2.54 & 5.08mm pitch : 3 A

Insulator resistance

1000 MΩ min.

Contact resistance

20 mΩ max.

Withstanding voltage

500 V AC

Operating temperature

- 40°C to +105°C

Contact material

Plating

Insulator material

Colour attributes

JPC, JPE, JPH & JPM:

Phosphor Bronze

JPW:

Brass; Ø 0.51

+0.25/-0.00

Jumper & Wire Shorting Links Au plated

P.B.T. UL 94 V-0

(RoHS compliant)

BL

= black for Jumpers

Standard

RD

= red

BU

= blue

GR

= green

WH

= white

YL

= yellow

Other colours on request
