4452-6-68-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 4452-6-68-0

4452-6-68-0: DescriptionBoard Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size329KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

4452-6-68-0 Overview

Board Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

4452-6-68-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
body width	0.217 inch
subject depth	0.398 inch
body length	2.957 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Manufacturer's serial number	4452
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	68

Preview

Download Datasheet

View All

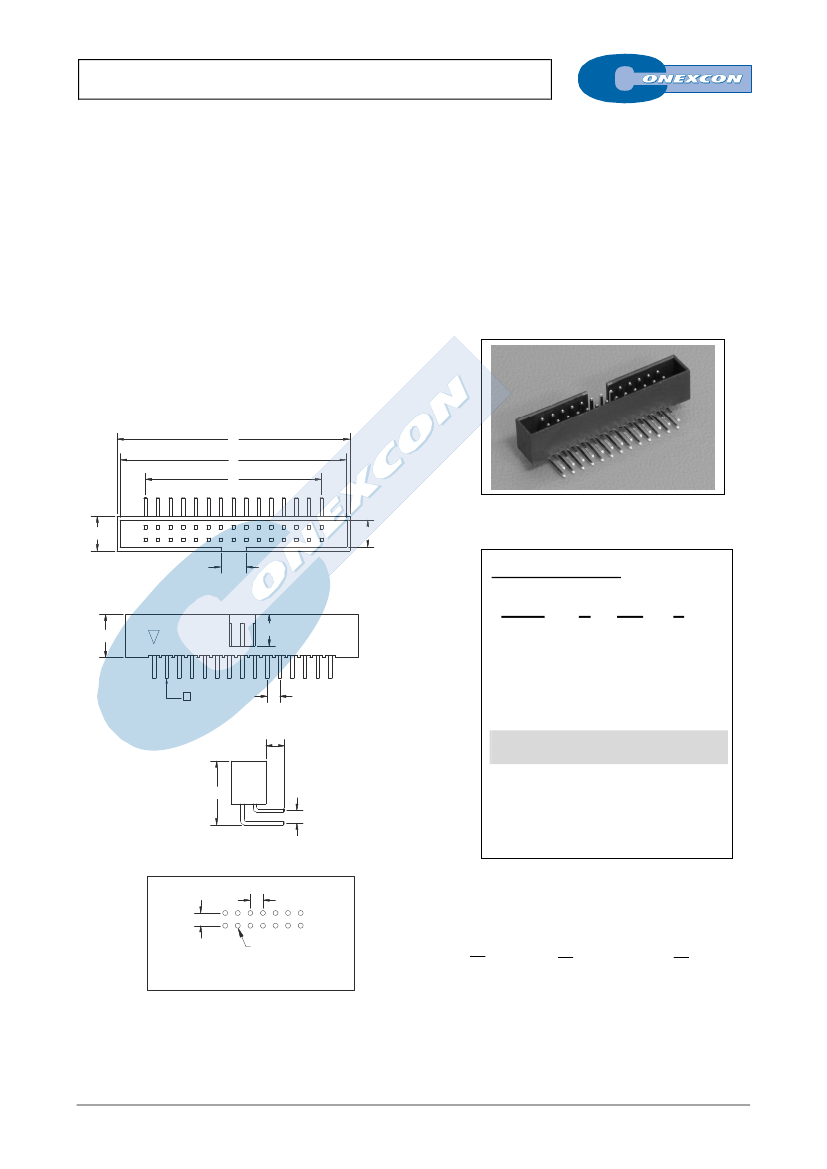

DUAL ROW SIDE ENTRY BOX HEADER

4452 SERIES.

2.00 x 2.00 mm. (0.079 x 0.079”) pitch.

General Features

Electrical Features



Available in 6, 8, 10, 12, 14, 16, 20, 22, 24, 26, 30, 34, 40,

44, 50 and 68 circuits

Mates with 2.00 mm. IDC connec. 2040 and 2039 series

Gold plated 0.50 mm square pin

Fully shrouded with polarized slot.



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: LCP, glass reinforced, rated UL 94V-0

Terminal: gold plated brass

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features

Durability: 50 Cycles

Dimension Information

5.5

4.0

4.3

Ordering Information:

4452 -

6.8

5.0

T-

XX-

1. Connector Series

0.5 x 0.5

2.0

2. (T) Contact Plating

3.0



2.0

T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

10.1

3. (XX) Number of circuits



Available in 6 through 68 circuits

2.0

ø0.81±0.05

RECOMMENDED HOLE PATTERN

(XX) = Number of circuits

Dimensions:

(In mm.)

2.00















2.00











6 .10





2.00











7.10





A-XX
