Preview

5425-21212: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

5425-21212 Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Plug

5425-21212 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknow
Other features	REEL & PLASTIC PACKING
body width	0.24 inch
subject depth	0.319 inch
body length	0.6 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	8.0064 N
insulator material	POLYESTER
Manufacturer's serial number	5425
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	10.1092 mm
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
Evacuation force-minimum value	.7784 N

Preview

Download Datasheet

View All

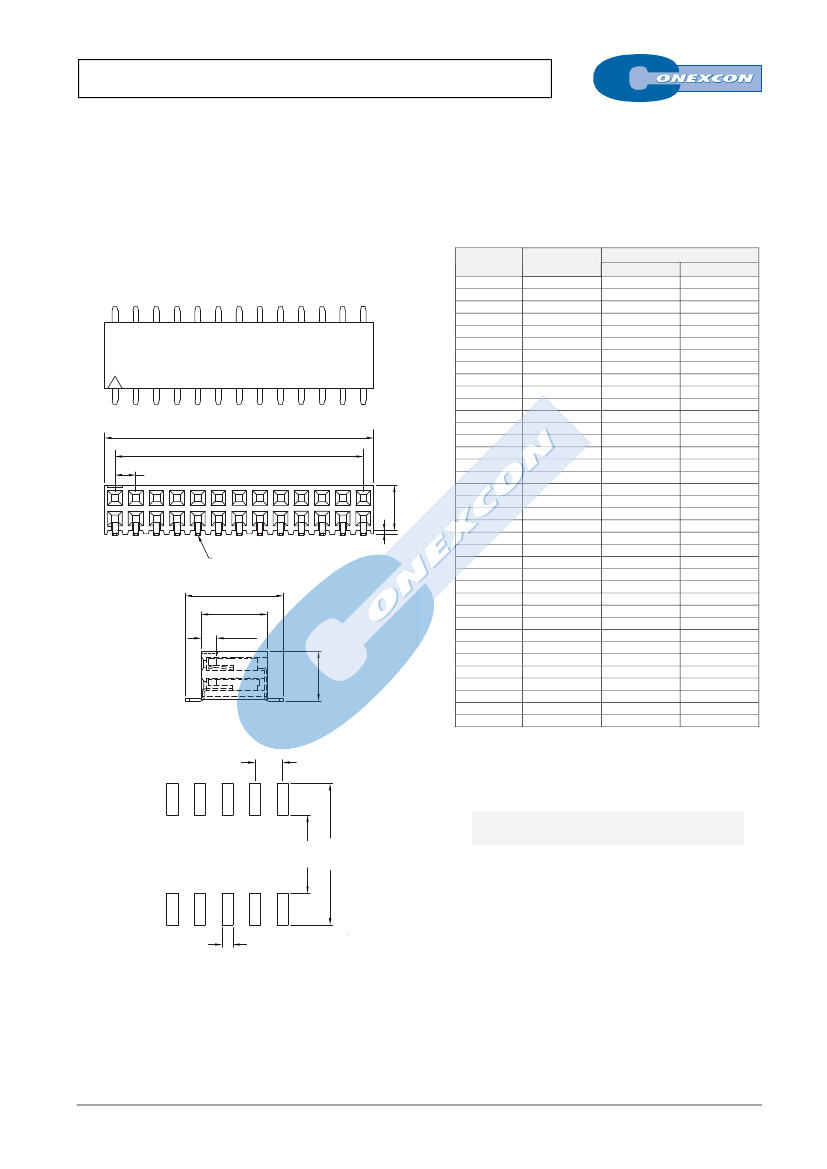

SIDE ENTRY D/ ROW SMT FEMALE HEADER

5425 SERIES.

2.54mm(0.100”). Female Header

Features



Available in 08 through 80 circuits

Insulator Material: Polyester UL 94V-0

Mates with 2.54mm pitch and 0.64mm pin headers



High quality dual beam phosphor bronze contacts

Different plating options are available

For other options consult the Sales Office

Ordering and Dimensional Information

Circuit Size

08

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

50

52

54

56

58

60

62

64

66

68

70

72

74

76

78

80

Part Number

5425-T081E

5425-T101E

5425-T121E

5425-T141E

5425-T161E

5425-T181E

5425-T201E

5425-T221E

5425-T241E

5425-T261E

5425-T281E

5425-T301E

5425-T321E

5425-T341E

5425-T361E

5425-T381E

5425-T401E

5425-T421E

5425-T441E

5425-T461E

5425-T481E

5425-T501E

5425-T521E

5425-T541E

5425-T561E

5425-T581E

5425-T601E

5425-T621E

5425-T641E

5425-T661E

5425-T681E

5425-T701E

5425-T721E

5425-T741E

5425-T761E

5425-T781E

5425-T801E

Dimensions

A

7.62(0.300)

10.16(0.400)

12.70(0.500)

15.24(0.600)

17.78(0.700)

20.32(0.800)

22.86(0.900)

25.40(1.000)

27.94(1.100)

30.48(1.200)

33.02(1.300)

35.56(1.400)

38.10(1.500)

40.64(1.600)

43.18(1.700)

45.72(1.800)

48.26(1.900)

50.80(2.000)

53.34(2.100)

55.88(2.200)

58.42(2.300)

60.96(2.400)

63.50(2.500)

66.04(2.600)

68.58(2.700)

71.12(2.800)

73.66(2.900)

76.20(3.000)

78.74(3.100)

81.28(3.200)

83.82(3.300)

86.36(3.400)

88.90(3.500)

91.44(3.600)

93.98(3.700)

96.52(3.800)

99.06(3.900)

B

10.16(0.400)

12.70(0.500)

15.24(0.600)

17.78(0.700)

20.32(0.800)

22.86(0.900)

25.40(1.000)

27.94(1.100)

30.48(1.200)

33.02(1.300)

35.56(1.400)

38.10(1.500)

40.64(1.600)

43.18(1.700)

45.72(1.800)

48.26(1.900)

50.80(2.000)

53.34(2.100)

55.88(2.200)

58.42(2.300)

60.96(2.400)

63.50(2.500)

66.04(2.600)

68.58(2.700)

71.12(2.800)

73.66(2.900)

76.20(3.000)

78.74(3.100)

81.28(3.200)

83.82(3.300)

86.36(3.400)

88.90(3.500)

91.44(3.600)

93.98(3.700)

96.52(3.800)

99.06(3.900)

101.60(4.000)

Dimensional Information

B

A

2.54

5.95

Pin 0.70x0.25

12.00±0.30

8.10

1.90

+0.15

-0.00

MECANIZADO RECOMENDADO

2.54

6.10

0.40

T = Contact Plating



13.00

7.20

T =

2.

Tin plated

T =

3.

Gold flash over 50µ” nickel

T =

5.

15µ” gold over 50µ” nickel

Recommended Finish

T =

6.

30µ” gold over 50µ” nickel



E = Packing Options

E =

2.

Reel + Plastic Pad

1.02

FULL LINE CATALOGUE

E-XX

5425-21212 Related Products

	5425-21212	5425-21612	5425-22412
Description	Board Connector, 12 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Plug	Board Connector, 16 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Plug	Board Connector, 24 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Plug
Maker	Conexcon Group	Conexcon Group	Conexcon Group
Reach Compliance Code	unknow	unknow	unknow
Other features	REEL & PLASTIC PACKING	REEL & PLASTIC PACKING	REEL & PLASTIC PACKING
body width	0.24 inch	0.24 inch	0.24 inch
subject depth	0.319 inch	0.319 inch	0.319 inch
body length	0.6 inch	0.8 inch	1.2 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
maximum insertion force	8.0064 N	8.0064 N	8.0064 N
insulator material	POLYESTER	POLYESTER	POLYESTER
Manufacturer's serial number	5425	5425	5425
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	10.1092 mm	10.1092 mm	10.1092 mm
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	12	16	24
Evacuation force-minimum value	.7784 N	.7784 N	.7784 N
