8082-6781 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8082-6781

8082-6781: DescriptionD Type Connector, 78 Contact(s), Male, 0.095 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

8082-6781 Overview

D Type Connector, 78 Contact(s), Male, 0.095 inch Pitch, Solder Terminal, #4-40, Plug

8082-6781 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknow
body width	0.494 inch
subject depth	0.197 inch
body length	2.635 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact style	RND PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8082
Plug contact pitch	0.095 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.413 mm
Termination type	SOLDER
Total number of contacts	78

Preview

Download Datasheet

View All

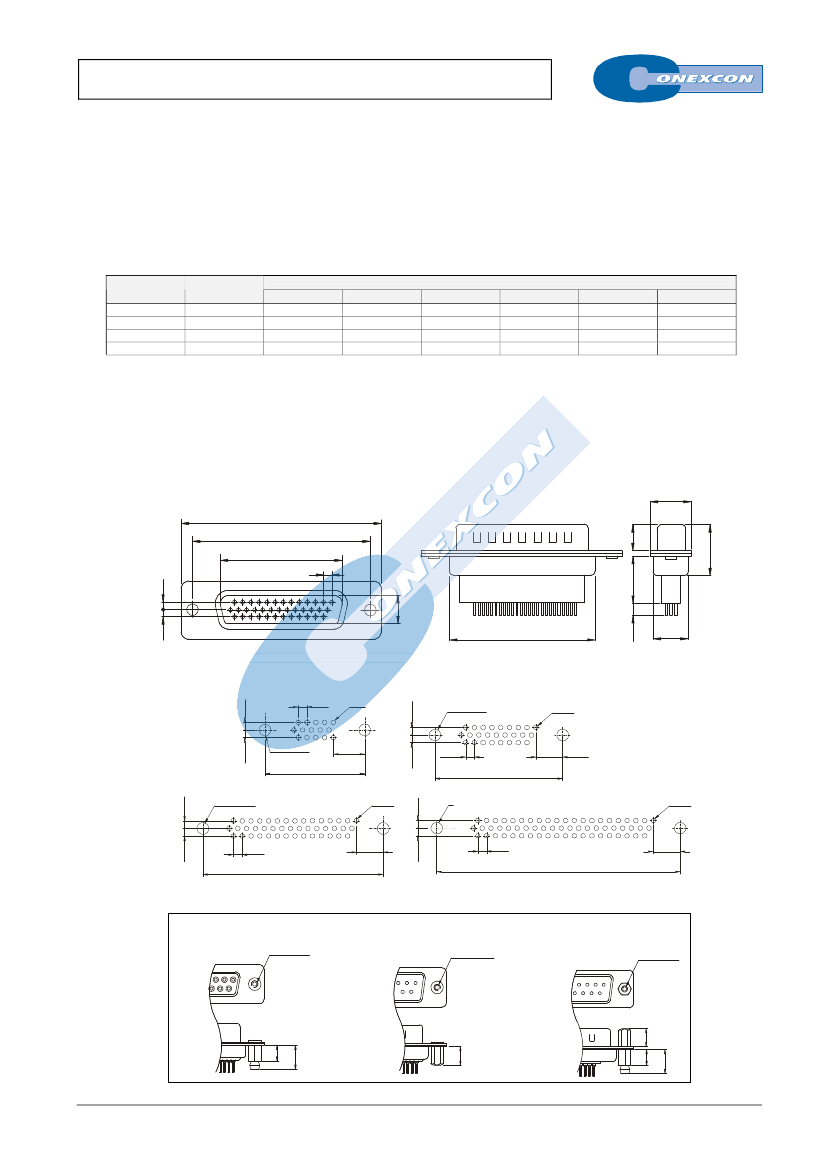

SOLDER HIGH DENSITY D-SUB PLUG

8082 SERIES.

Features

PCB Solder Termination. High Density D-Sub Plug





Shell Material: Steel, tin plated as standard

Optional: #4-40 UNC hexagonal standoff or clinch nuts

Other options: Hoods, mounting screw and accessories

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensions

16.92 (0.666)

25.25 (0.994)

38.96 (1.534)

55.42 (2.182)

24.99 (0.984)

33.32 (1.312)

47.04 (1.852)

63.50 (2.500)

30.81 (1.213)

39.14 (1.541)

53.04 (2.088)

69.32 (2.729)

19.23 (0.757)

27.56 (1.085)

41.28 (1.625)

57.73 (2.273)

2.290 (0.090)

2.410 (0.095)

7.67 (0.302)

6.99 (0.275)

7.07 (0.278)



Available in 15, 26, 44, and 62 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Brass, Colour: Black

Different plating options are available

Dimensional Information

Circuit Size

Part Number

8082 –

T151

8082 –

T261

8082 –

T441

8082 –

T621

T = Contact Plating

C = Hardware Options



T =

Gold flash over 50µ” nickel

T =

10µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel



C =

Standard with 3.05mm(.012”) dia. mount hole

C =

Whit riveted #4-40 UNC clinch nuts 6mm thickness

C =

Whit riveted retaining clip ground strap 5.0mm thickness

C =

With #4.40 UNC hexagonal standoff

12.55

.494

6.0

.236

1.98

.078

9.0

.354

8.36

.329

1.98

.078

3.20

.126

10.70

.421

RECOMMENDED HOLE PATTERN

15 CIRCUITS

2.29

.090

ø1.2

.047

1.98

.078

1.98

.078

ø3.05±0.05

.120±.002

ø1.2

.047

26 CIRCUITS

1.98

.078

25.0

.984

ø3.05±0.05

.120±.002

ø1.2

.047

1.98

.078

1.98

.078

ø3.05±0.05

.120±.002

1.98

.078

ø3.05±0.05

.120±.002

7.67

.302

2.29

.090

33.32

1.312

6.69

.275

44 CIRCUITS

62 CIRCUITS

ø1.2

.047

2.29

.090

47.04

1.852

1.98

.078

6.99

.275

2.41

.095

63.5

2.500

7.07

.278

1.98

.078

C = Hardware Options

UNC #4-40

6.00

.236

10.30

.405

6.0

.236

6.00

.236

6.0

.236

FULL LINE CATALOGUE

10.30

.405

11.0

.433

K-XX
