TD62C852P datasheet, PDF - EEWORLD Datasheet

TD62C852P: Description8BIT SERIAL-IN PARALLEL-OUT SHIFT REGISTER/LATCH DRIVERS; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size325KB，10 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

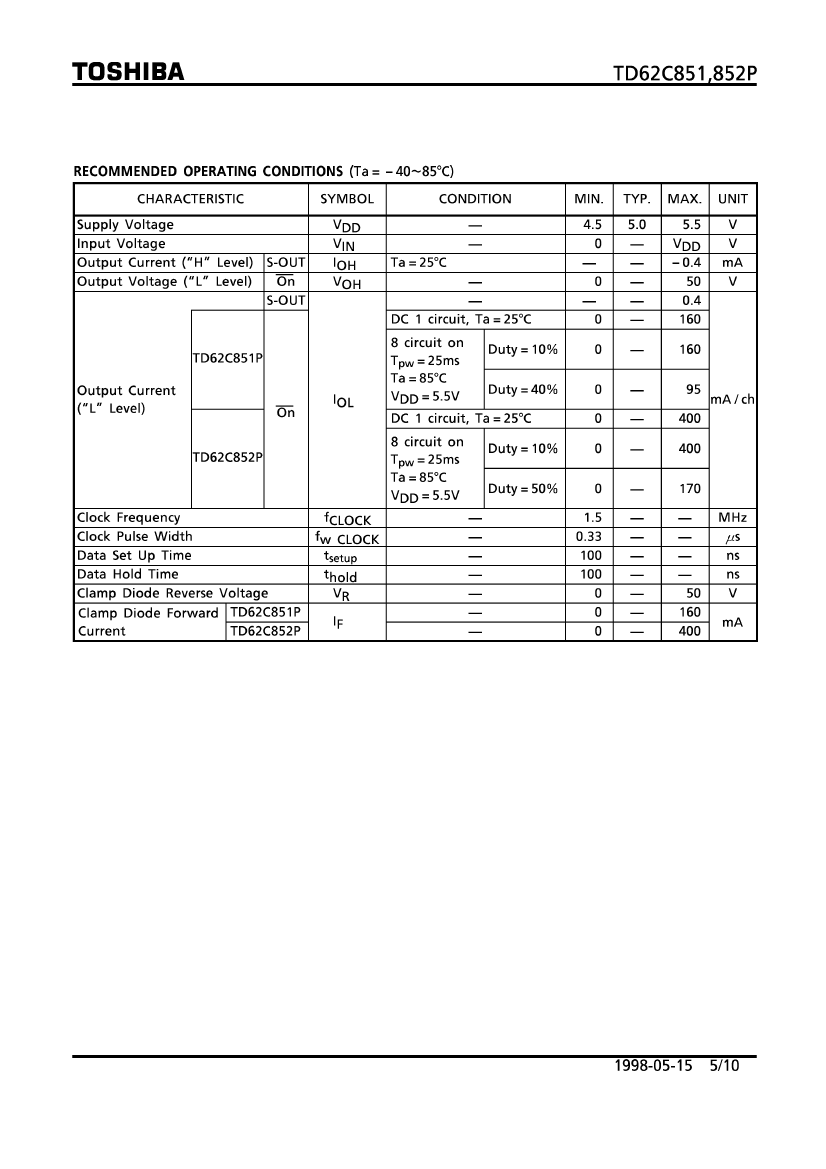

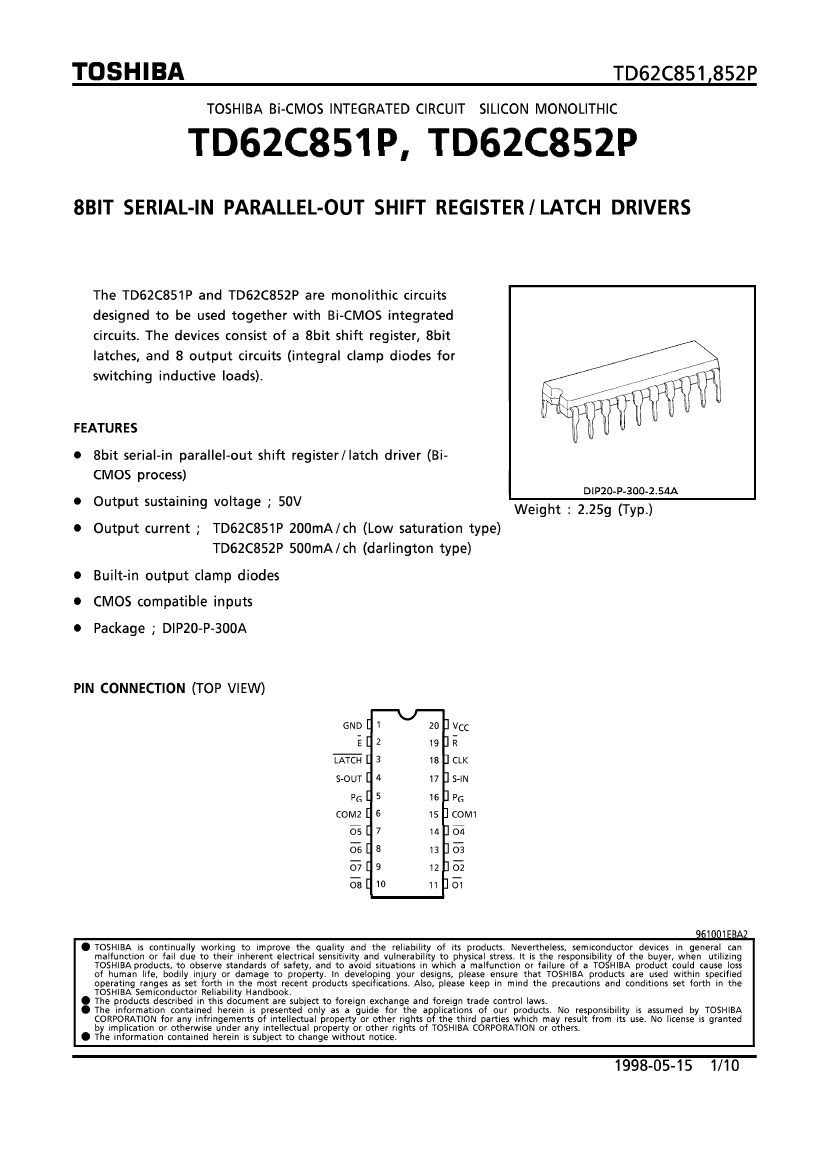

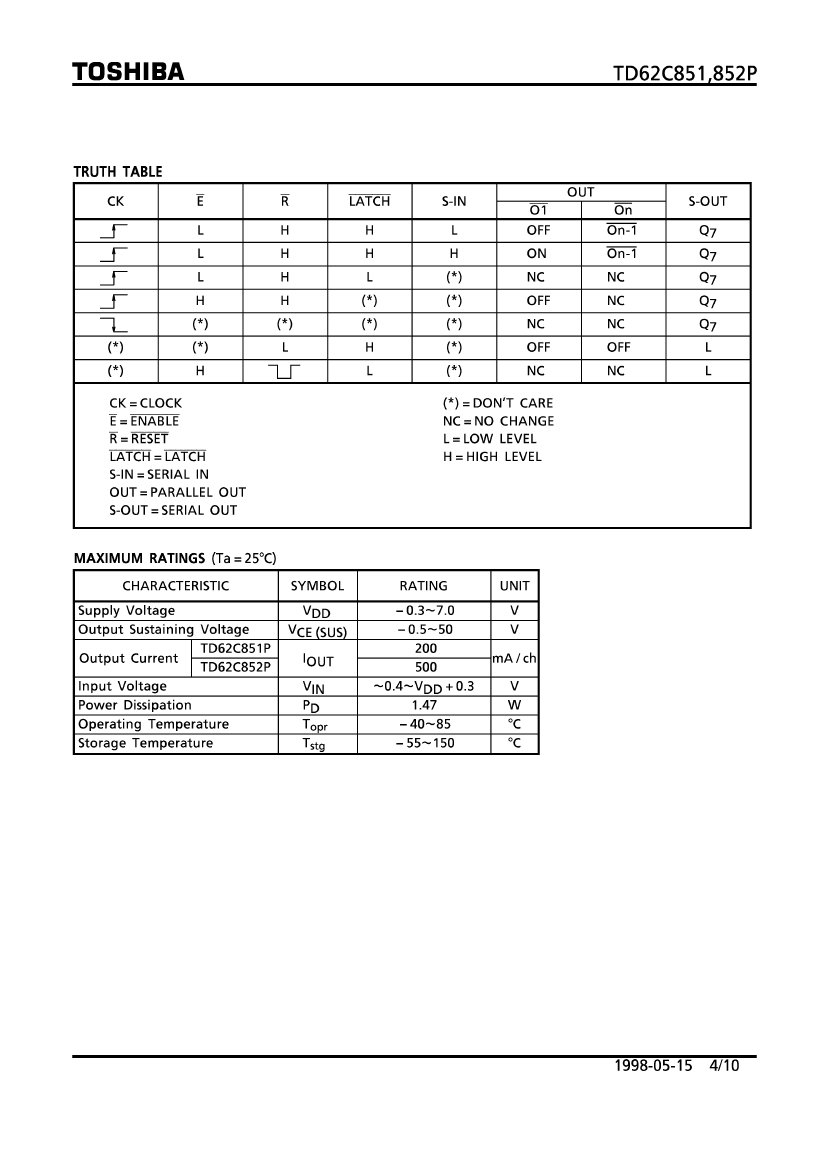

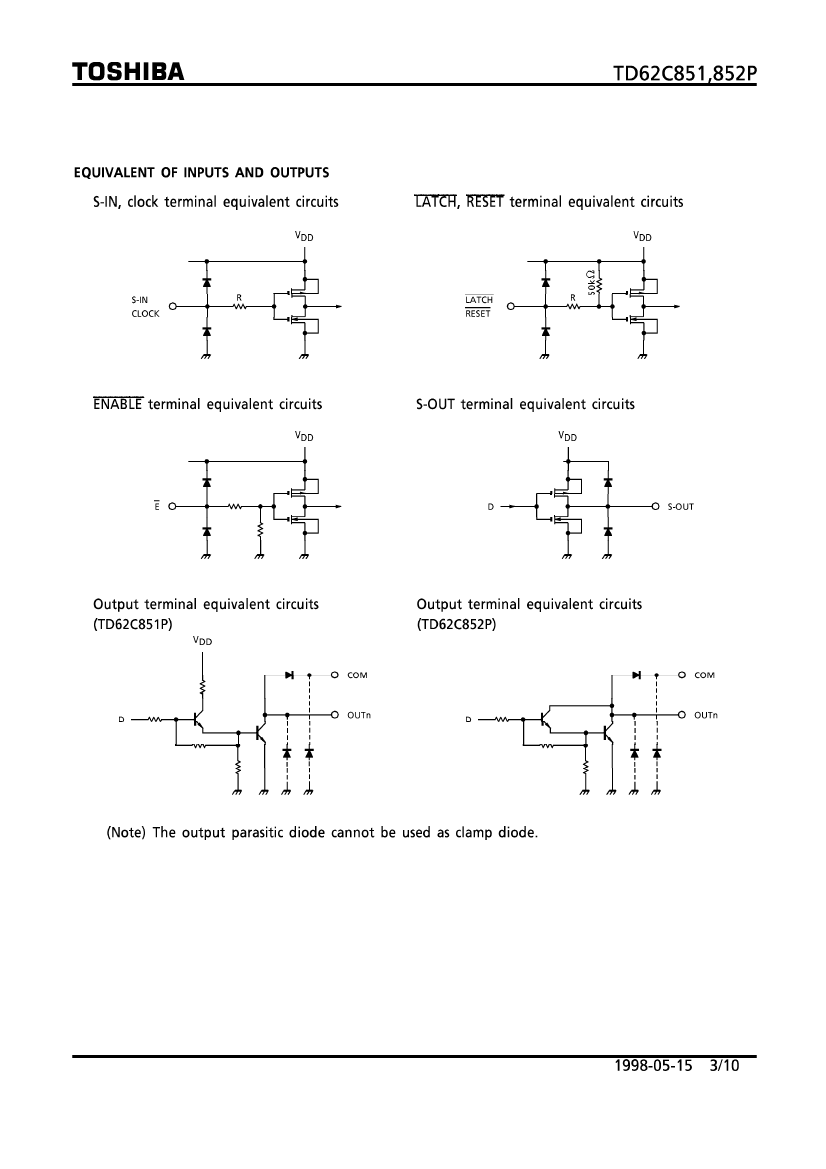

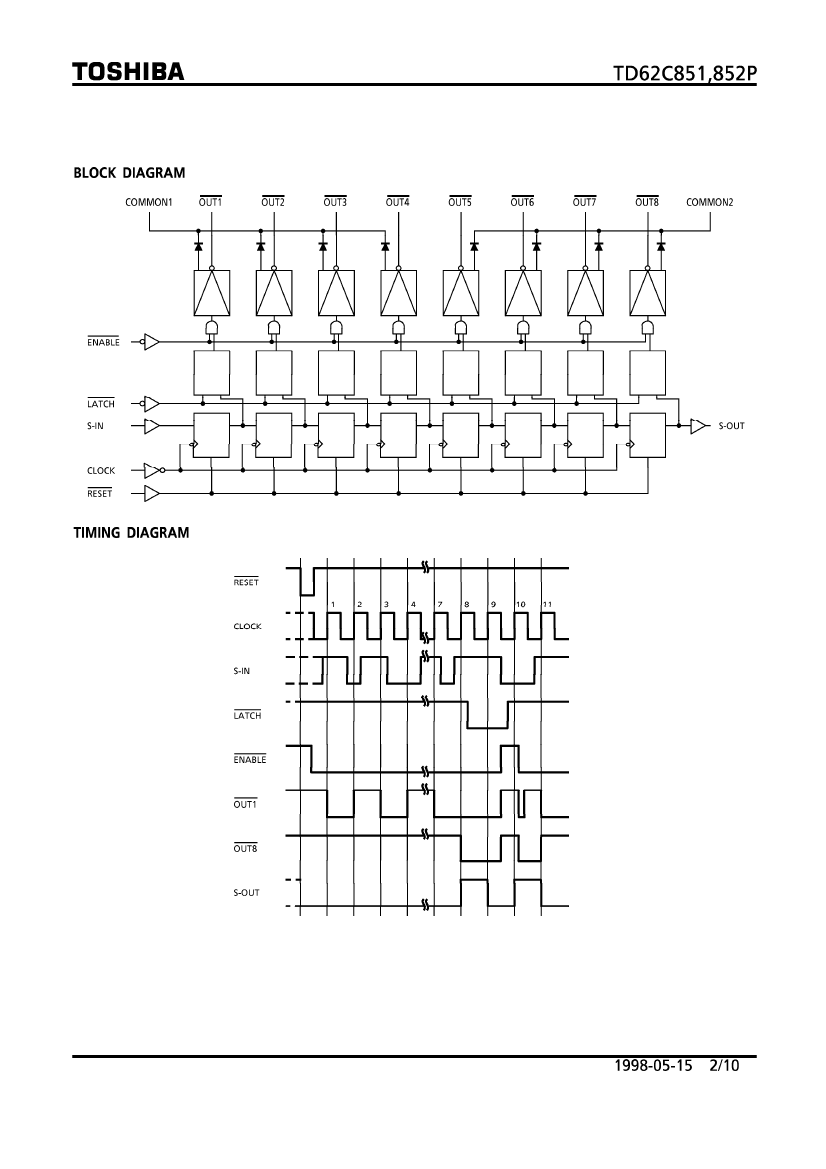

TD62C852P Overview

8BIT SERIAL-IN PARALLEL-OUT SHIFT REGISTER/LATCH DRIVERS

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknow
ECCN code	EAR99
Built-in protection	TRANSIENT
Input properties	STANDARD
Interface integrated circuit type	SIPO BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T20
length	24.6 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	TOTEM-POLE
Output current flow direction	SOURCE AND SINK
Nominal output peak current	0.4 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.45 mm
Maximum slew rate	200 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	TD62C852P	TD62C851P
Description	8BIT SERIAL-IN PARALLEL-OUT SHIFT REGISTER/LATCH DRIVERS	8BIT SERIAL-IN PARALLEL-OUT SHIFT REGISTER/LATCH DRIVERS
Is it Rohs certified?	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	20	20
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Built-in protection	TRANSIENT	TRANSIENT
Input properties	STANDARD	STANDARD
Interface integrated circuit type	SIPO BASED PERIPHERAL DRIVER	SIPO BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T20	R-PDIP-T20
length	24.6 mm	24.6 mm
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE
Output current flow direction	SOURCE AND SINK	SOURCE AND SINK
Nominal output peak current	0.4 A	0.16 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.45 mm	4.45 mm
Maximum slew rate	200 mA	200 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
