54S113/BDA

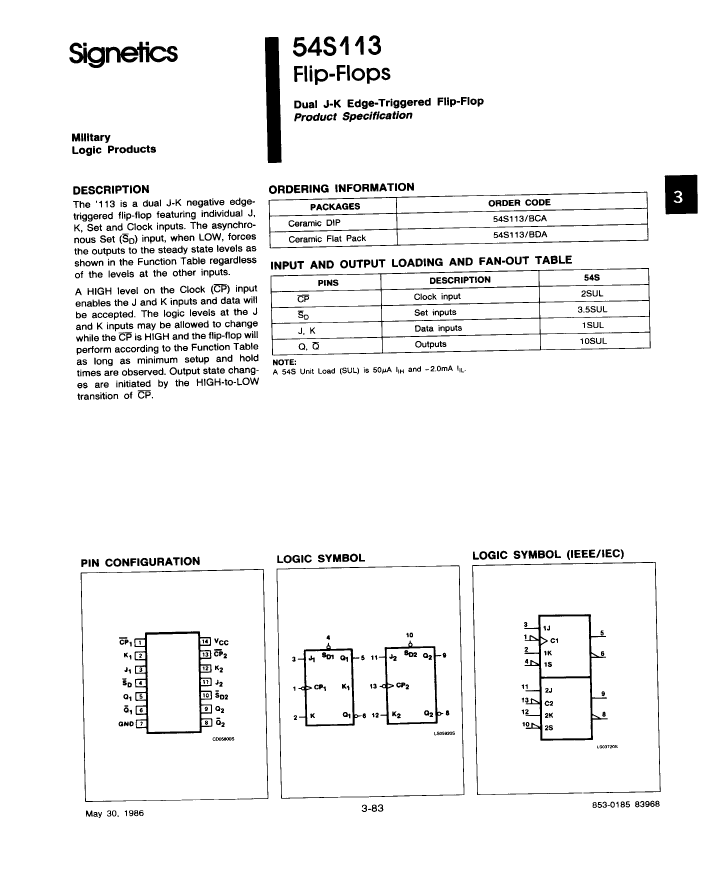

Description
J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP14
Categorylogic    logic
File Size133KB,5 Pages
ManufacturerSignetics
Download Datasheet Parametric View All

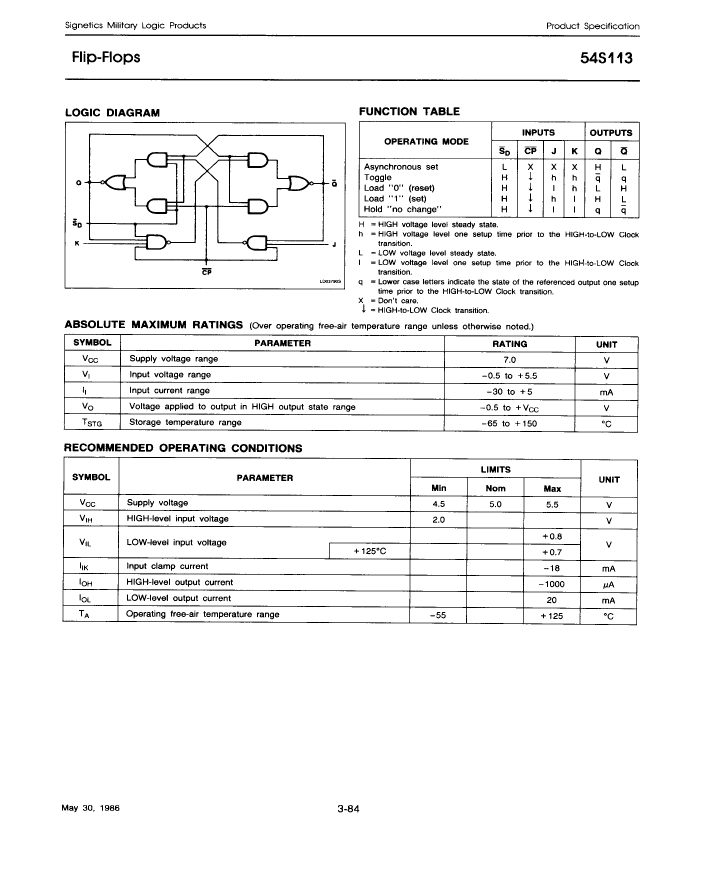

54S113/BDA Overview

J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP14

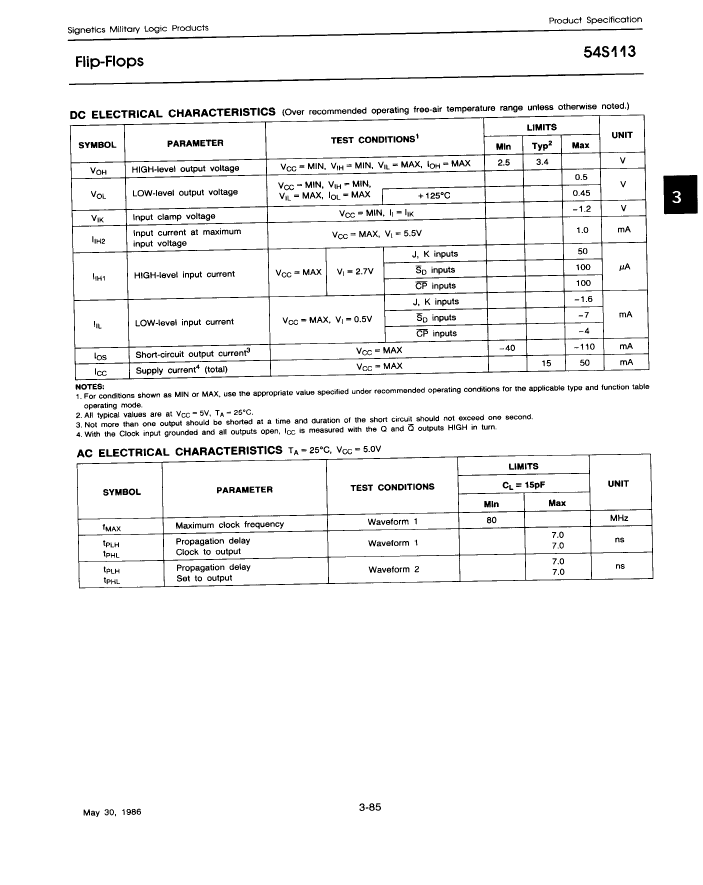

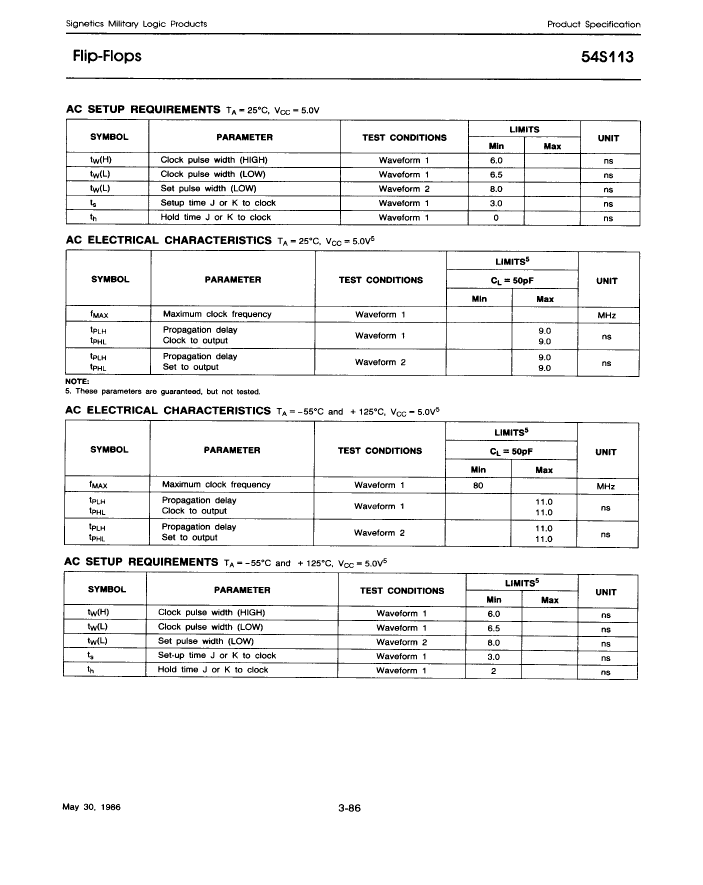

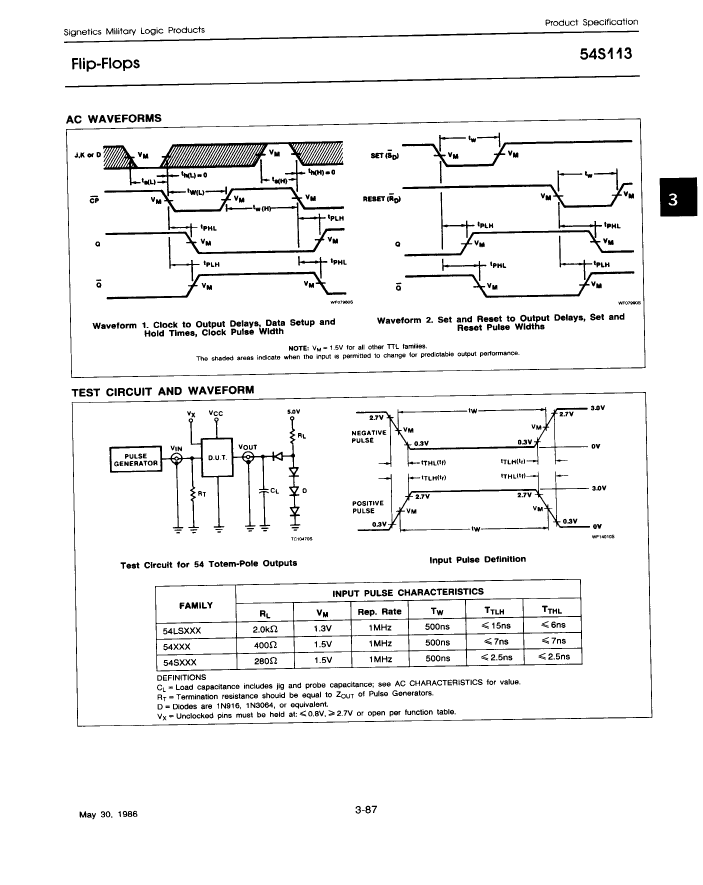

54S113/BDA Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSignetics
package instructionDFP, FL14,.3
Reach Compliance Codeunknow
JESD-30 codeR-XDFP-F14
JESD-609 codee0
Logic integrated circuit typeJ-K FLIP-FLOP
Number of functions2
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDFP
Encapsulate equivalent codeFL14,.3
Package shapeRECTANGULAR
Package formFLATPACK
power supply5 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Trigger typeNEGATIVE EDGE
