Datasheet> All Categories > Power/power management> The power supply circuit> S-8331A24FS-T2

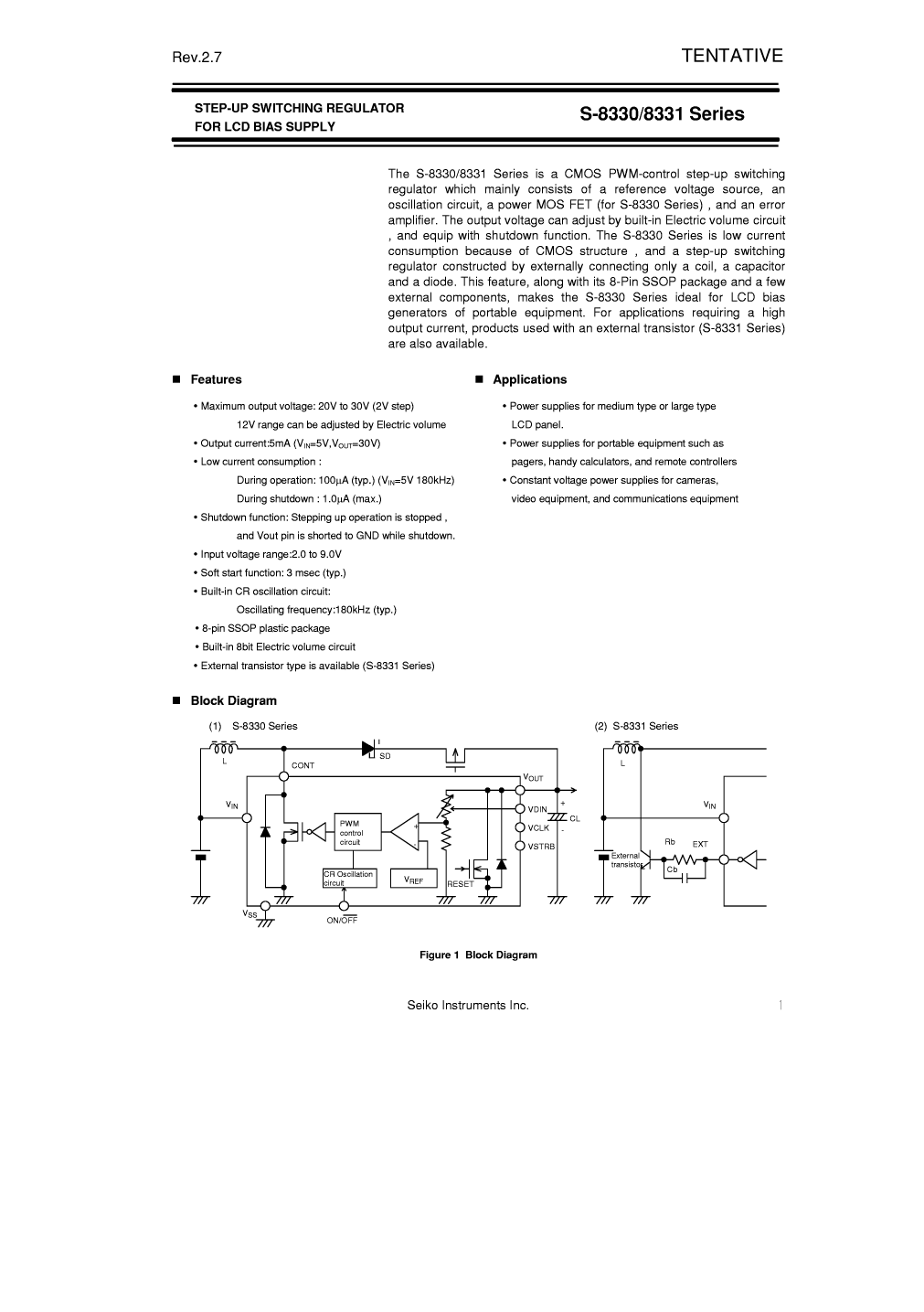

Preview

S-8331A24FS-T2: Description0.05A SWITCHING CONTROLLER, 180kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, SSOP-8; CategoryPower/power management The power supply circuit; File Size72KB，3 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

S-8331A24FS-T2 Overview

0.05A SWITCHING CONTROLLER, 180kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, SSOP-8

S-8331A24FS-T2 Parametric

Parameter Name	Attribute value
Maker	Seiko Epson Corporation
Parts packaging code	SOIC
package instruction	LSSOP,
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	9 V
Minimum input voltage	2 V
Nominal input voltage	5 V
JESD-30 code	R-PDSO-G8
length	4.4 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Maximum output current	0.05 A
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.3 mm
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	180 kHz
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	3.12 mm

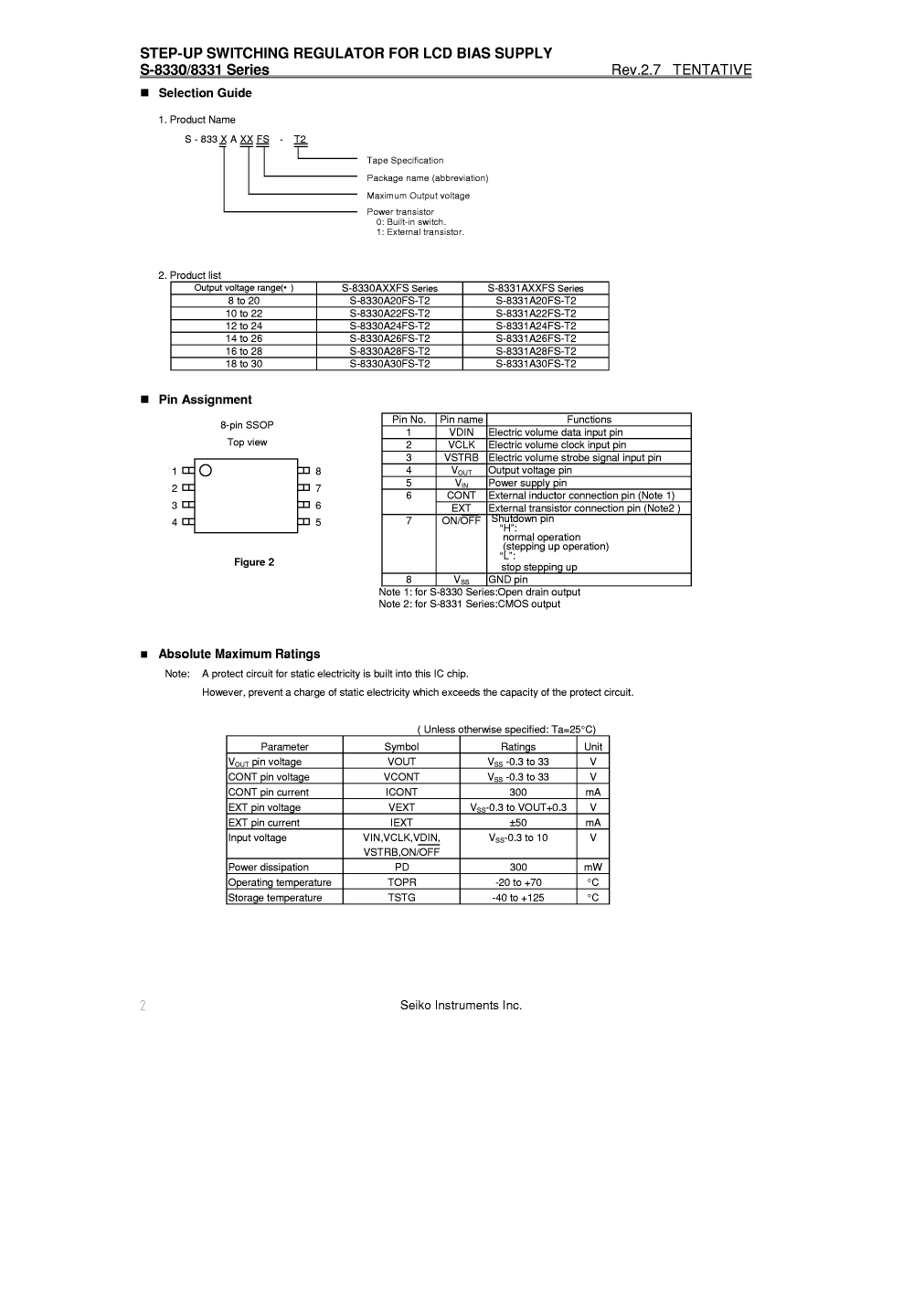

Preview

Download Datasheet

View All

S-8331A24FS-T2 Related Products

	S-8331A24FS-T2	S-8331A30FS-T2	S-8331A20FS-T2	S-8331A22FS-T2	S-8331A26FS-T2	S-8331A28FS-T2
Description	0.05A SWITCHING CONTROLLER, 180kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, SSOP-8	0.05A SWITCHING CONTROLLER, 180kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, SSOP-8	Switching Controller, Voltage-mode, 0.05A, 180kHz Switching Freq-Max, CMOS, PDSO8, PLASTIC, SSOP-8	0.05A SWITCHING CONTROLLER, 180kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, SSOP-8	0.05A SWITCHING CONTROLLER, 180kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, SSOP-8	0.05A SWITCHING CONTROLLER, 180kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, SSOP-8
Maker	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation
package instruction	LSSOP,	LSSOP,	LSSOP,	LSSOP,	LSSOP,	LSSOP,
Reach Compliance Code	unknow	unknown	unknown	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	9 V	9 V	9 V	9 V	9 V	9 V
Minimum input voltage	2 V	2 V	2 V	2 V	2 V	2 V
Nominal input voltage	5 V	5 V	5 V	5 V	5 V	5 V
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Maximum output current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP	LSSOP	LSSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm
surface mount	YES	YES	YES	YES	YES	YES
Switch configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum switching frequency	180 kHz	180 kHz	180 kHz	180 kHz	180 kHz	180 kHz
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.12 mm	3.12 mm	3.12 mm	3.12 mm	3.12 mm	3.12 mm
Parts packaging code	SOIC	SOIC	-	SOIC	SOIC	SOIC
Contacts	8	8	-	8	8	8
