2517-T-L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 2517-T-L

Preview

2517-T-L: DescriptionWire Terminal, ROHS COMPLIANT; CategoryThe connector; File Size252KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

2517-T-L Overview

Wire Terminal, ROHS COMPLIANT

2517-T-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Manufacturer's serial number	2517-T
Terminal and terminal strip types	WIRE TERMINAL
Wire gauge	22 AWG

Preview

Download Datasheet

View All

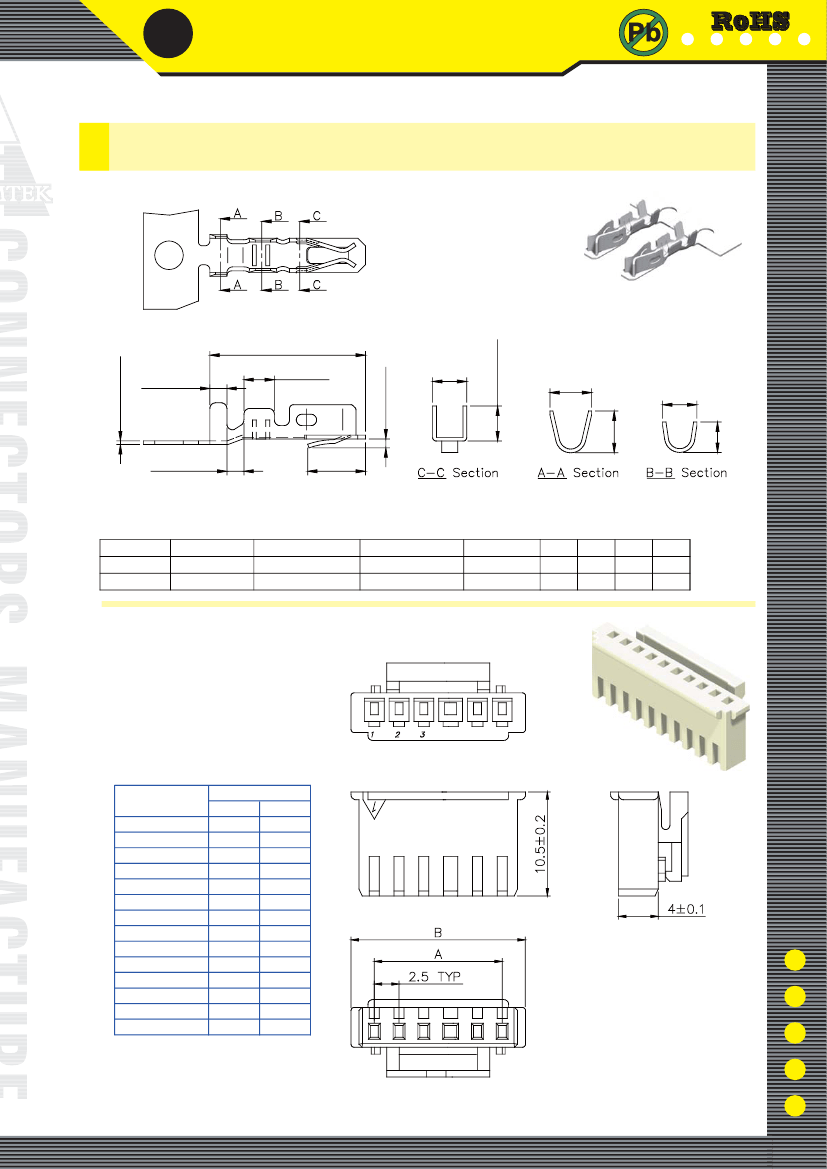

H

ousing Wafer Terminal

2.5mm Terminal / Housing

0.25±0.03

9.5±0.2

0.6±0.15

1.6±0.2

1.8±0.15

1.9±0.15

8.3

A

C

B

D

C

D

2.25 1.65

2.05 1.30

0.85±0.2

3.1±0.2

Part No.:2517-T-L

Wire Range

Part No.

Material

Finish

Insulation O.D

1.7~1.35mm(max) Phosphor Bronze Gold Plated

2517-T-L AWG#22-#26

2517-T-A-L AWG#28-#30 1.2~1.05mm(max) Phosphor Bronze Gold Plated

Specifications

A

2.30

2.05

B

1.9

1.4

Current Rating: 3A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 30m

Ω

Max

Insulation Resistance: 500M

Ω

Min

Withstanding Voltage: 1500V AC/minute

Material: Nylon 66,UL94V-0

Part No.

2517H-02W-L

2517H-03W-L

2517H-04W-L

2517H-05W-L

2517H-06W-L

2517H-07W-L

2517H-08W-L

2517H-09W-L

2517H-10W-L

2517H-11W-L

2517H-12W-L

2517H-13W-L

2517H-14W-L

2517H-15W-L

Dimensions

A

B

2.50

7.10

5.00

9.60

7.50

12.10

10.00

14.60

12.50

17.10

15.00

19.60

17.50

22.10

20.00

24.60

22.50

27.10

25.00

29.60

27.50

32.10

30.00

34.60

32.50

37.10

35.00

39.60

Part No.:2517H-XXW-L

www.amtek-co.com.tw

3-86

2517-T-L Related Products

	2517-T-L	2517-T-A-L	2517H-10W-L
Description	Wire Terminal, ROHS COMPLIANT	Wire Terminal, ROHS COMPLIANT	Board Connector, 10 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Receptacle
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99
Manufacturer's serial number	2517-T	2517-T	2517
Maker	Amtek Technology Co., Ltd.	Amtek Technology Co., Ltd.	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	-
Terminal and terminal strip types	WIRE TERMINAL	WIRE TERMINAL	-
Wire gauge	22 AWG	28 AWG	-
