TD62383P datasheet, PDF - EEWORLD Datasheet

TD62383P: Description8CH LOW INPUT ACTIVE SINK DRIVER; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size184KB，5 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TD62383P Overview

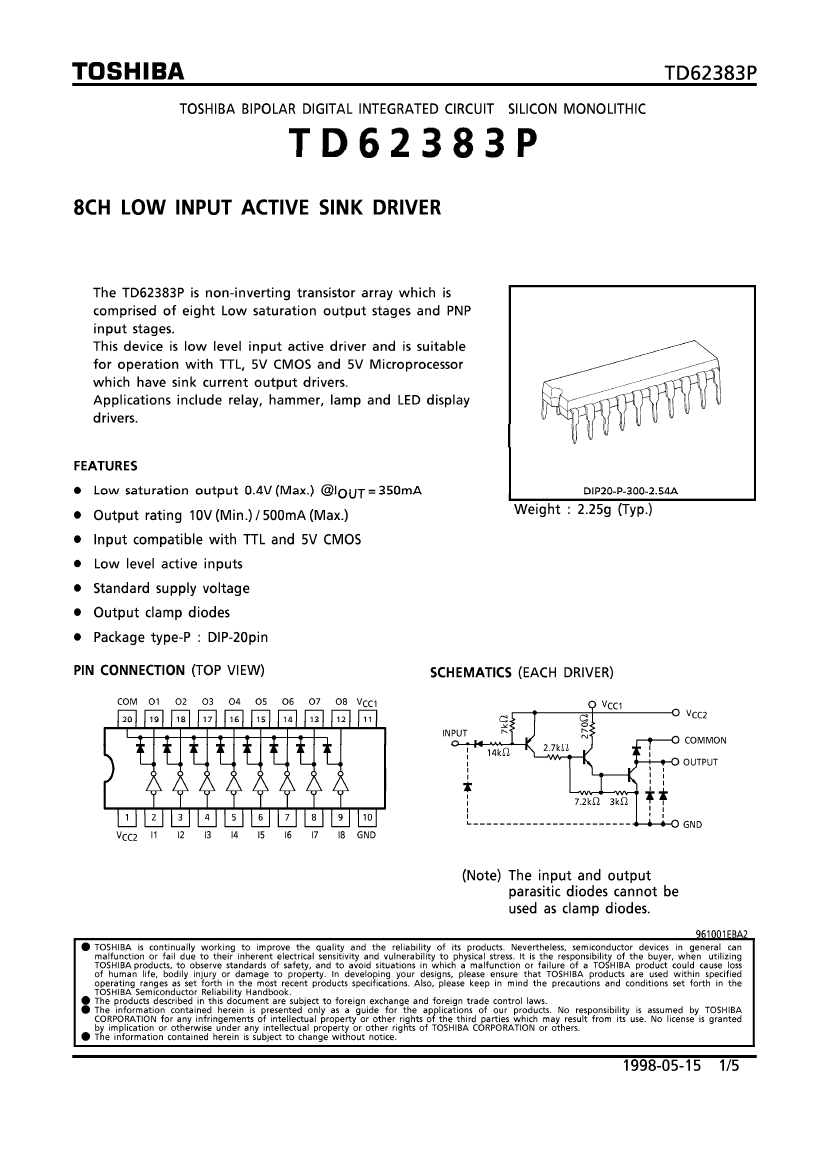

8CH LOW INPUT ACTIVE SINK DRIVER

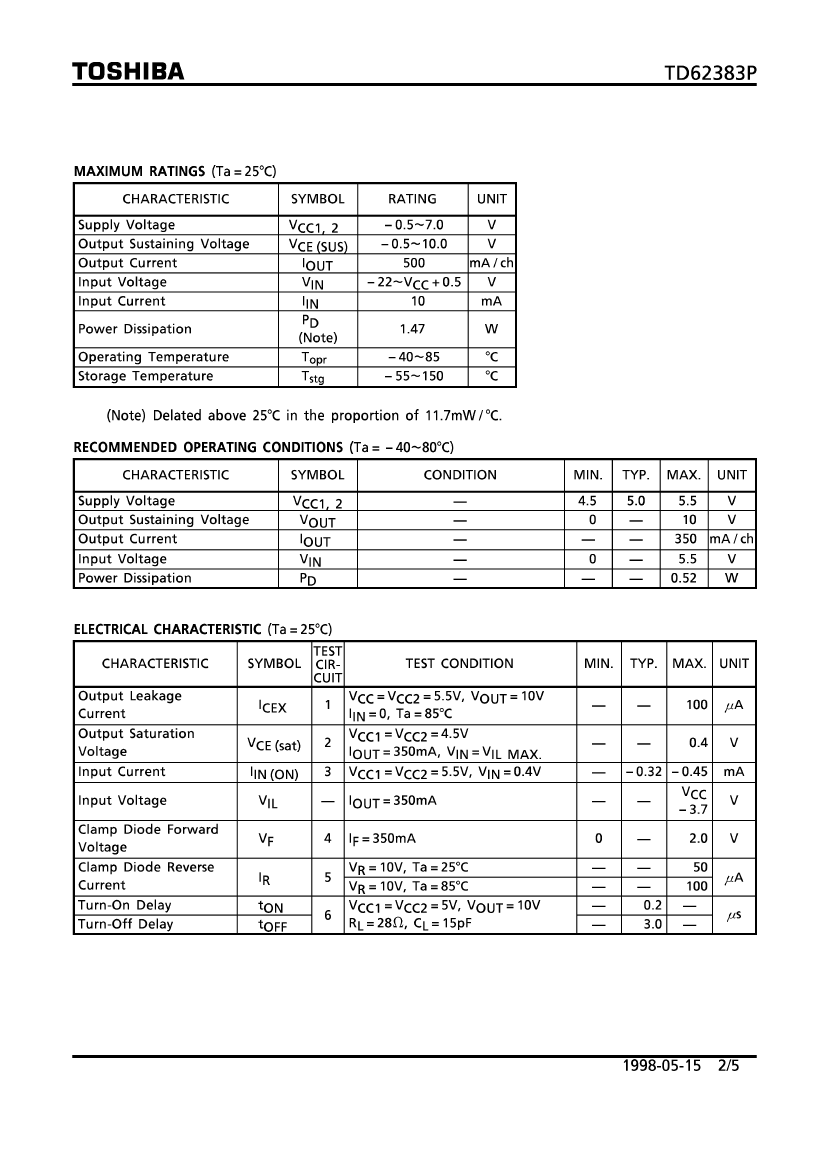

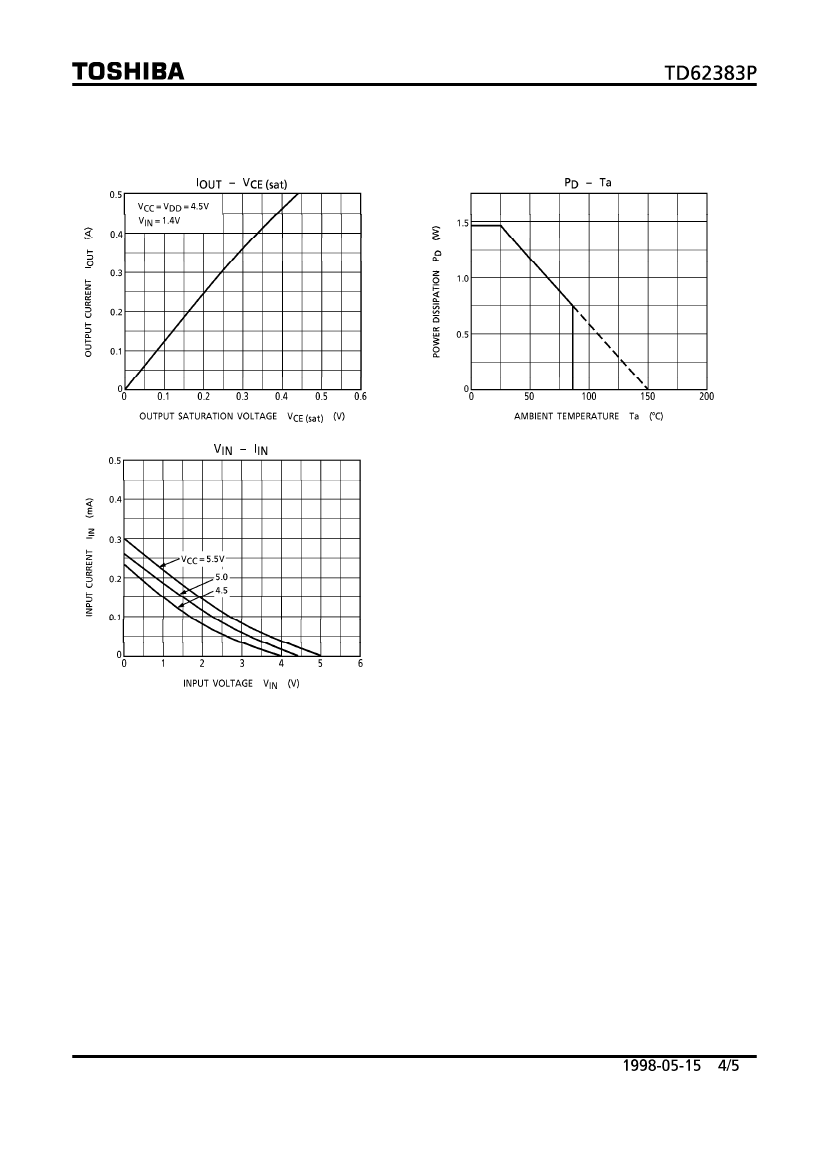

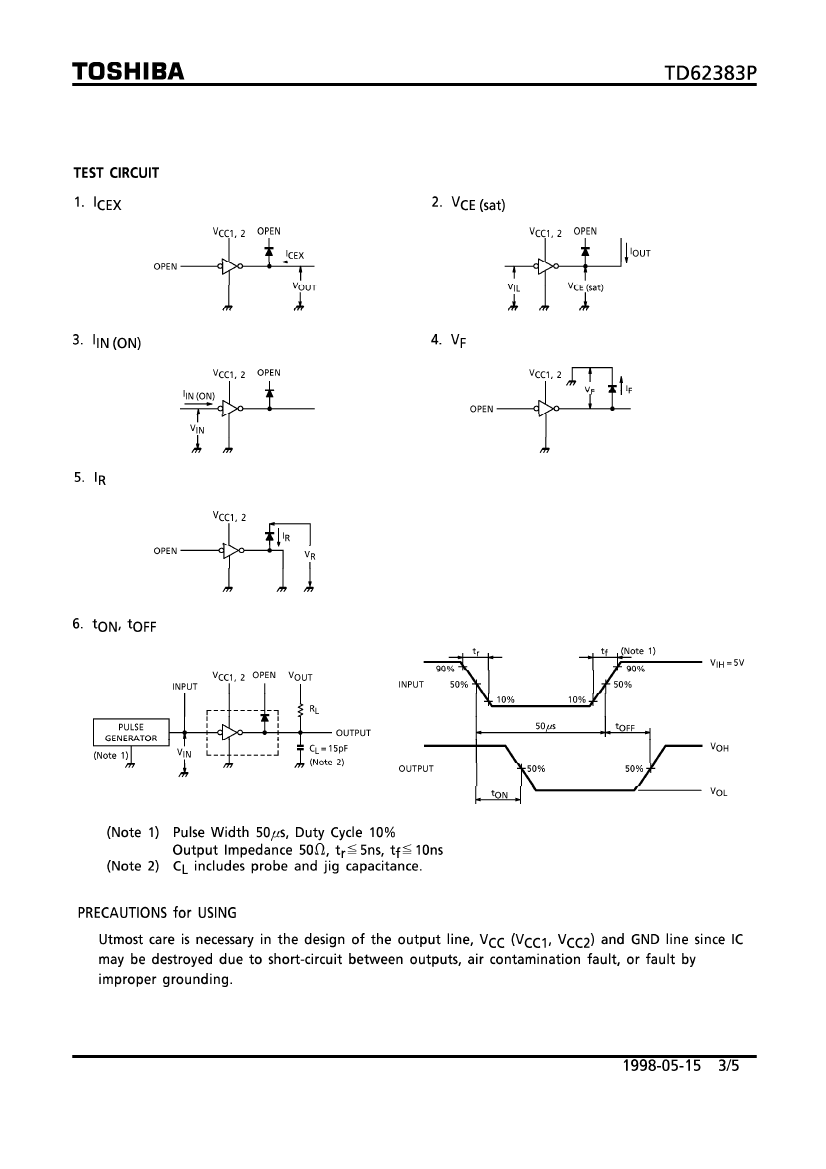

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	unknow
ECCN code	EAR99
Built-in protection	TRANSIENT
Number of drives	8
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T20

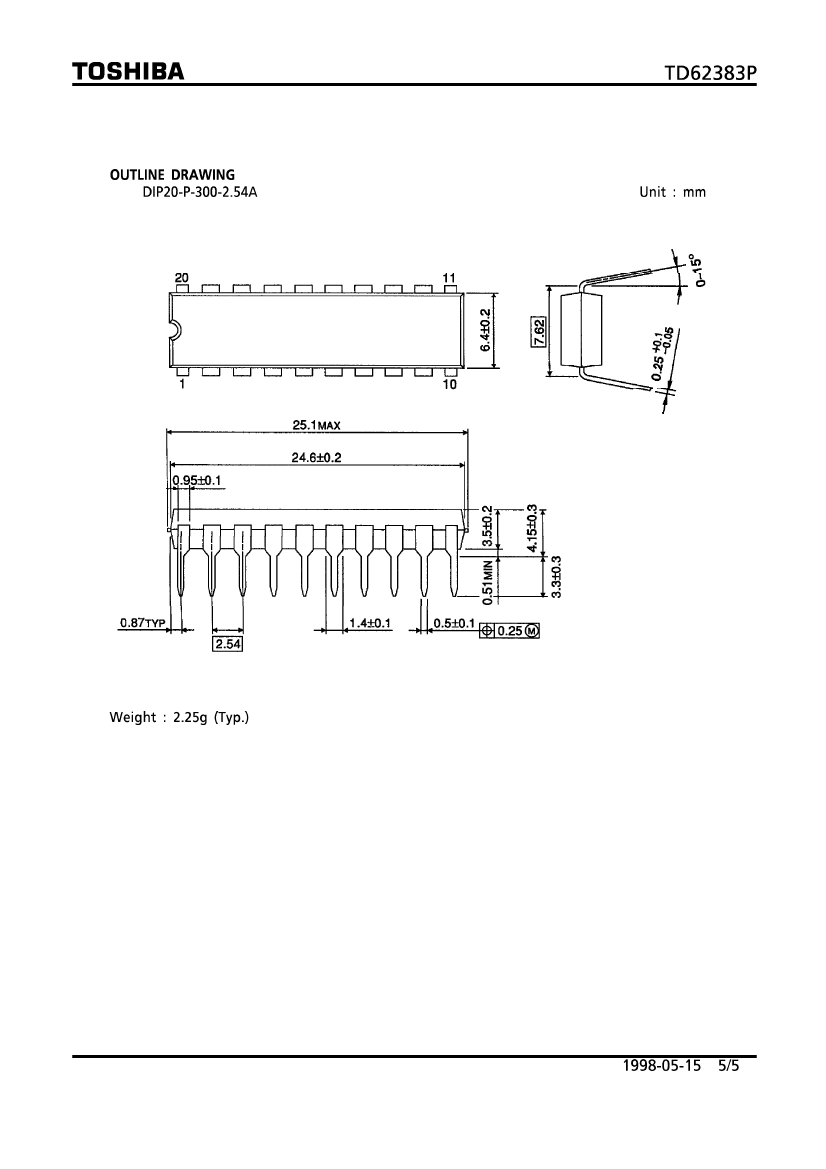

length	24.6 mm
Number of functions	8
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Maximum output current	0.35 A
Nominal output peak current	0.35 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.45 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

	TD62383P	TD62383
Description	8CH LOW INPUT ACTIVE SINK DRIVER	8CH LOW INPUT ACTIVE SINK DRIVER
