Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> TD62382AF

Preview

TD62382AF: Description8CH LOW INPUT ACTIVE SINK DRIVER; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size240KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

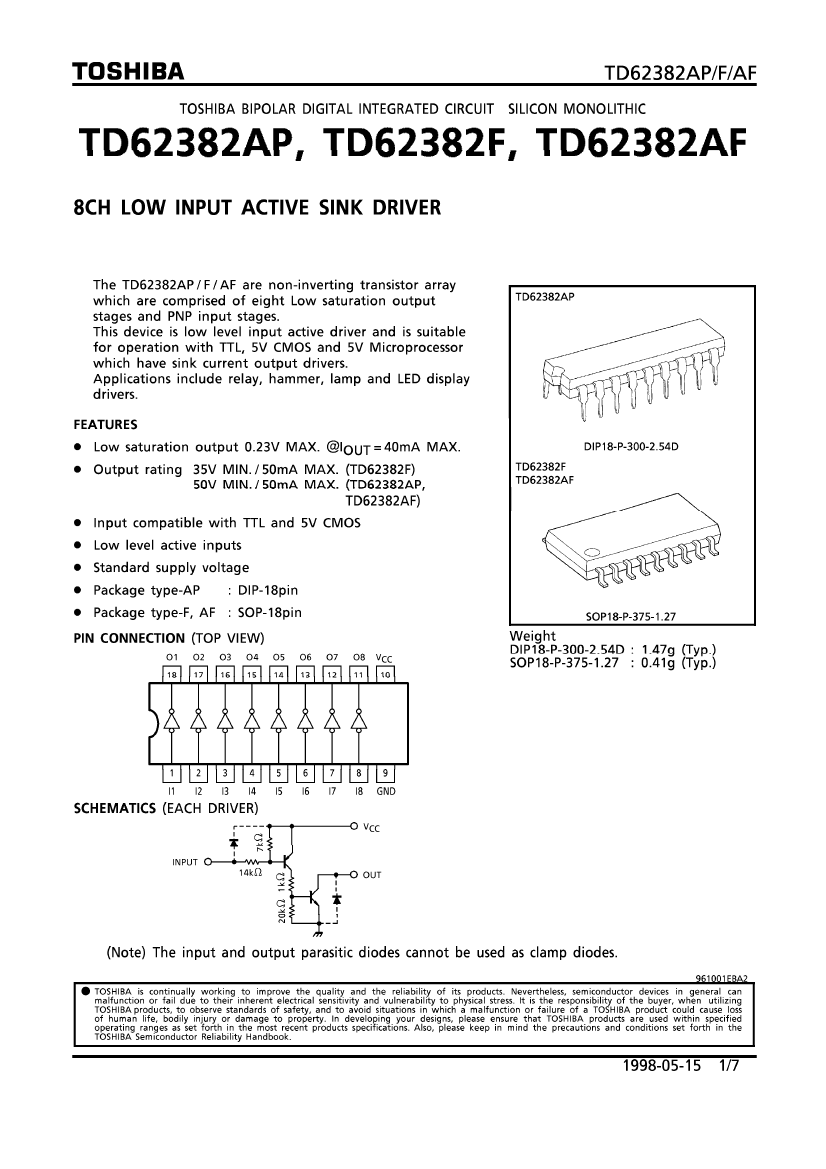

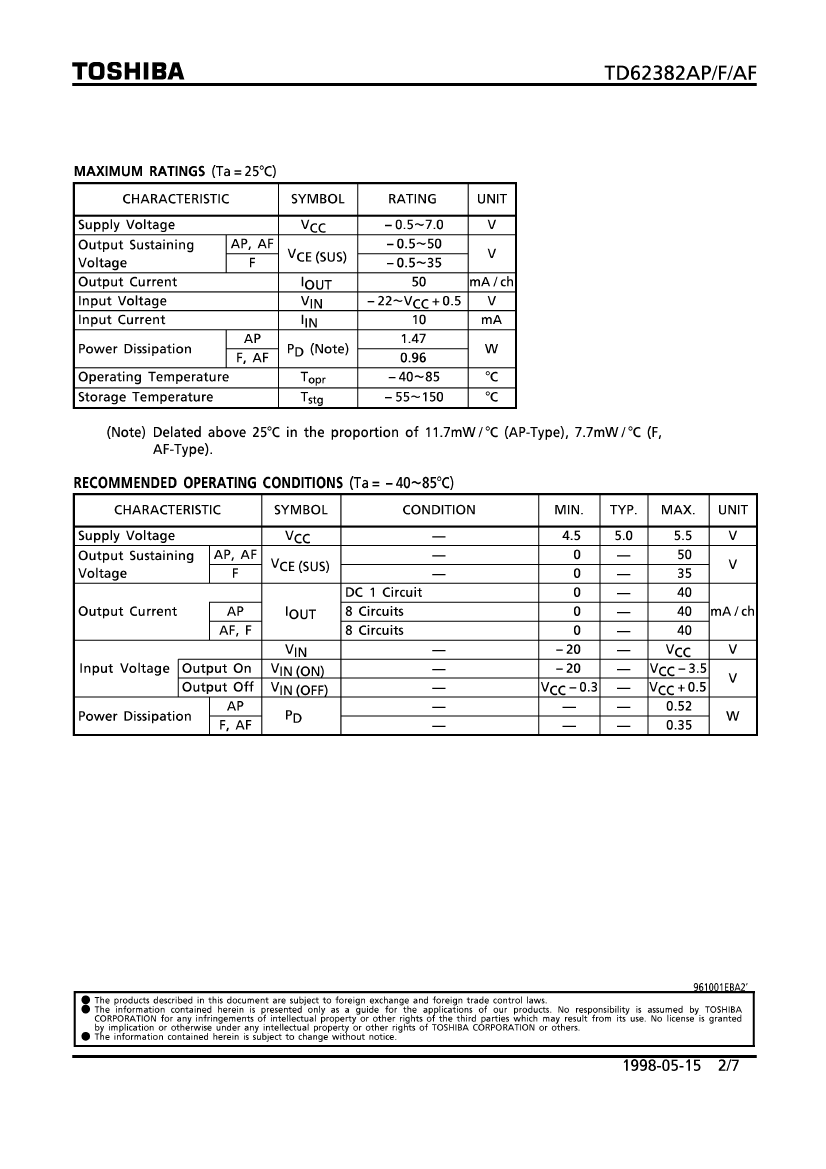

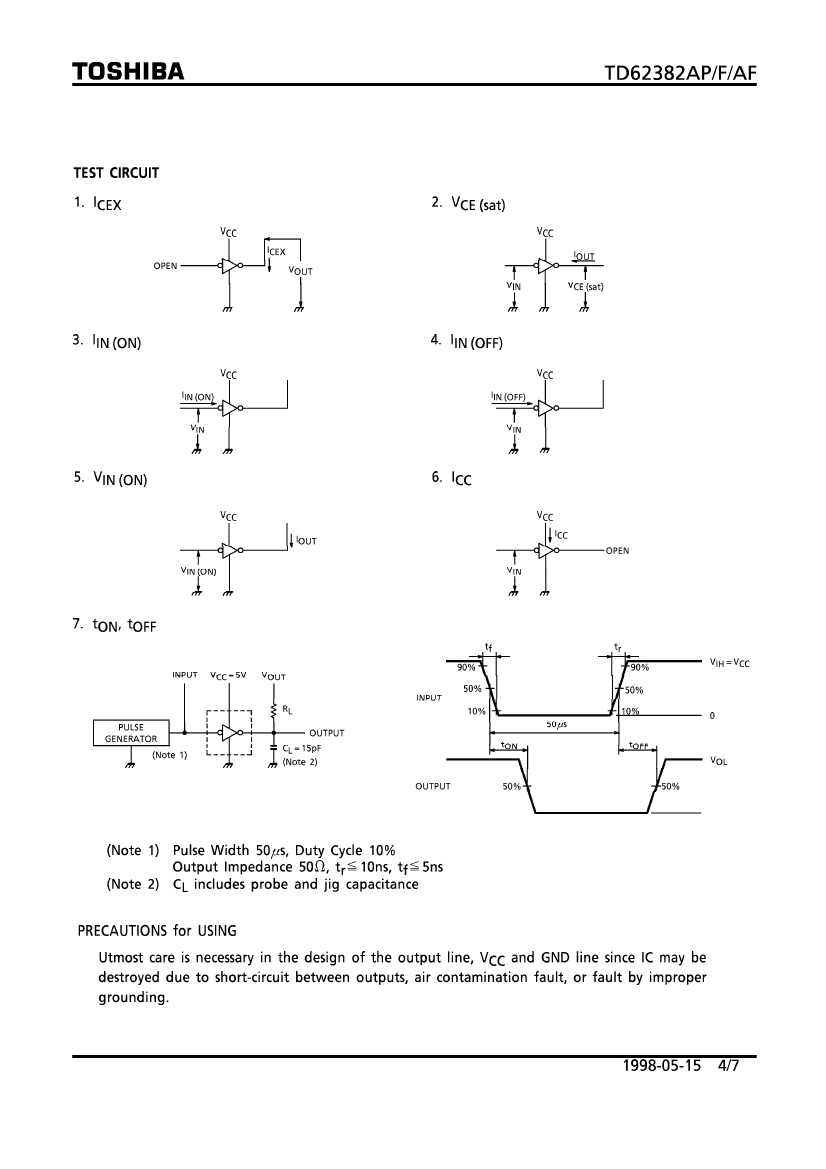

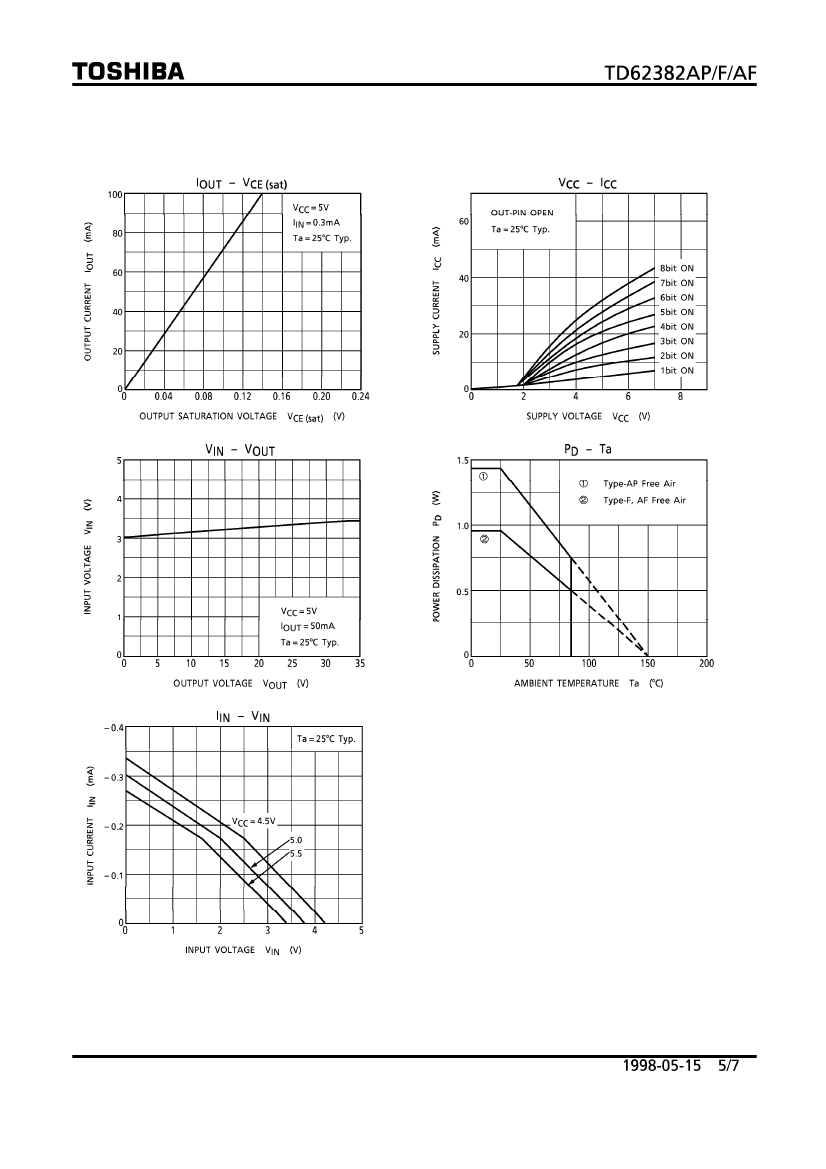

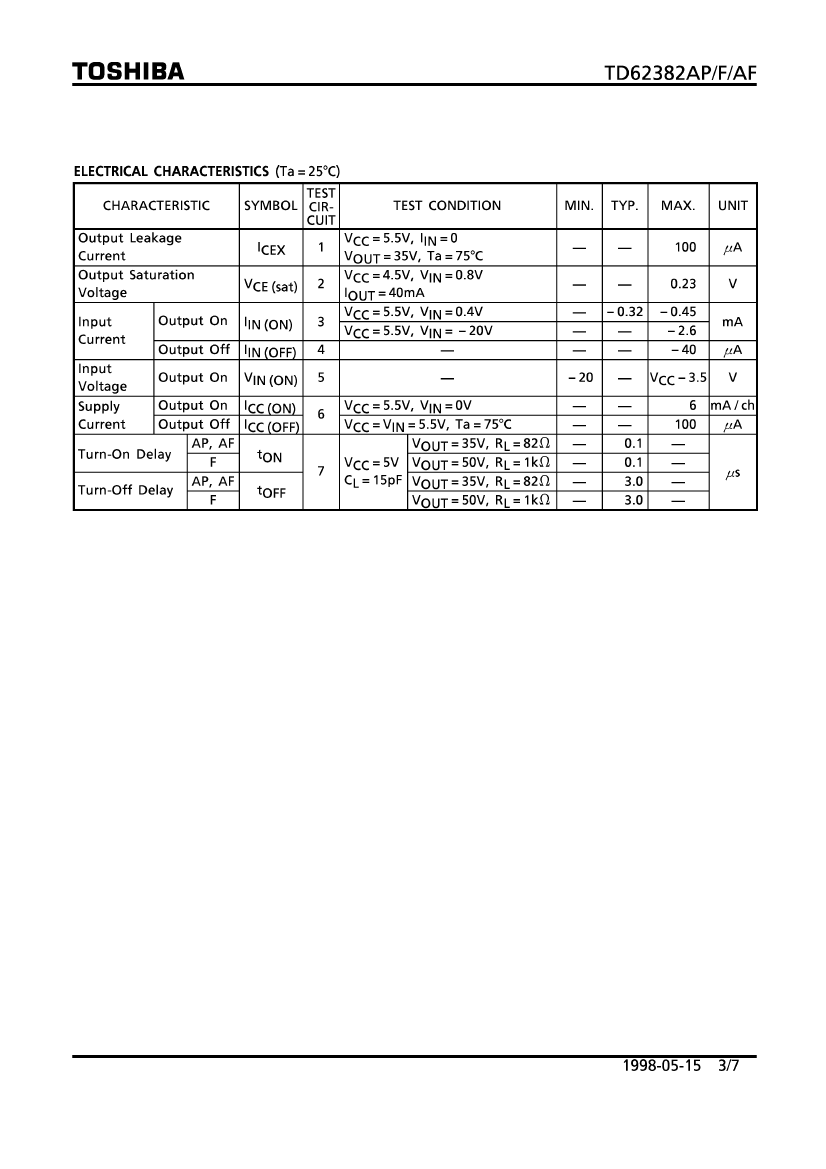

TD62382AF Overview

8CH LOW INPUT ACTIVE SINK DRIVER

TD62382AF Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP, SOP18,.4
Contacts	18
Reach Compliance Code	unknow
ECCN code	EAR99
Built-in protection	TRANSIENT
Number of drives	8
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDSO-G18
length	12.5 mm
Number of functions	8
Number of terminals	18
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Maximum output current	0.04 A
Nominal output peak current	0.04 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP18,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.45 mm
Maximum slew rate	48 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7 mm

Preview

Download Datasheet

View All

TD62382AF Related Products

	TD62382AF	TD62382AP	TD62382F
Description	8CH LOW INPUT ACTIVE SINK DRIVER	8CH LOW INPUT ACTIVE SINK DRIVER	8CH LOW INPUT ACTIVE SINK DRIVER
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	DIP	SOIC
package instruction	SOP, SOP18,.4	DIP, DIP18,.3	SOP, SOP18,.4
Contacts	18	18	18
Reach Compliance Code	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Number of drives	8	8	8
Input properties	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDSO-G18	R-PDIP-T18	R-PDSO-G18
length	12.5 mm	24.6 mm	12.5 mm
Number of functions	8	8	8
Number of terminals	18	18	18
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Output current flow direction	SINK	SINK	SINK
Maximum output current	0.04 A	0.04 A	0.04 A
Nominal output peak current	0.04 A	0.04 A	0.04 A
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP
Encapsulate equivalent code	SOP18,.4	DIP18,.3	SOP18,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.45 mm	4.45 mm	2.45 mm
Maximum slew rate	48 mA	48 mA	48 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7 mm	7.62 mm	7 mm
Built-in protection	TRANSIENT	TRANSIENT	-
JESD-609 code	-	e0	e0
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
